Pinout Values and Diagnostic Parameters

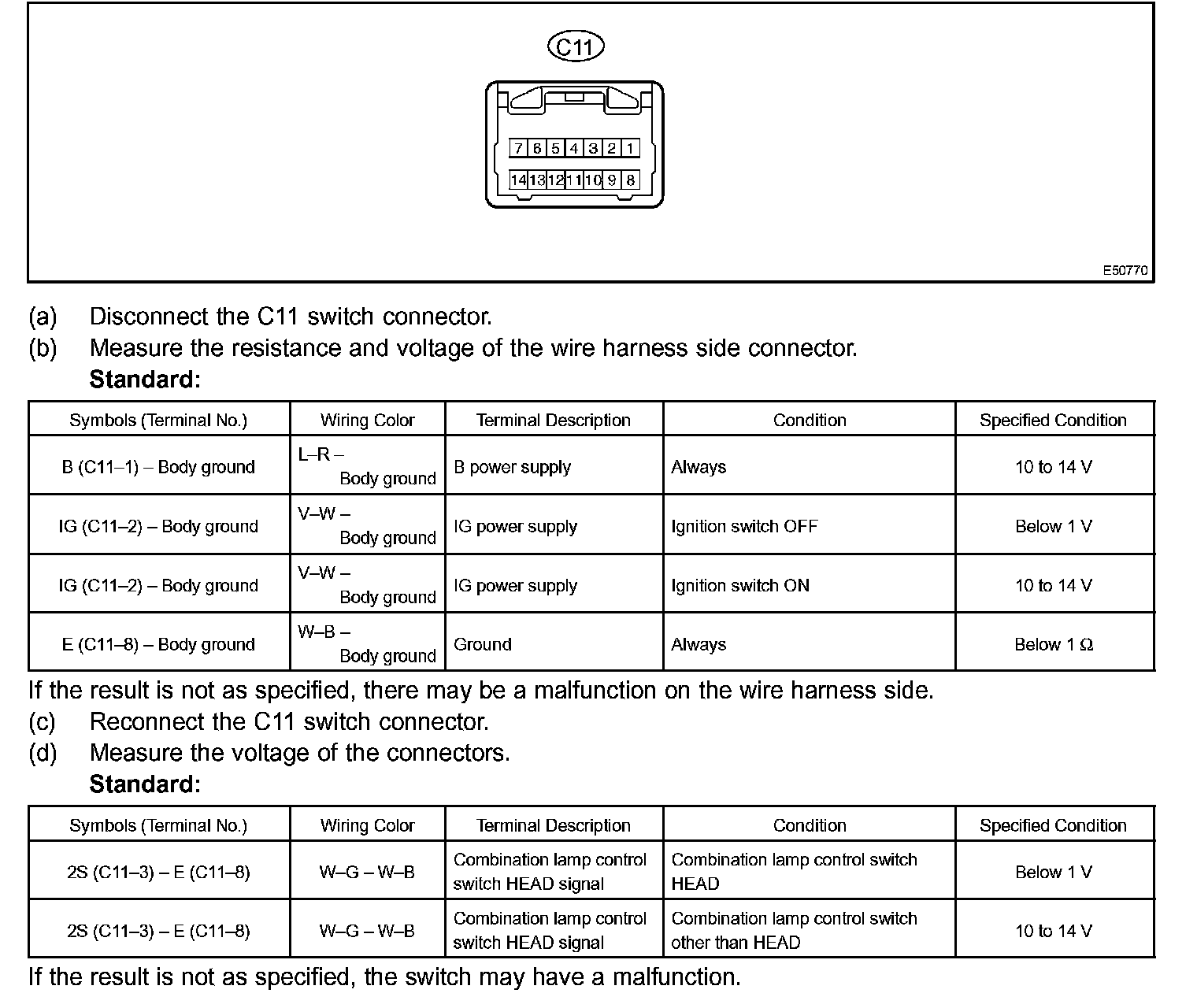

Terminals Of Control Module/Pinouts - Check Turn Signal Switch (Combination Switch):

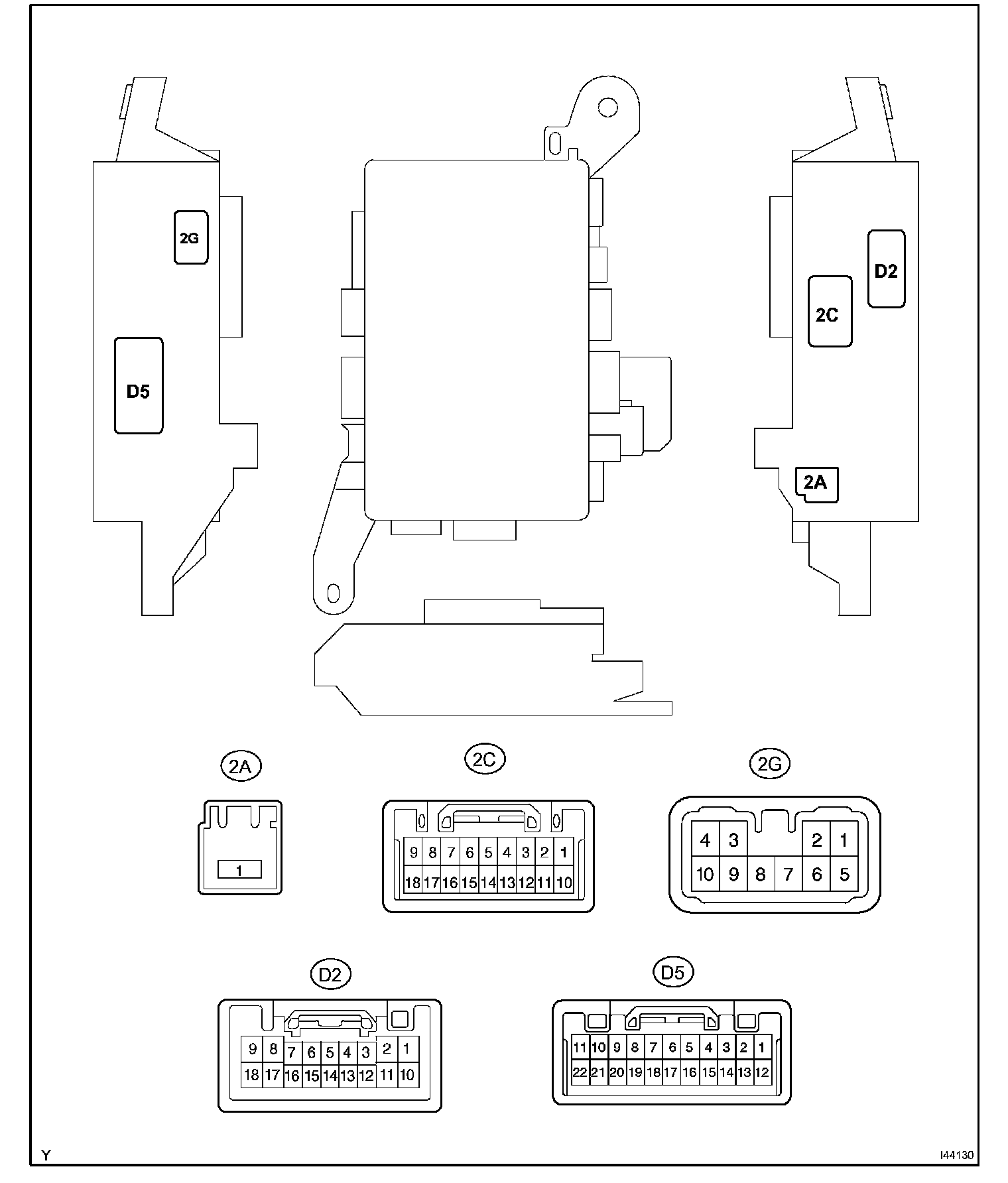

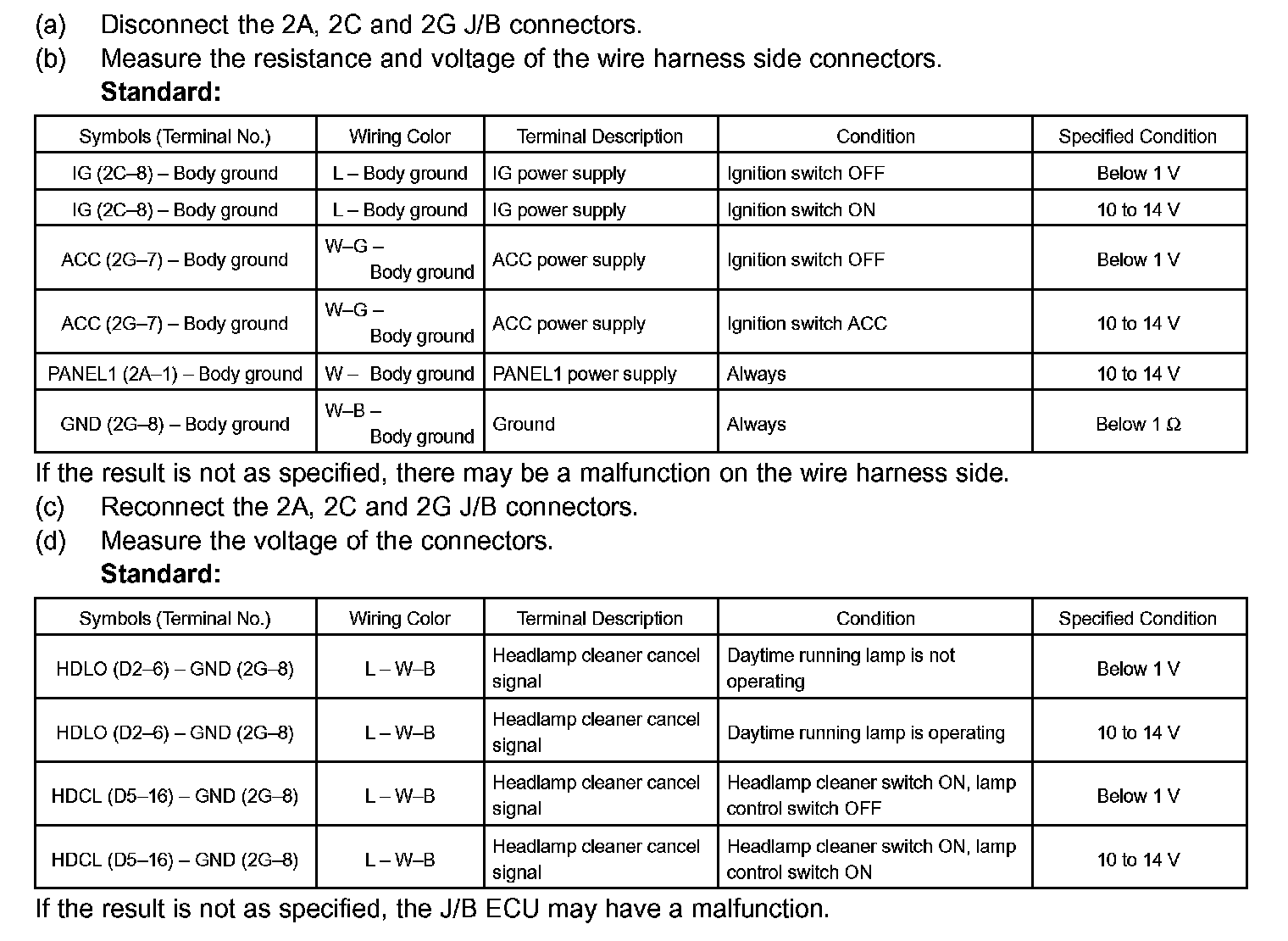

Terminals Of Control Module/Pinouts - Check Driver Side J/B (Driver Side J/B ECU) Part 1:

Terminals Of Control Module/Pinouts - Check Driver Side J/B (Driver Side J/B ECU) Part 2:

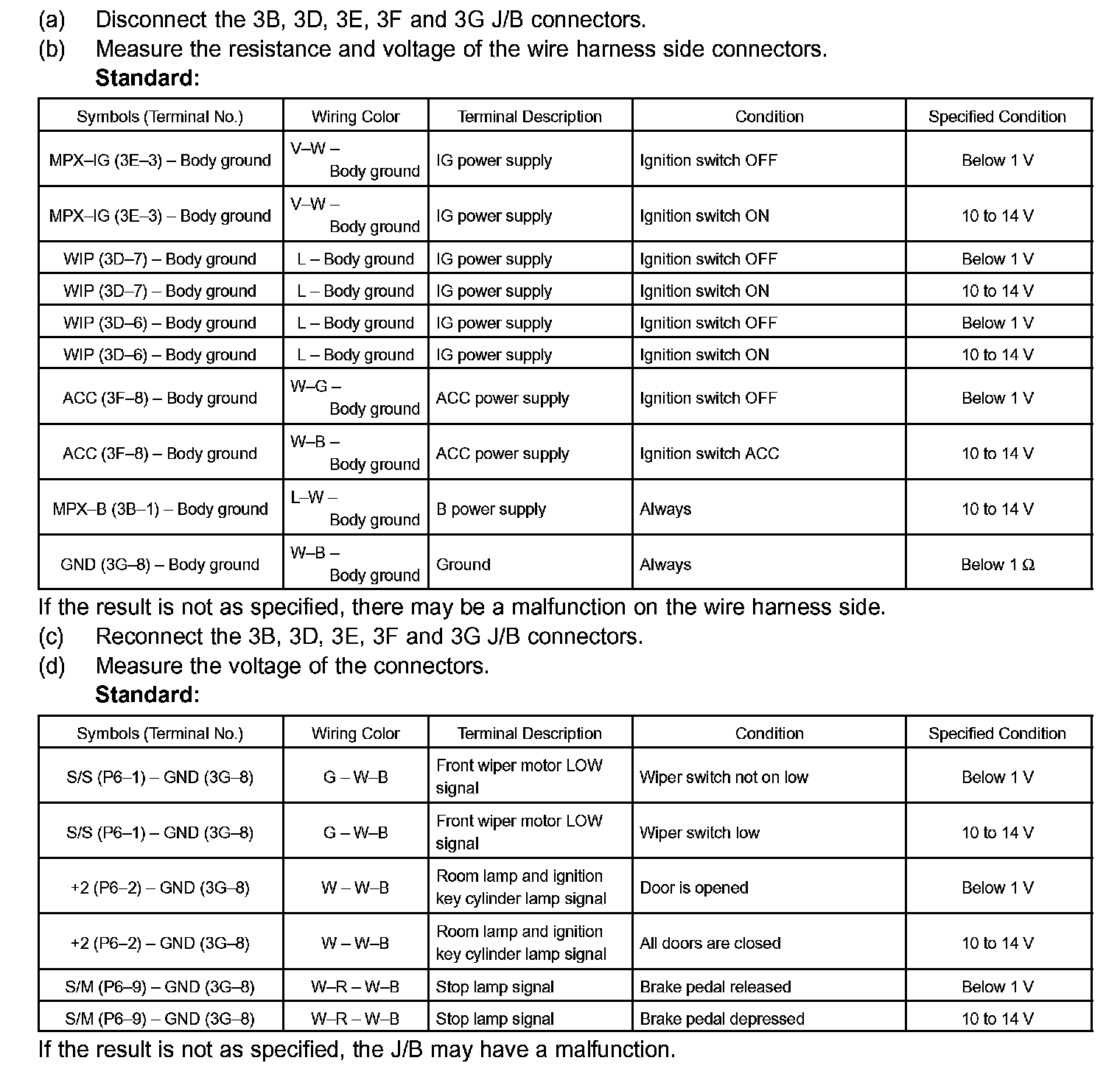

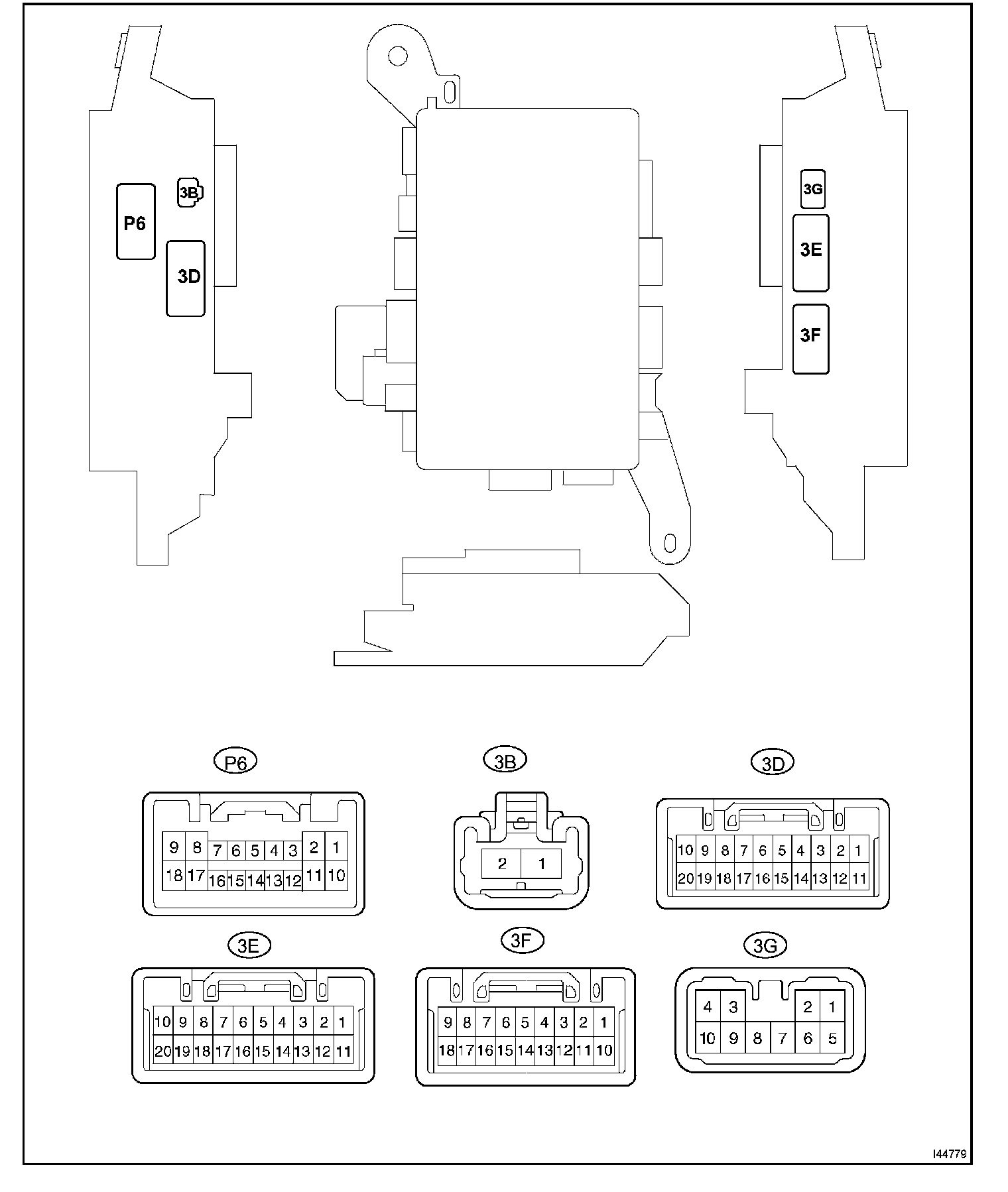

Terminals Of Control Module/Pinouts - Check Passenger Side J/B (Passenger Side J/B ECU) Part 1:

Terminals Of Control Module/Pinouts - Check Passenger Side J/B (Passenger Side J/B ECU) Part 2:

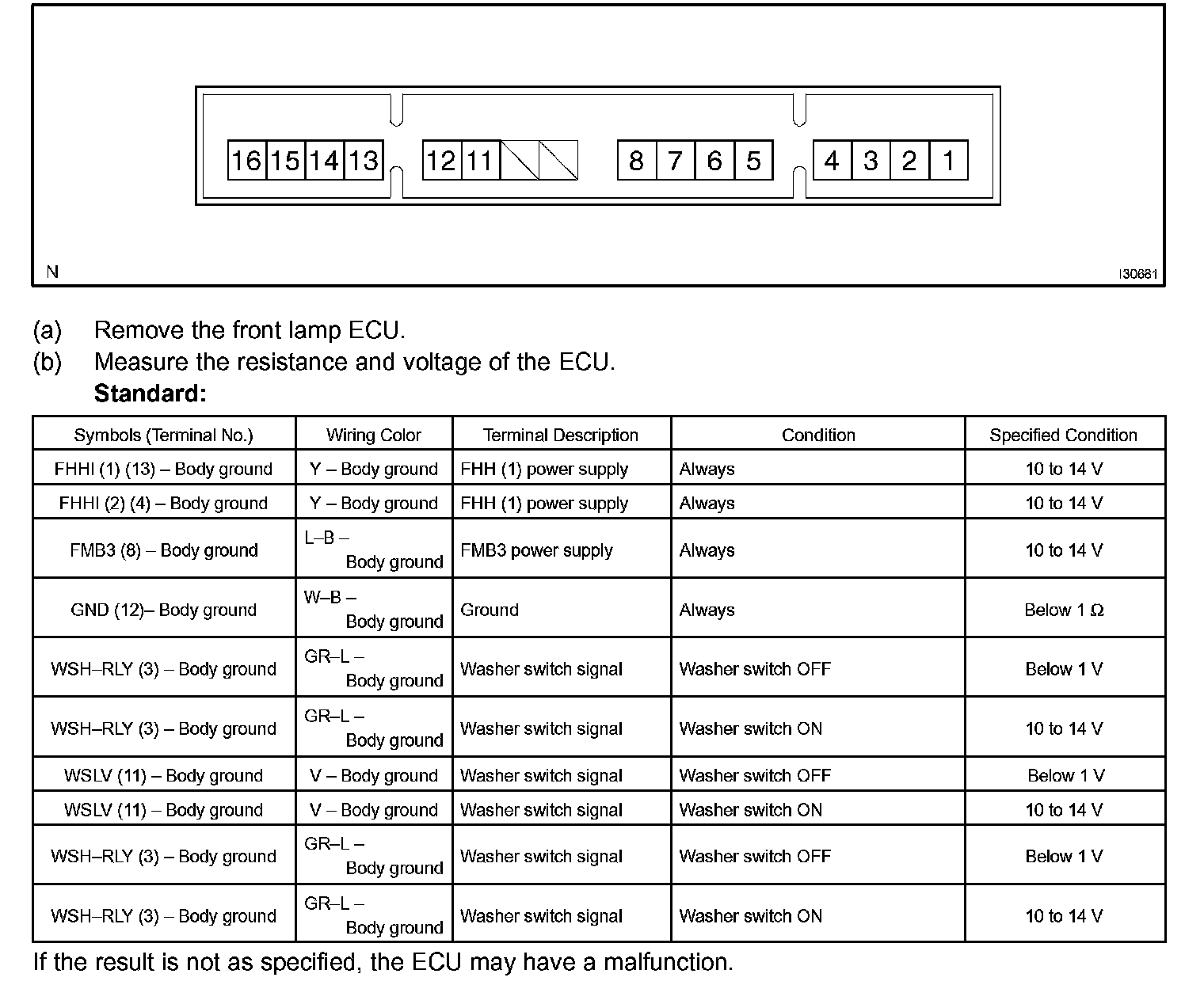

Terminals Of Control Module/Pinouts Check Front Lamp ECU (Front Controller):
