Washer Motor and Relay Circuit
WASHER MOTOR AND RELAY CIRCUITCIRCUIT DESCRIPTION
The front lamp ECU receives washer switch information from the combination switch, and operates the washer motor.

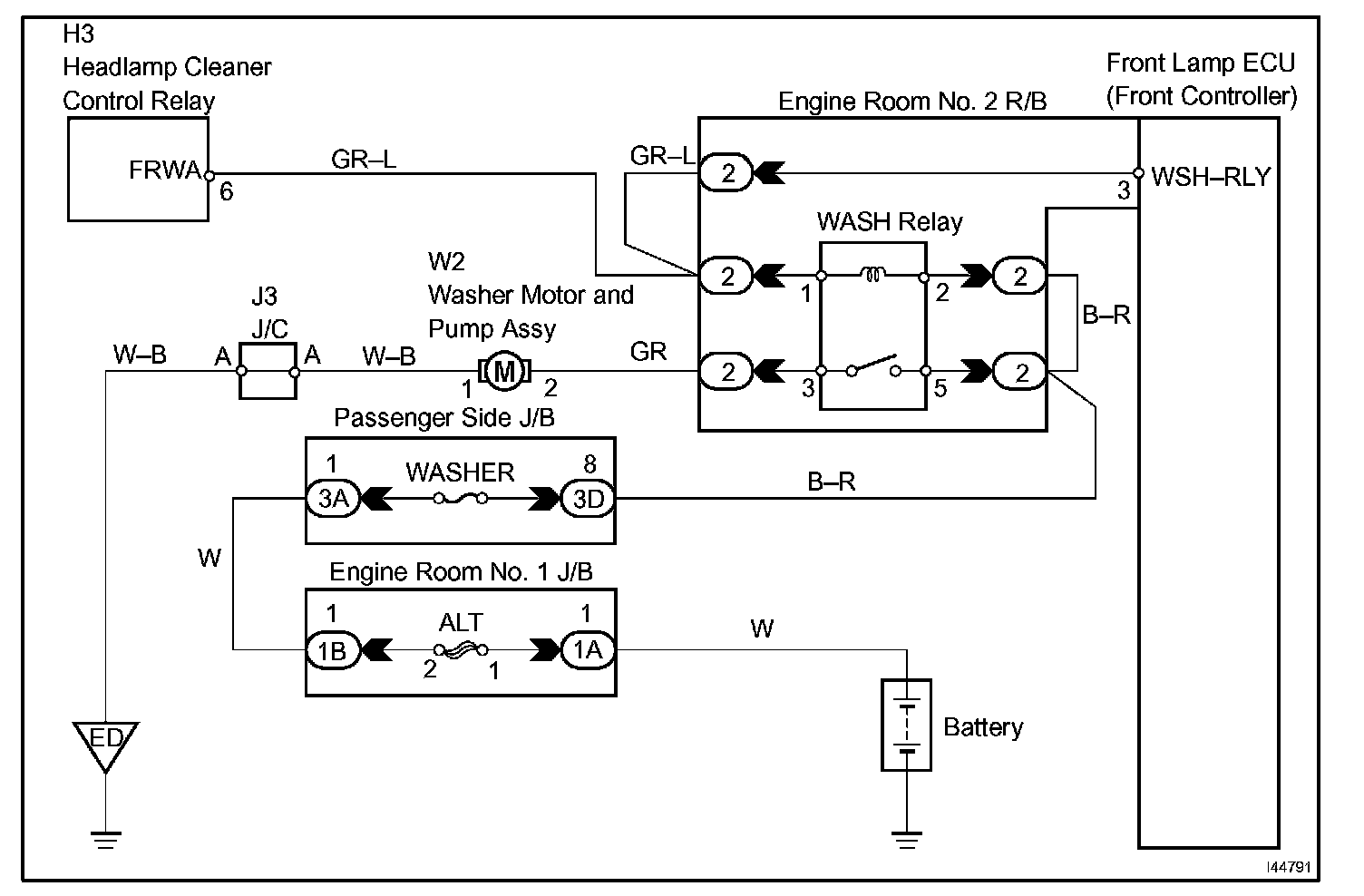

Wiring Diagram:

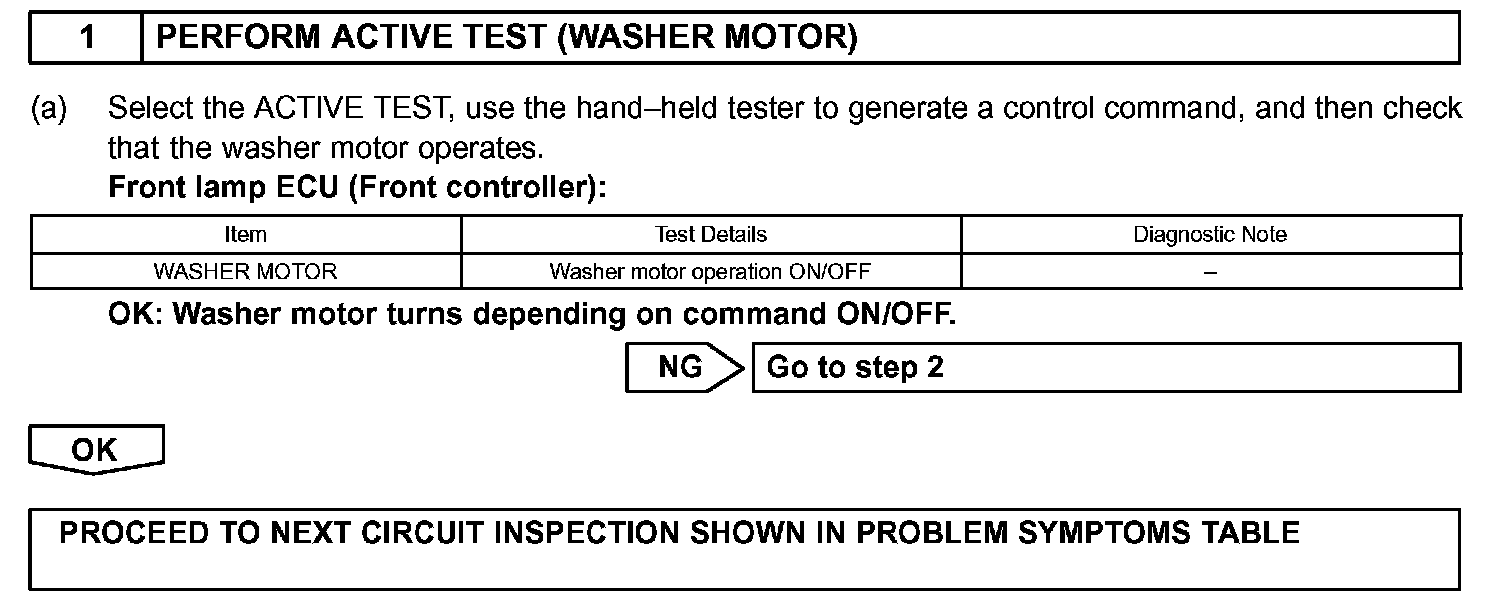

Step 1:

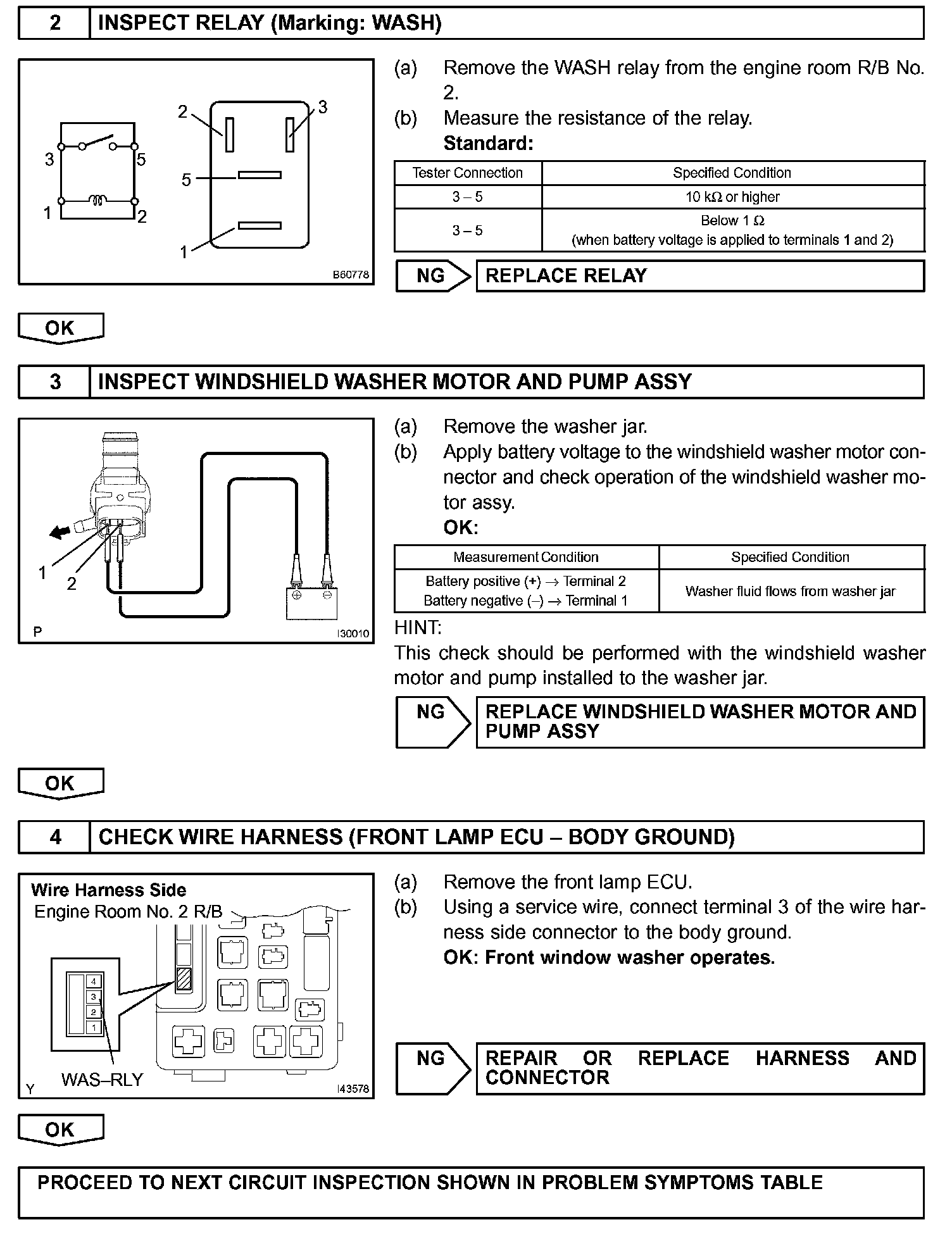

Step 2 - 4:
INSPECTION PROCEDURE
