Power Window Does Not Operate on Passenger Side

POWER WINDOW DOES NOT OPERATE ON PASSENGER SIDE

CIRCUIT DESCRIPTION

The power window regulator switch sends signals to the multiplex network door ECU front RH (passenger door ECU). The ECU then activates the appropriate power window regulator motor.

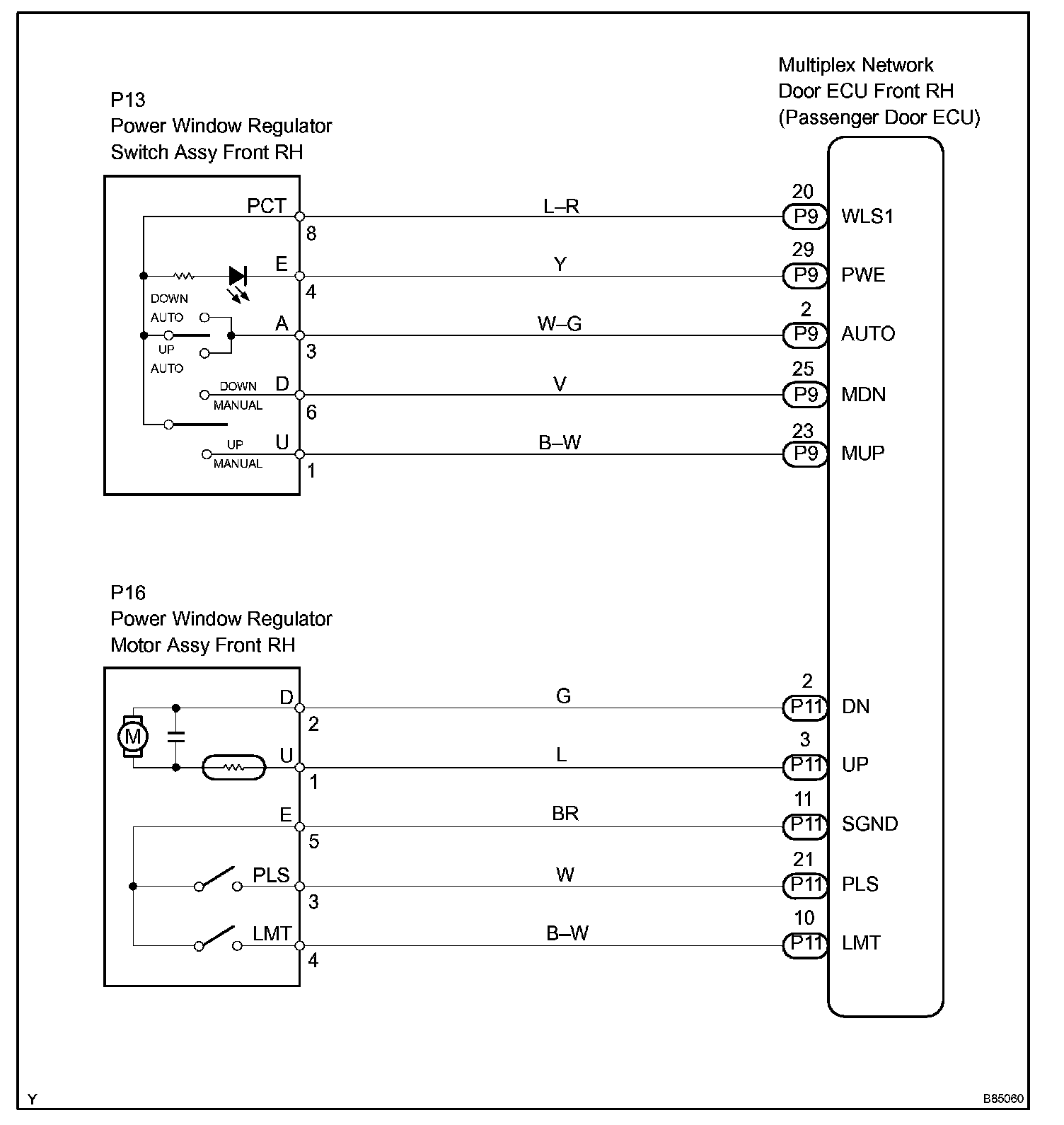

Wiring Diagram:

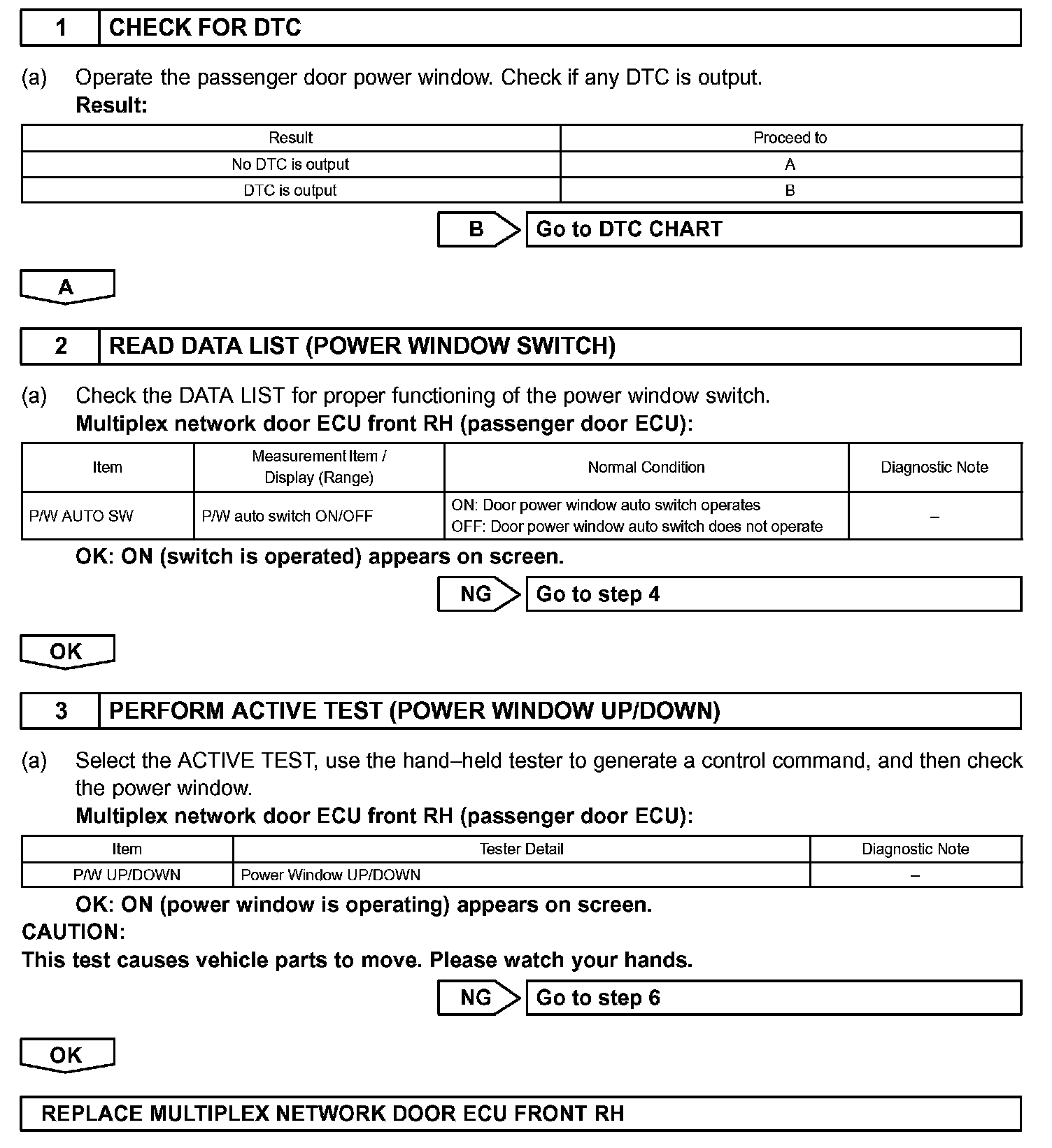

Step 1 - 3:

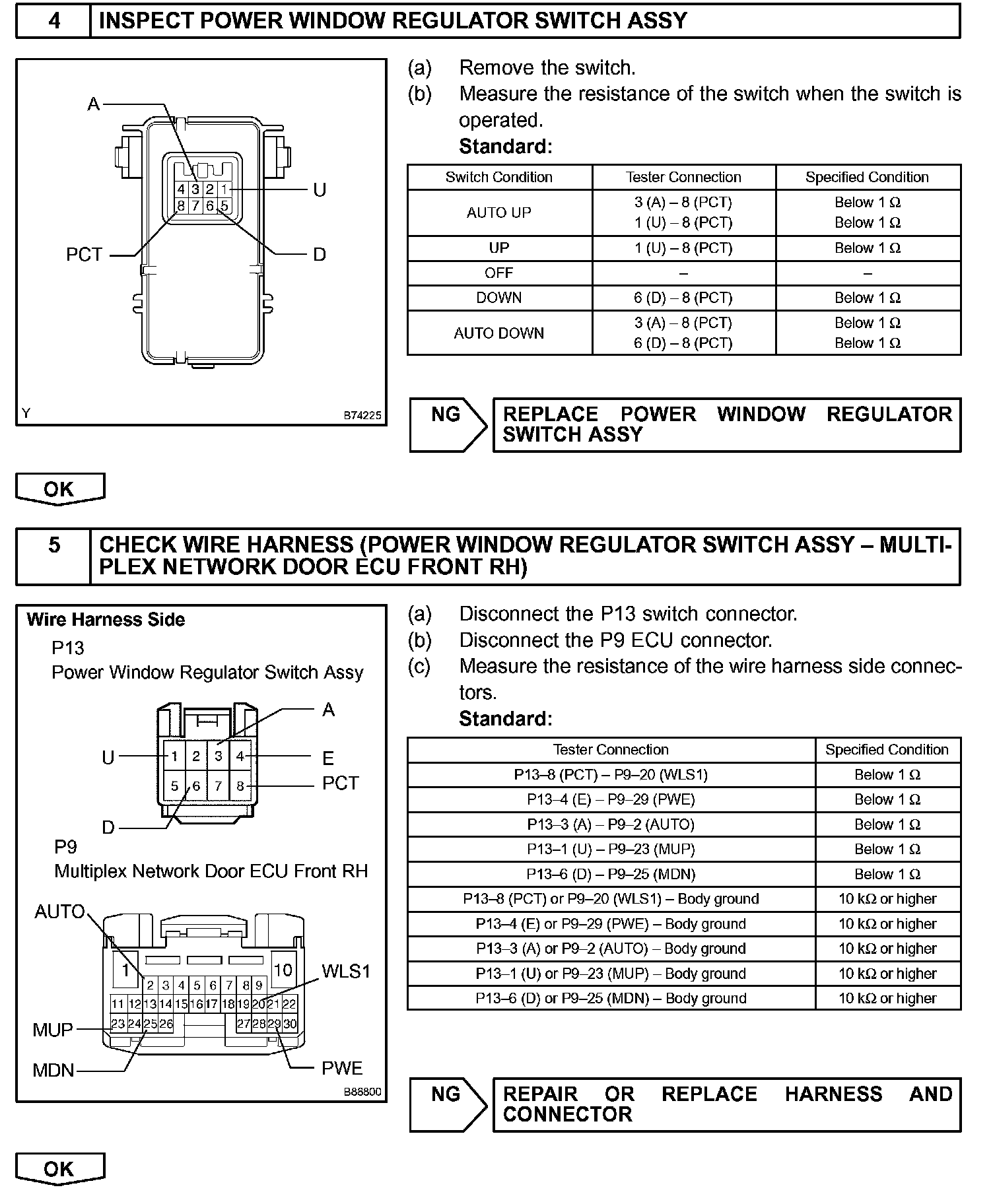

Step 4 - 5:

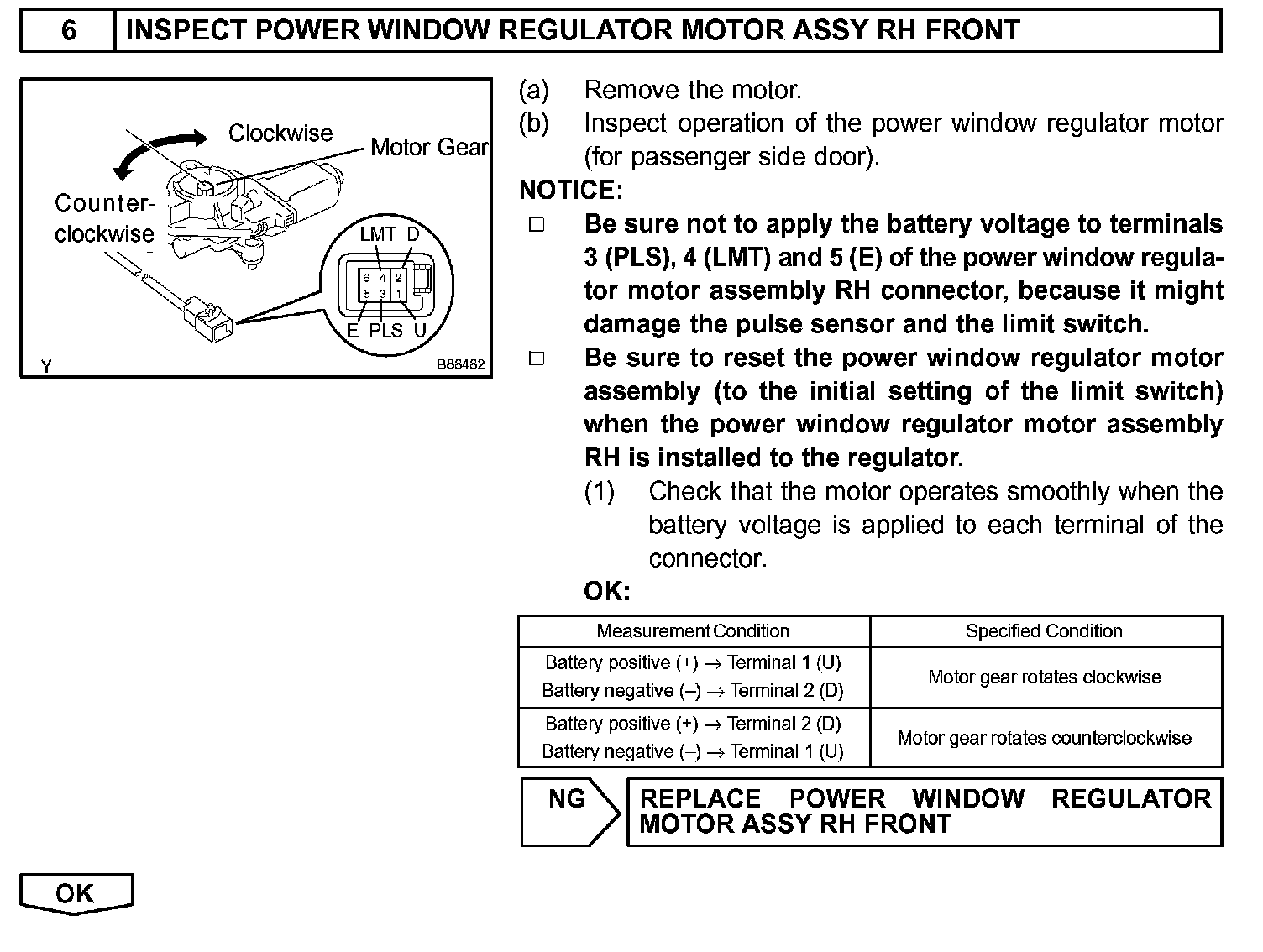

Step 6:

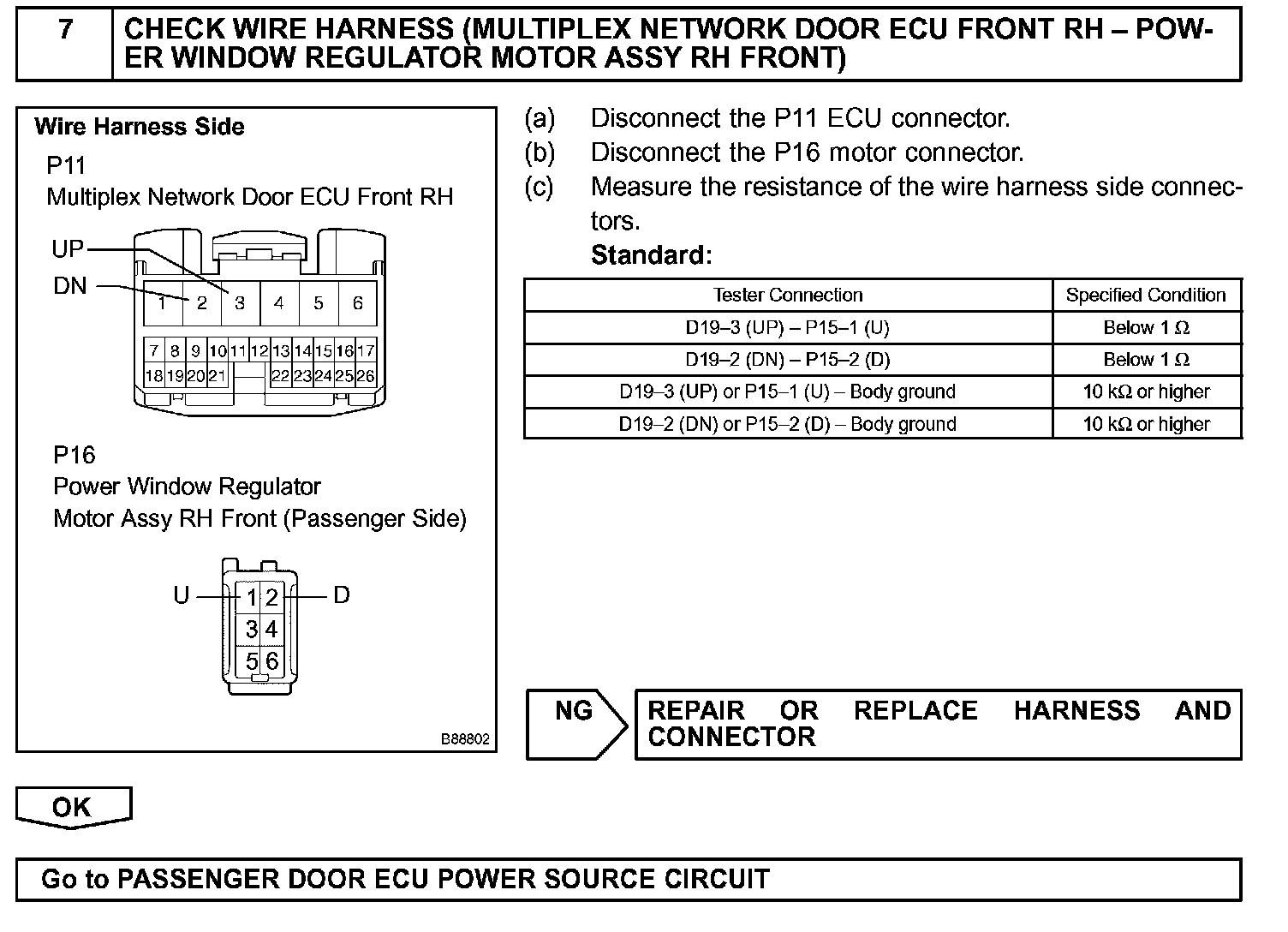

Step 7:

INSPECTION PROCEDURE
