Passenger Door ECU Power Source Circuit

PASSENGER DOOR ECU POWER SOURCE CIRCUIT

CIRCUIT DESCRIPTION

This circuit supplies power to operate the multiplex network door ECU front RH (passenger door ECU).

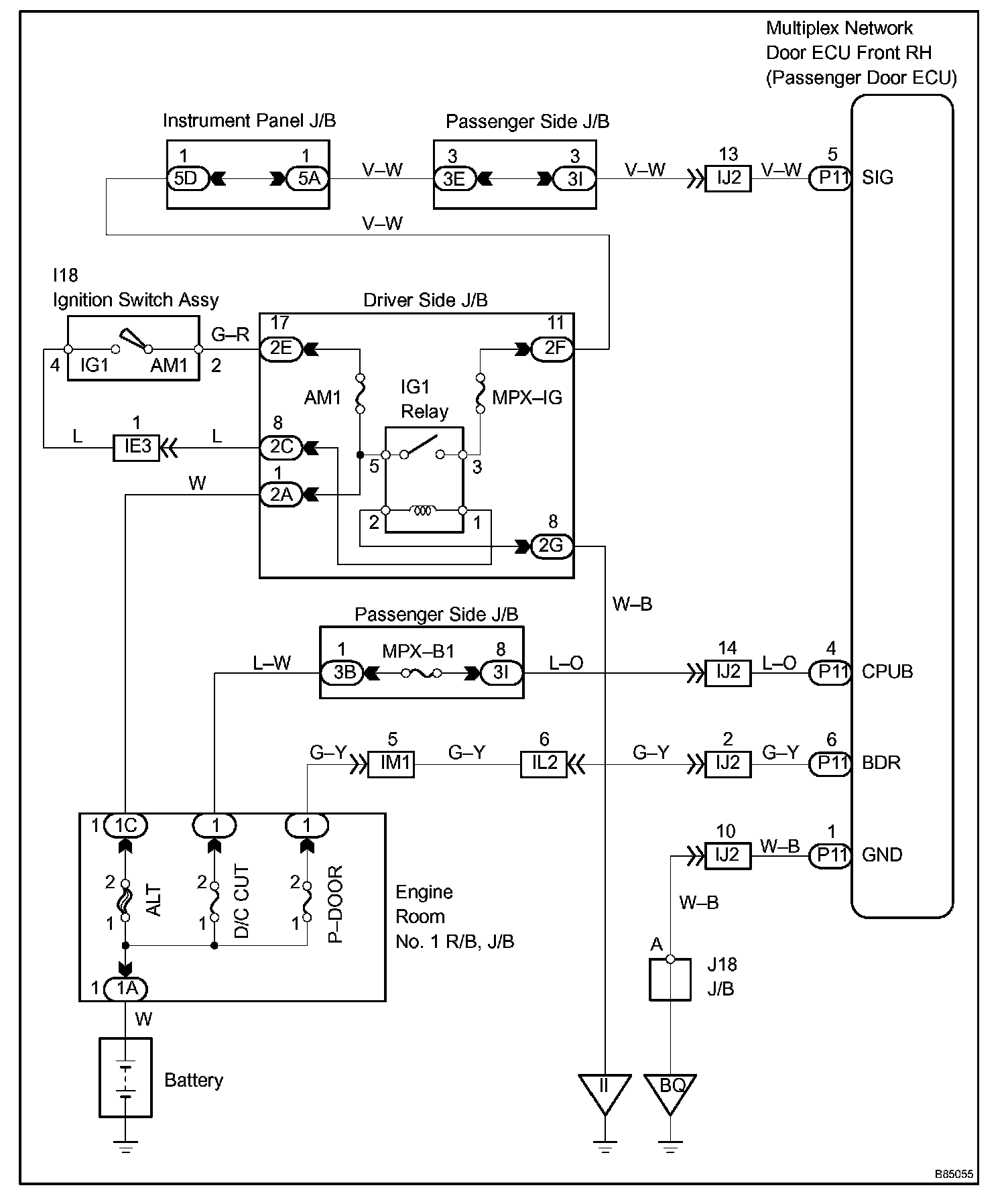

Wiring Diagram:

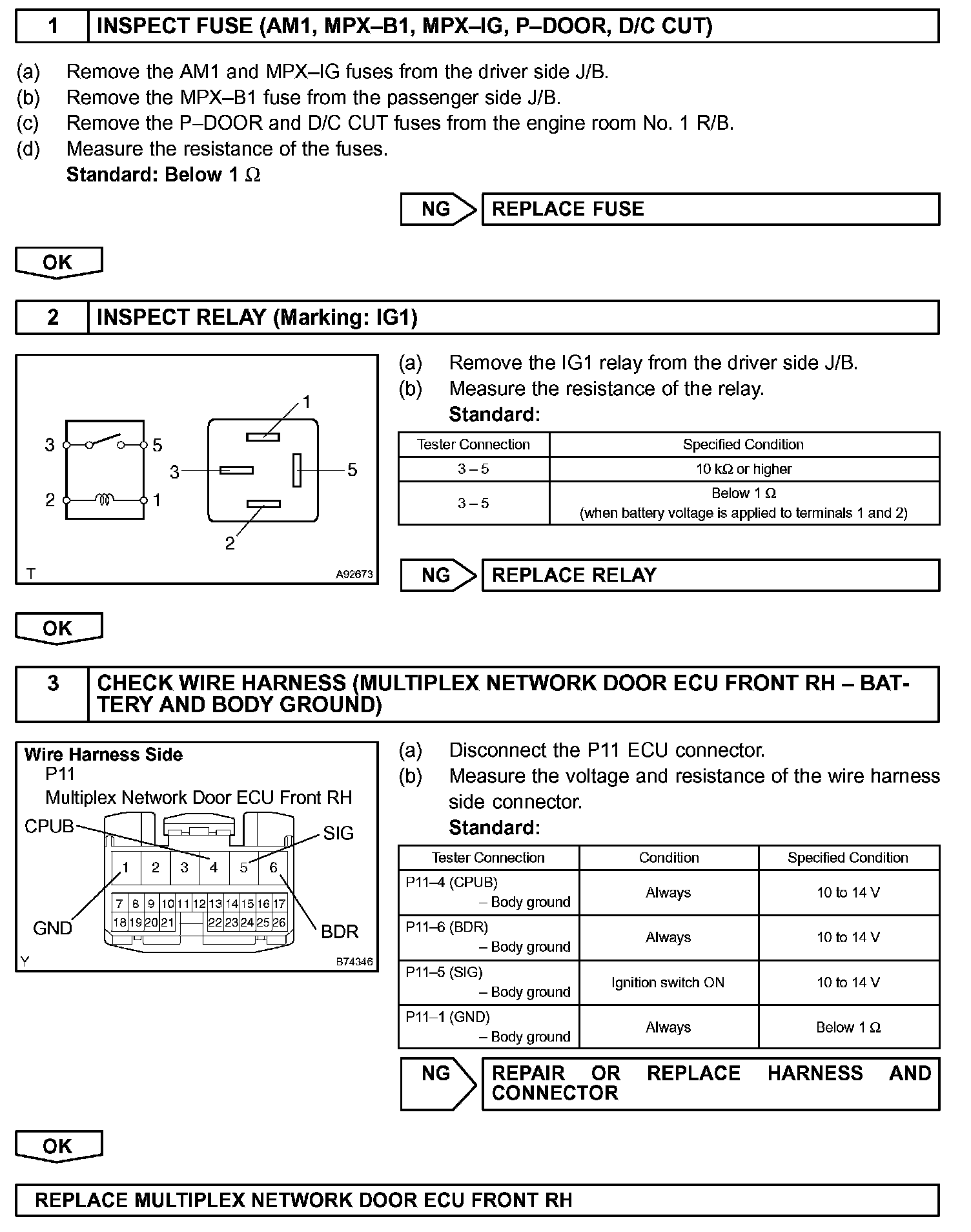

Step 1 - 3:

INSPECTION PROCEDURE
