Pinout Values and Diagnostic Parameters

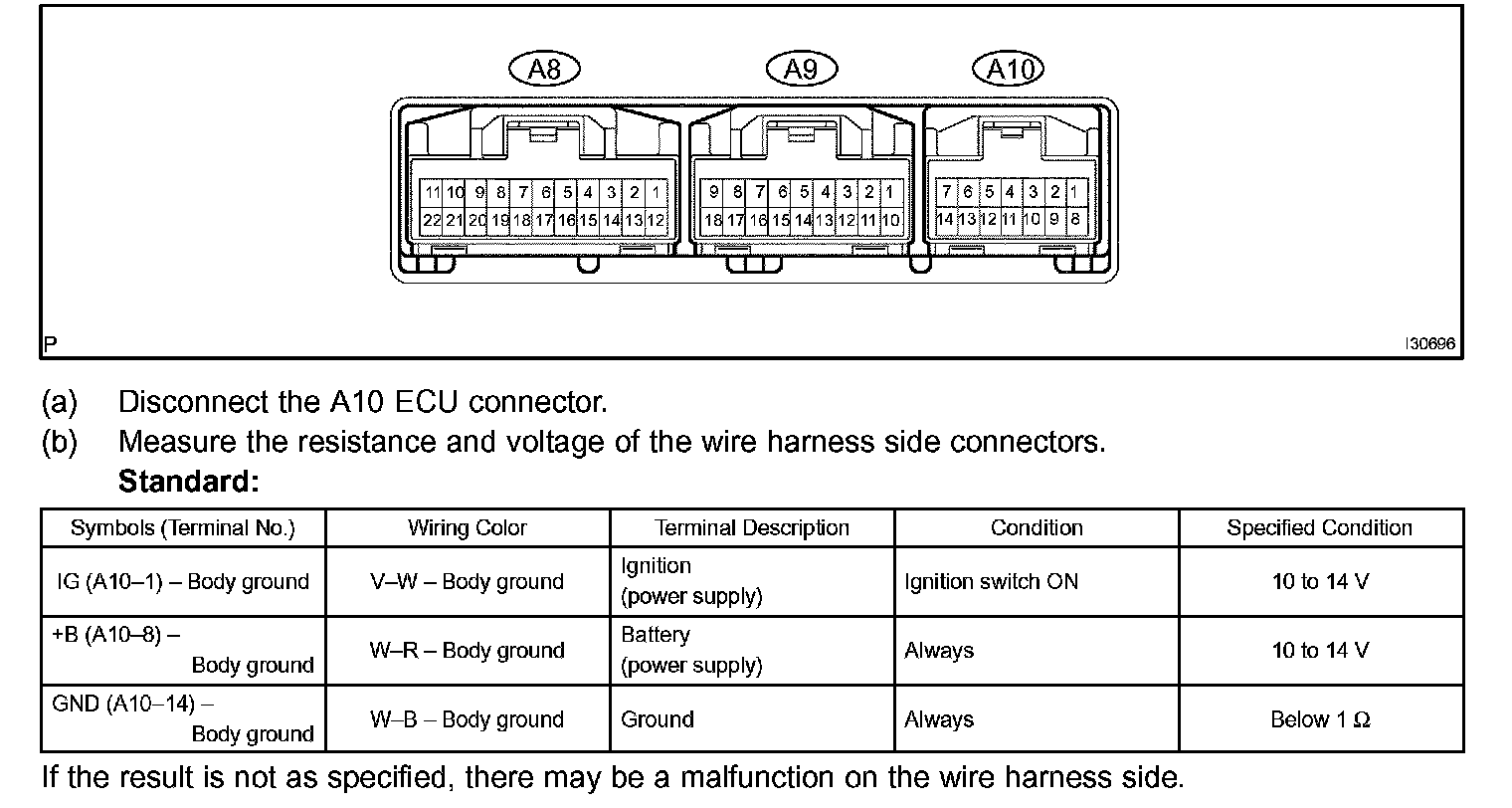

Terminals Of Control Module/Pinouts - Check Air Conditioning Amplifier Assy (A/C Control Assy):

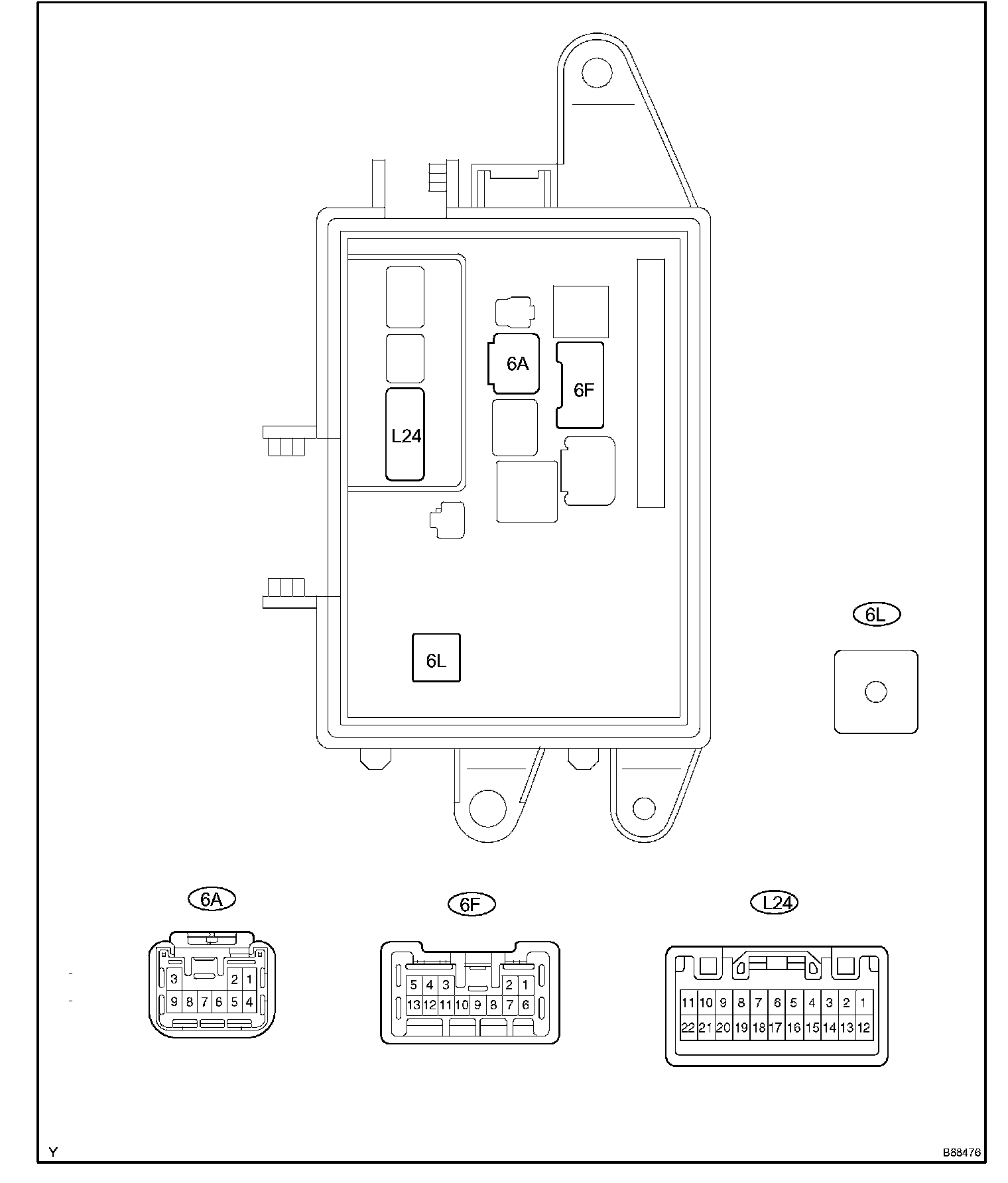

Terminals Of Control Module/Pinouts - Check Luggage Room J/B Assy (Luggage Room J/B ECU) Part 1:

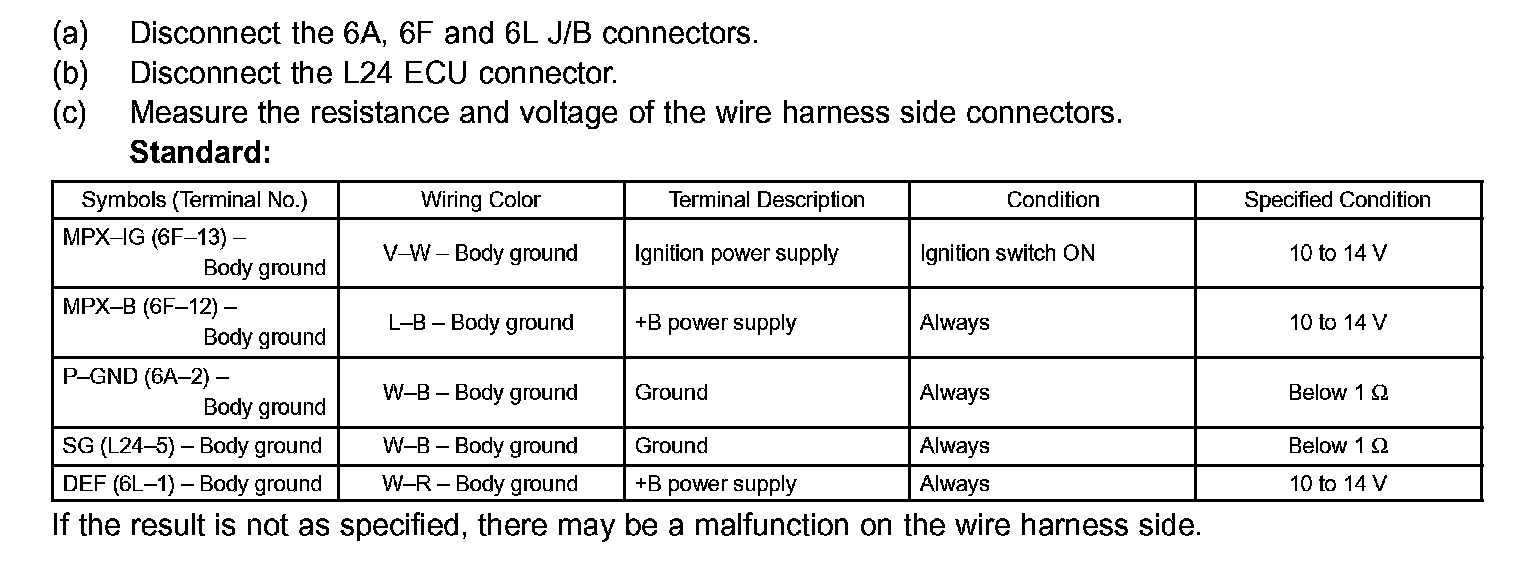

Terminals Of Control Module/Pinouts - Check Luggage Room J/B Assy (Luggage Room J/B ECU) Part 2:
