Luggage Room J/B ECU Power Source Circuit

LUGGAGE ROOM J/B ECU POWER SOURCE CIRCUIT

CIRCUIT DESCRIPTION

This circuit provides power to operate the luggage room J/B (luggage room J/B ECU).

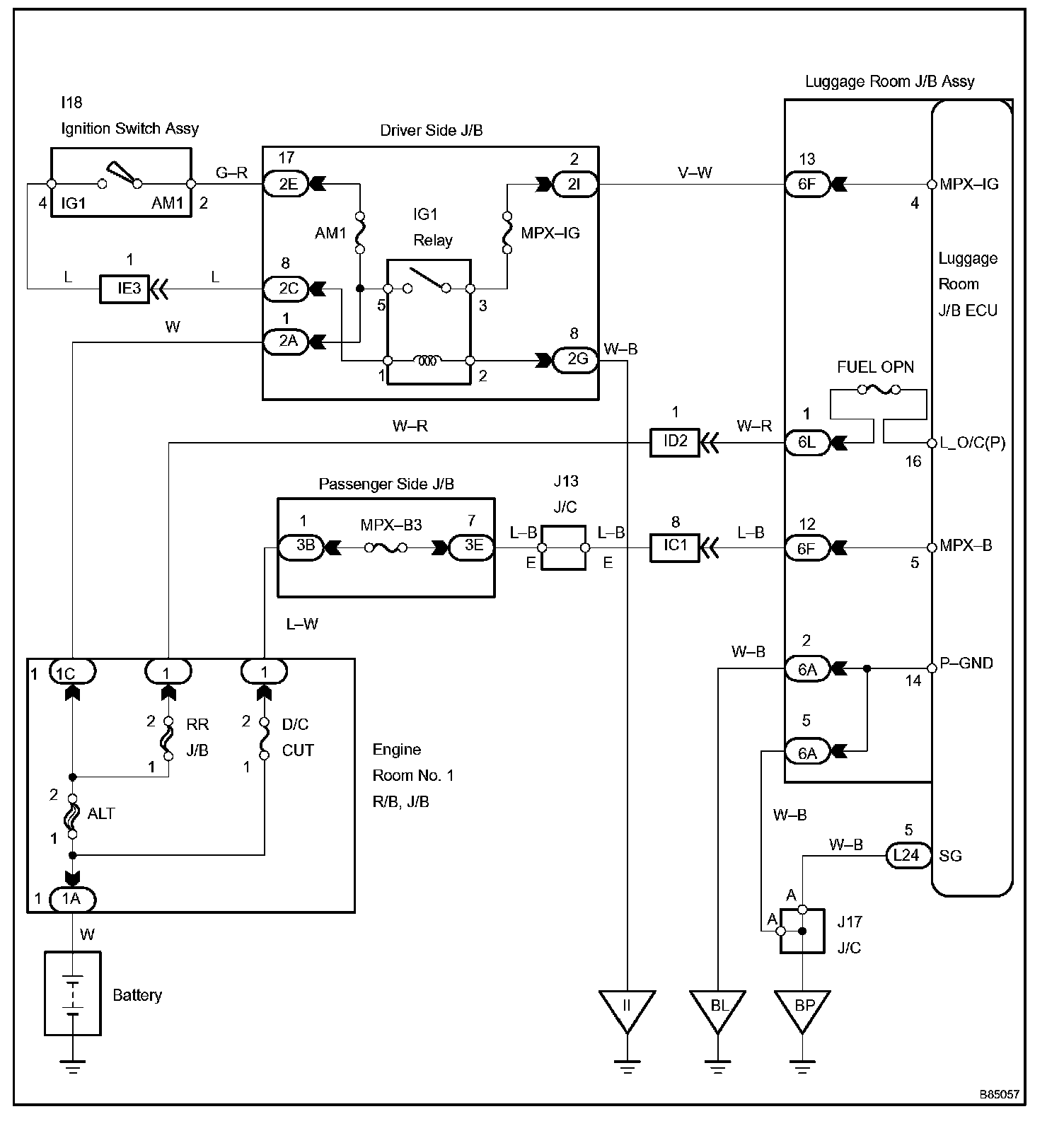

Wiring Diagram:

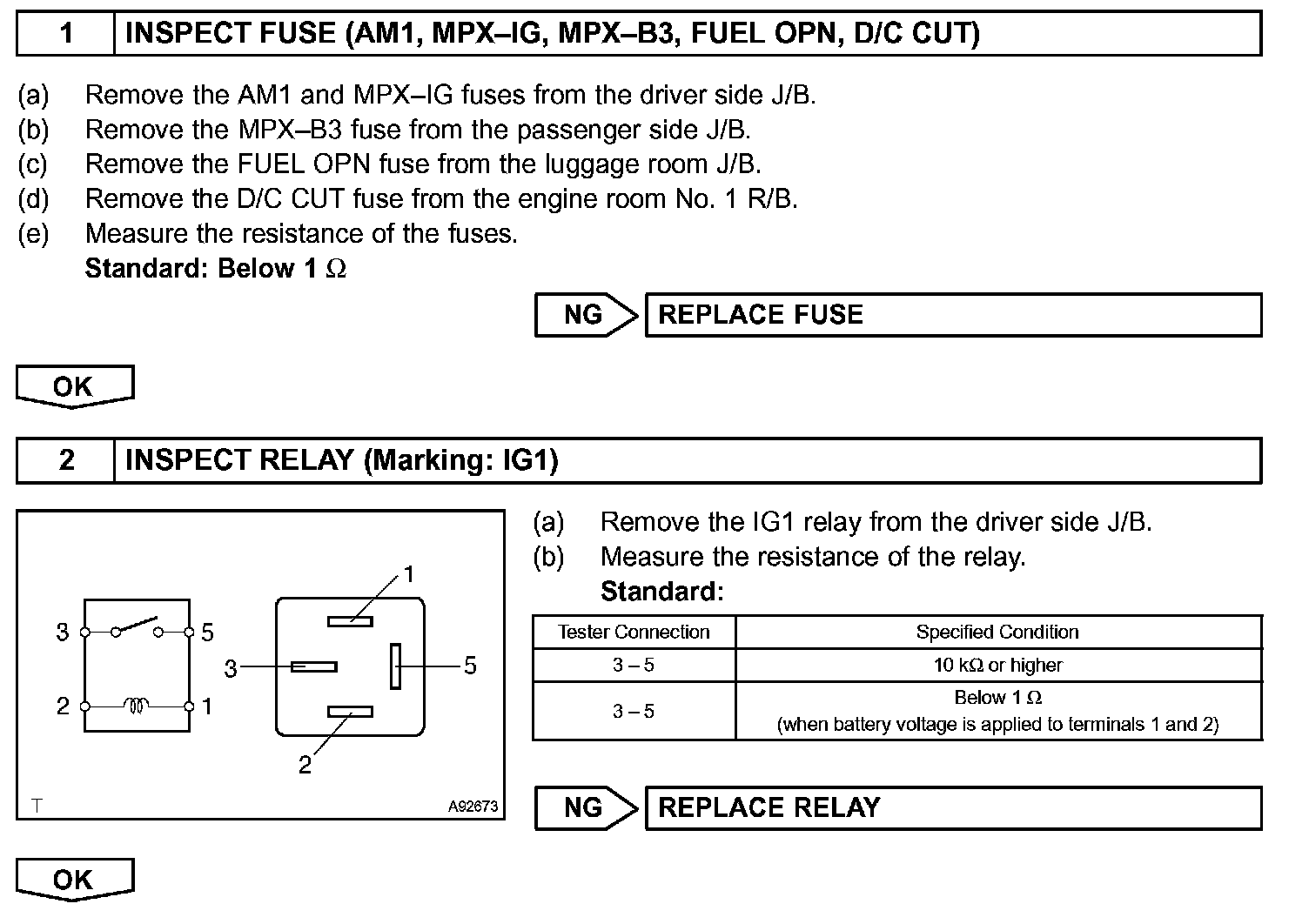

Step 1 - 2:

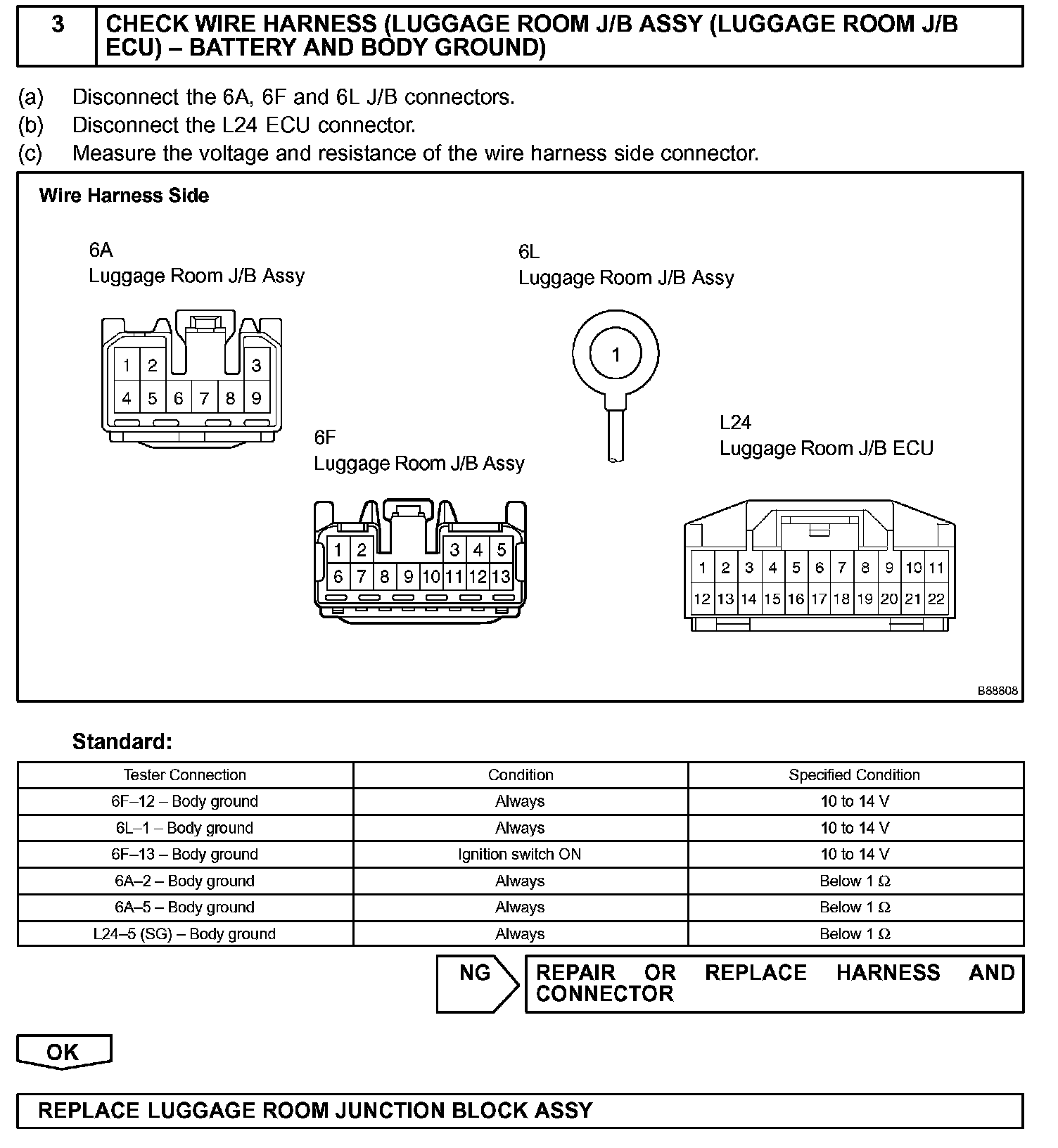

Step 3:

INSPECTION PROCEDURE
