Active Test

ACTIVE TEST

HINT: Performing the hand-held tester's ACTIVE TEST allows relay, Vacuum Switching Valve (VSV), actuator and other items to be operated without removing any parts. Performing the ACTIVE TEST early in troubleshooting is one way to save time.The DATA LIST can be displayed during the ACTIVE TEST.




a. Turn the ignition switch OFF.
b. Connect the hand-held tester to the DLC3.
c. Turn the ignition switch ON.
d. Turn the hand-held tester ON.
e. Enter the following menus: DIAGNOSIS / ENHANCED OBD II / ACTIVE TEST.

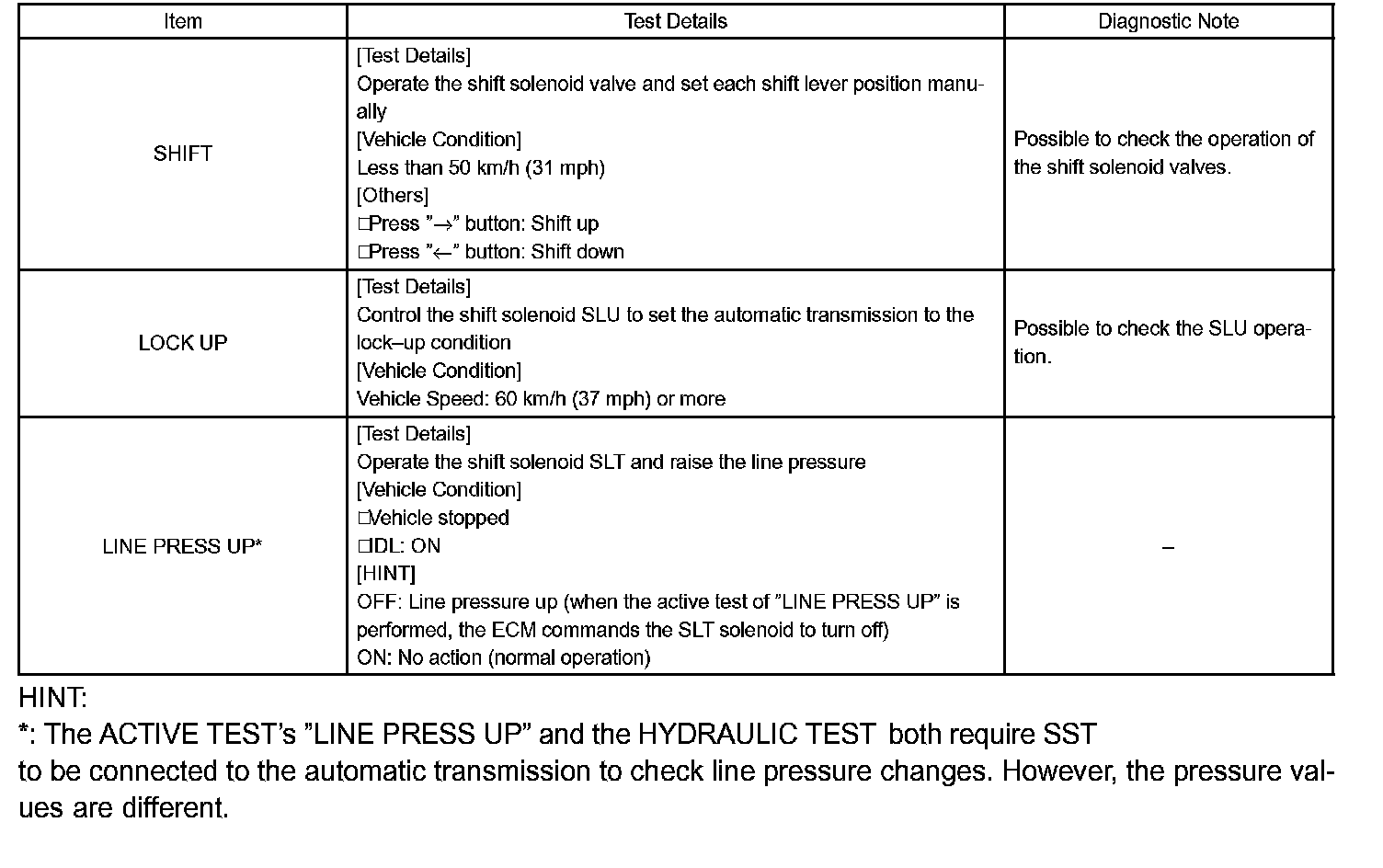

f. According to the display on tester, perform the ACTIVE TEST.
