Rear Suspension Arm Assy No.1

REPLACEMENT

HINT:
^ Use the same procedures for the RH side and LH side.
^ The procedures listed are for the LH side.

1. REMOVE WHEEL HUB ORNAMENT SUB-ASSEMBLY
a. Remove the 10 bolts and ornament.
2. REMOVE REAR WHEEL
a. Remove the 5 nuts and wheel.

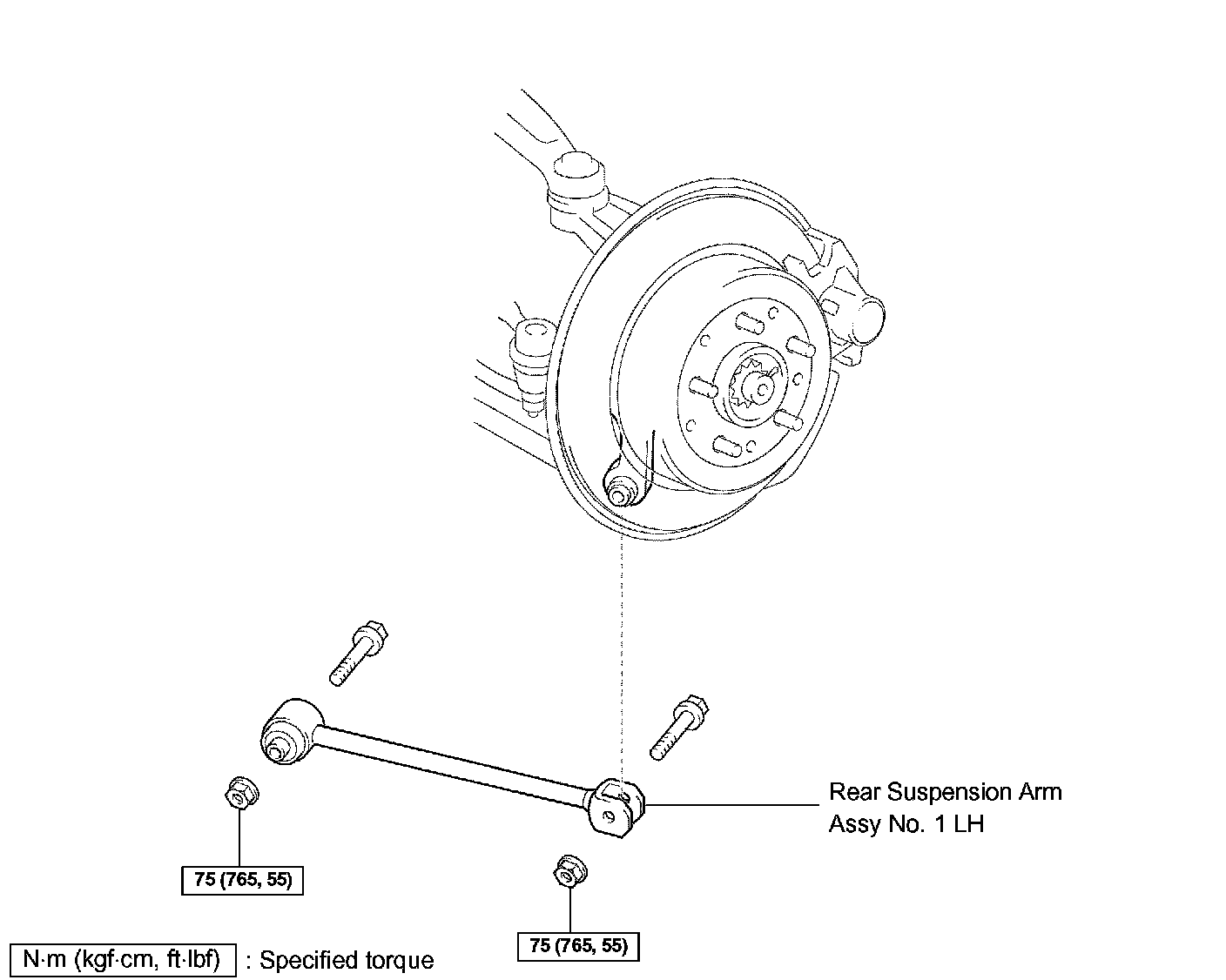

3. REMOVE REAR SUSPENSION ARM ASSEMBLY NO. 1 LH
a. Remove the 2 bolts, 2 nuts and suspension arm.
4. TEMPORARILY INSTALL REAR SUSPENSION ARM ASSEMBLY NO. 1 LH
a. Temporarily install the suspension arm with the 2 bolts and 2 nuts.

HINT: After stabilizing the suspension, tighten the nuts.

5. INSTALL REAR WHEEL
a. Install the wheel with the 5 nuts.
Torque: 103 Nm (1,050 kgf-cm, 76 ft. lbs.)
6. STABILIZE SUSPENSION
7. TIGHTEN REAR SUSPENSION ARM ASSEMBLY NO. 1 LH
a. Tighten the 2 bolt and 2 nuts.
Torque: 75 Nm (765 kgf-cm, 55 ft. lbs.)
8. INSTALL WHEEL HUB ORNAMENT SUB-ASSEMBLY
a. Install the ornament with the 10 bolts.
Torque: 20 Nm (204 kgf-cm, 15 ft. lbs.)
