Freeze Frame Data

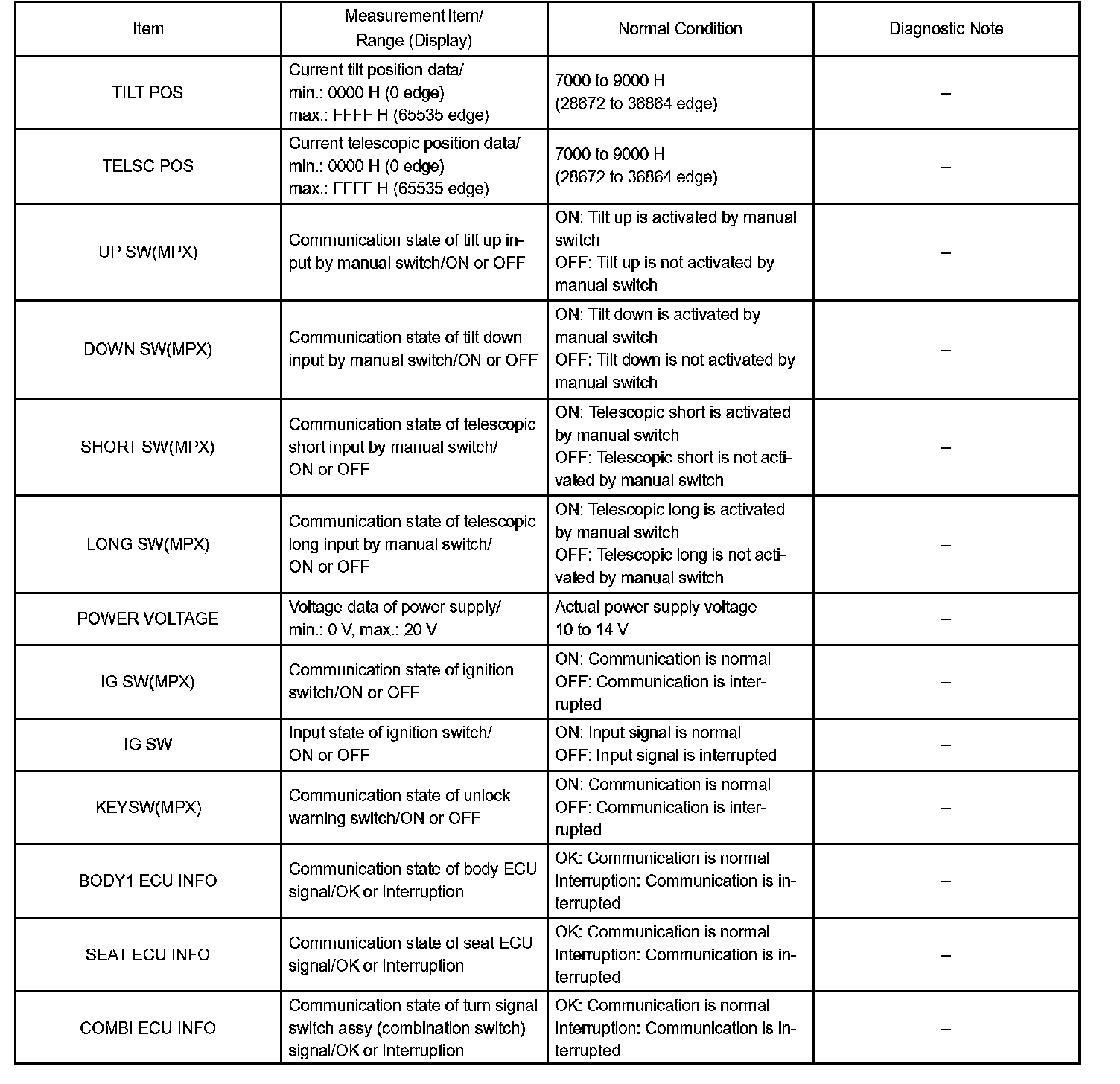

FREEZE FRAME DATA




a. Connect the hand-held tester to the DLC3.
b. Turn the ignition switch ON.
c. Check the freeze frame data by following the hand-held tester's display.
