Key Reminder Switch: Testing and Inspection

INSPECTION

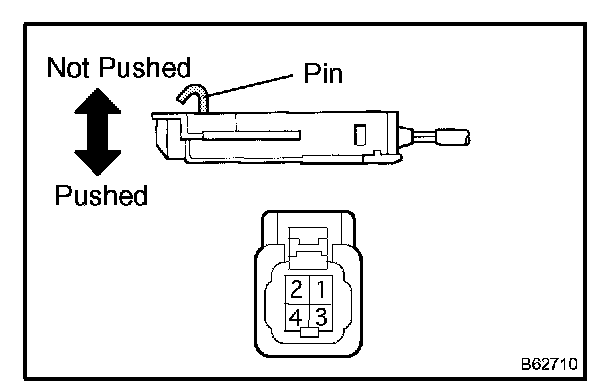

INSPECT UNLOCK WARNING SWITCH ASSY

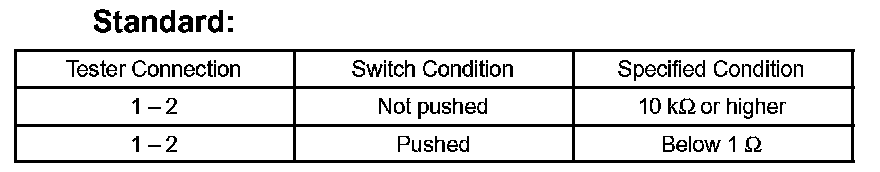

Measure the resistance of the switch.




If the result is not as specified, replace unlock warning switch assy.
