Wheel Speed Sensor: Testing and Inspection

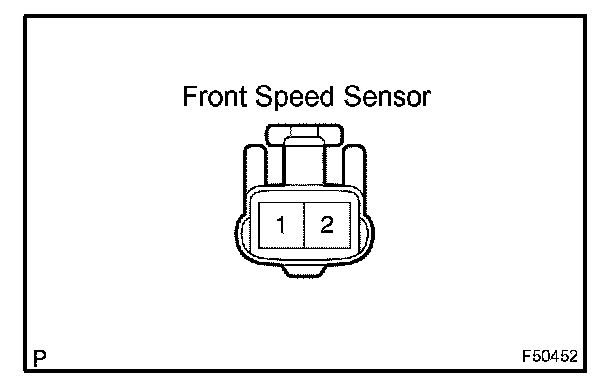

INSPECT FRONT SPEED SENSOR

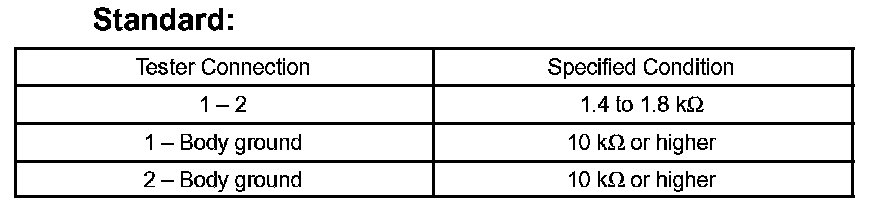

a. Measure the resistance of the speed sensor.




If the result is not as specified, replace the speed sensor.

HINT: Check the speed sensor signal after the speed sensor replacement

INSPECT REAR SPEED SENSOR

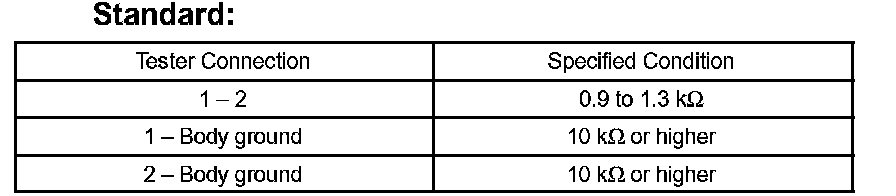

a. Measure the resistance of the sensor.




If the result is not as specified, replace the speed sensor.

HINT: Check the speed sensor signal after the speed sensor replacement
