Cabin Air Filter / Purifier: Service and Repair

Cabin Air Filter

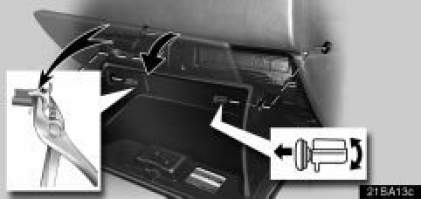

1. Use pliers to remove the 2 pins installed on the upper part of the glove box and lower the glove box.

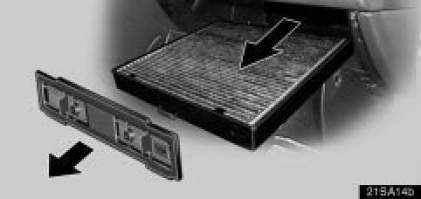

2. Remove the cover and take out the filter.





3. Remove filter from filter case.
4. Inspect the filter on the surface. If it is dirty, it should be replaced. To maintain the air conditioning efficiency, replace the filter according to the maintenance schedule. In dusty areas or areas with heavy traffic flow, such as inner city or desert areas, early replacement may be required.

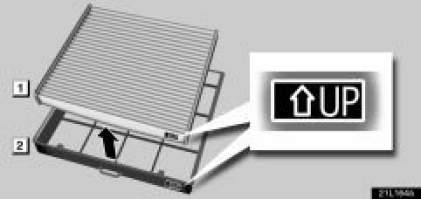

NOTICE: When setting the filter to the filter case, the UP marks shown on the filter and filter case should be noted and fitted as shown.
