Symptom Related Diagnostic Procedures

PROBLEM SYMPTOMS TABLE

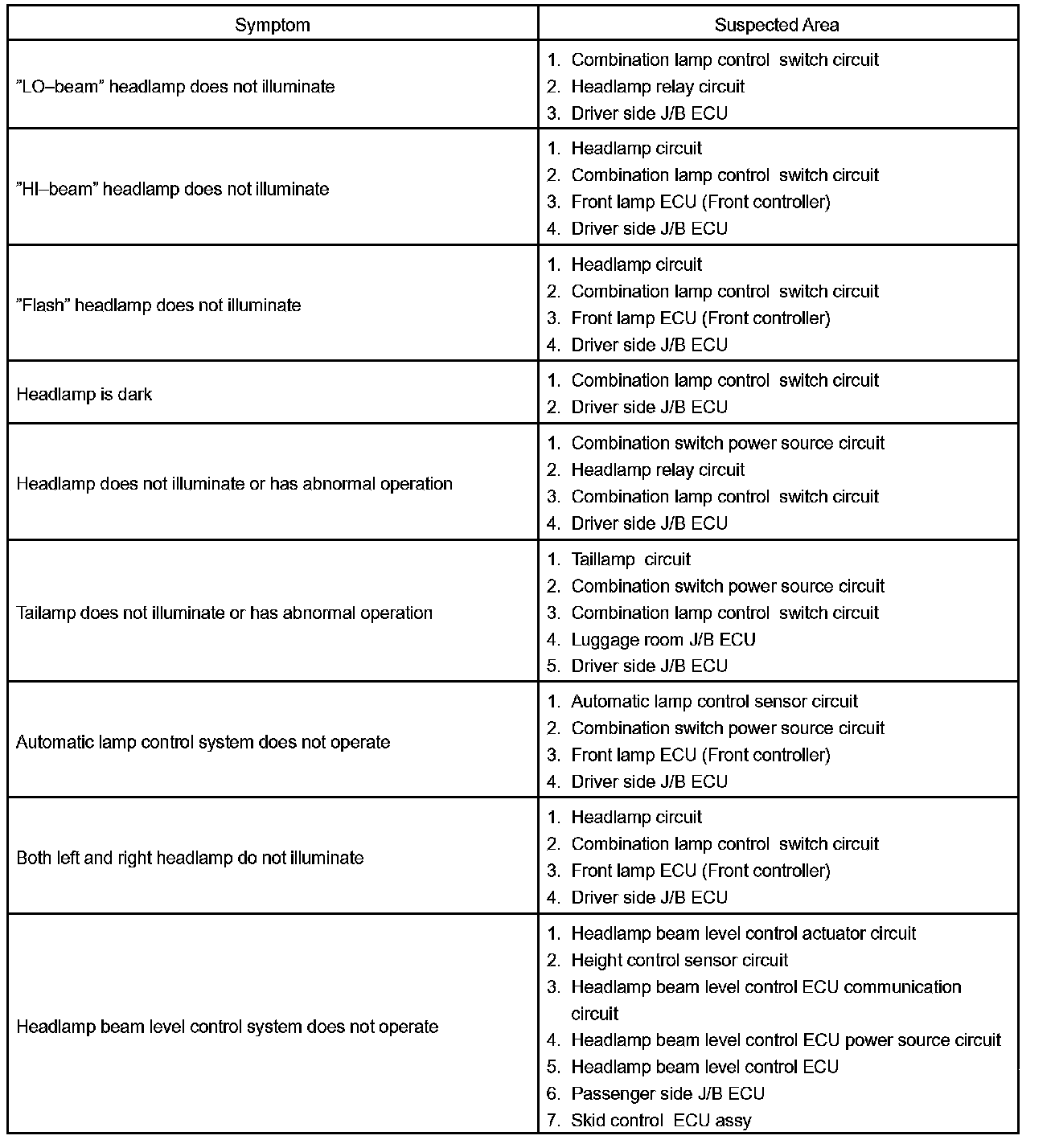

Problem Symptoms Table - Headlamp And Taillamp System:

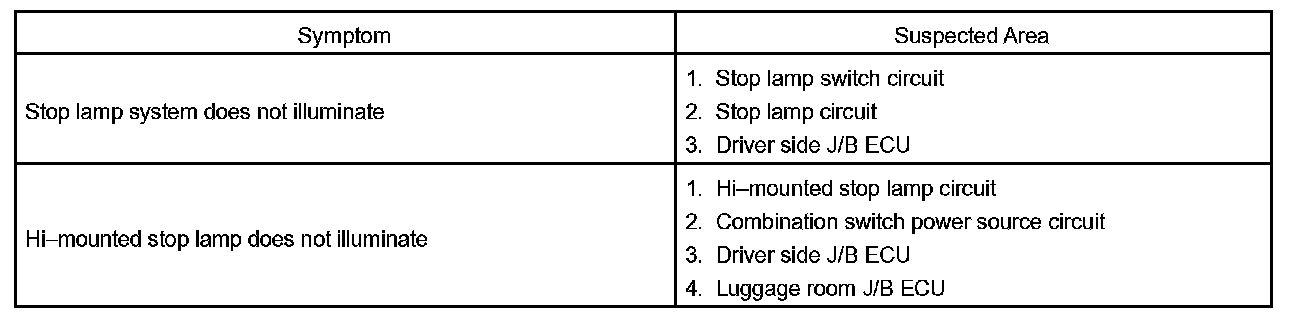

Problem Symptoms Table - Stop Lamp System:

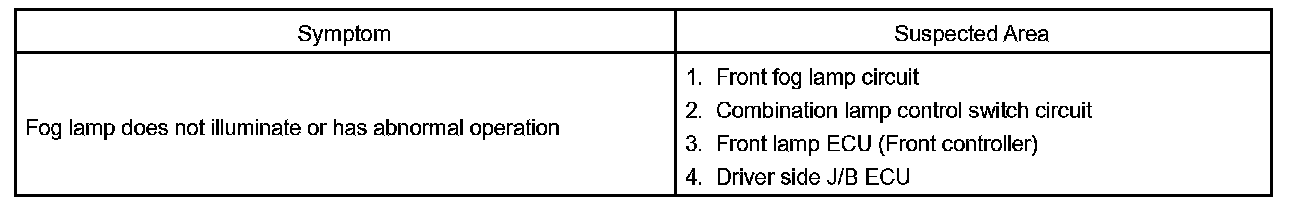

Problem Symptoms Table - Fog Lamp System:

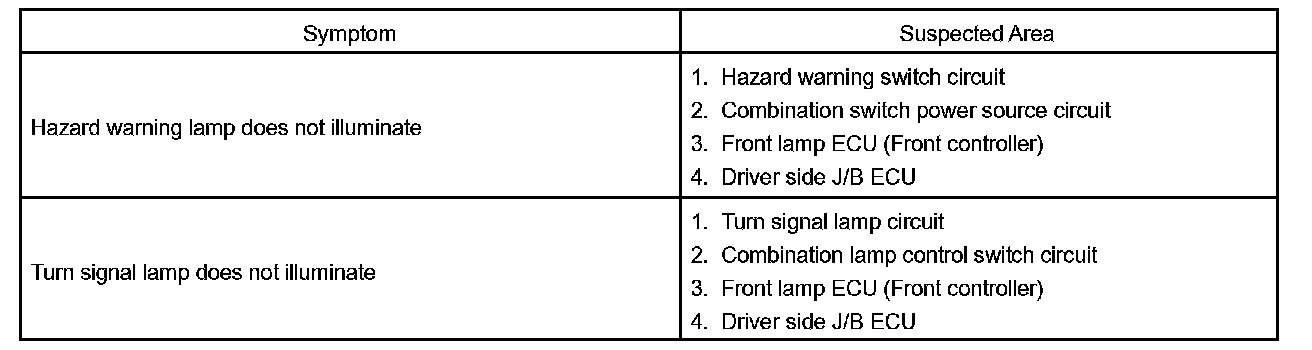

Problem Symptoms Table - Turn Signal Lamp System:

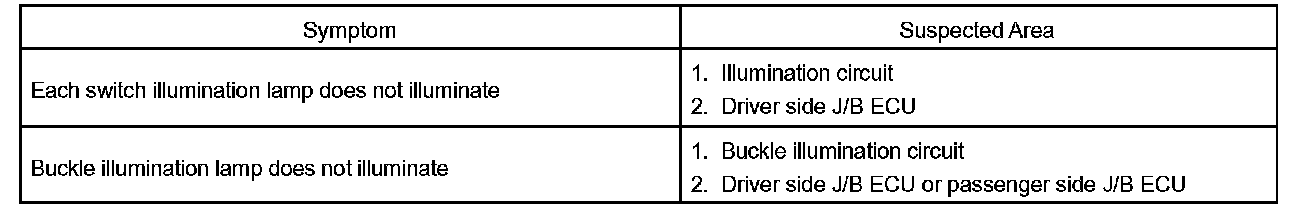

Problem Symptoms Table - Illumination Lamp System:

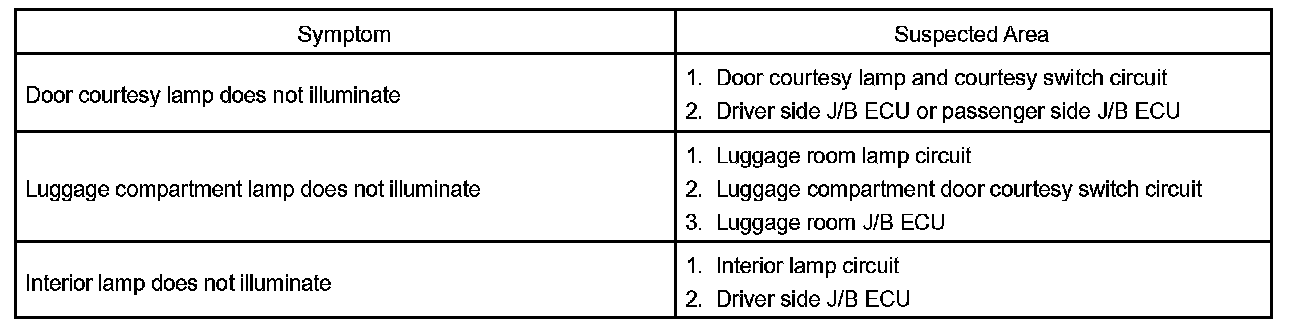

Problem Symptoms Table - Interior Lamp System:

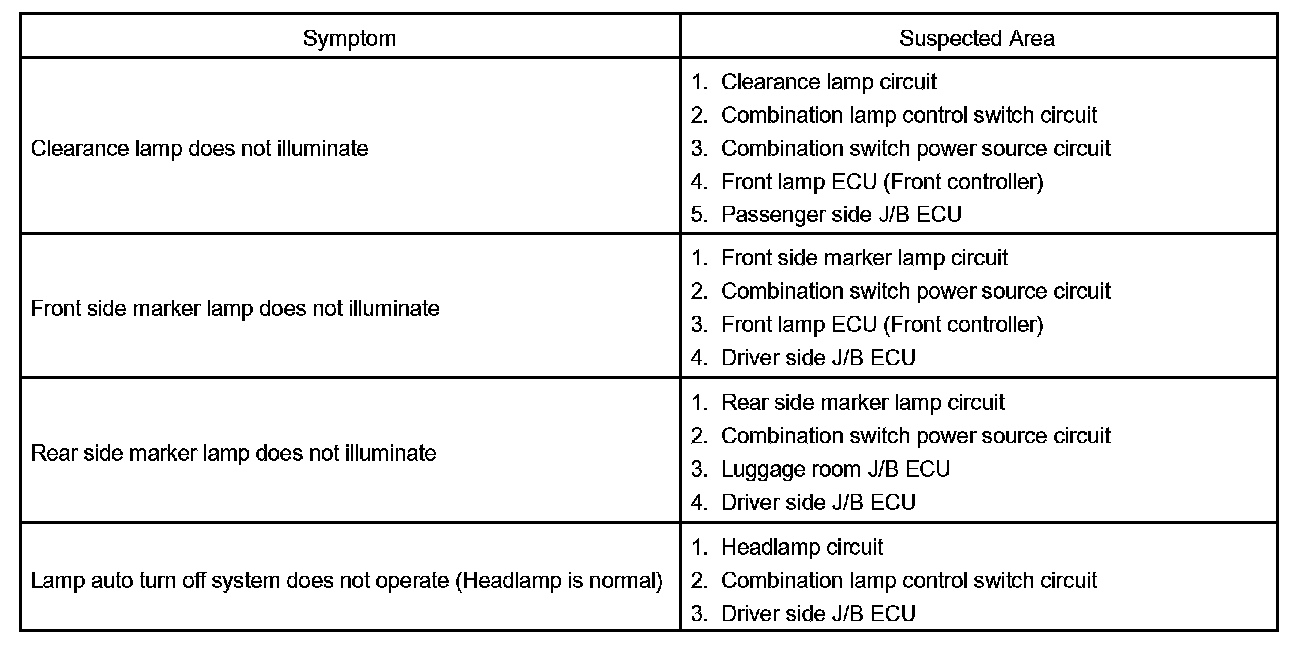

Problem Symptoms Table - Others Part 1:

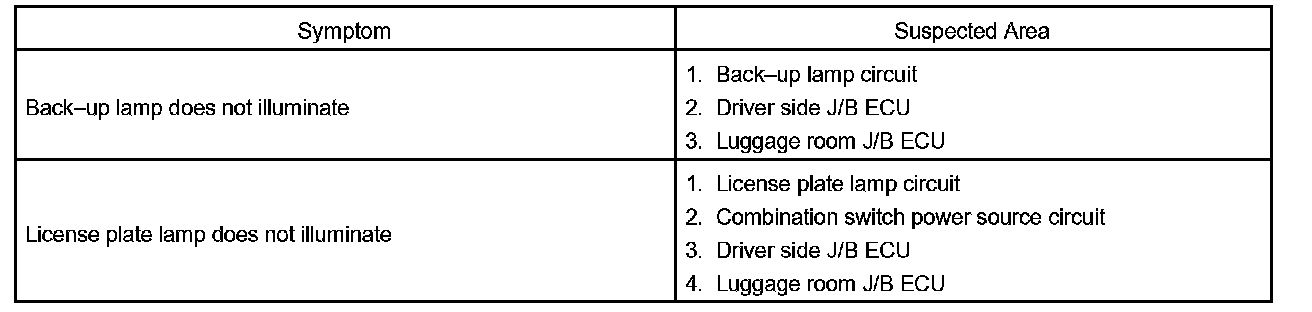

Problem Symptoms Table - Others Part 2:

HINT: Use the table to help determine the cause of the problem symptom. The potential causes of the symptoms are listed in order of probability in the "Suspected Area" column of the table. Check each symptom by checking the suspected areas in the order they are listed. Replace parts as necessary. Headlamp and taillamp system.
