Taillamp Circuit

TAILLAMP CIRCUIT

CIRCUIT DESCRIPTION

When the combination switch TAIL signal is received from the luggage room J/B ECU, the taillamp illuminates.

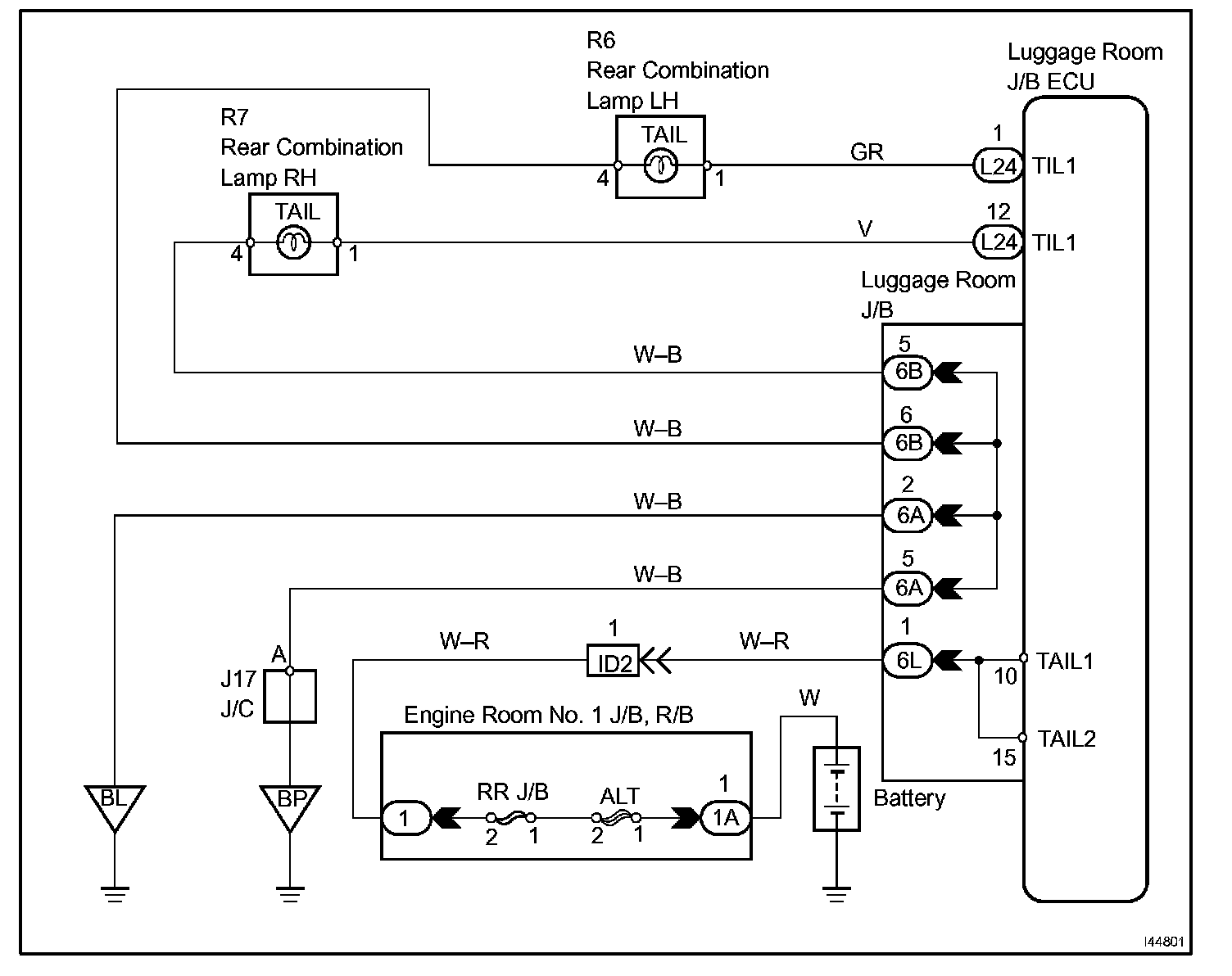

Wiring Diagram:

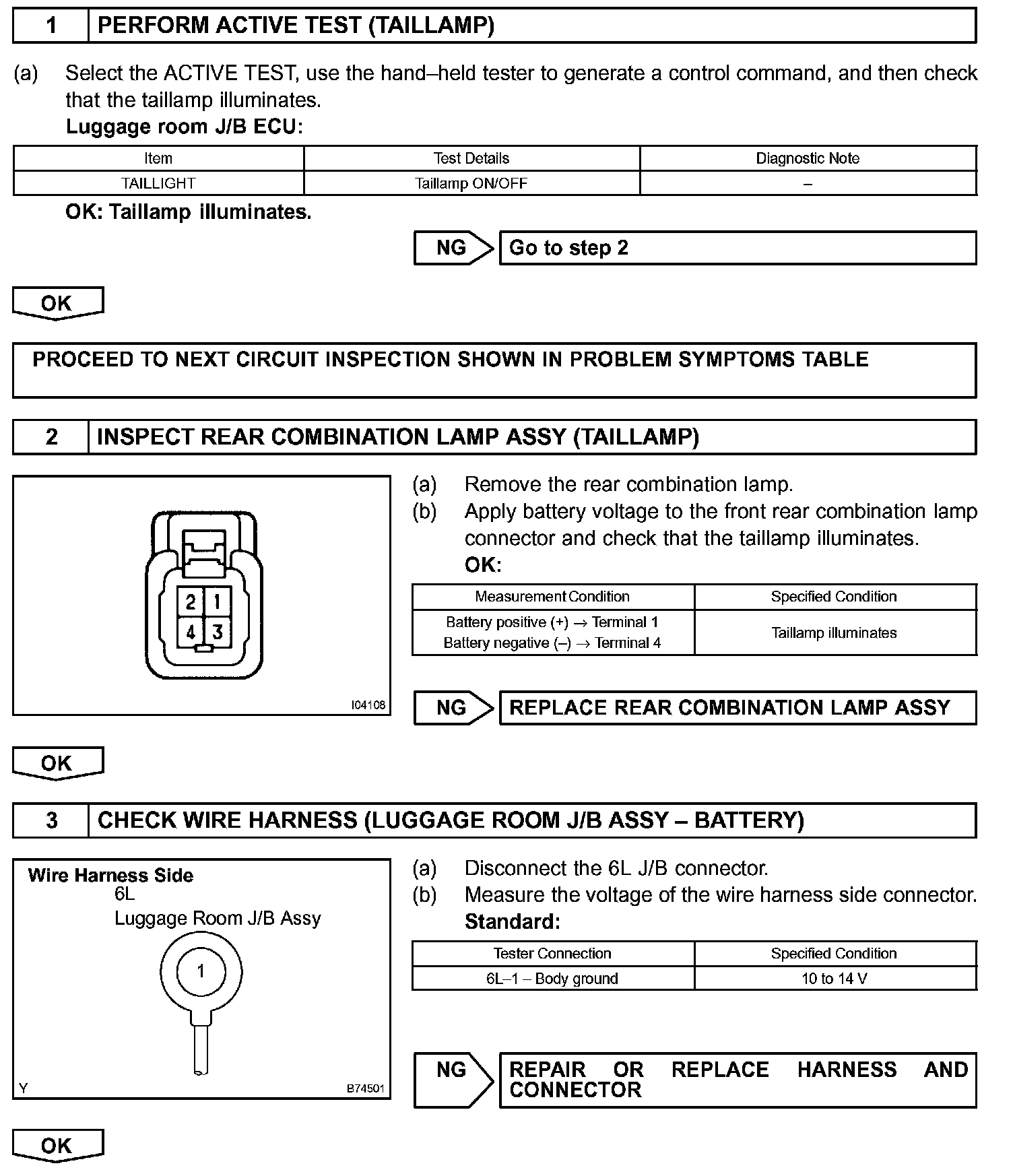

Step 1 - 3:

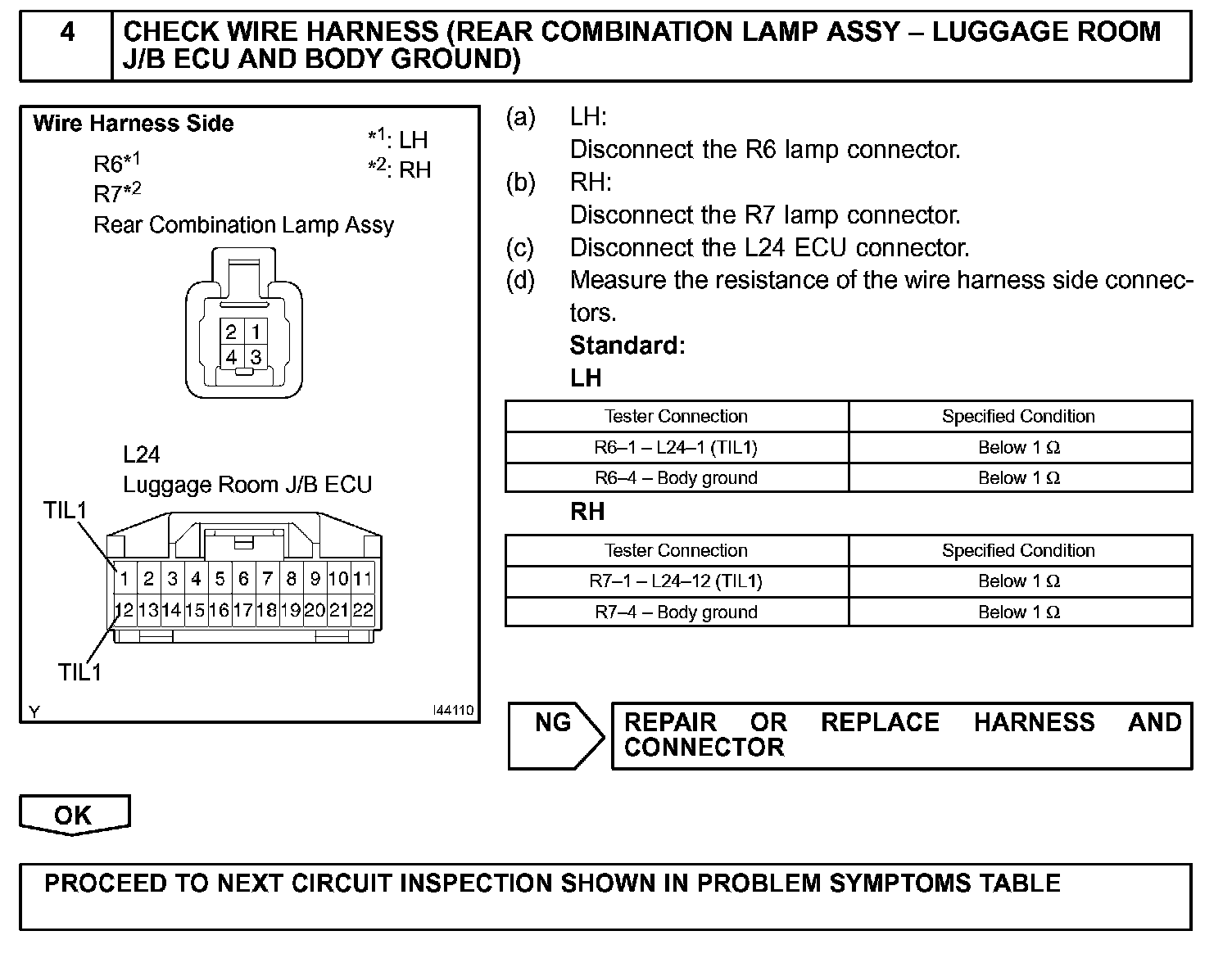

Step 4:

INSPECTION PROCEDURE
