On-Vehicle Inspection

ON-VEHICLE INSPECTION

1. CHECK AUTOMATIC LAMP CONTROL SENSOR




a. Perform this check in a well-lighted area.
b. Turn the ignition switch ON.
c. Turn the lamp control switch to the AUTO position.

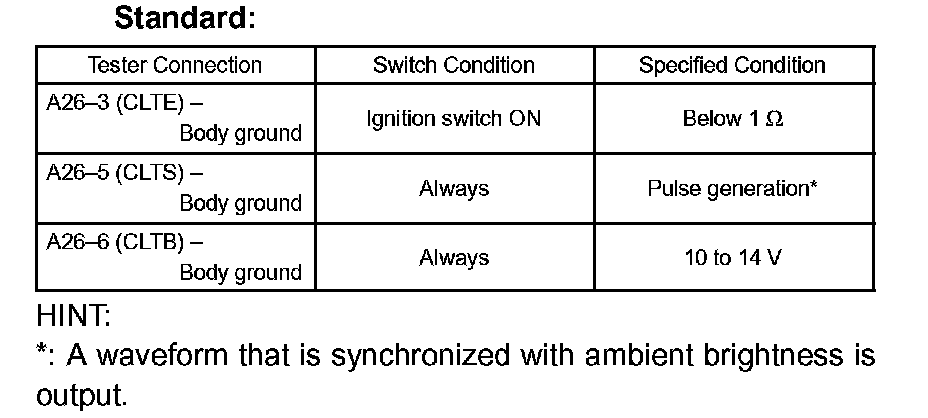

d. Measure the resistance and voltage of the wire harness side connector.

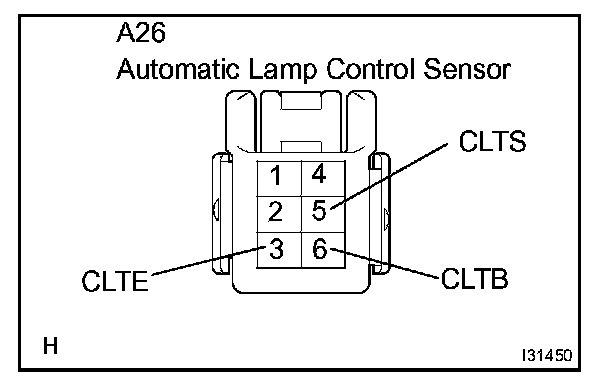

HINT: Connect the wire harness side connector to the sensor and inspect wire harness side connector from the backside, as shown.

2. CHECK ILLUMINATED ENTRY SYSTEM OPERATION

HINT: The ignition key cylinder lamp and room lamp are illuminated by the illuminated entry system.

a. Turn the ignition switch OFF, open all the doors, and set the driver door in the lock condition.
b. Unlock the driver door, open any one of the doors, and check that the room lamp illuminates. Close the door and check that the room lamp turns off in approximately 15 seconds.
c. Turn the ignition switch ON and open and close any one of the doors. Check that the room lamp immediately turns off.
d. Turn the ignition switch OFF.
e. Open and close any one of the doors to illuminate the room lamp. Before the room lamp turns off in approximately 15 seconds, turn the ignition switch ON. Check that the room lamp turns off immediately.
f. Turn ignition switch OFF.
g. Open and close any one of the doors to illuminate the room lamp. Before the room lamp turns off in approximate 15 seconds, lock the driver door. Check that the lamp turns off immediately.

3. CHECK BATTERY SAVER OPERATION

a. Remove the key and close all the doors.
b. Open the driver door to illuminate the room lamp and leave it as is. Check that the lamp turns off in approximate 20 minutes.
c. After the room lamp turns off, close the driver door.
d. Open the passenger door or one of the rear doors to illuminate the room lamp. Open the driver door within 20 minutes. Check that the room lamp turns off in approximately 20 minutes from the time when the driver door is opened.
e. Close all the doors. With the key inserted, open any one of the doors to illuminate the room lamp. In this condition, remove the key. Check that the room lamp turns off in approximately 20 minutes.
f. Close all the doors.
g. Open any one of the doors to illuminate the room lamp. Insert the key within 20 minutes. Check that the room lamp turns off in approximately 20 minutes from the time when the key is inserted.
