Illumination Circuit

ILLUMINATION CIRCUIT

CIRCUIT DESCRIPTION

When the combination lamp switch signal is screen viewed from the front lamp ECU, the driver side J/B ECU turns on switch illumination and combination meter illumination.

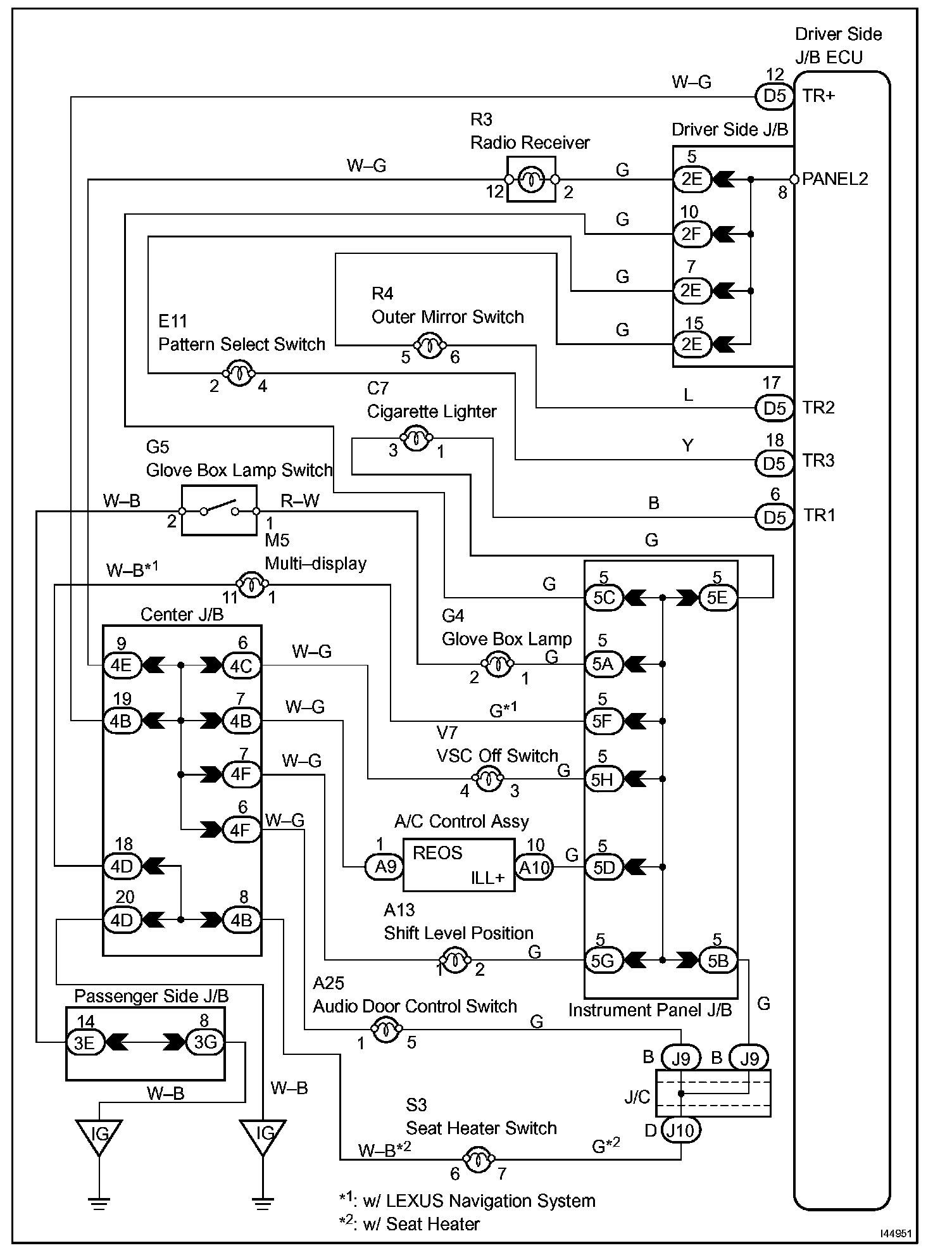

Wiring Diagram:

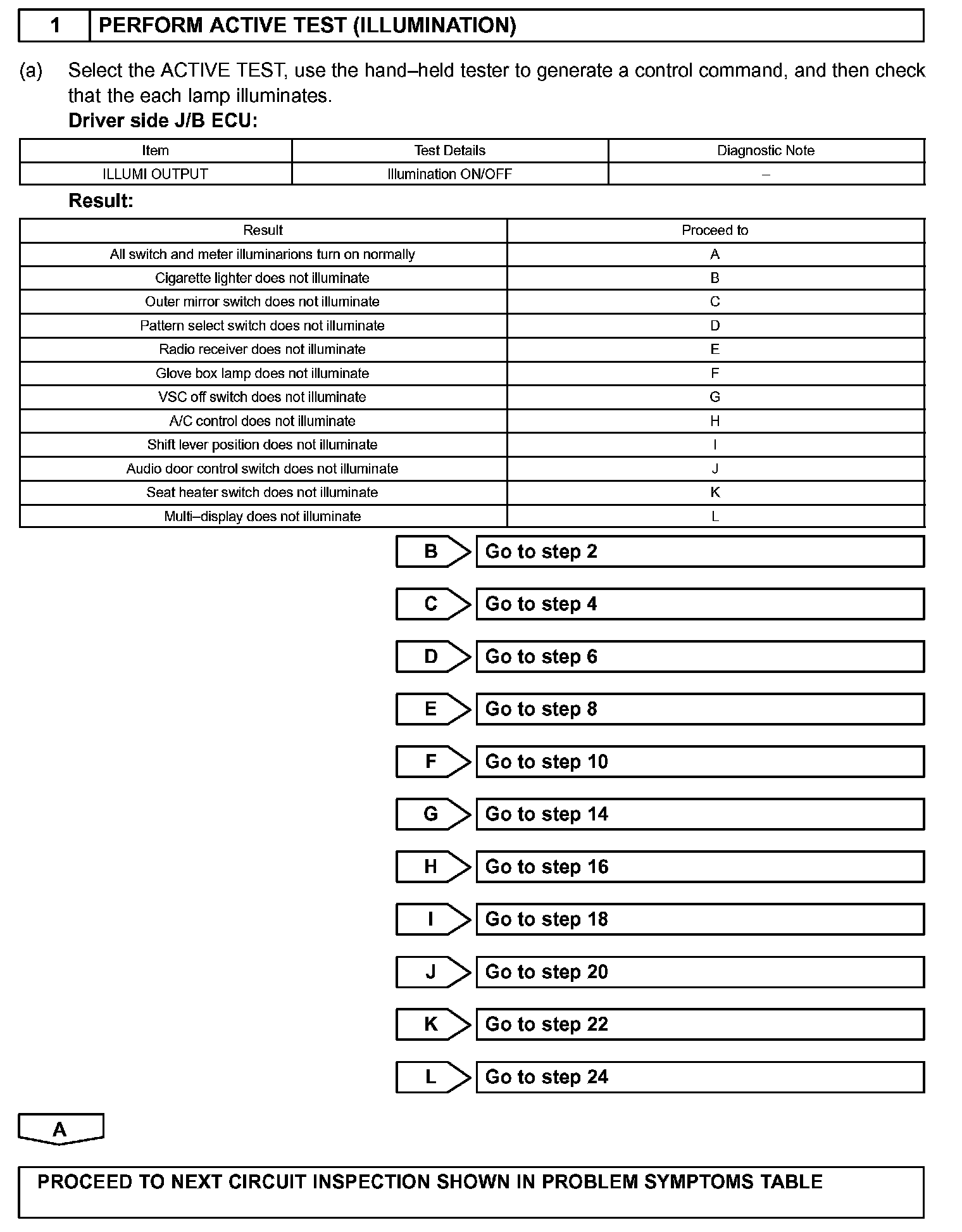

Step 1:

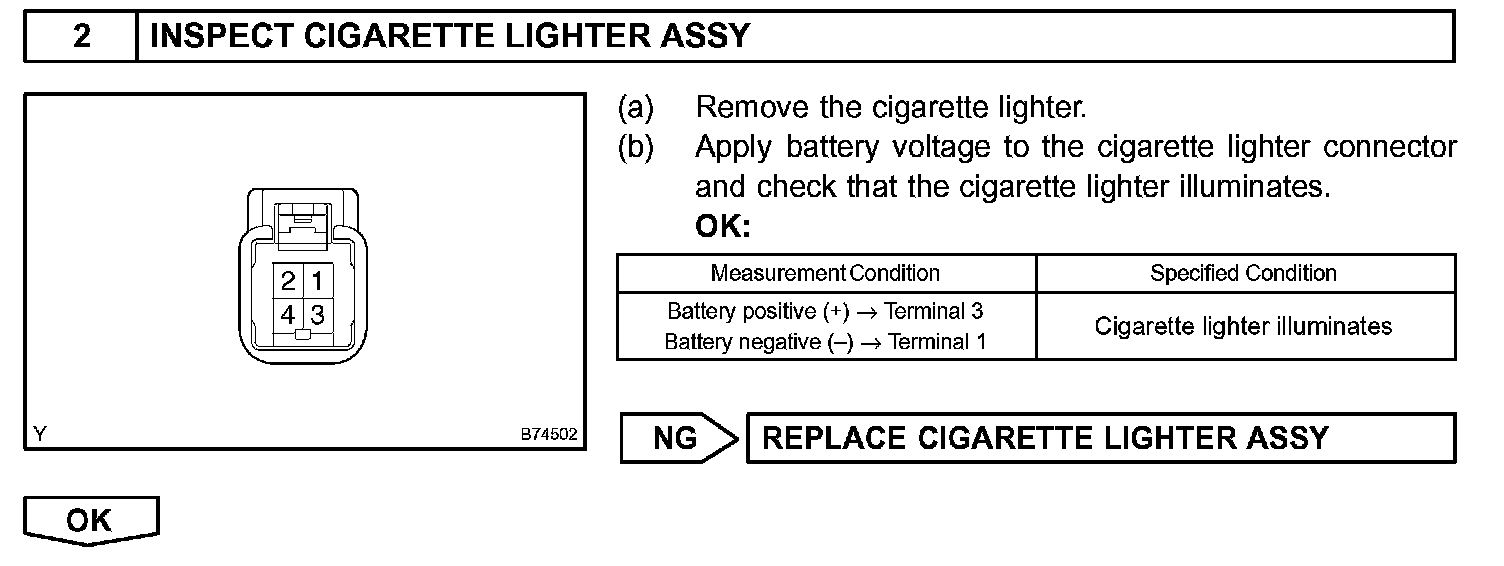

Step 2:

Step 3:

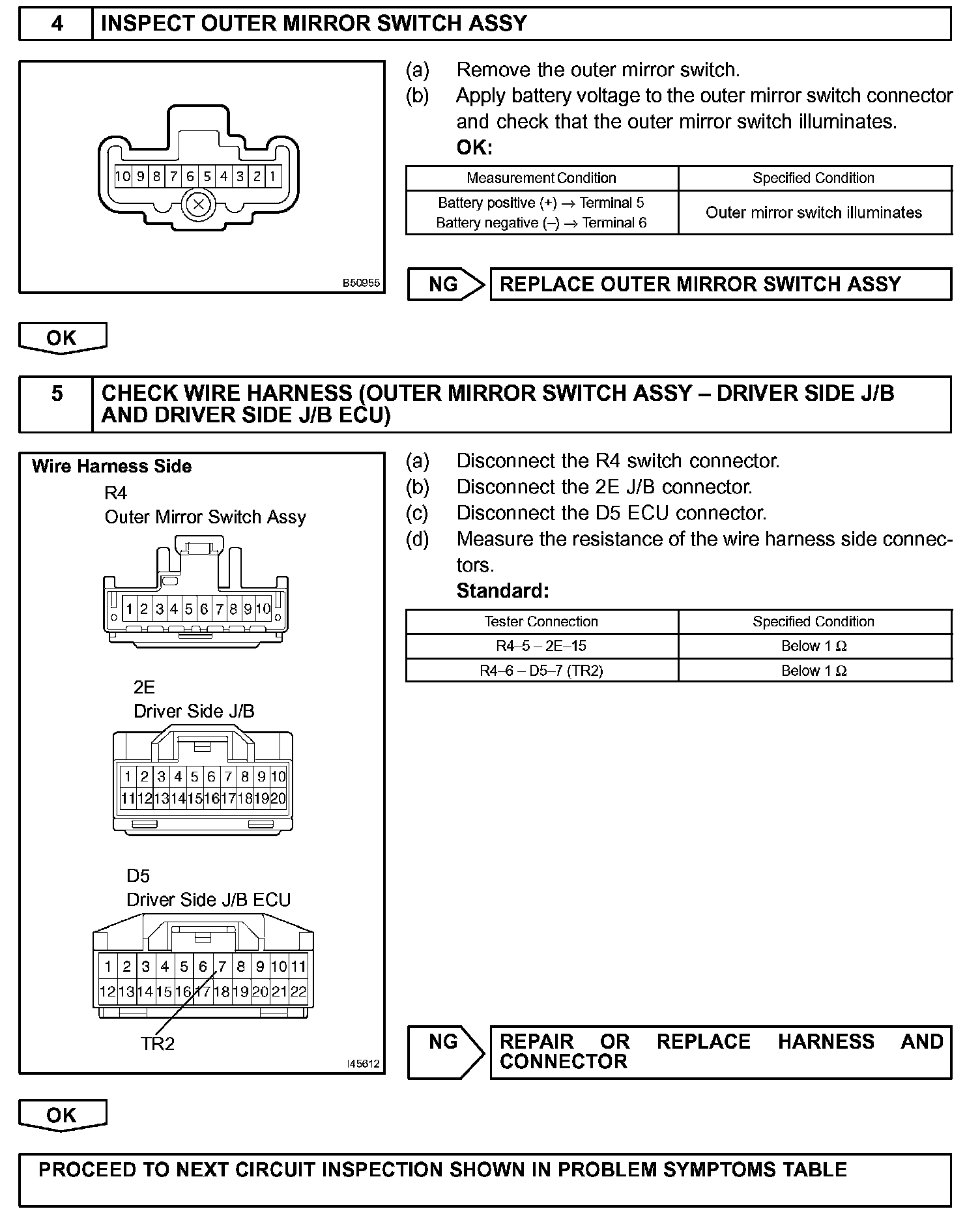

Step 4 - 5:

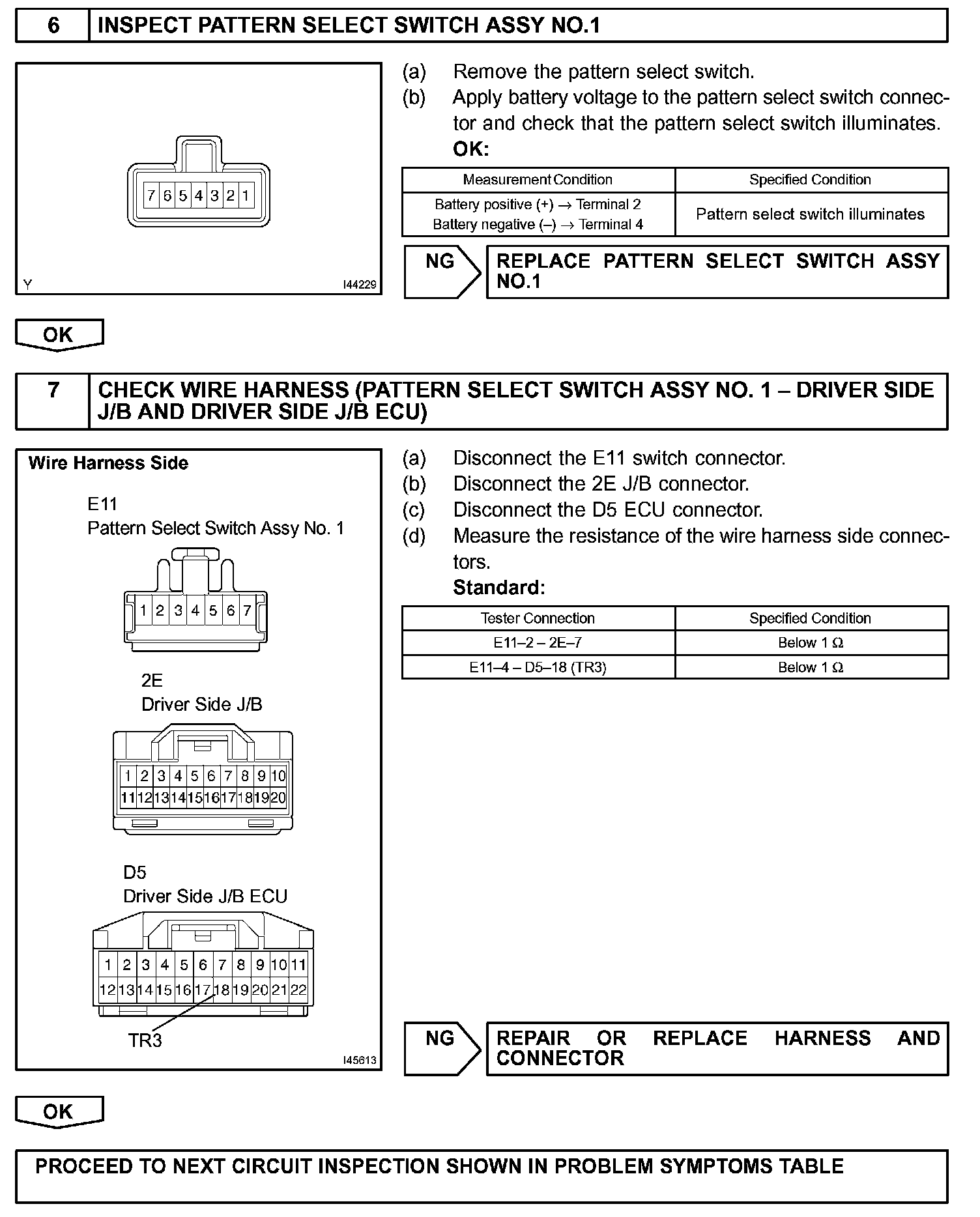

Step 6 - 7:

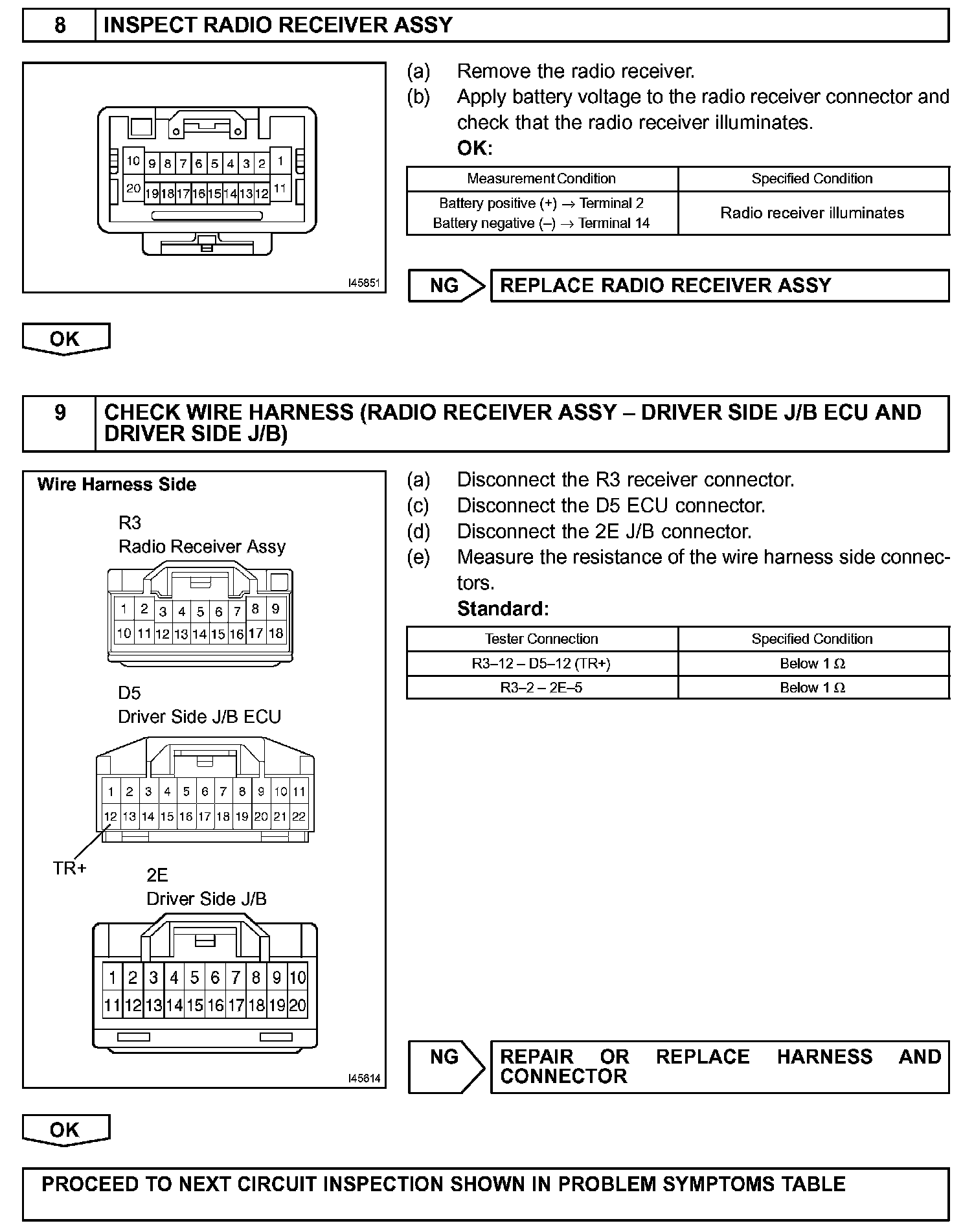

Step 8 - 9:

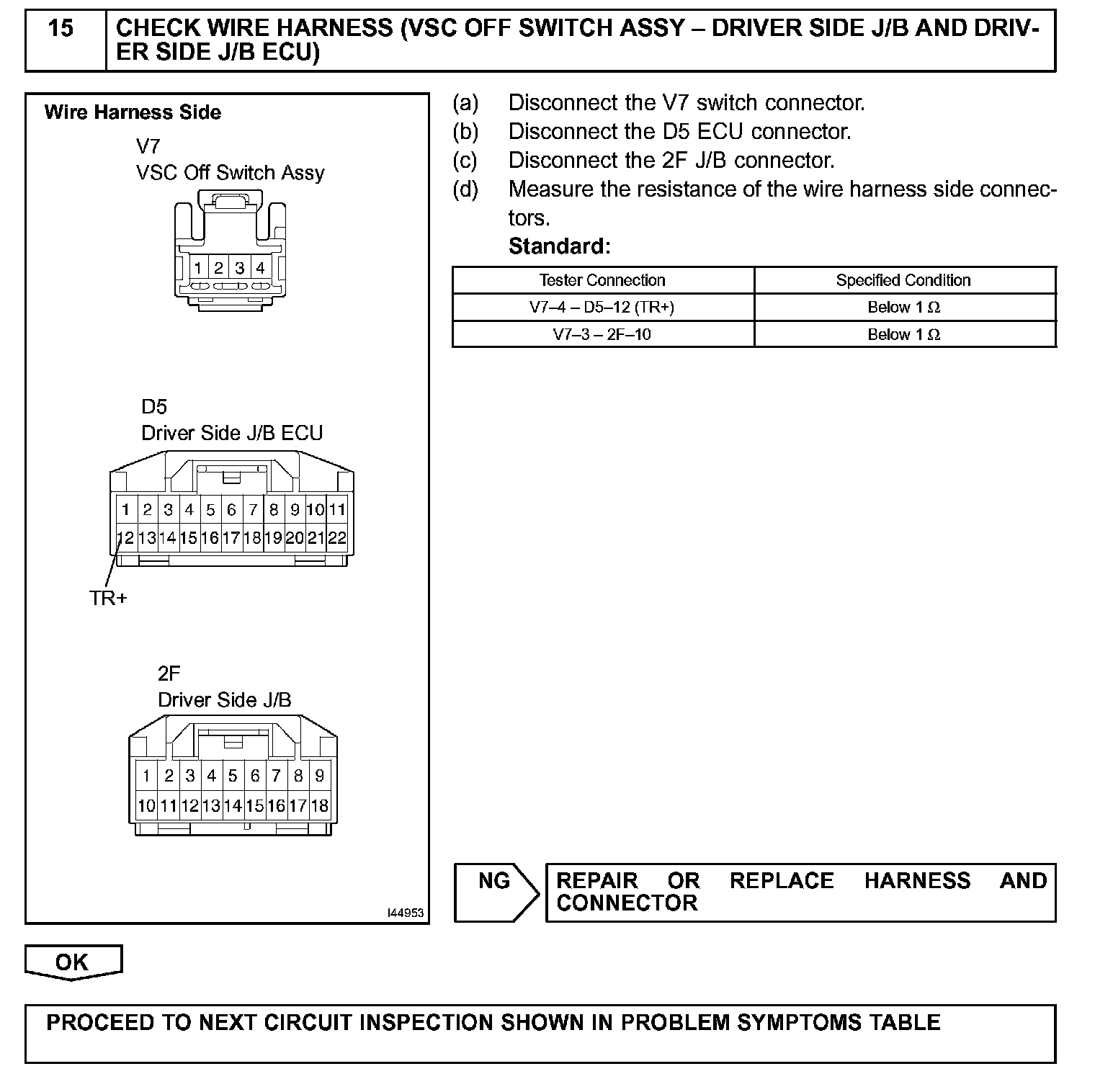

Step 10 - 11:

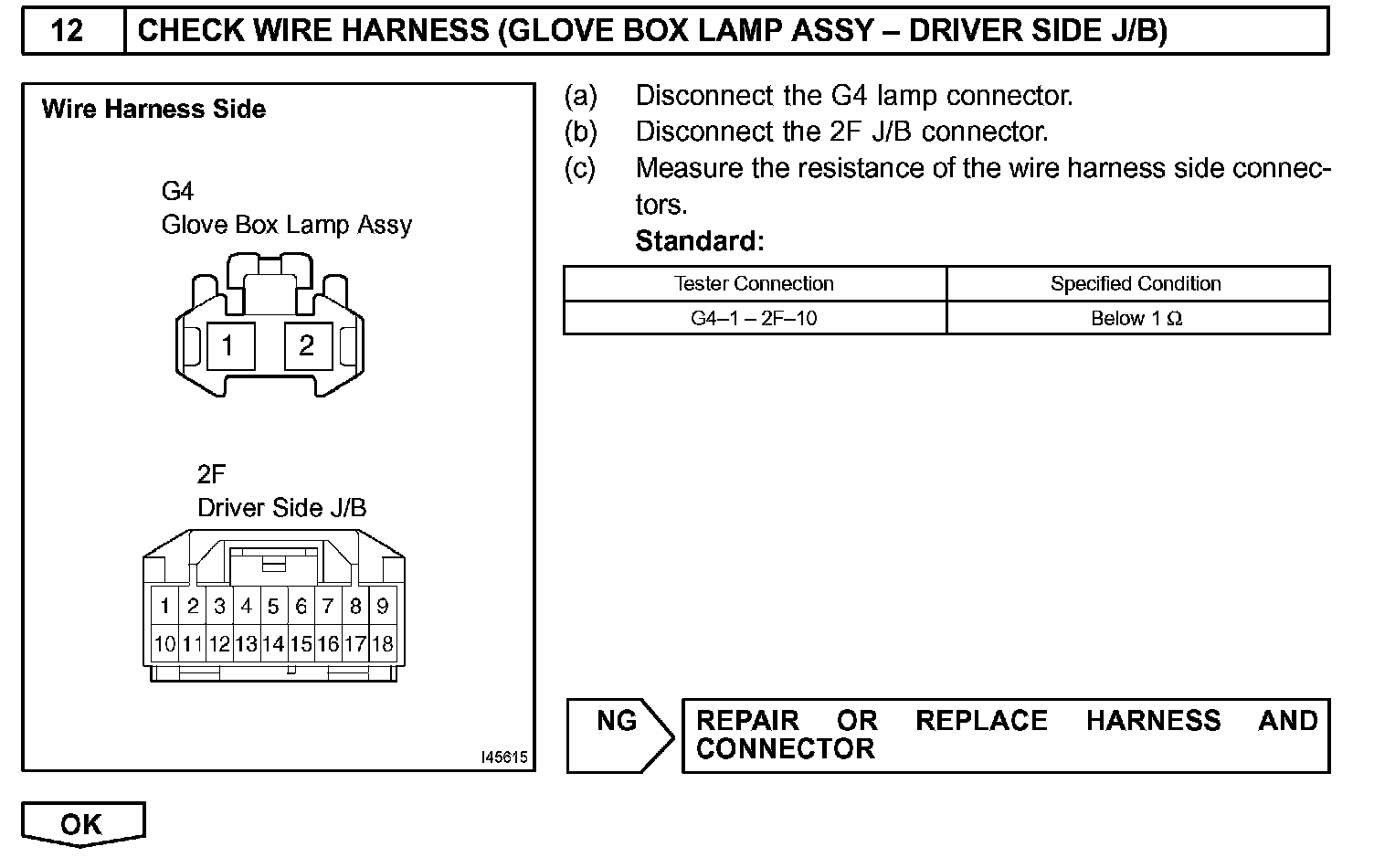

Step 12:

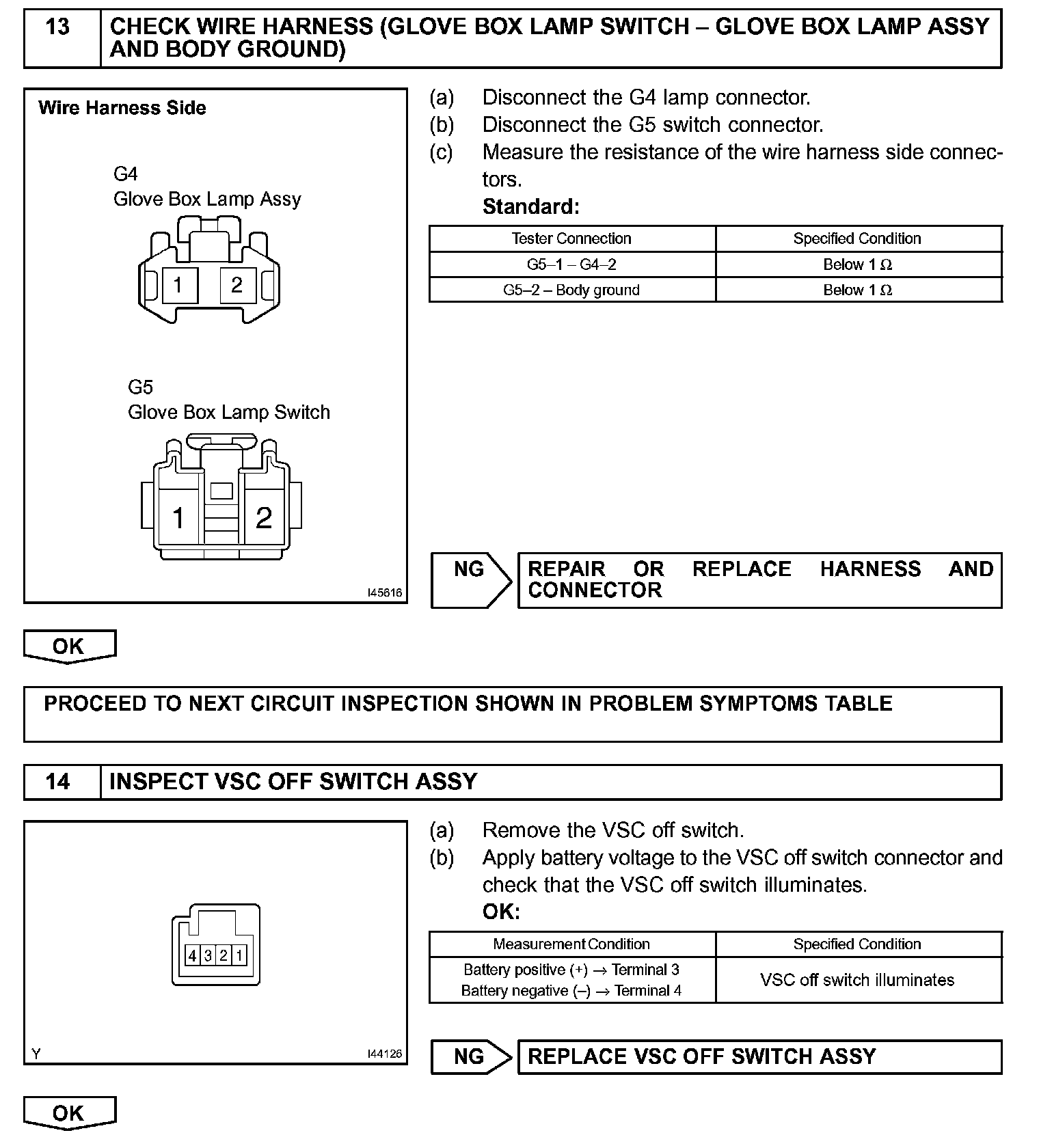

Step 13 - 14:

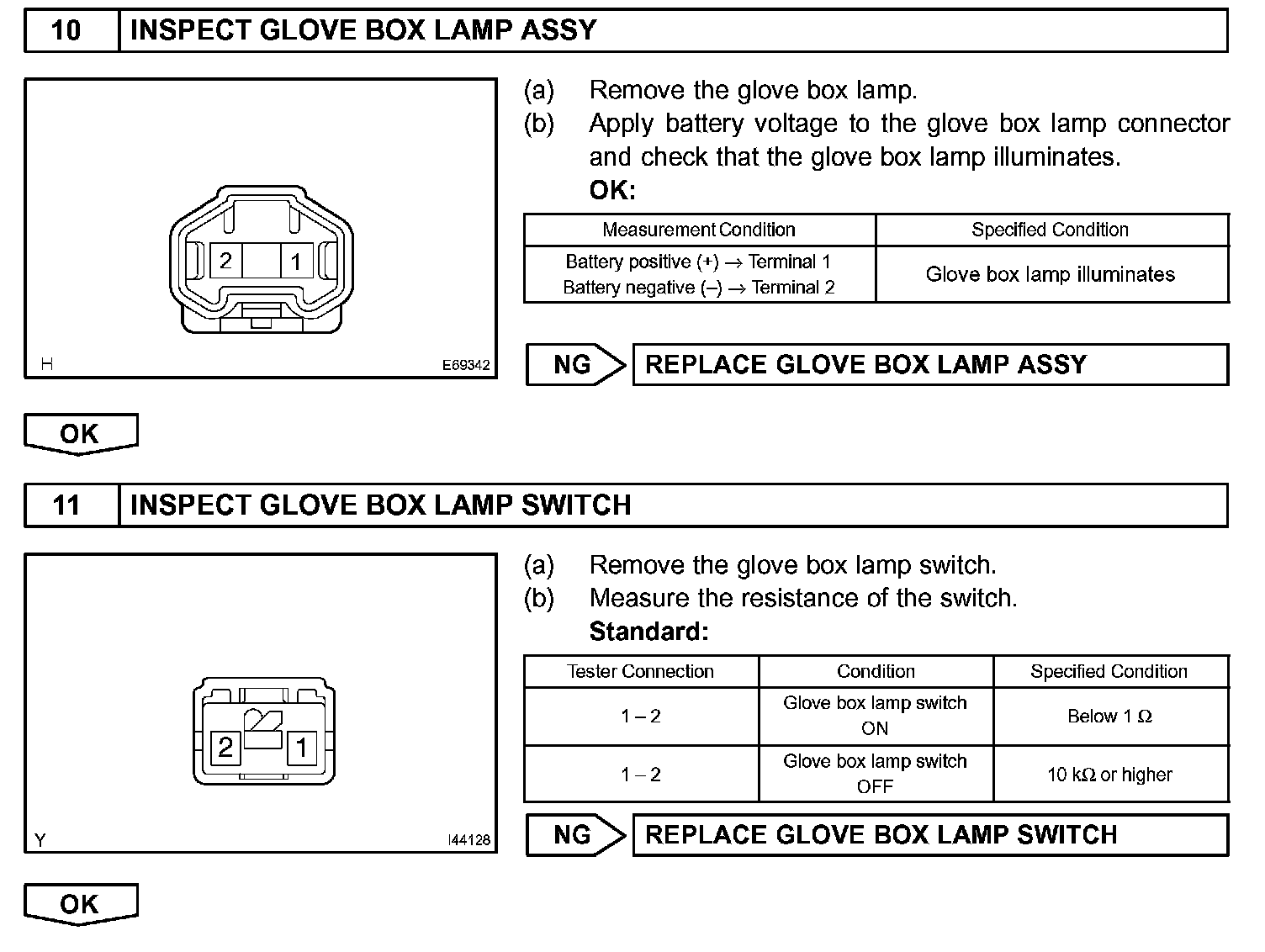

Step 15:

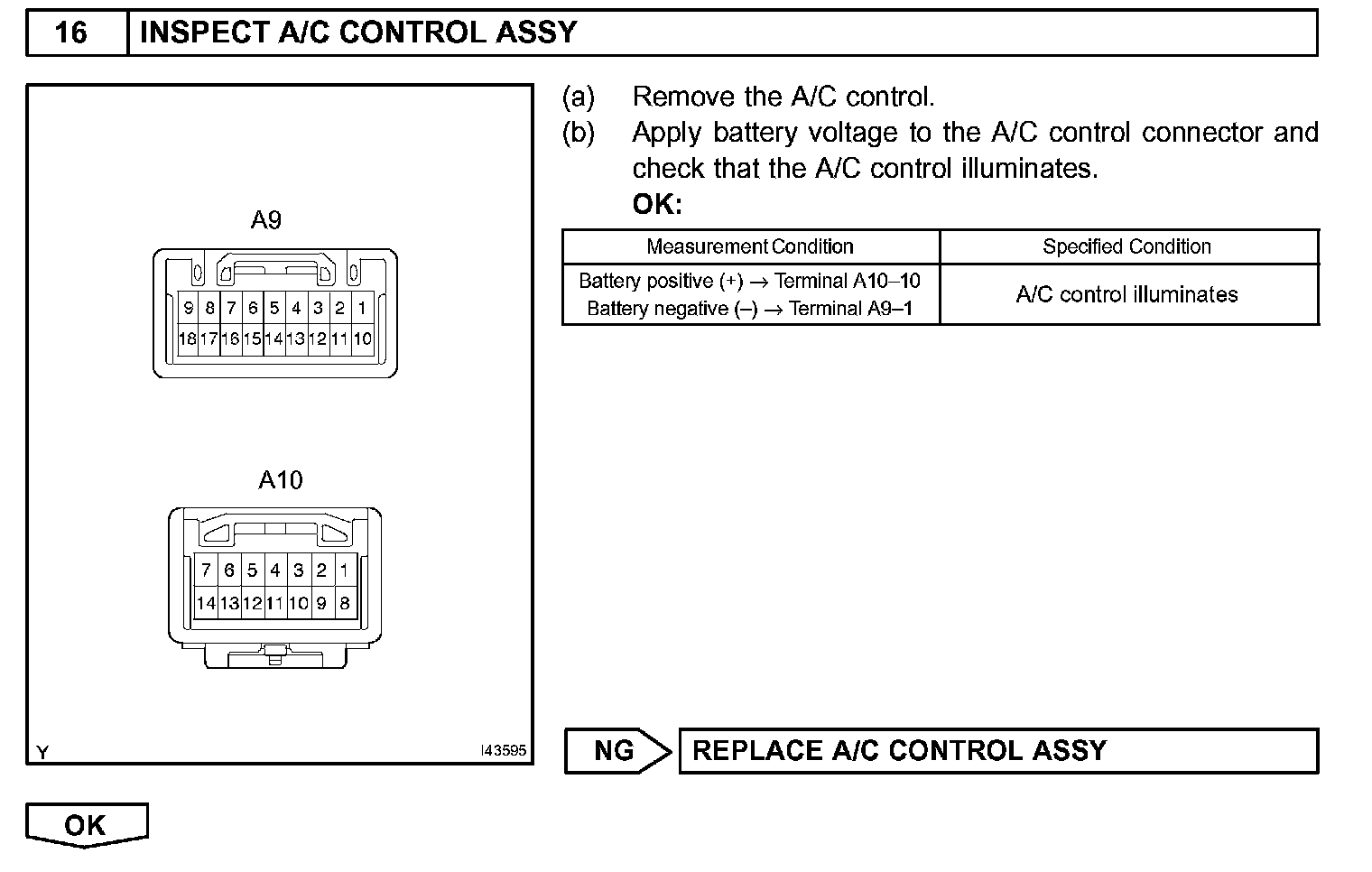

Step 16:

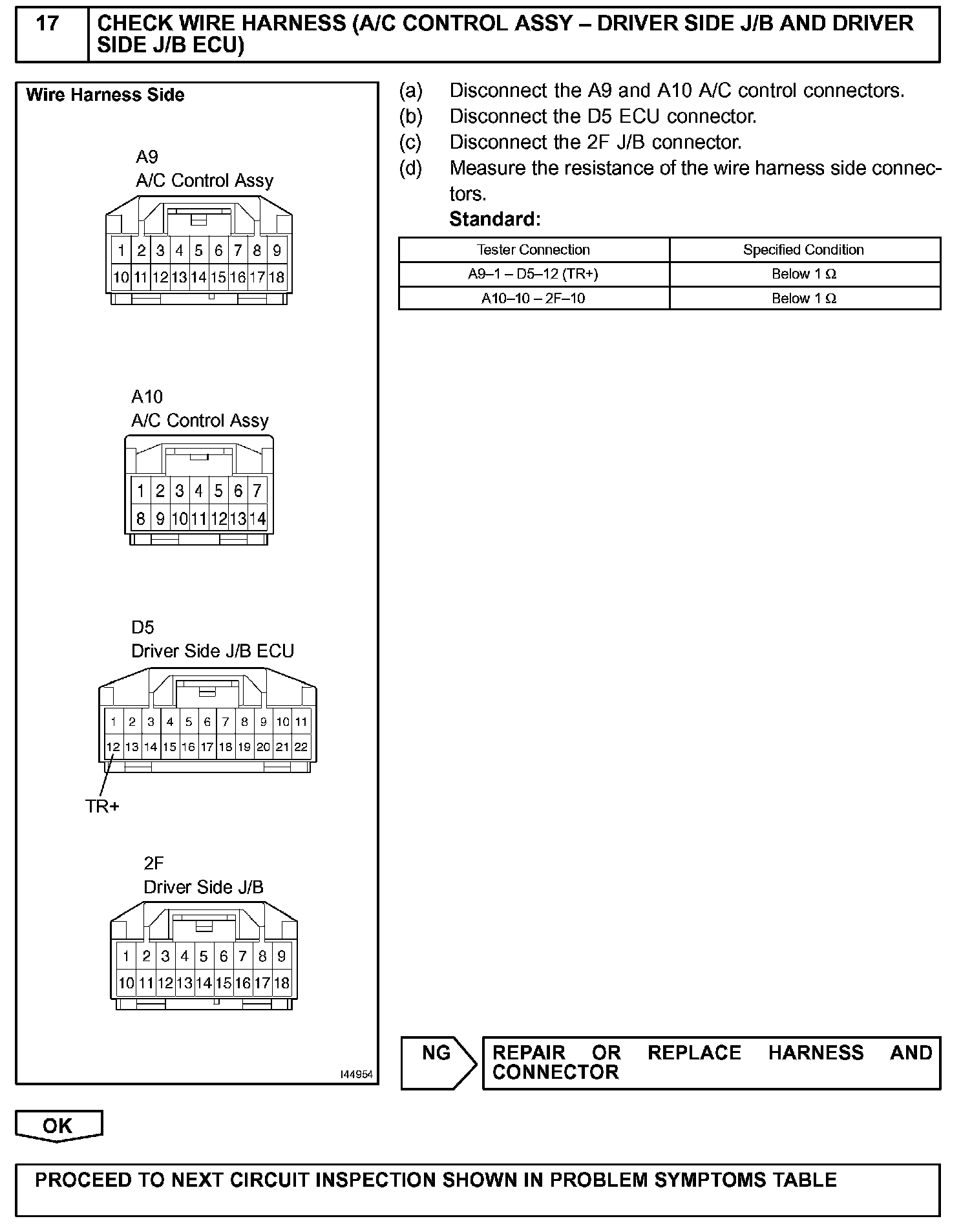

Step 17:

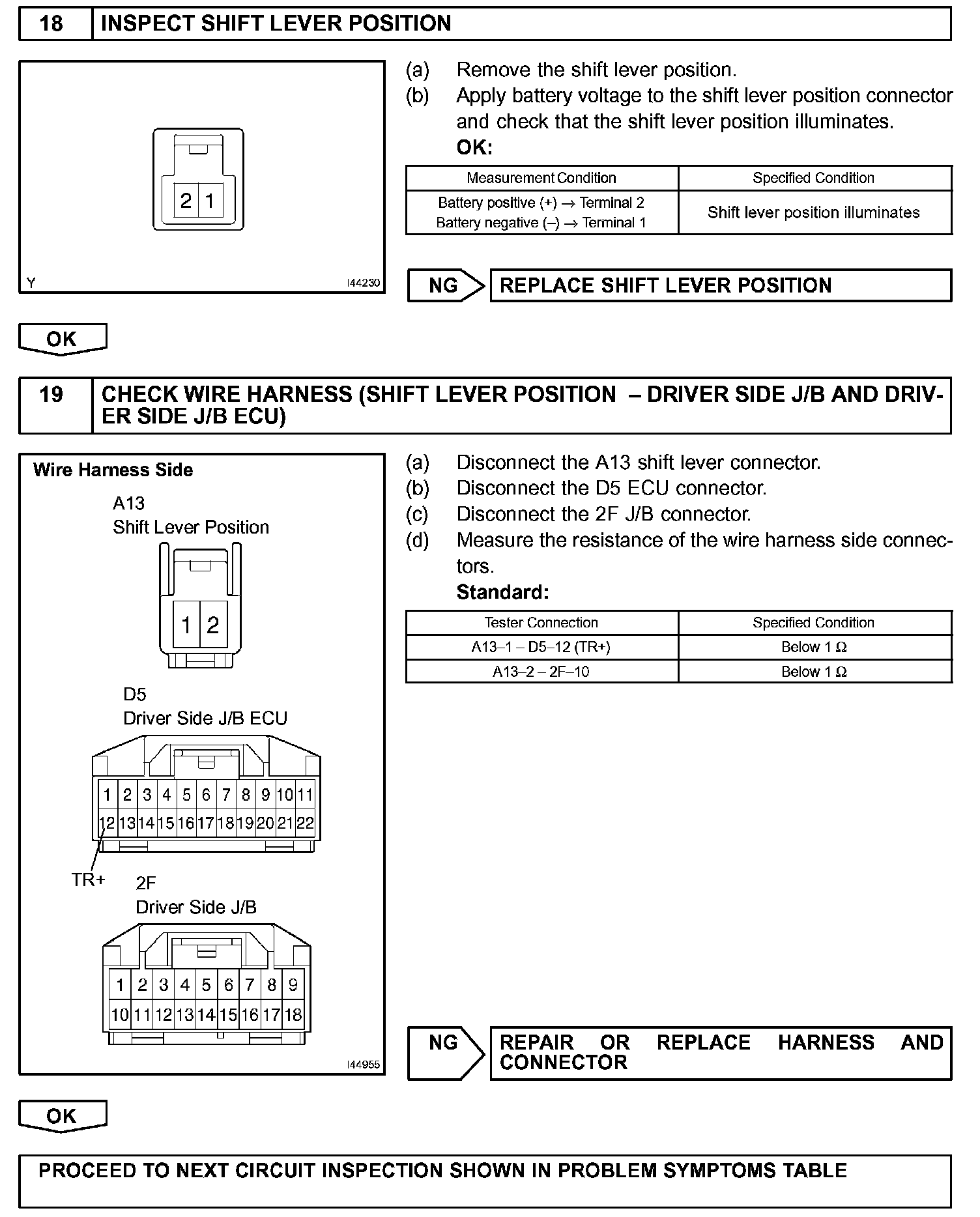

Step 18 - 19:

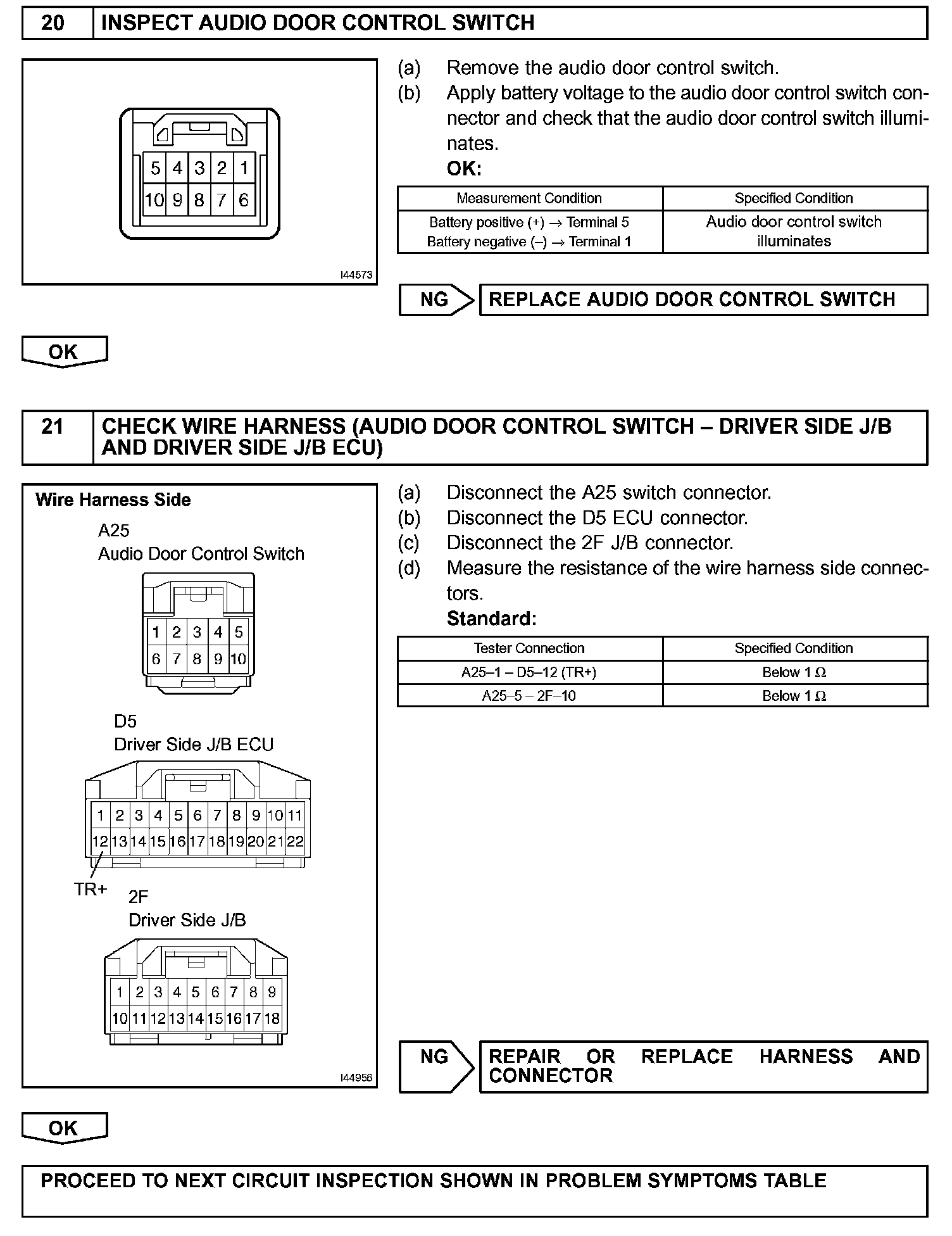

Step 20 - 21:

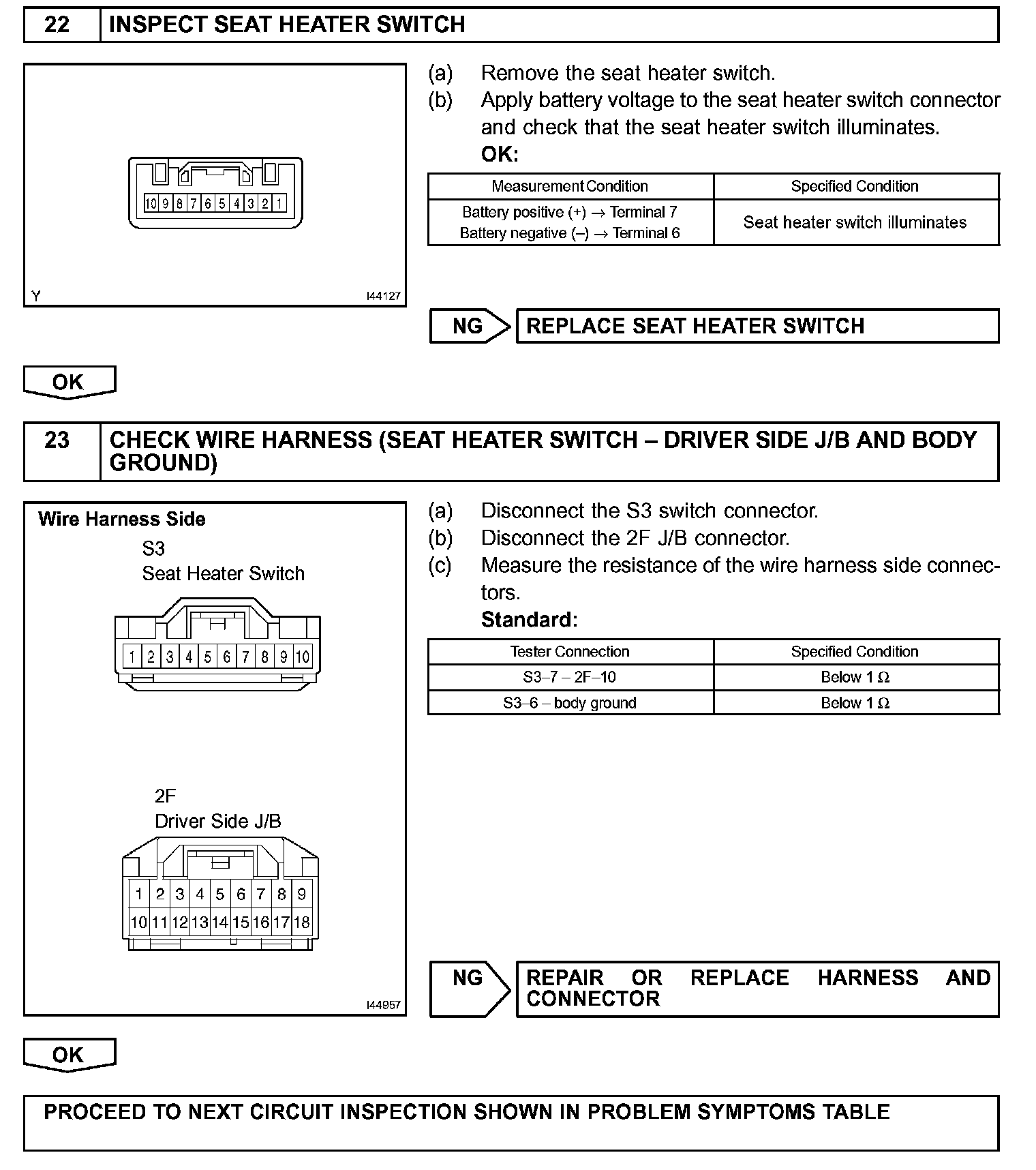

Step 22 - 23:

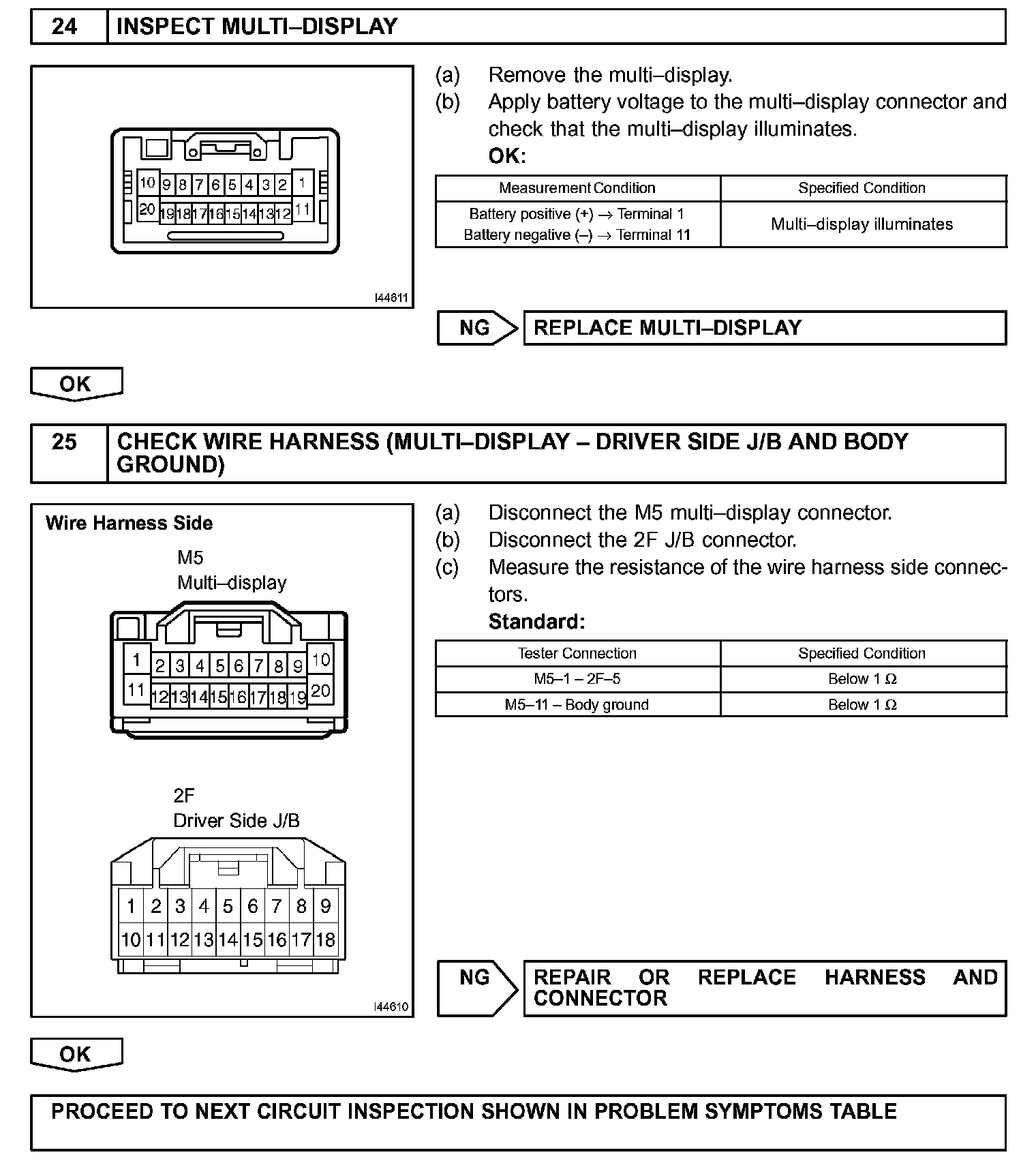

Step 24 - 25:

INSPECTION PROCEDURE
