Headlamp Relay Circuit

HEADLAMP RELAY CIRCUIT

CIRCUIT DESCRIPTION

The headlamp relay is turned "ON" by operating the headlamp switch.

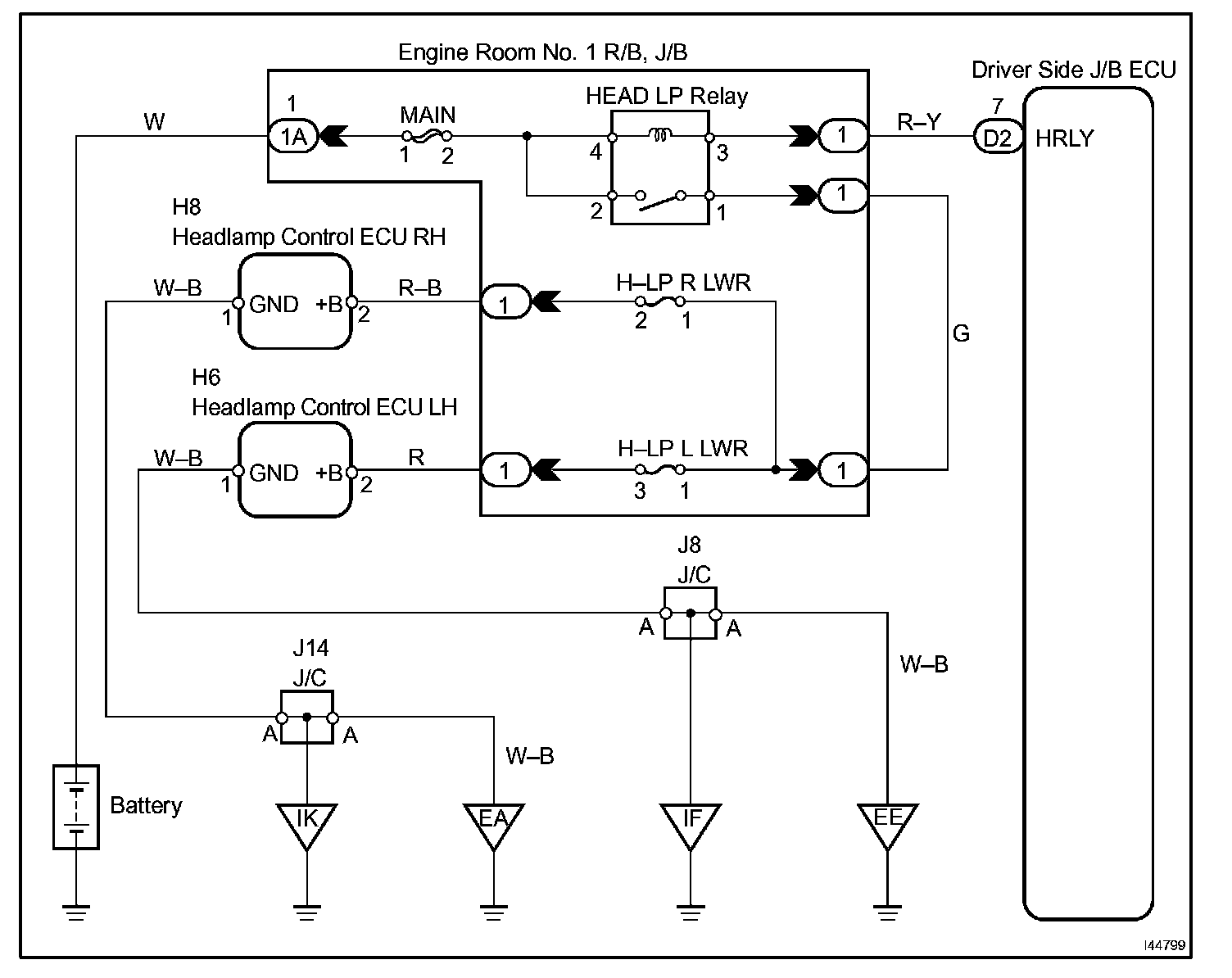

Wiring Diagram:

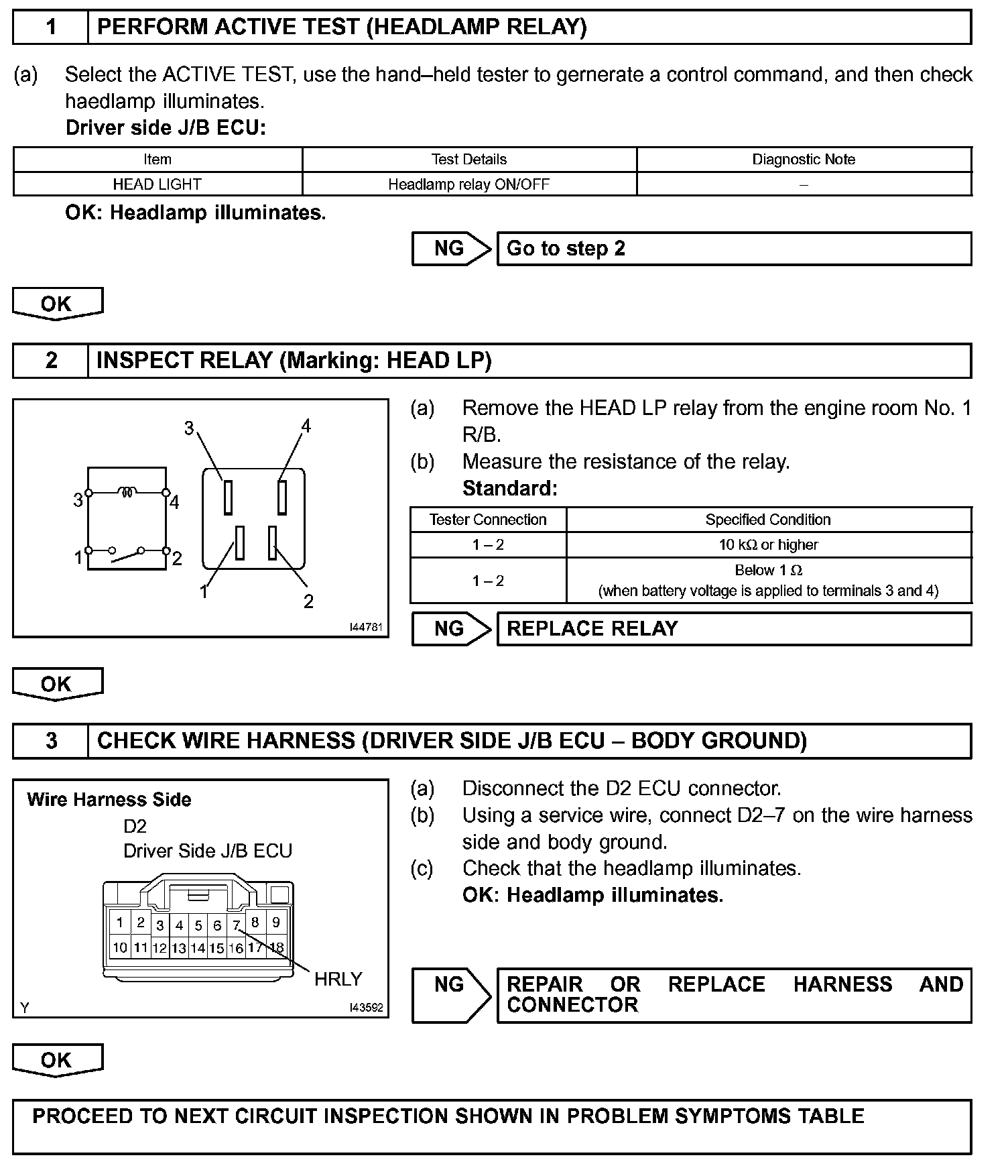

Step 1 - 3:




INSPECTION PROCEDURE
