Headlamp Beam Level Control ECU Power Source Circuit

HEADLAMP BEAM LEVEL CONTROL ECU POWER SOURCE CIRCUIT

CIRCUIT DESCRIPTION

This circuit provides power to operate the headlamp beam level control ECU.

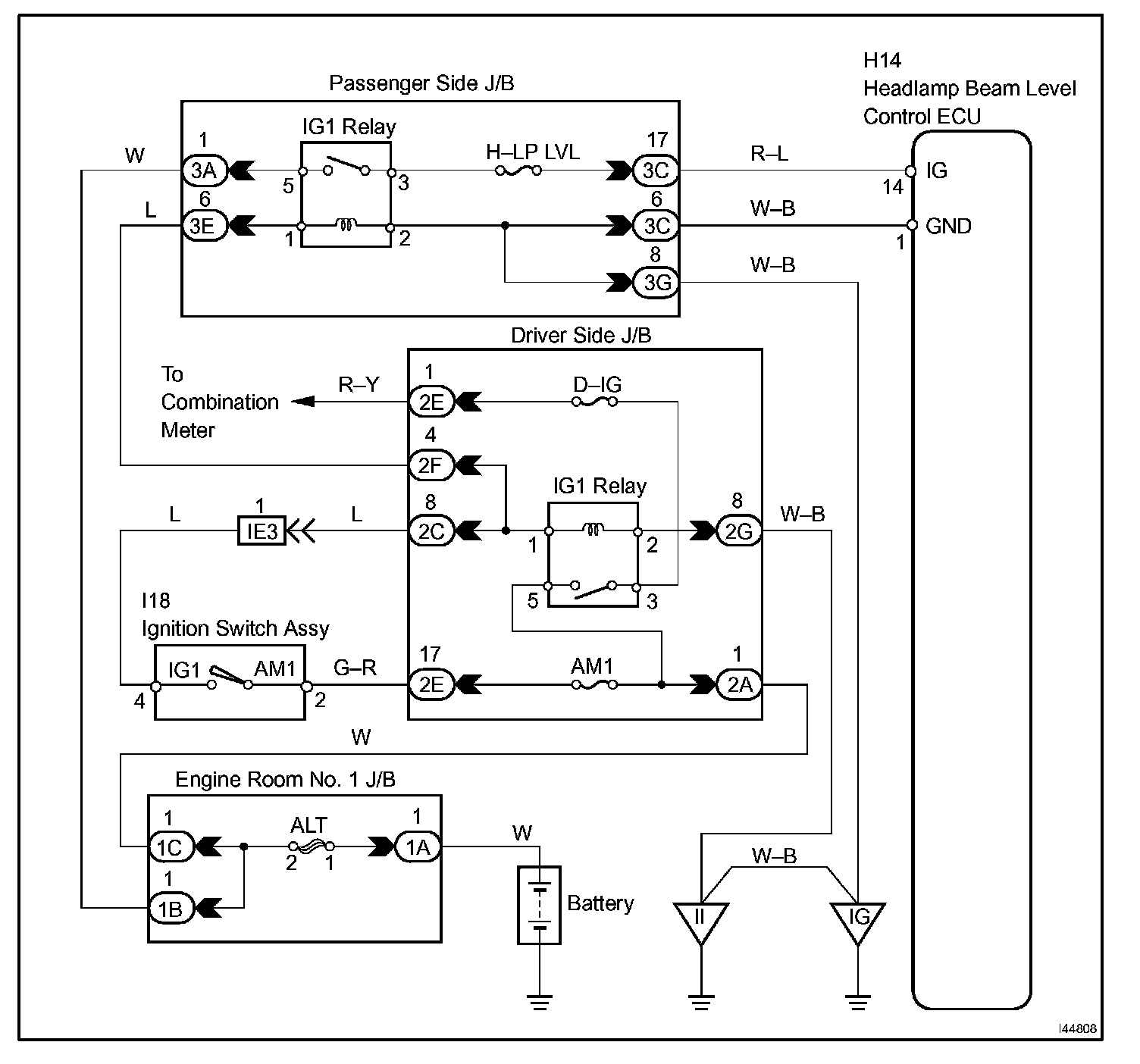

Wiring Diagram:

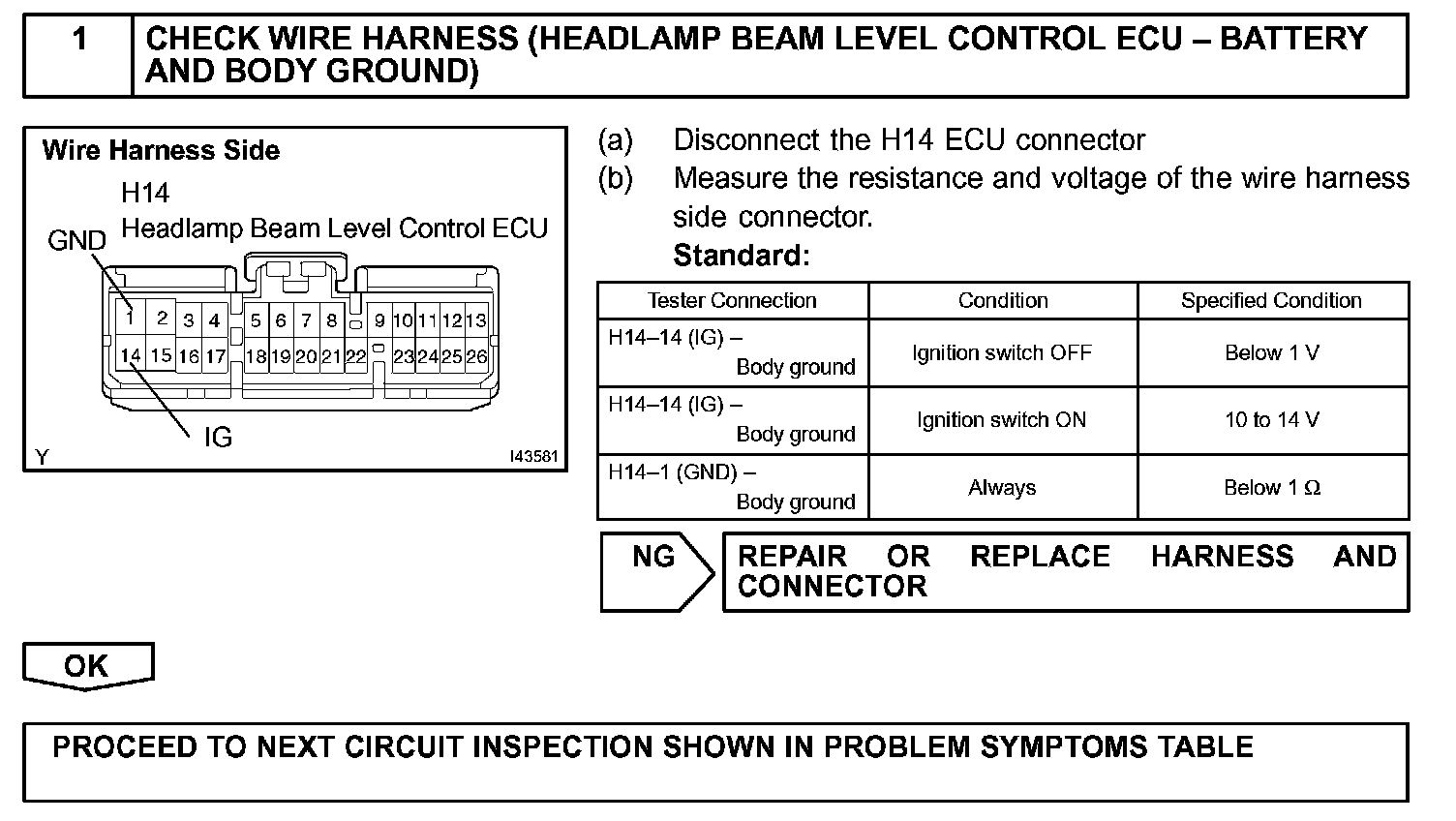

Step 1:




INSPECTION PROCEDURE
