Headlamp Beam Level Control Actuator Circuit

HEADLAMP BEAM LEVEL CONTROL ACTUATOR CIRCUIT

CIRCUIT DESCRIPTION

When the unit receives a signal from the headlamp beam level control ECU, the step motor is activated and the angle of the reflector in the headlamp will be adjusted.

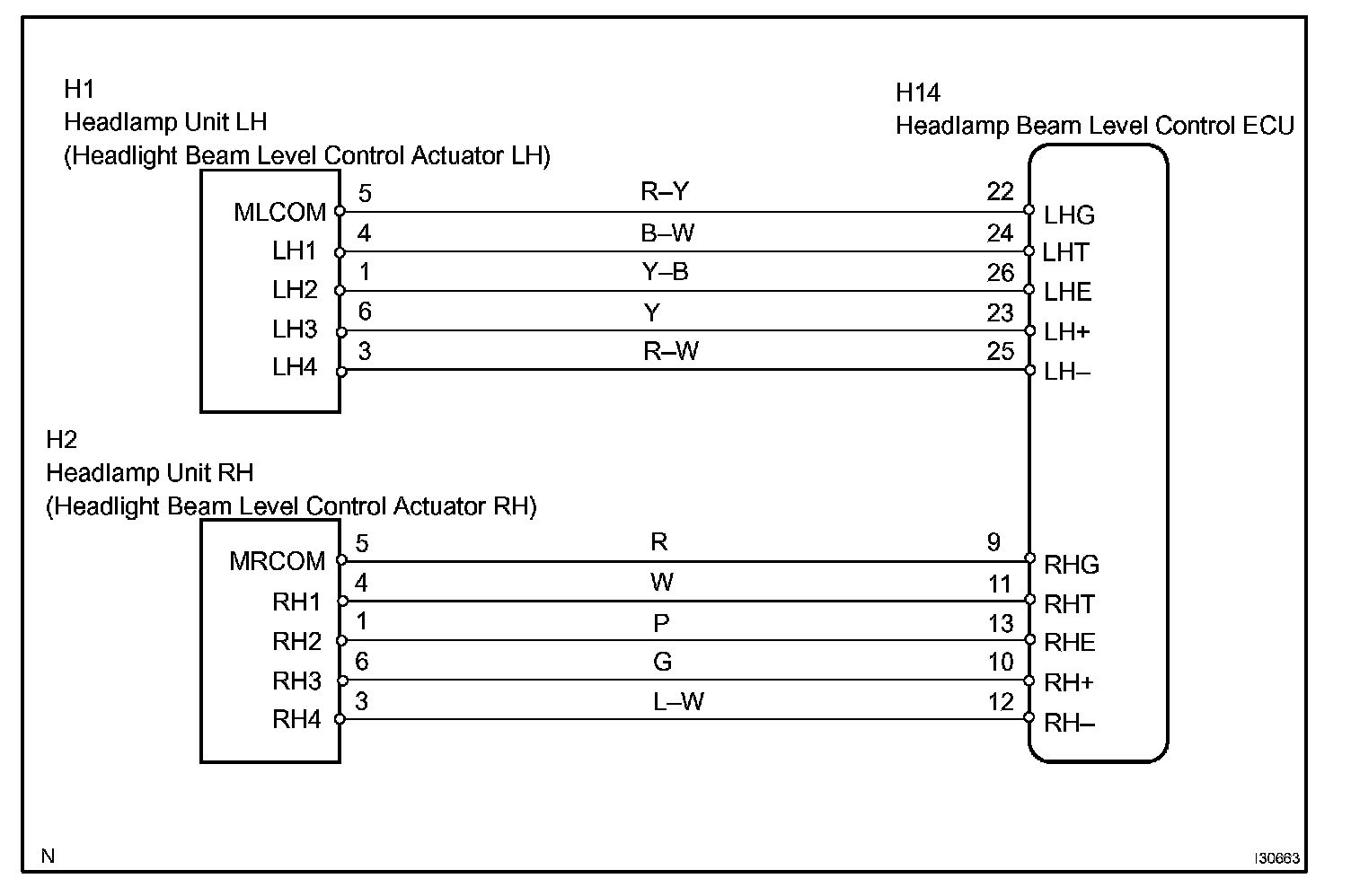

Wiring Diagram:

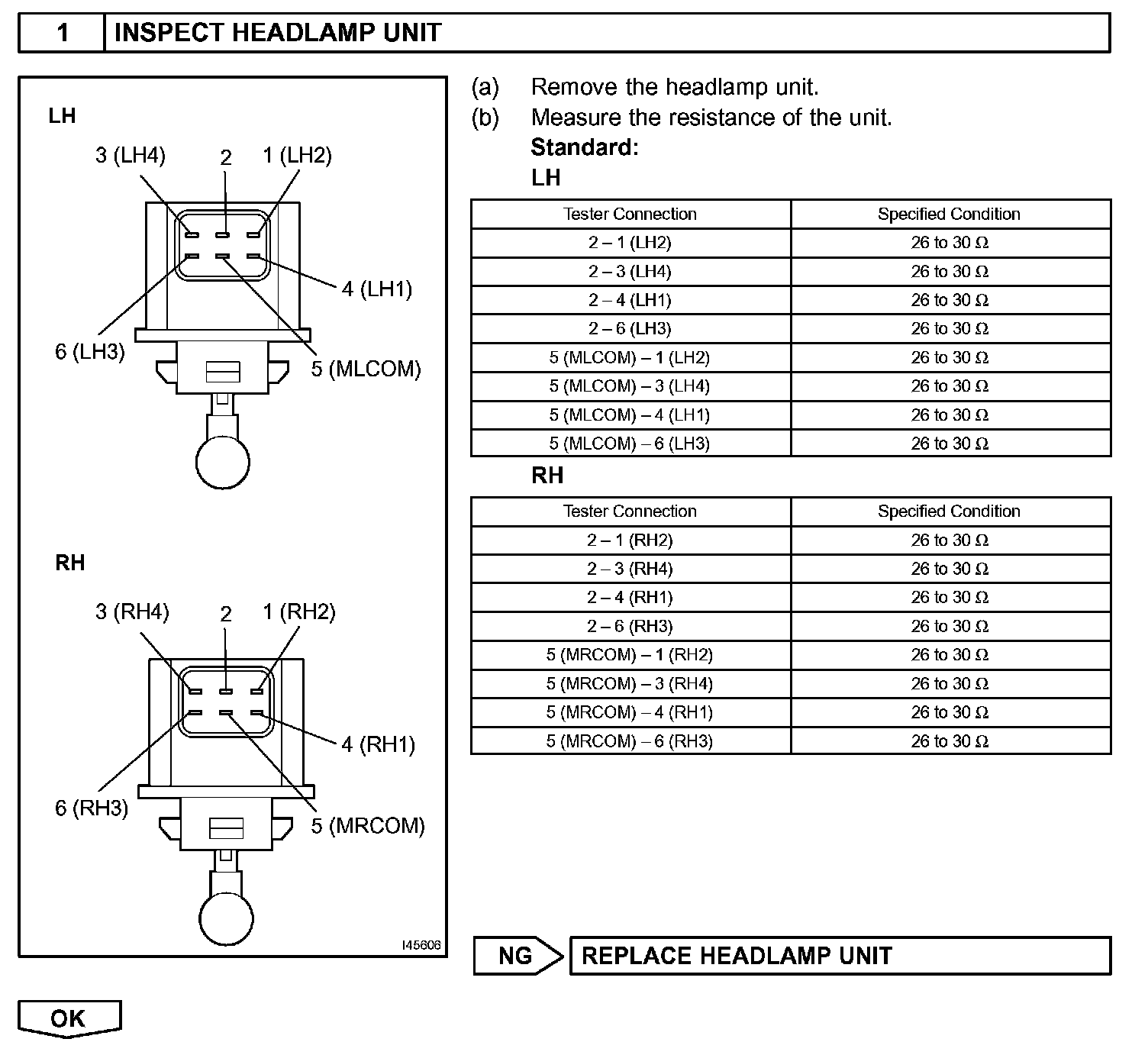

Step 1:

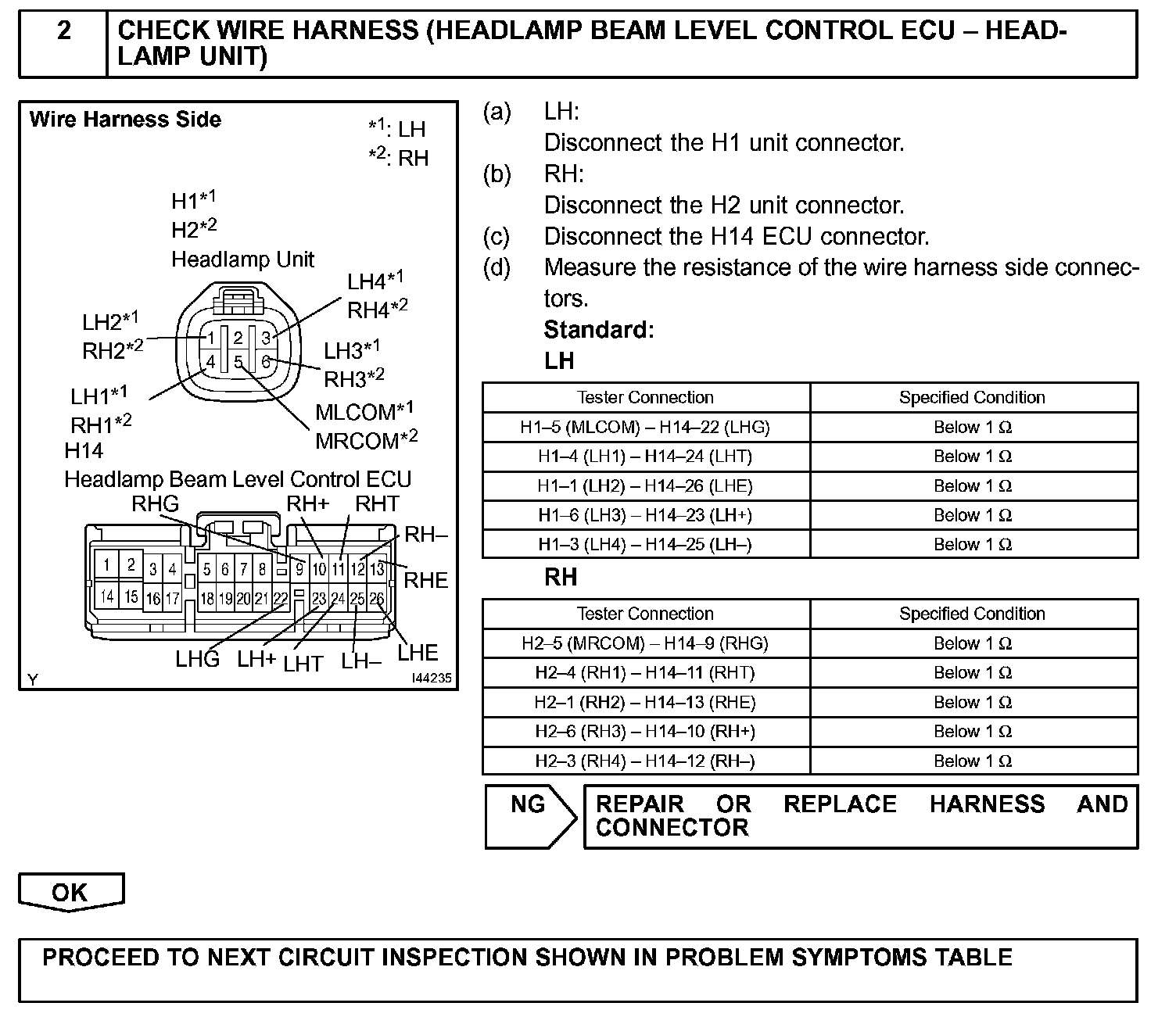

Step 2:

INSPECTION PROCEDURE
