Front Fog Lamp Circuit
FRONT FOG LAMP CIRCUITCIRCUIT DESCRIPTION
The front lamp ECU receives the fog lamp switch information from the combination switch, and illuminates the fog lamps.

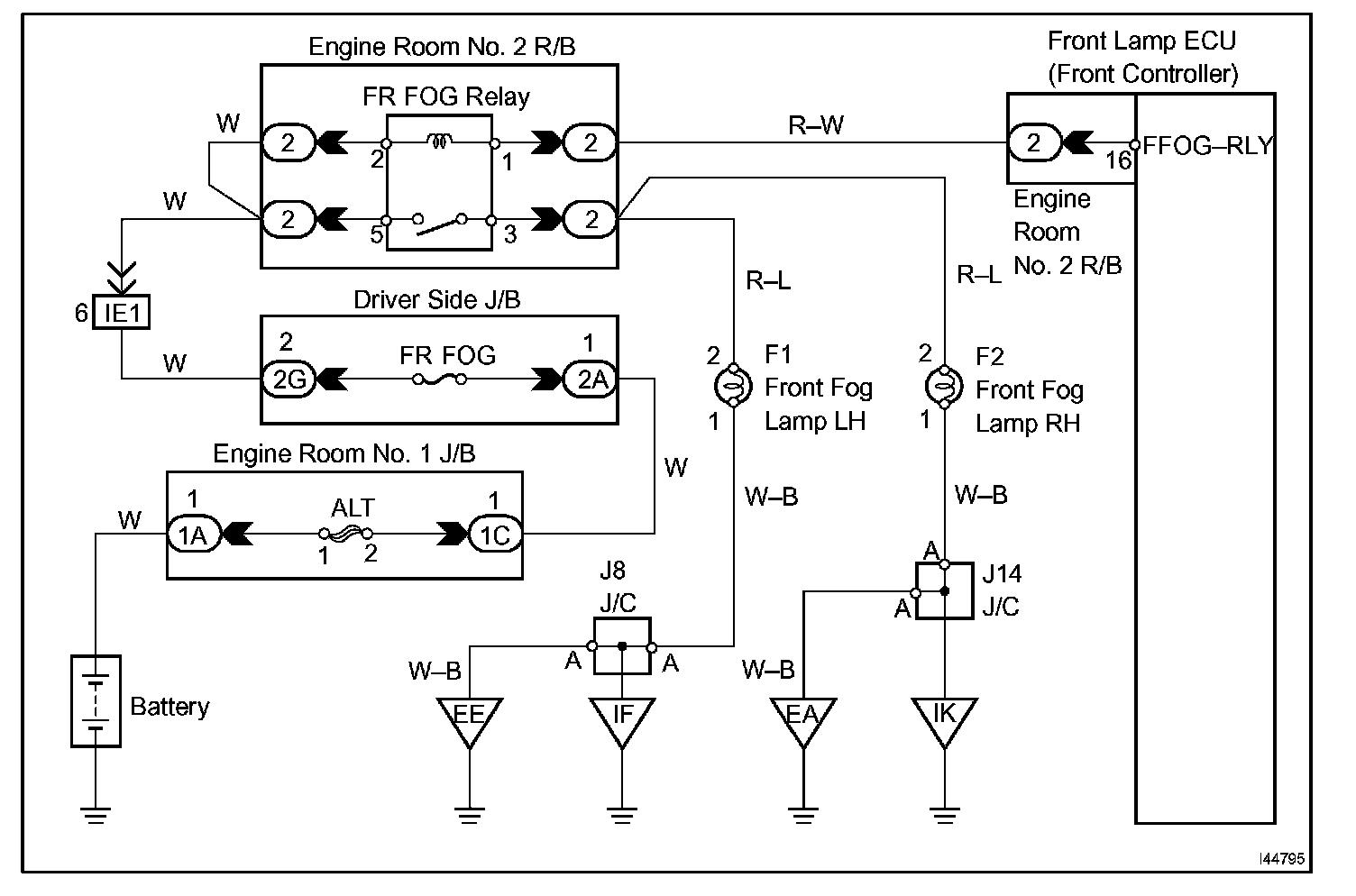

Wiring Diagram:

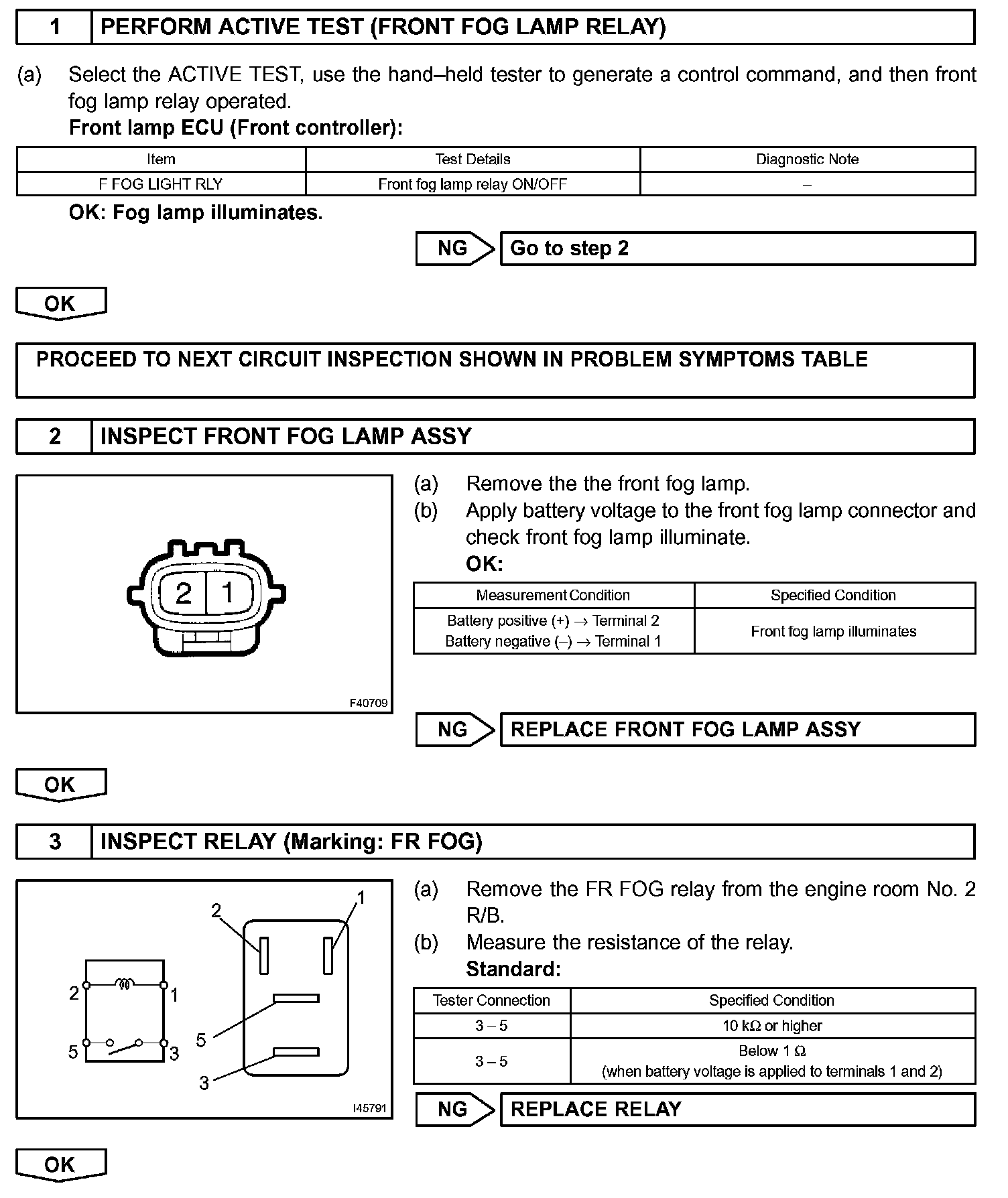

Step 1 - 3:

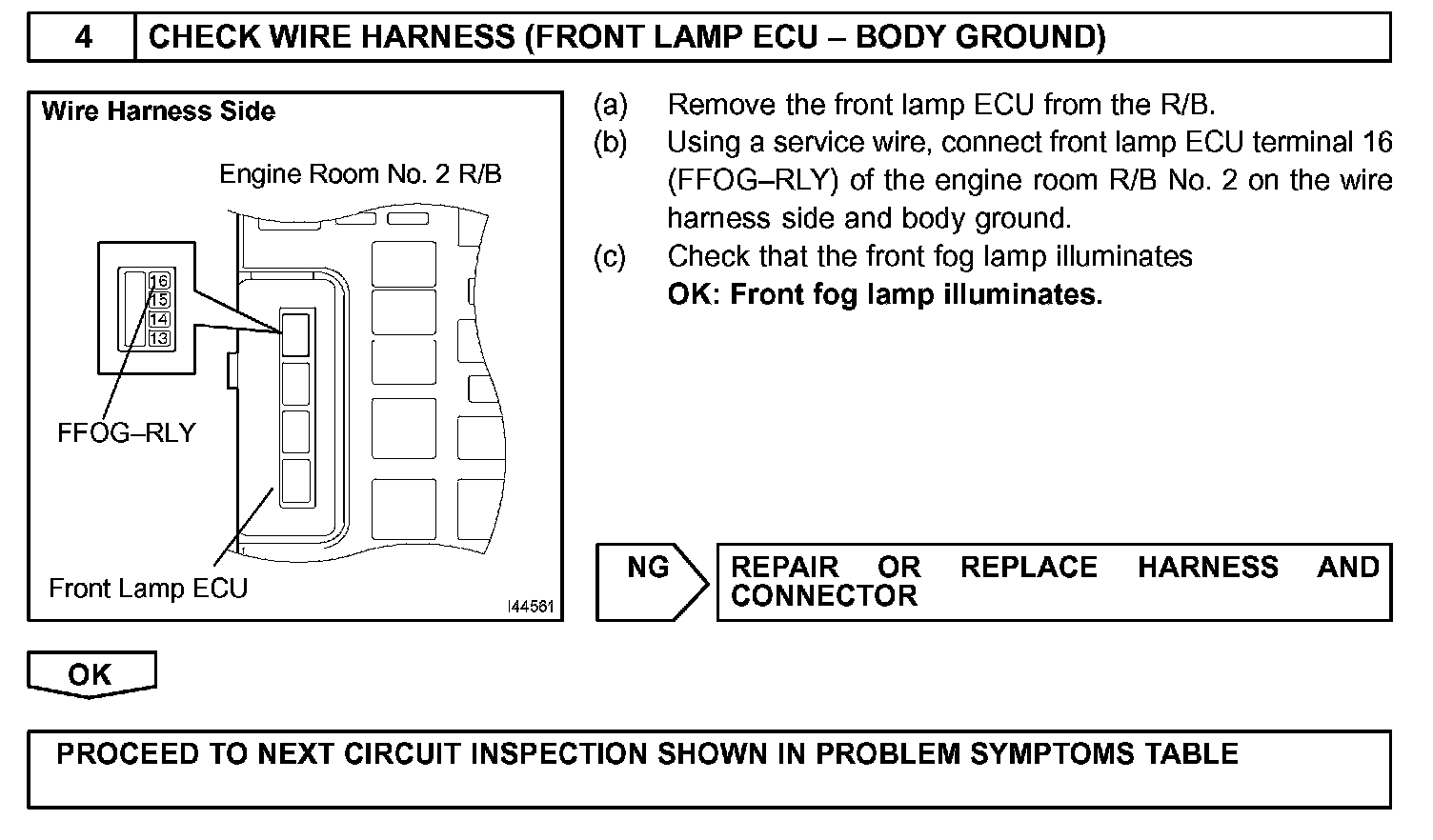

Step 4:
INSPECTION PROCEDURE
CIRCUIT DESCRIPTION
The front lamp ECU receives the fog lamp switch information from the combination switch, and illuminates the fog lamps.
INSPECTION PROCEDURE
