Clearance Lamp Circuit

CLEARANCE LAMP CIRCUIT

CIRCUIT DESCRIPTION

The front lamp ECU receives turn signal switch information from the combination switch, and illuminates the clearance lamps

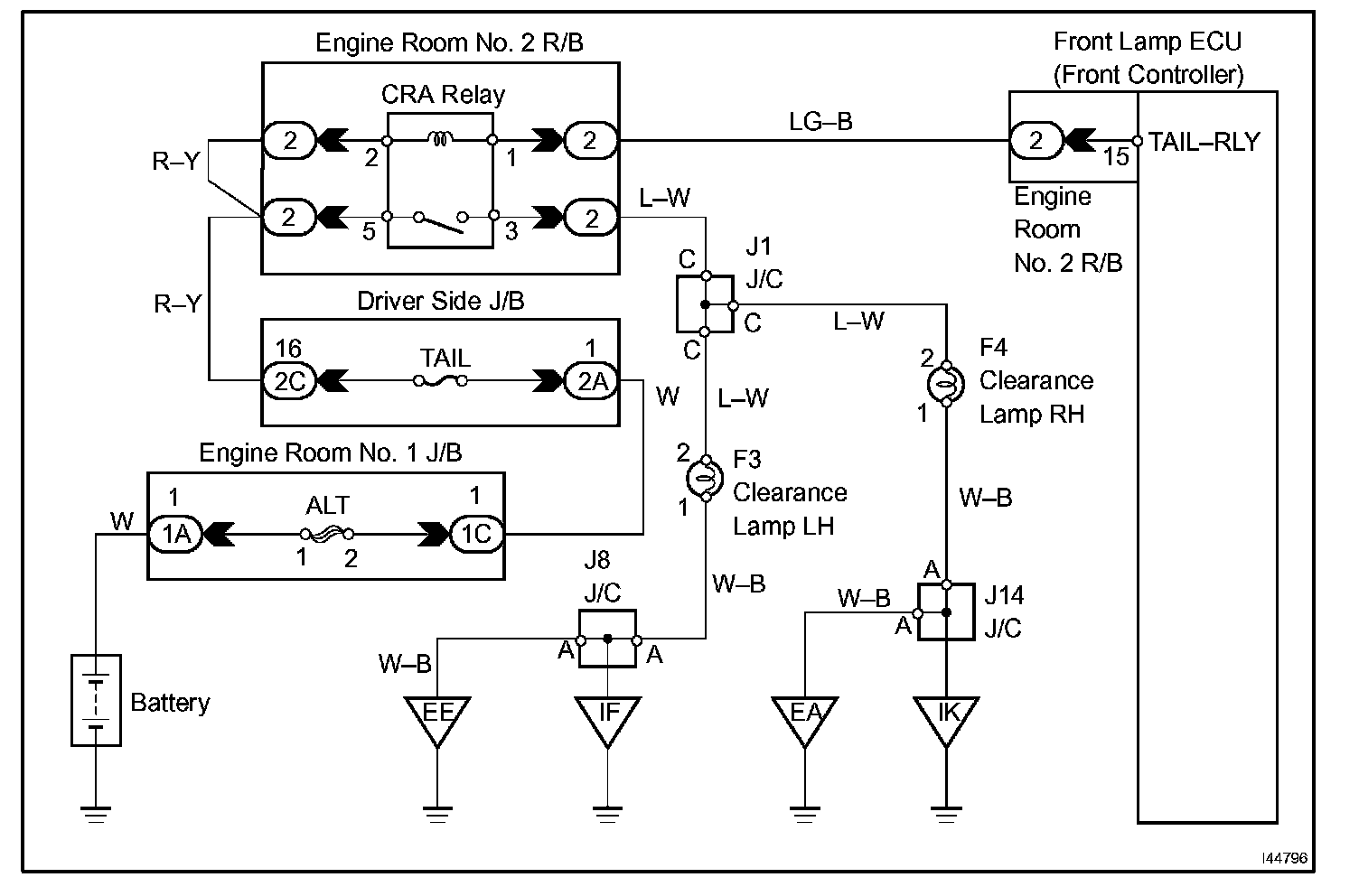

Wiring Diagram:






Step 1 - 3:




Step 4:




INSPECTION PROCEDURE
