Symptom Related Diagnostic Procedures

VSC WARNING LAMP CIRCUIT (DOES NOT ILLUMINATE)

CIRCUIT DESCRIPTION

If the ECU stores DTC, the VSC warning lamp turns on the combination meter.

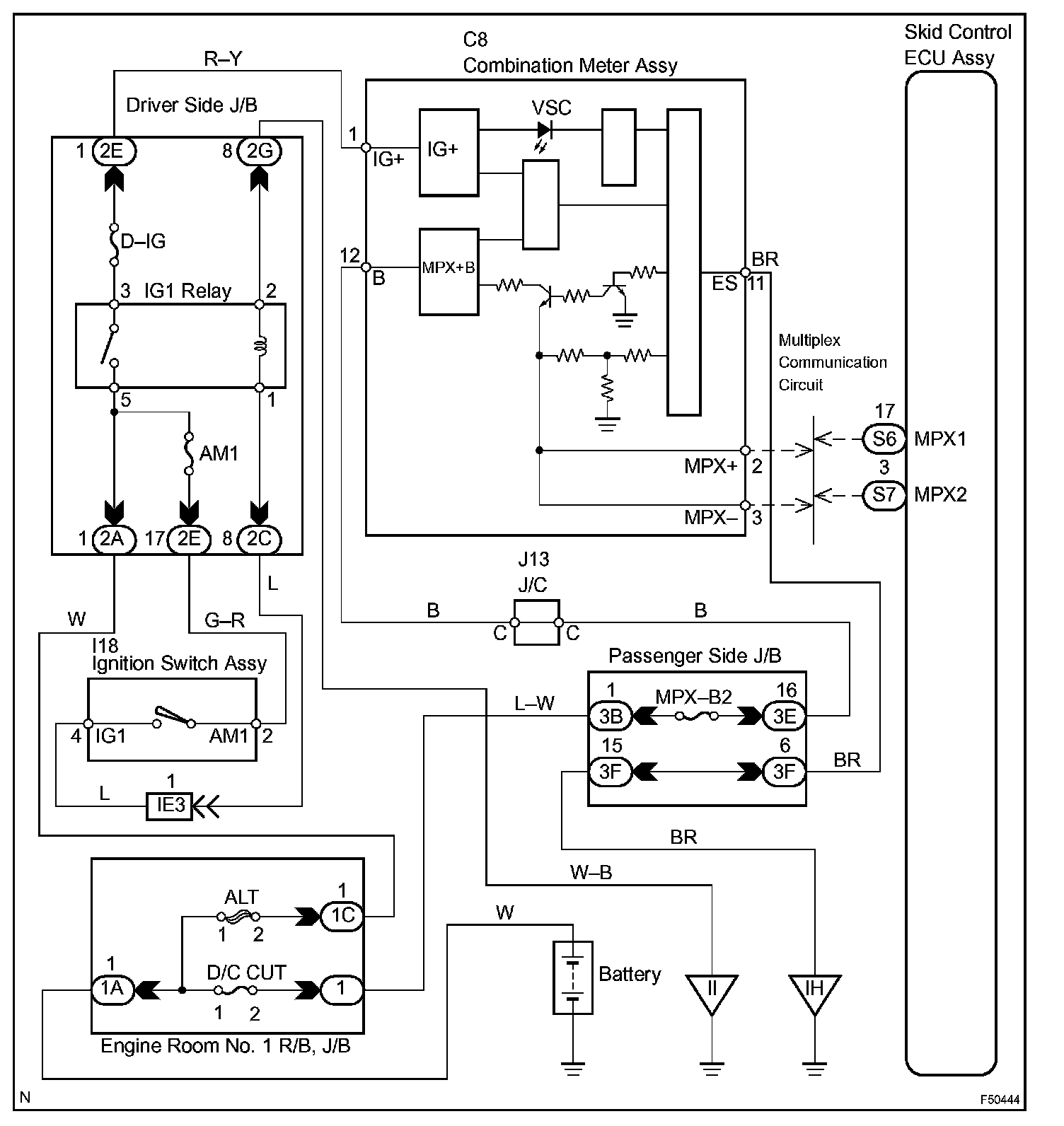

Wiring Diagram:

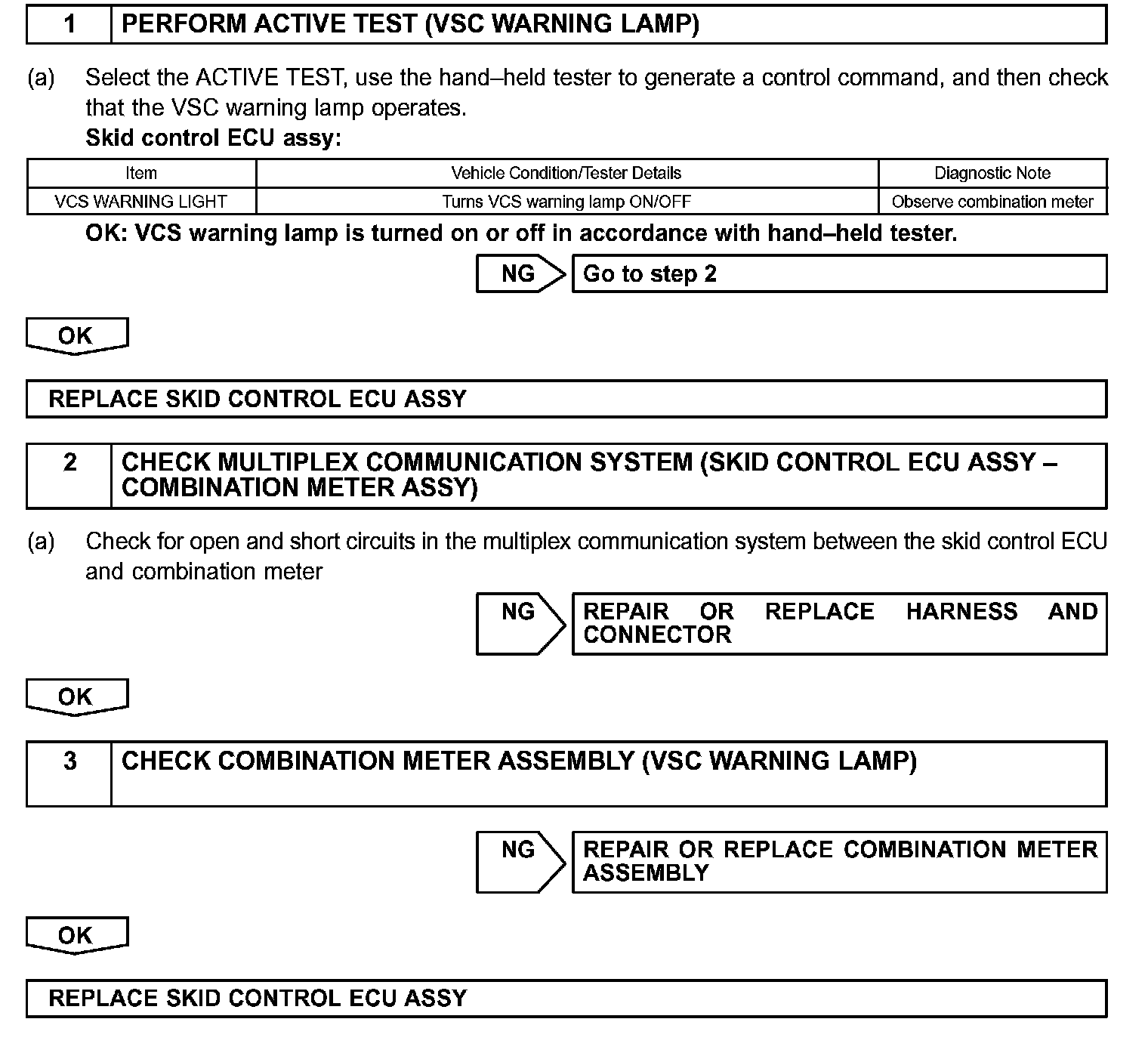

Step 1 - 3:

INSPECTION PROCEDURE

HINT: Start the inspection from step 1 when using the hand-held tester and start from step 2 when not using the
hand-held tester.
