Tire Pressure Antenna Front

REPLACEMENT

HINT:
^ Use the same procedures for the RH side and LH side.
^ The procedures listed are for the LH side.

1. REMOVE WHEEL HUB ORNAMENT SUB-ASSEMBLY
a. Remove the 10 bolts and ornament.
2. REMOVE FRONT WHEEL
a. Remove the 5 nuts and wheel.





3. REMOVE TIRE PRESSURE ANTENNA FRONT LH
a. Remove the front fender liner.

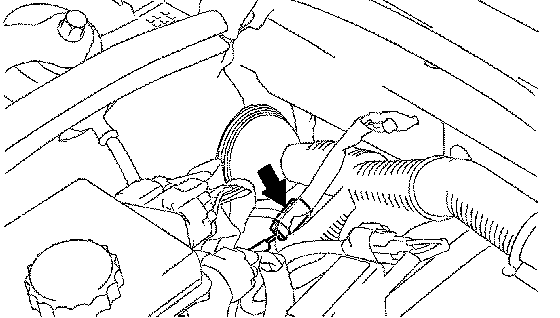

b. Disconnect the connector.

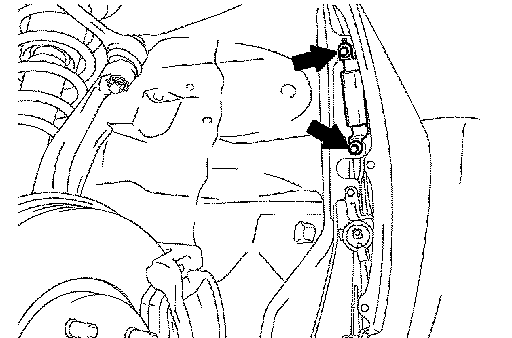

c. Remove the 2 bolts and tire pressure antenna.





4. INSTALL TIRE PRESSURE ANTENNA FRONT LH

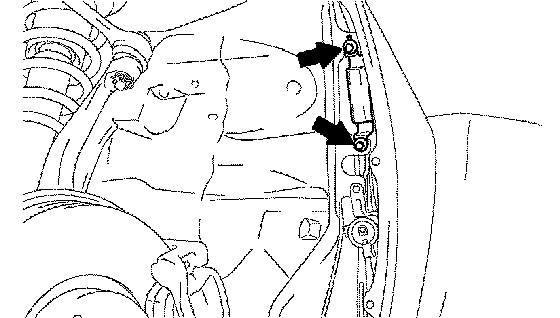

a. Install the tire pressure antenna with the 2 bolts.

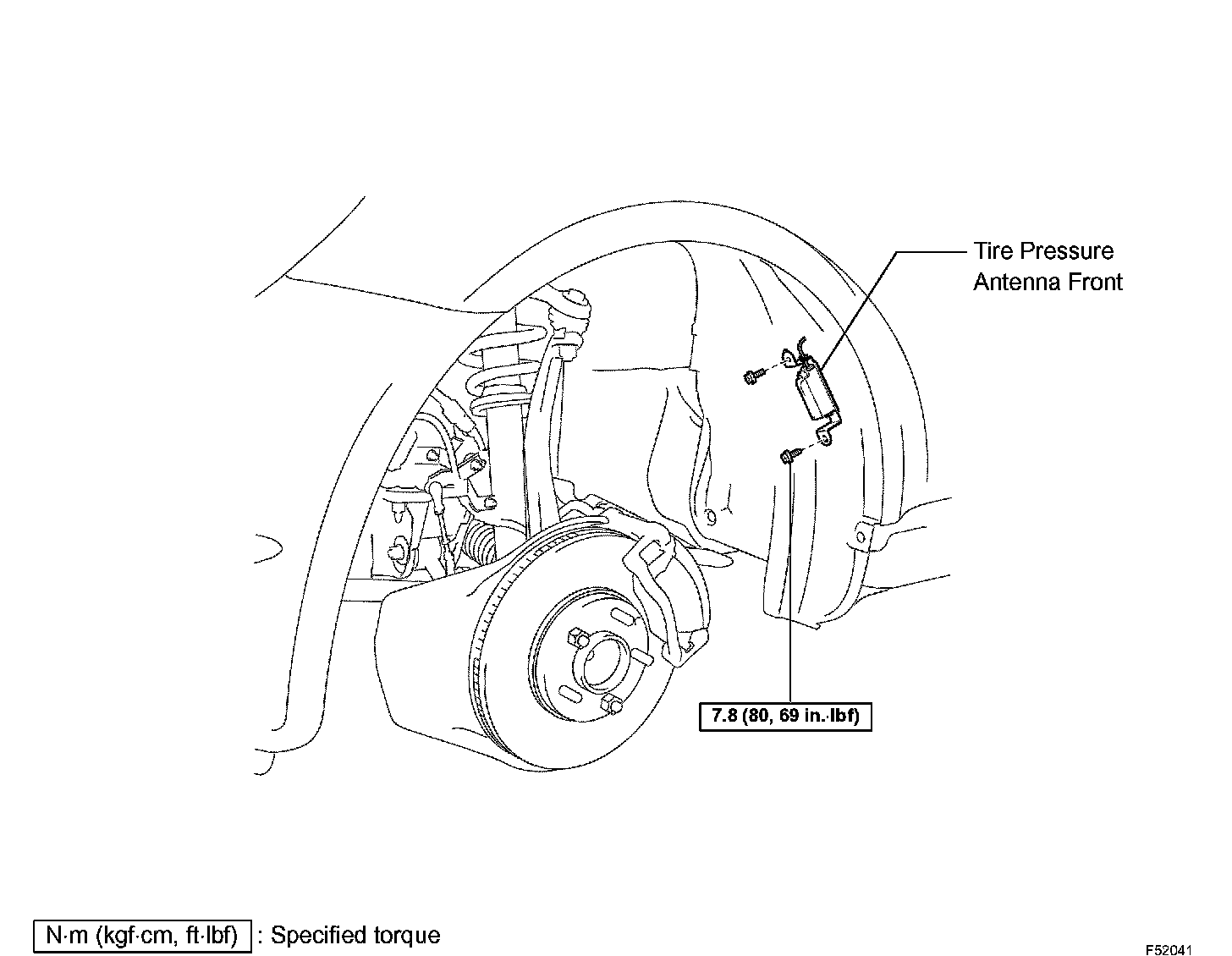

Torque: 7.8 Nm (80 kgf-cm, 69 inch lbs.)

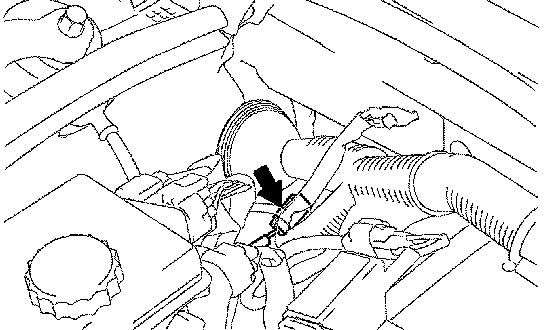

b. Connect the connector.
c. Install the front fender liner.
5. INSTALL FRONT WHEEL
a. Install the wheel with the 5 nuts.
Torque: 103 Nm (1,050 kgf-cm, 76 ft. lbs.)
6. INSTALL WHEEL HUB ORNAMENT SUB-ASSEMBLY
a. Install the ornament with the 10 bolts.
Torque: 20 Nm (204 kgf-cm, 15 ft. lbs.)
7. REGISTER TRANSMITTER ID
8. INSPECT TIRE PRESSURE WARNING SYSTEM
