Data List

DATA LIST

HINT: Using the hand-held tester's Data List allows switch, actuator and other item values to be read without removing any parts. Reading the Data List early in troubleshooting is one way to save time.

a. Connect the hand-held tester to the DLC3.
b. Turn the ignition switch ON.
c. Read the Data List according to the display on the tester.

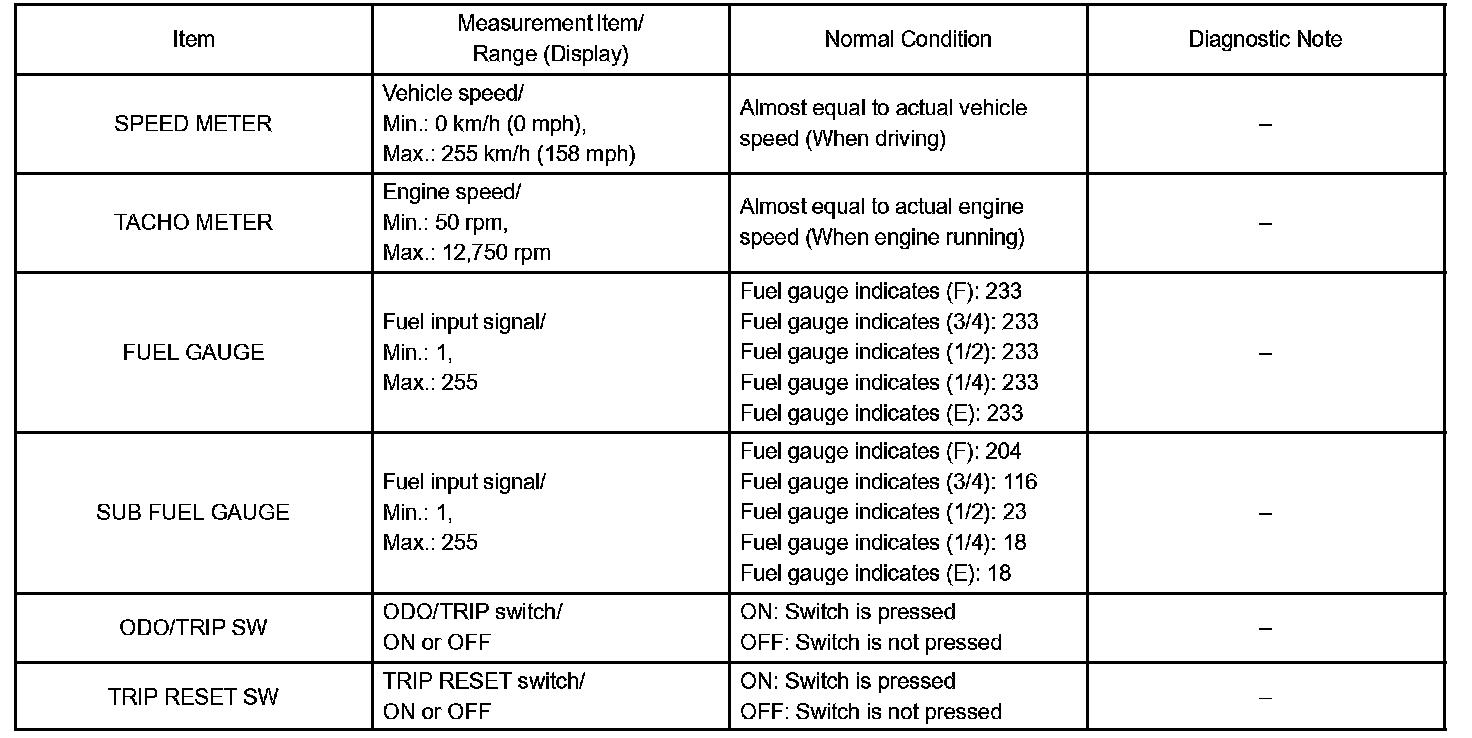

Combination meter assy

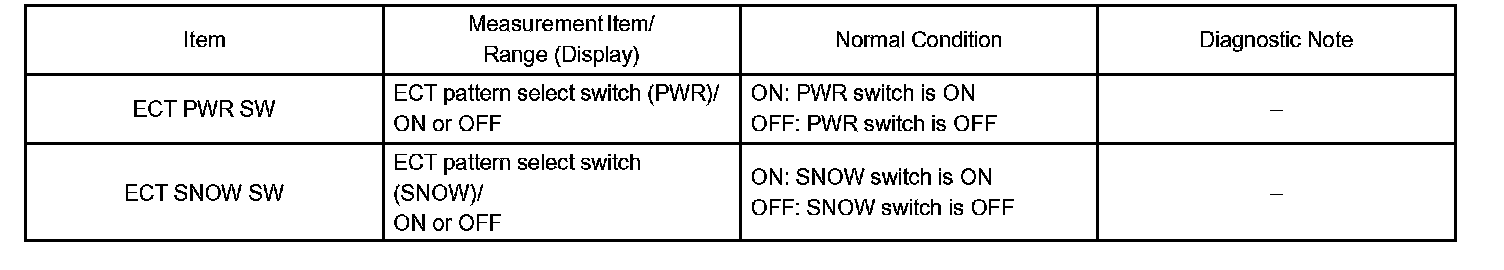

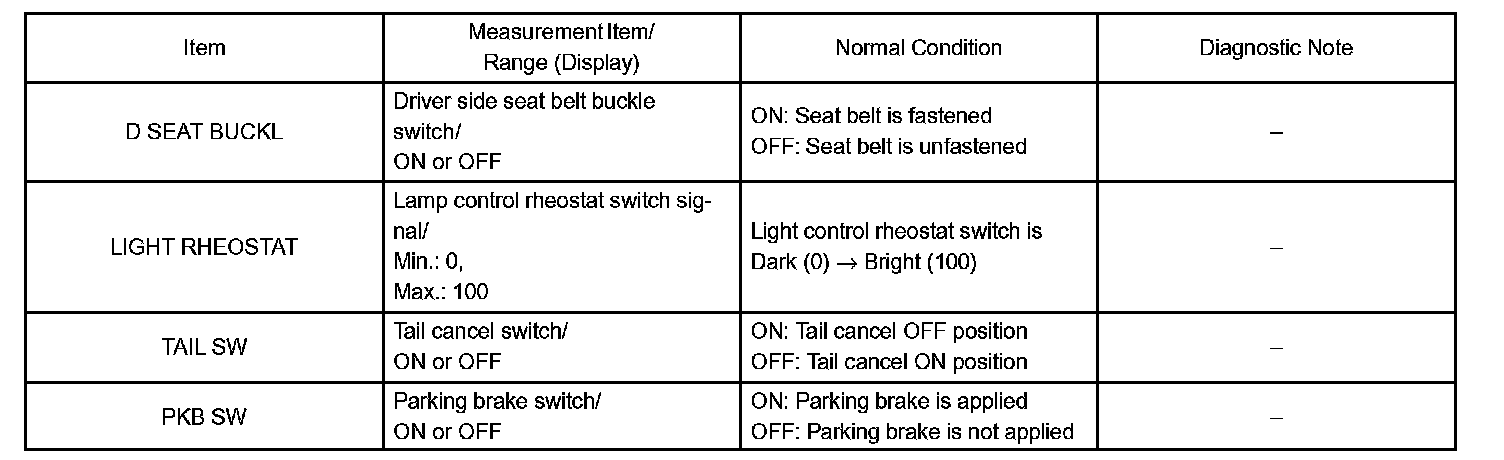

Driver side J/B ECU




Passenger side J/B ECU

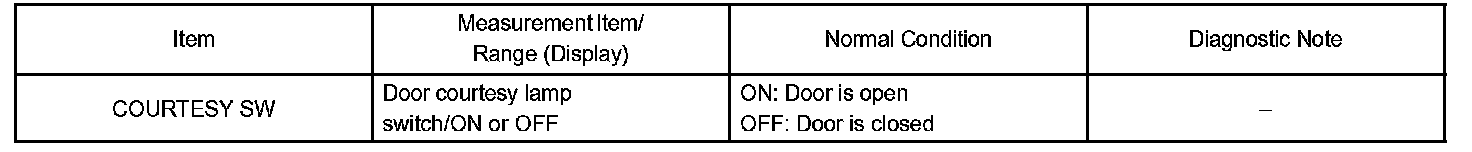

Multiplex network door ECU front LH

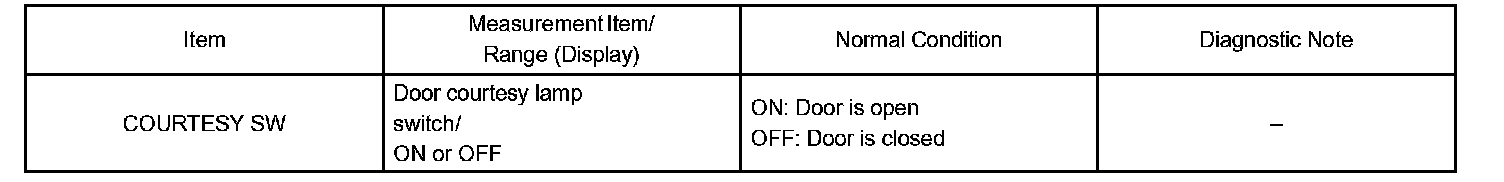

Multiplex network door ECU front RH
