Seat Belt Warning Lamp For Passenger's Seat Does Not Operate

SEAT BELT WARNING LAMP FOR PASSENGER'S SEAT DOES NOT OPERATE

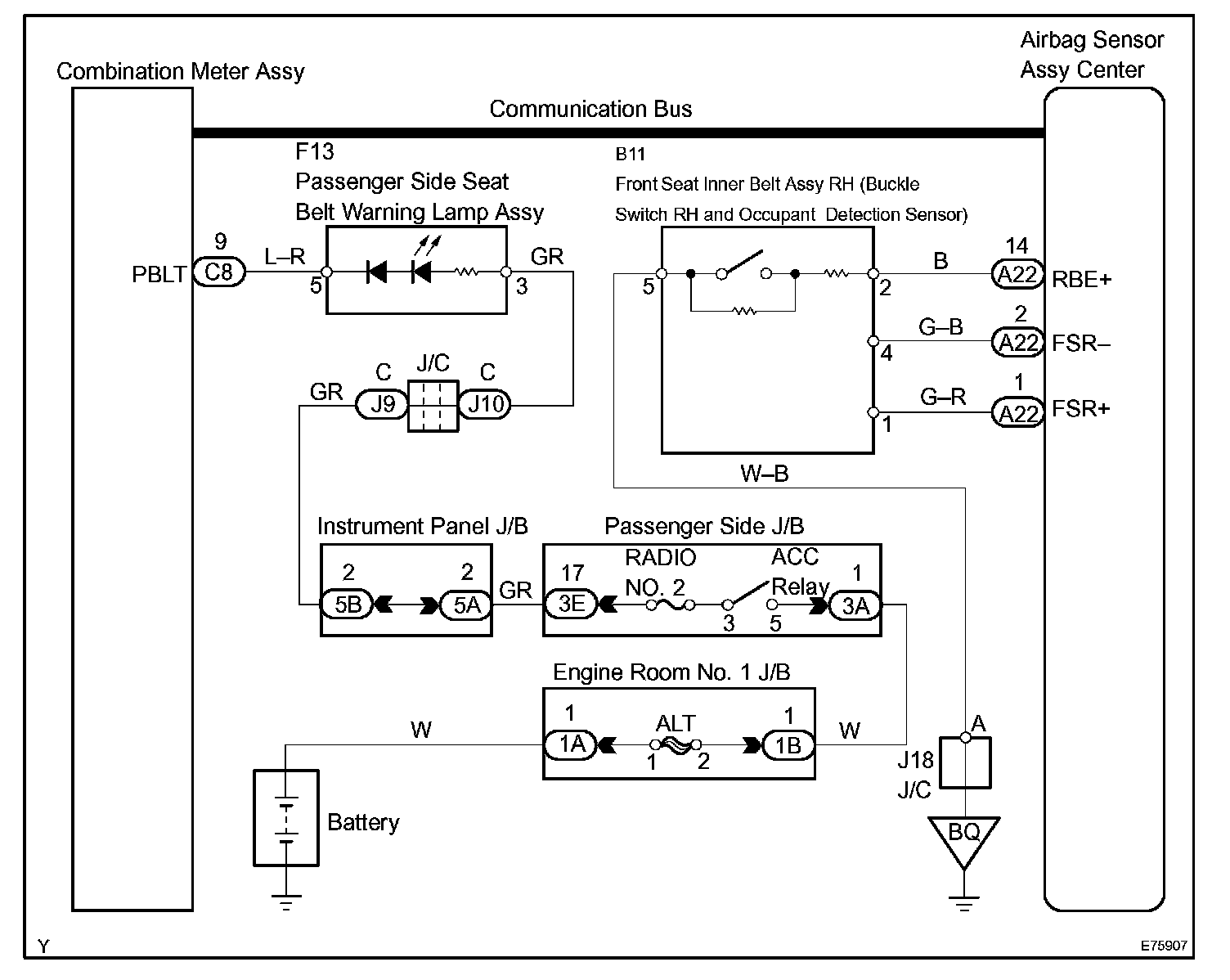

Wiring Diagram:

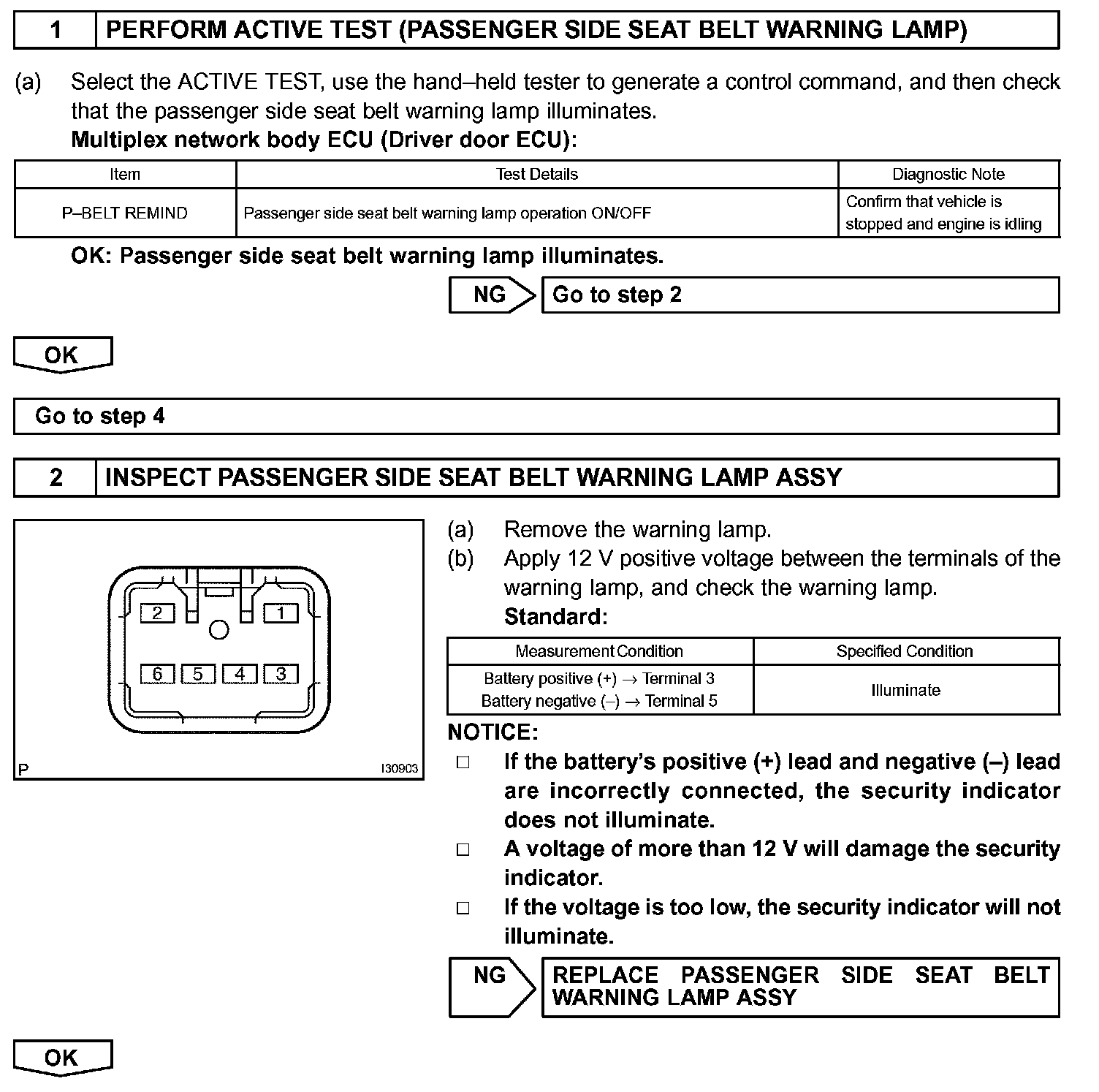

Step 1 - 2:

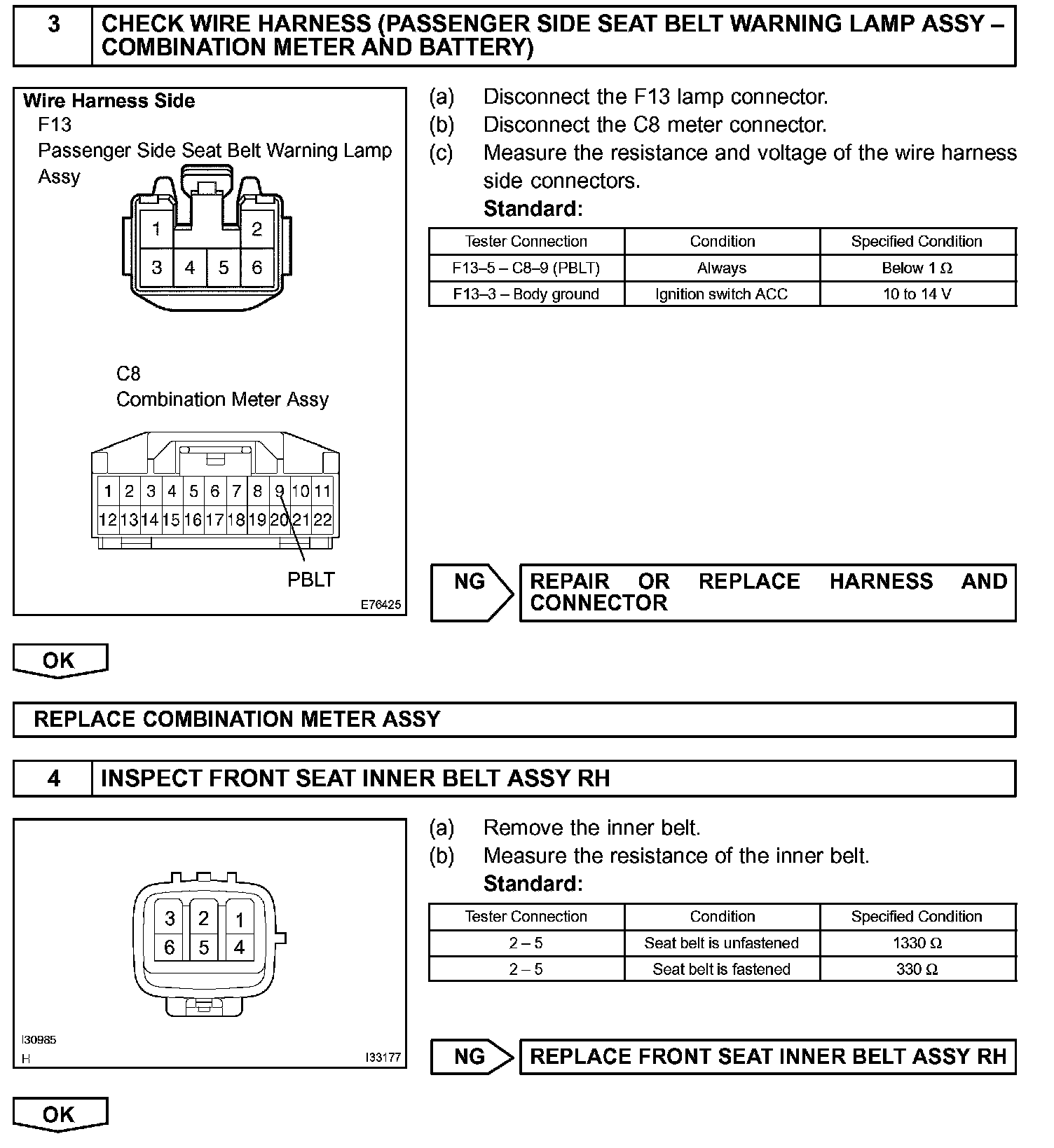

Step 3 - 4:

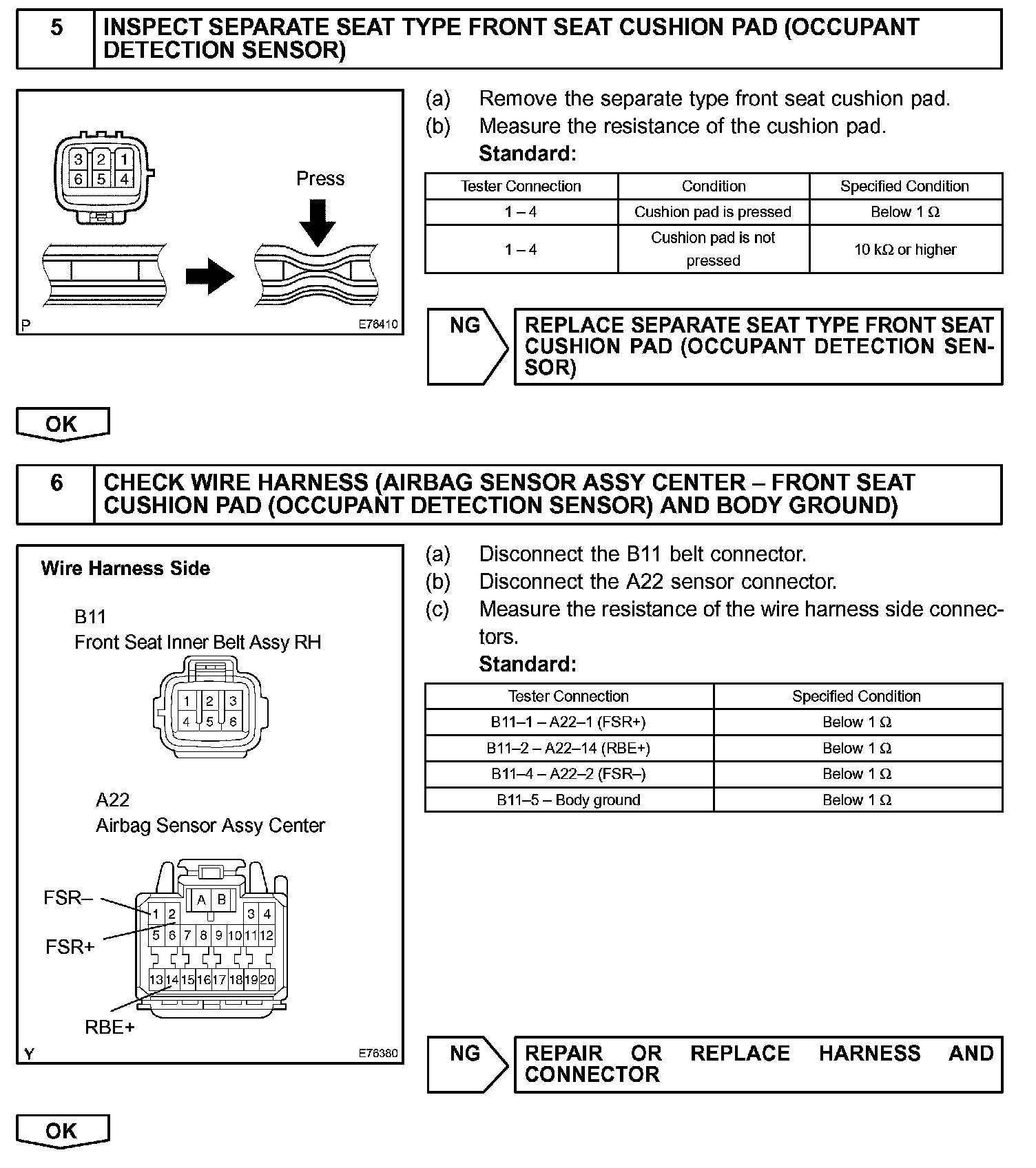

Step 5 - 6:

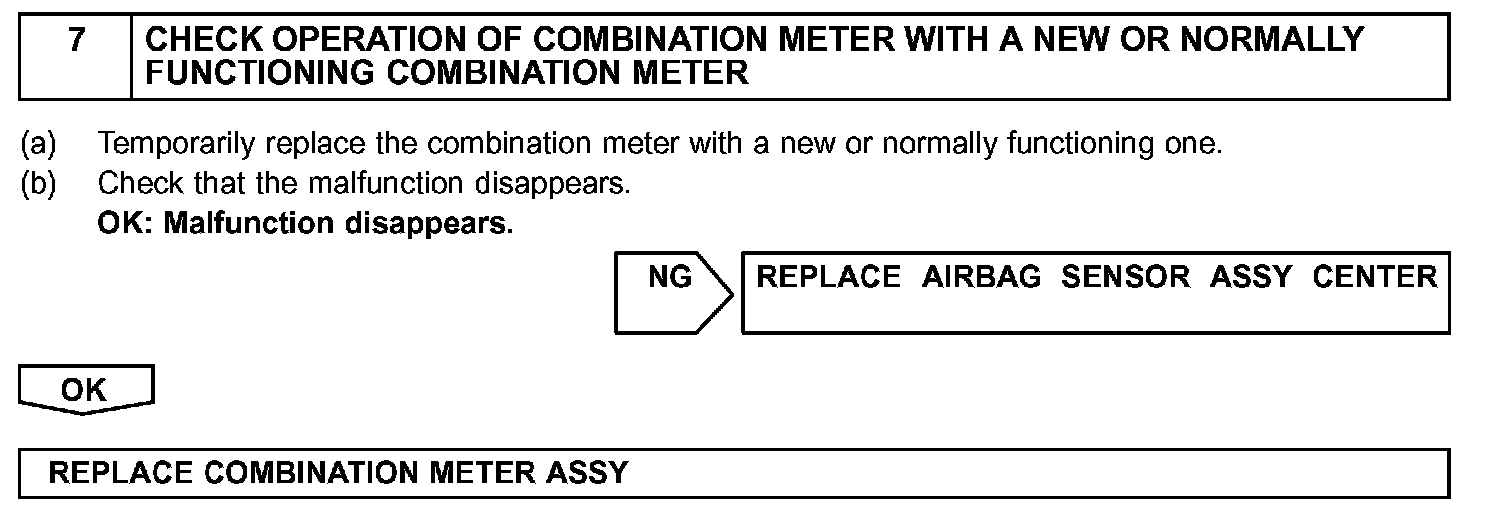

Step 7:

INSPECTION PROCEDURE
