Malfunction In Fuel Receiver Gauge
Malfunction In Fuel Receiver Gauge
MALFUNCTION IN FUEL RECEIVER GAUGE
Wiring Diagram:
Step 1:

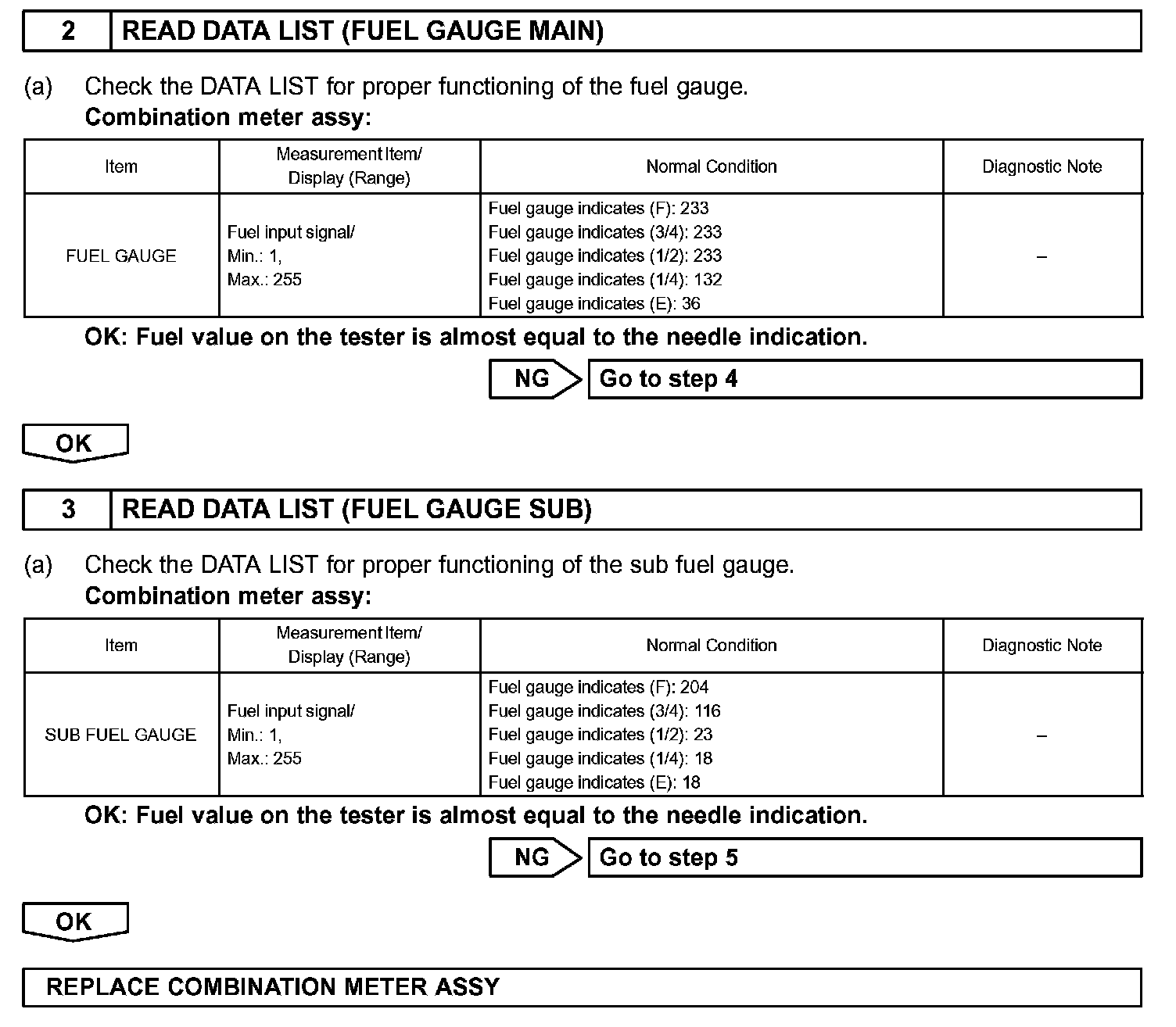

Step 2 - 3:

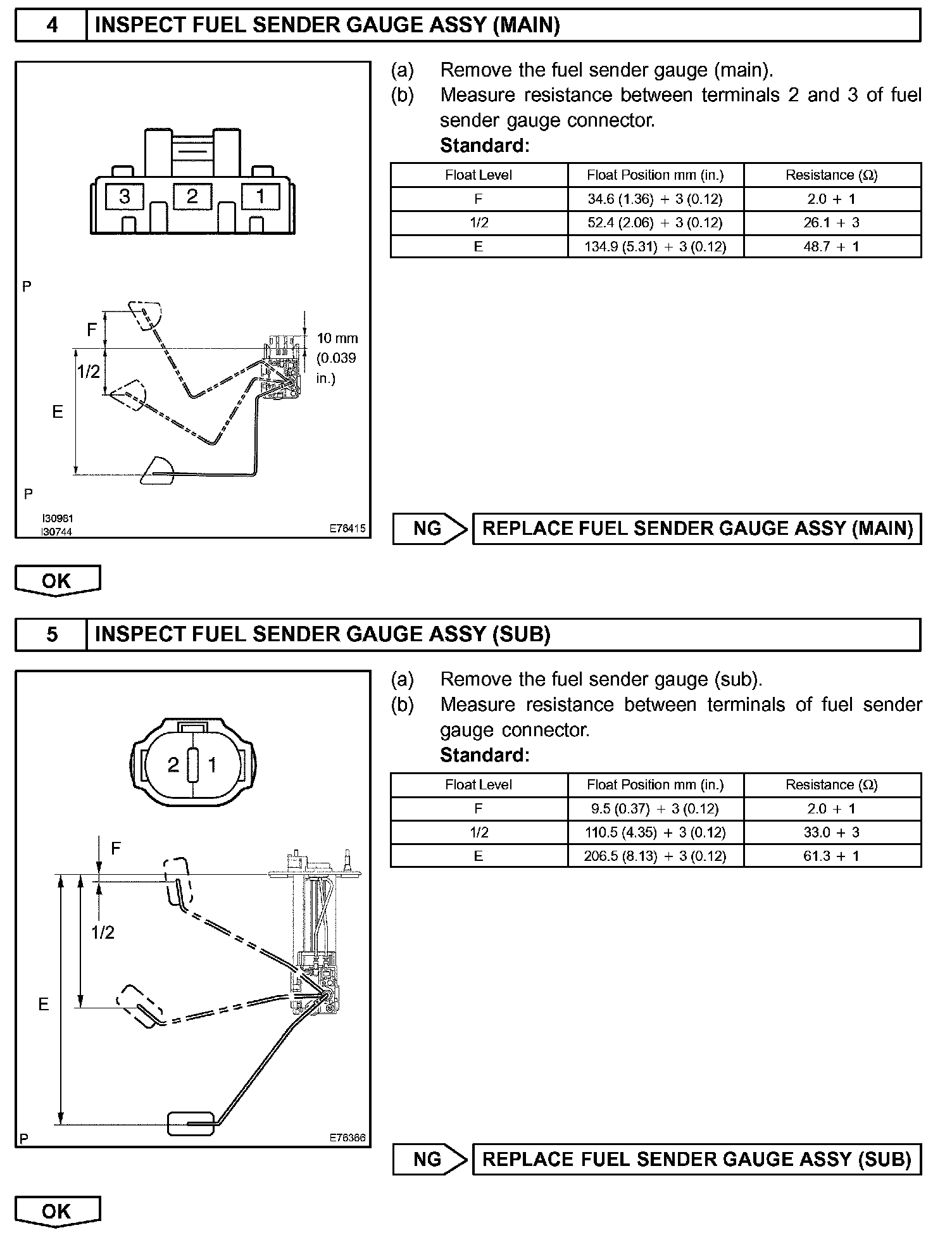

Step 4 - 5:

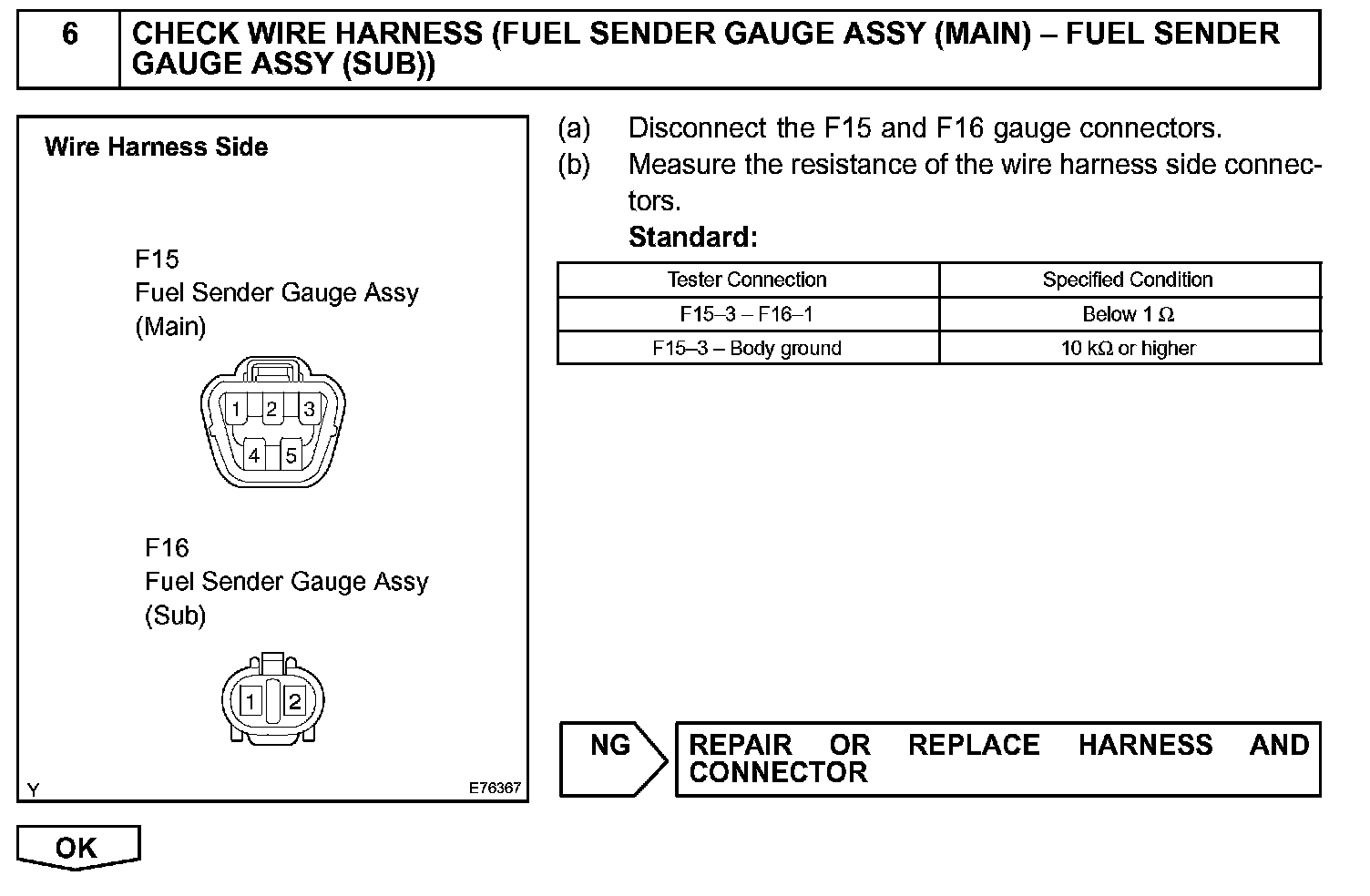

Step 6:

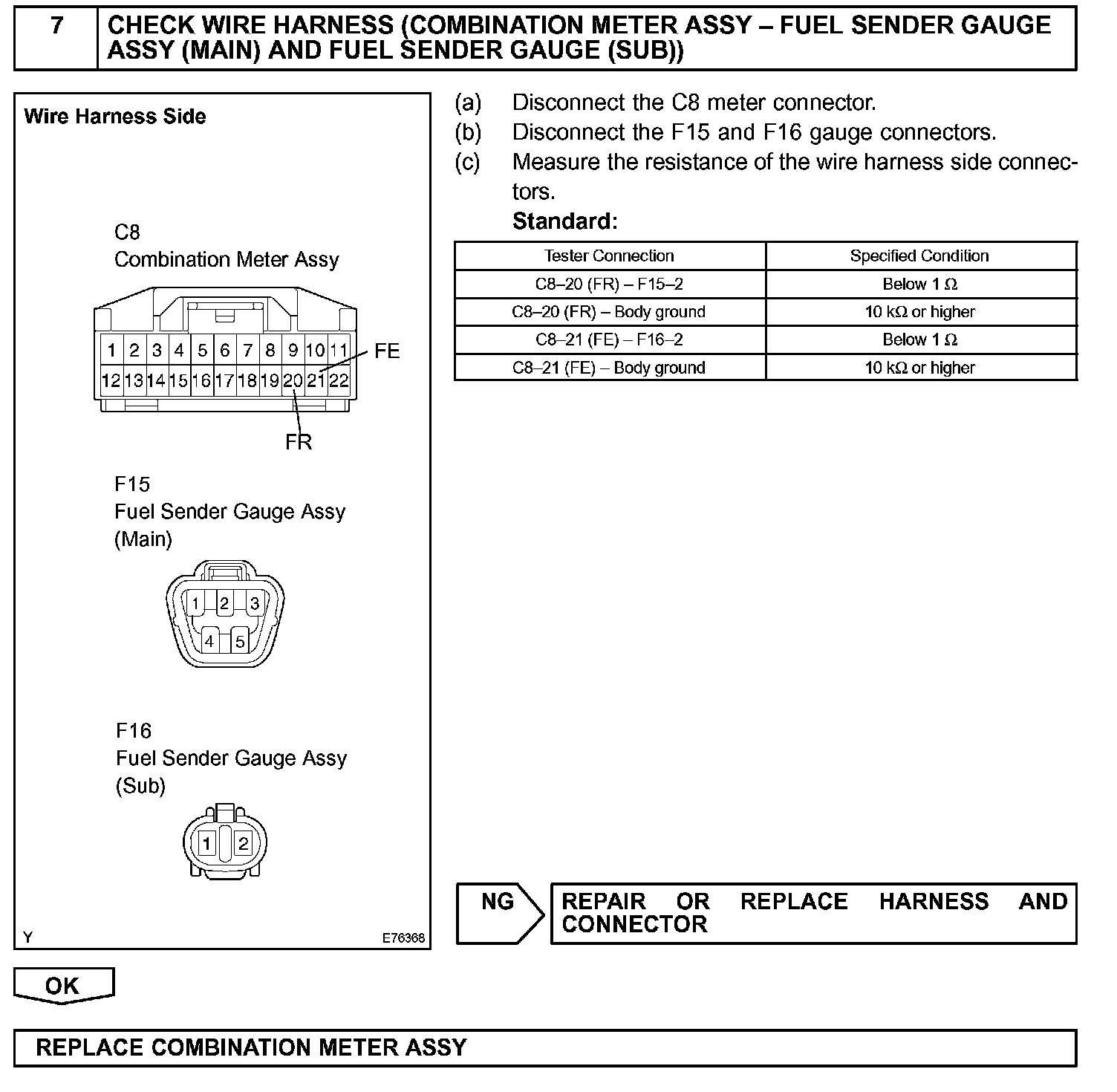

Step 7:
INSPECTION PROCEDURE
