Malfunction In Engine Coolant Temperature Receiver Gauge
Malfunction In Engine Coolant Temperature Receiver Gauge
MALFUNCTION IN ENGINE COOLANT TEMPERATURE RECEIVER GAUGE

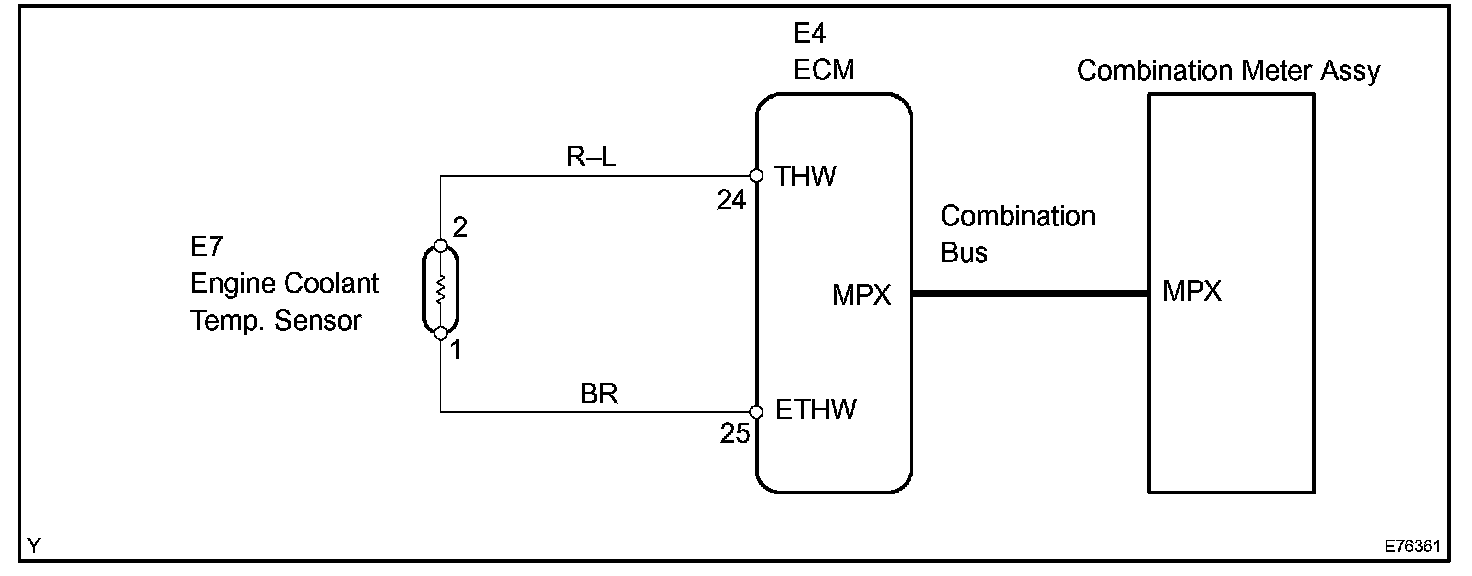

Wiring Diagram:

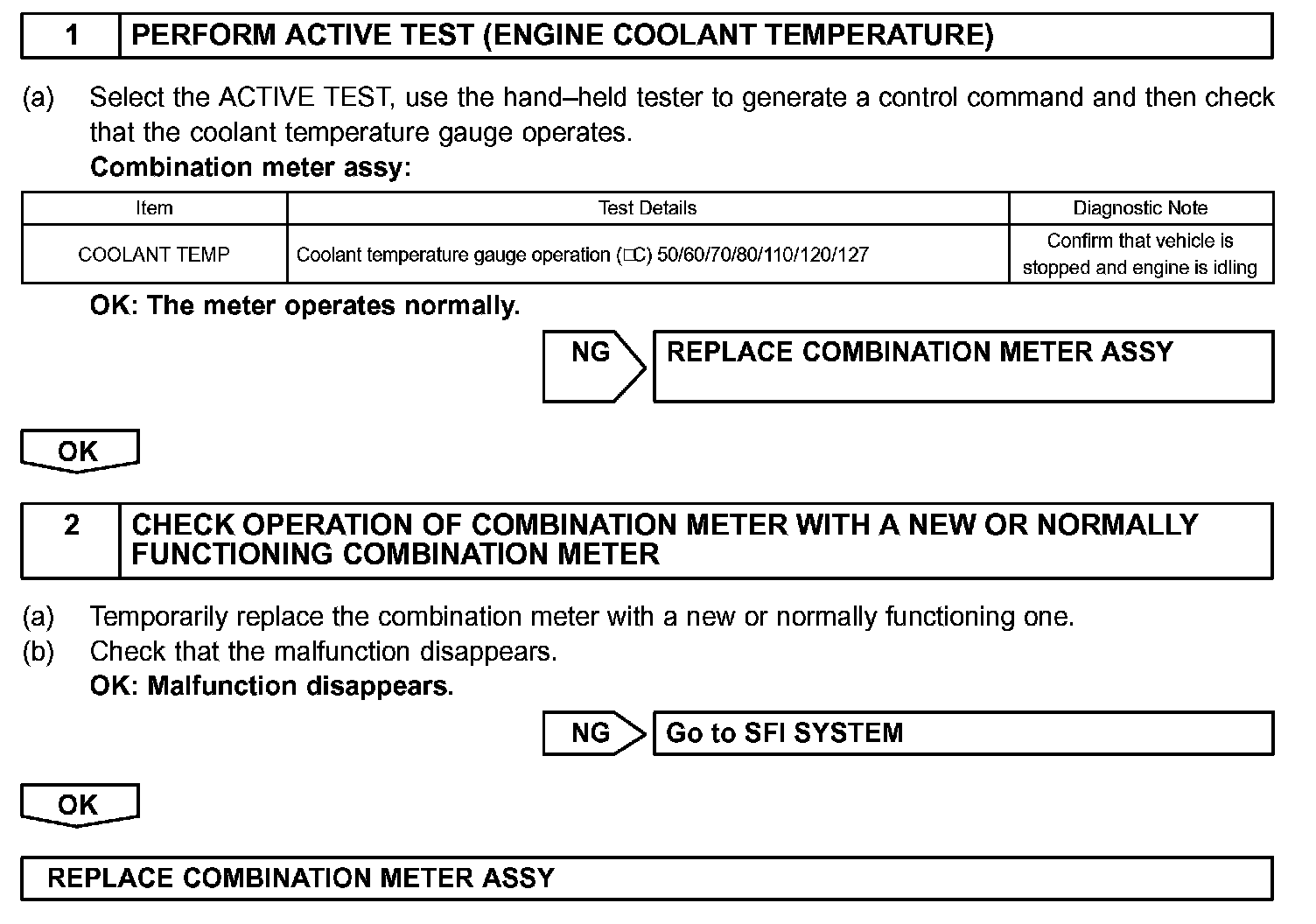

Step 1 - 2:
INSPECTION PROCEDURE
