Instrument Panel, Gauges and Warning Indicators: Description and Operation

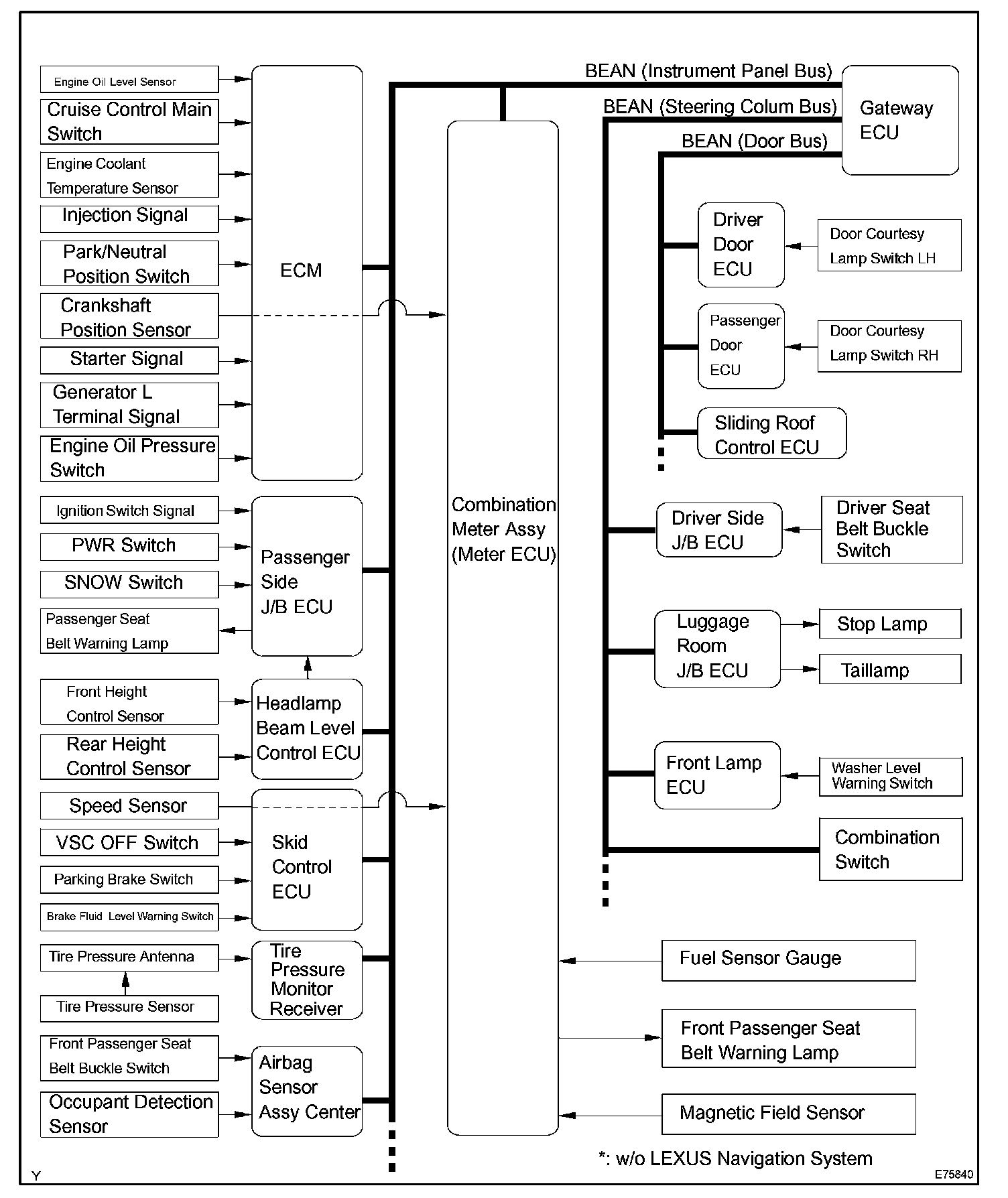

System Diagram:

SYSTEM DESCRIPTION

METER GAUGE AND WARNING LAMP/INDICATOR

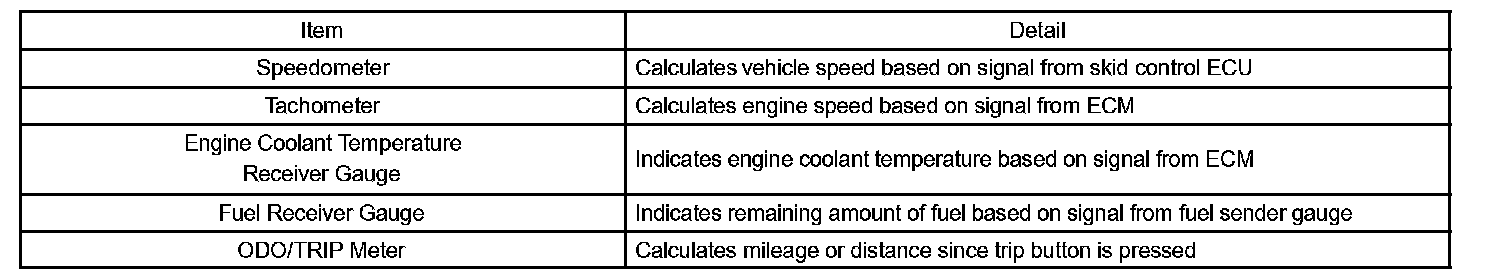

GAUGE

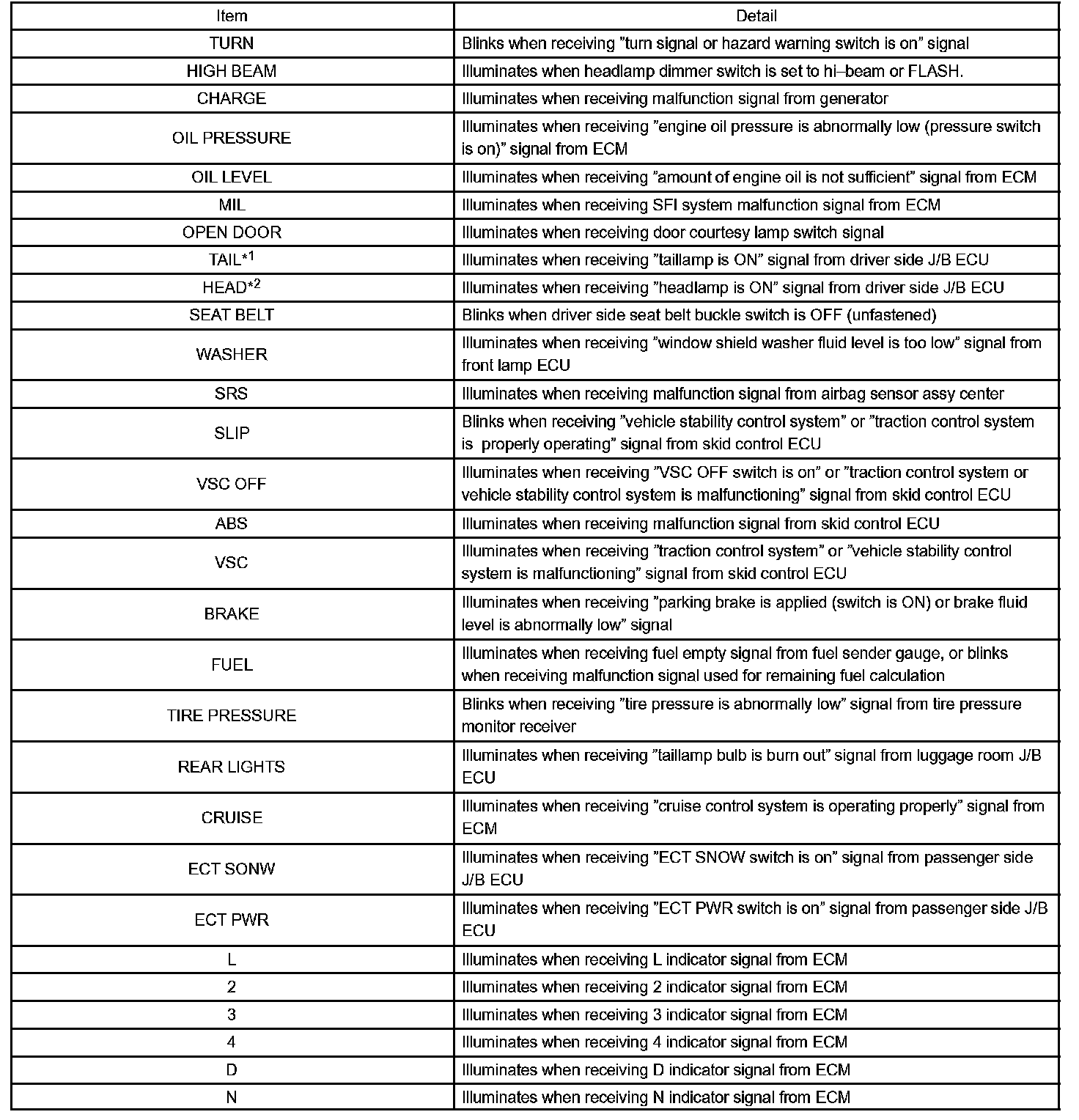

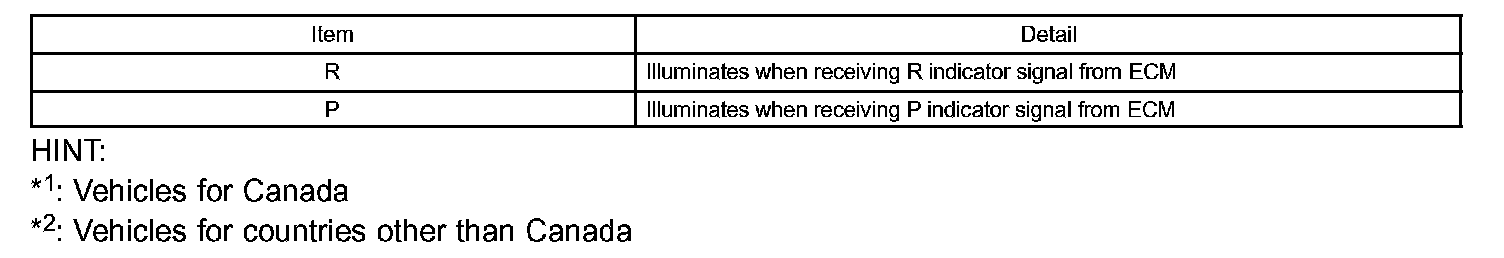

WARNING LAMP/INDICATOR
