Pinout Values and Diagnostic Parameters

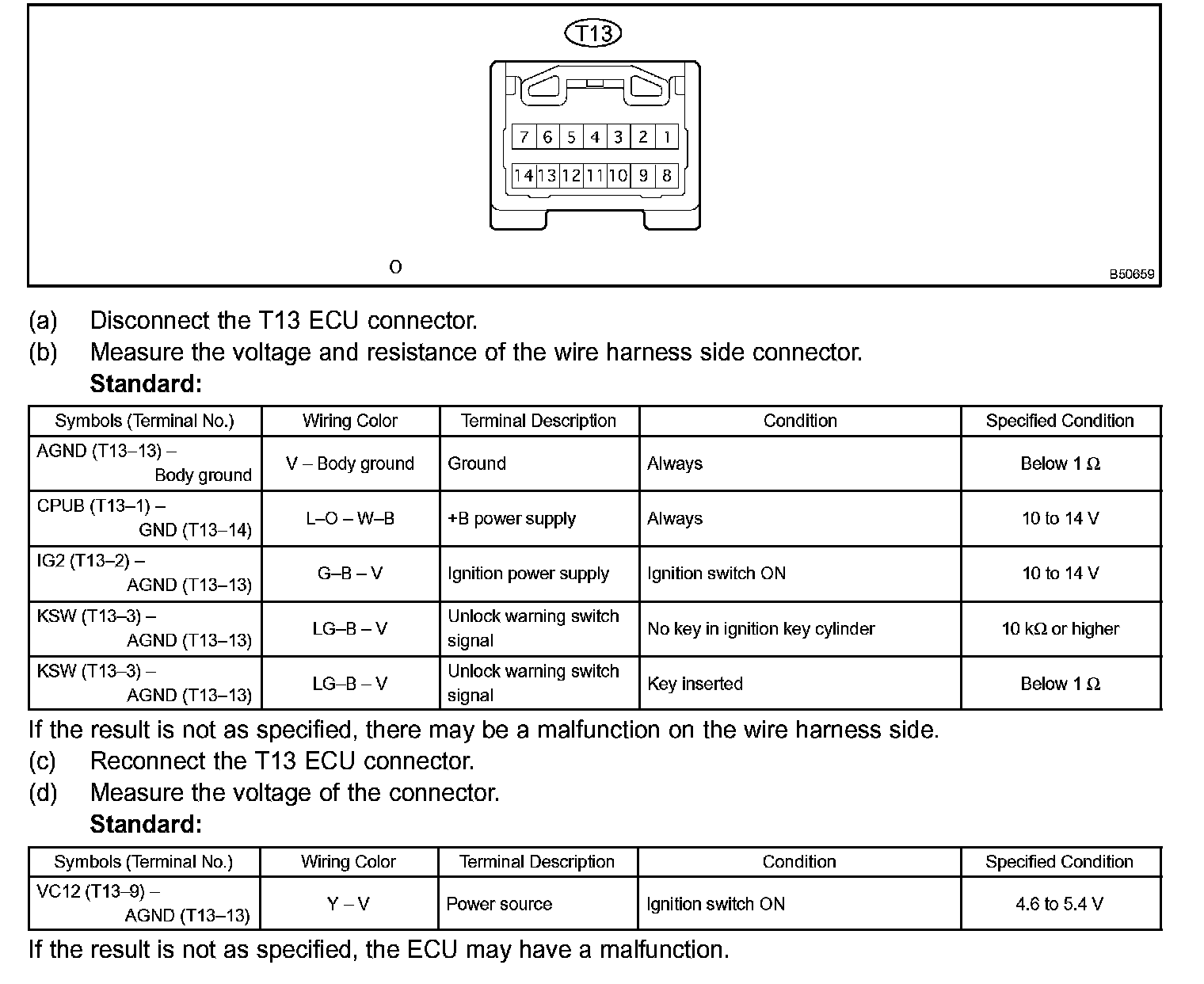

Terminals Of Control Module/Pinouts - Check Transponder Key ECU Assy:

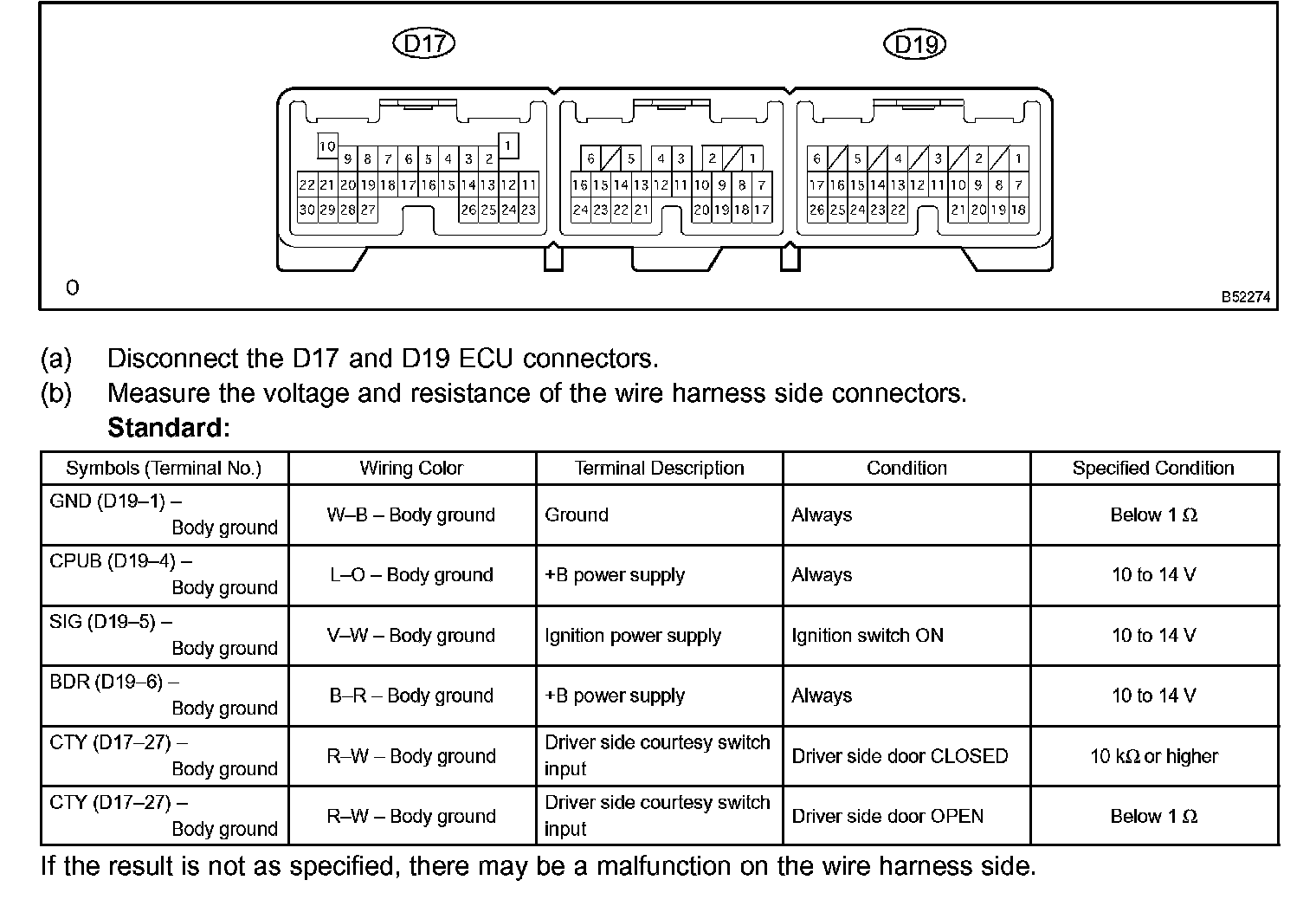

Terminals Of Control Module/Pinouts - Check Multiplex Network Door ECU Front LH (Driver Door ECU):

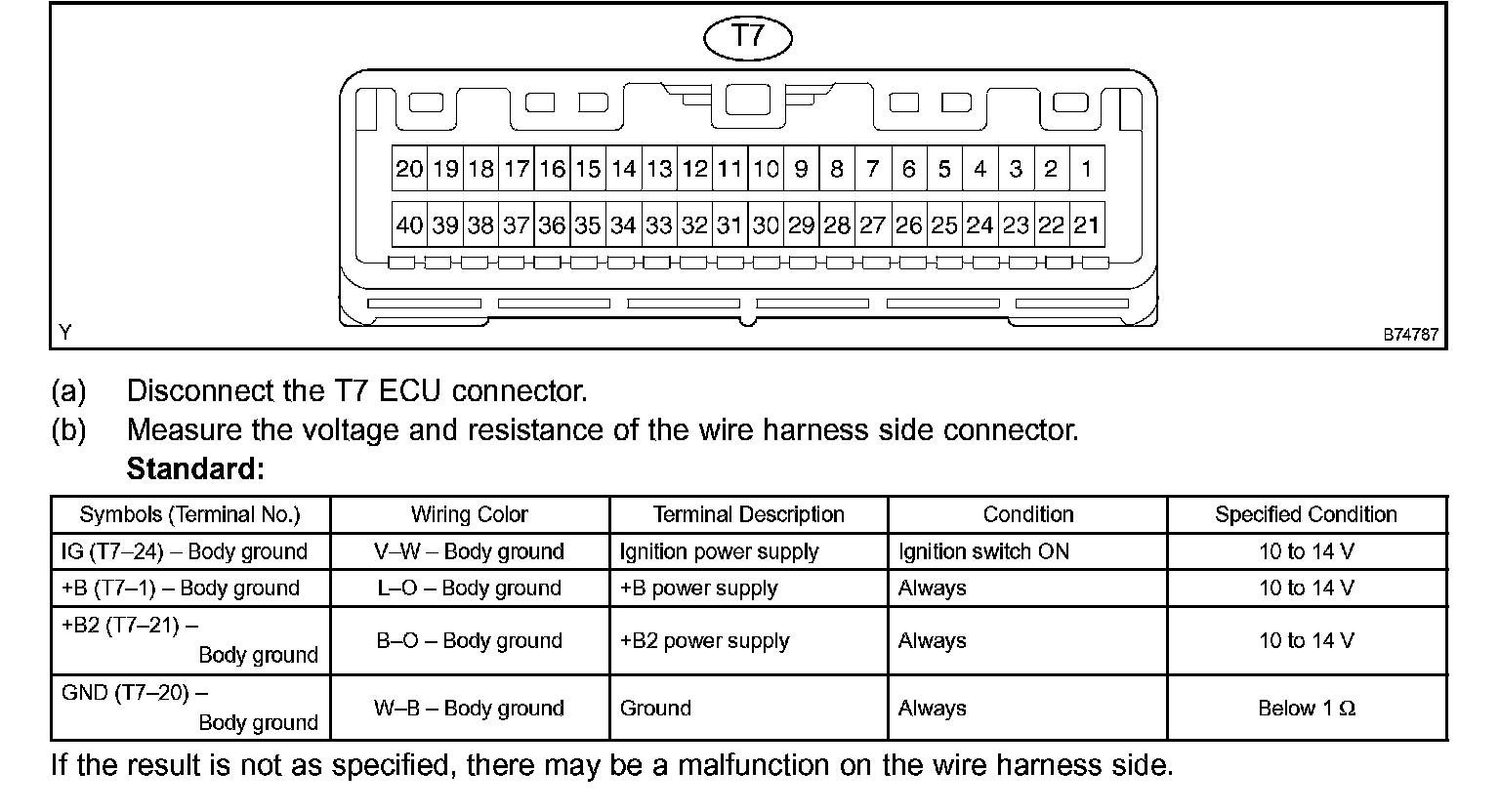

Terminals Of Control Module/Pinouts - Check Theft Warning ECU Assy:
