Key Reminder Buzzer Does Not Sound

KEY REMINDER BUZZER DOES NOT SOUND

CIRCUIT DESCRIPTION

When the driver door is opened with the ignition switch on ACC or OFF, this system sounds a buzzer to warn the driver that the ignition key has not been removed from the ignition key cylinder.

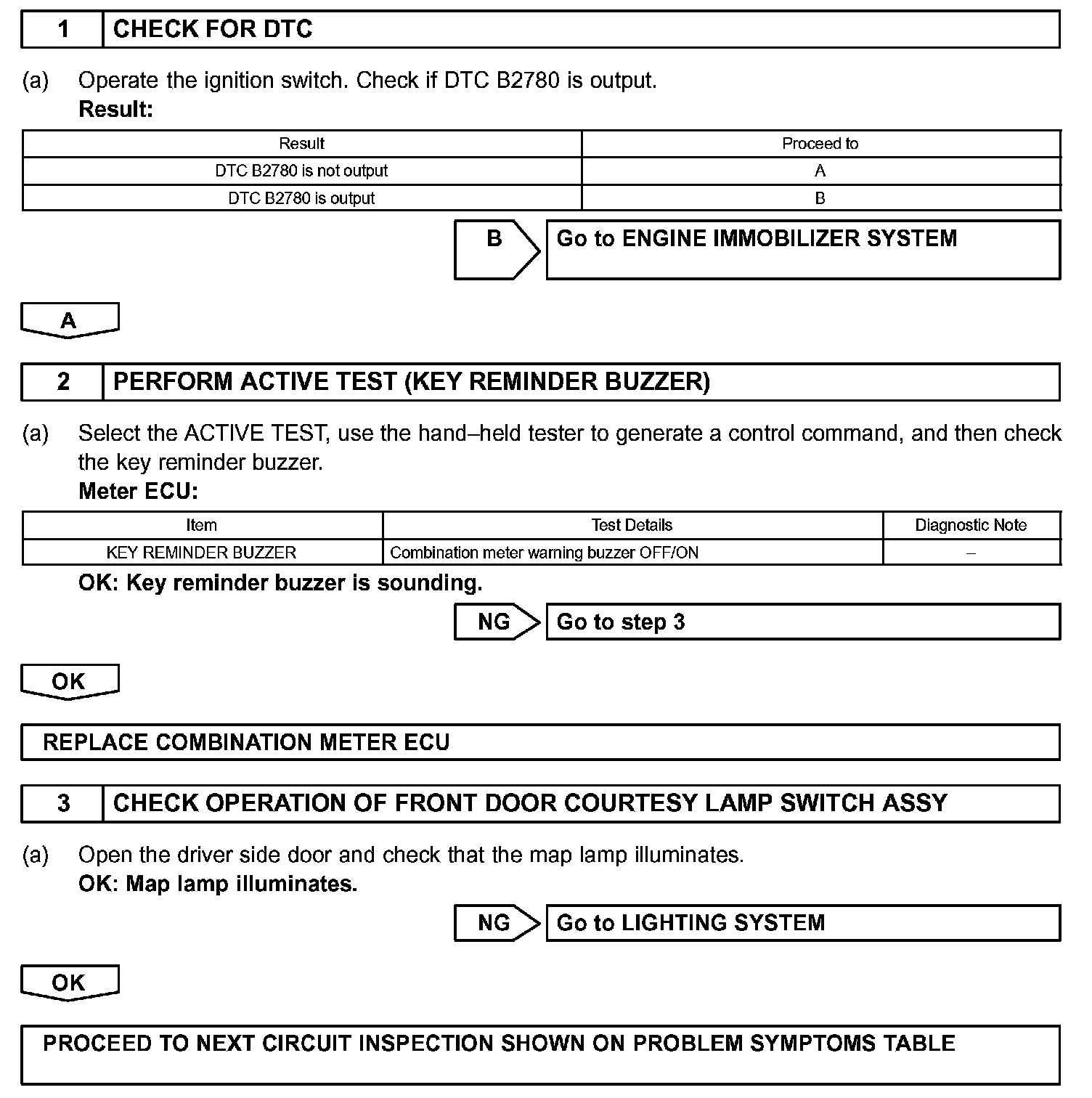

Step 1 - 3:

INSPECTION PROCEDURE
