Component Inspection

INSPECTION

1. INSPECT UNLOCK WARNING SWITCH ASSY




a. Measure the resistance of the switch.




If the result is not as specified, replace unlock warning switch assy.

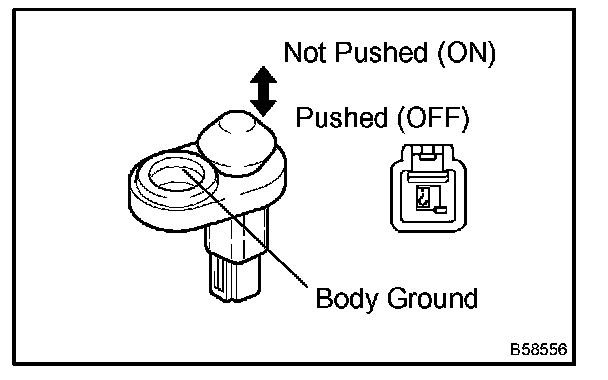

2. INSPECT FRONT DOOR COURTESY LAMP SWITCH ASSY (DRIVER SIDE)

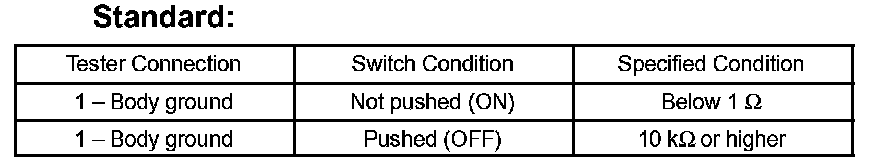

a. Measure the resistance of the switch.




If the result is not as specified, replace front door courtesy lamp switch assy (driver side).
