Indicator Check

CHECK INDICATOR

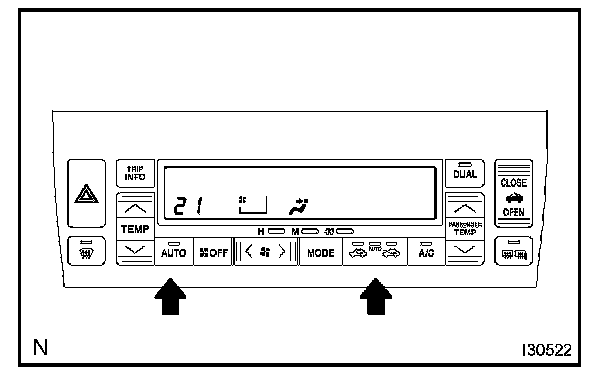

a. Turn the ignition switch ON while pressing the A/C control AUTO switch and Recirculation/Fresh (R/F) select switch simultaneously.

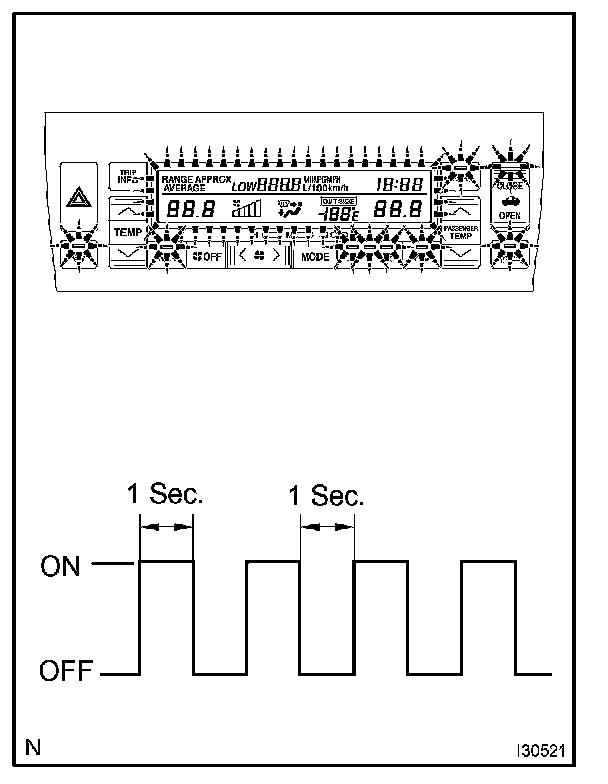

b. Check that the indicators turn on and off 4 times at 1 second intervals.

HINT: After the indicator check is completed, the system enters the DTC check mode automatically.
