LAP-JET Damper Control Servomotor Circuit

LAP-JET DAMPER CONTROL SERVOMOTOR CIRCUIT

CIRCUIT DESCRIPTION

The damper servo is controlled by the A/C amplifier, and the A/C amplifier moves the damper servo (lap-jet) to the desired position.

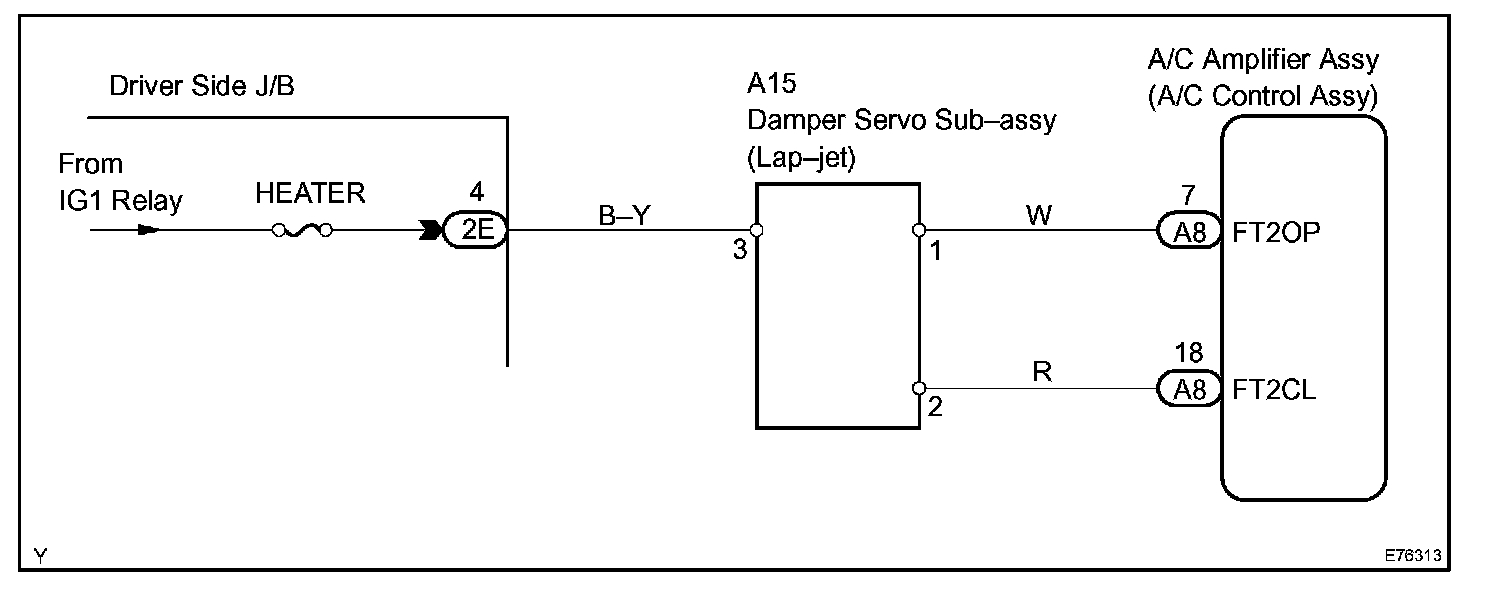

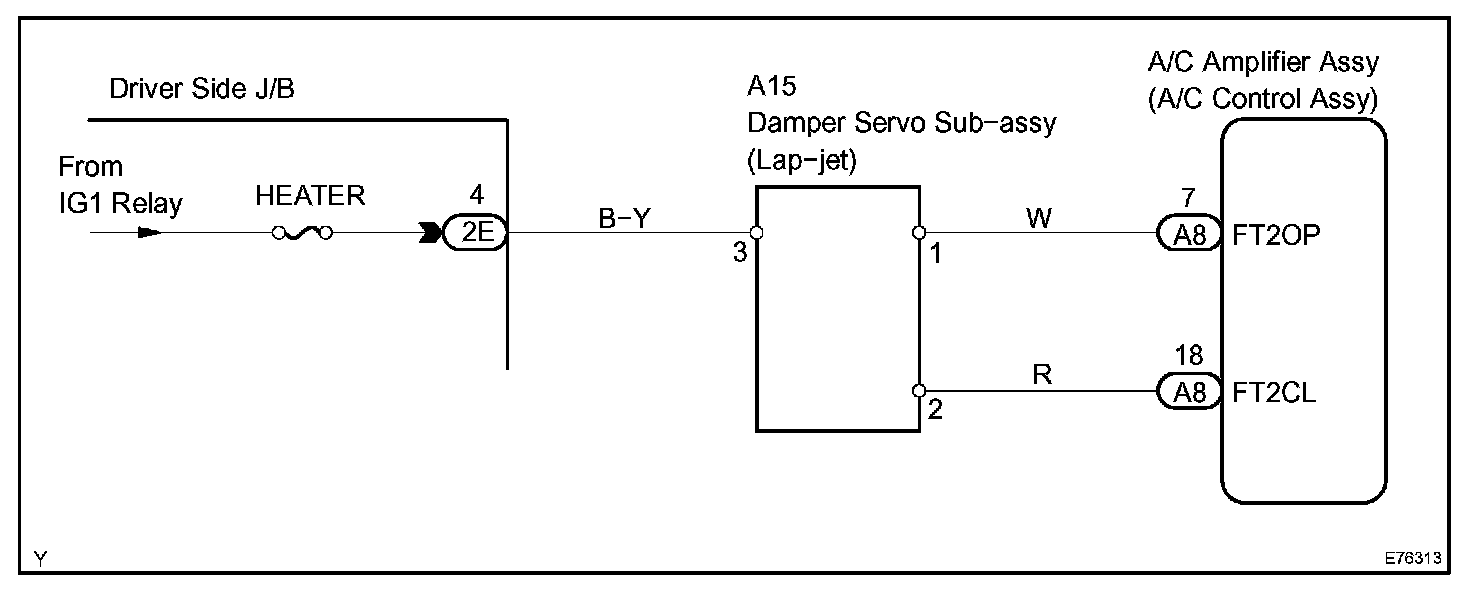

Wiring Diagram:

Step 1 - 2:

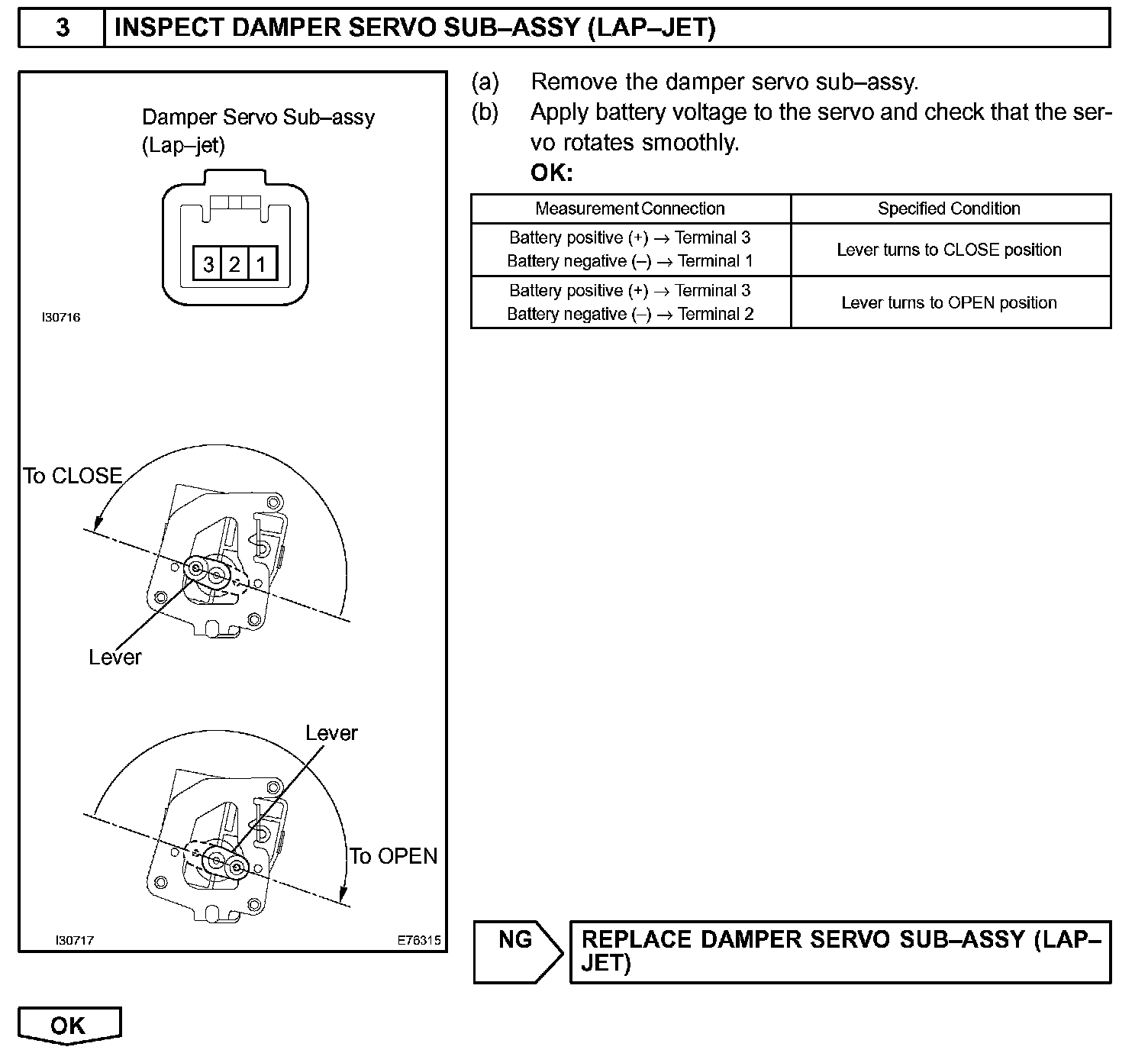

Step 3:

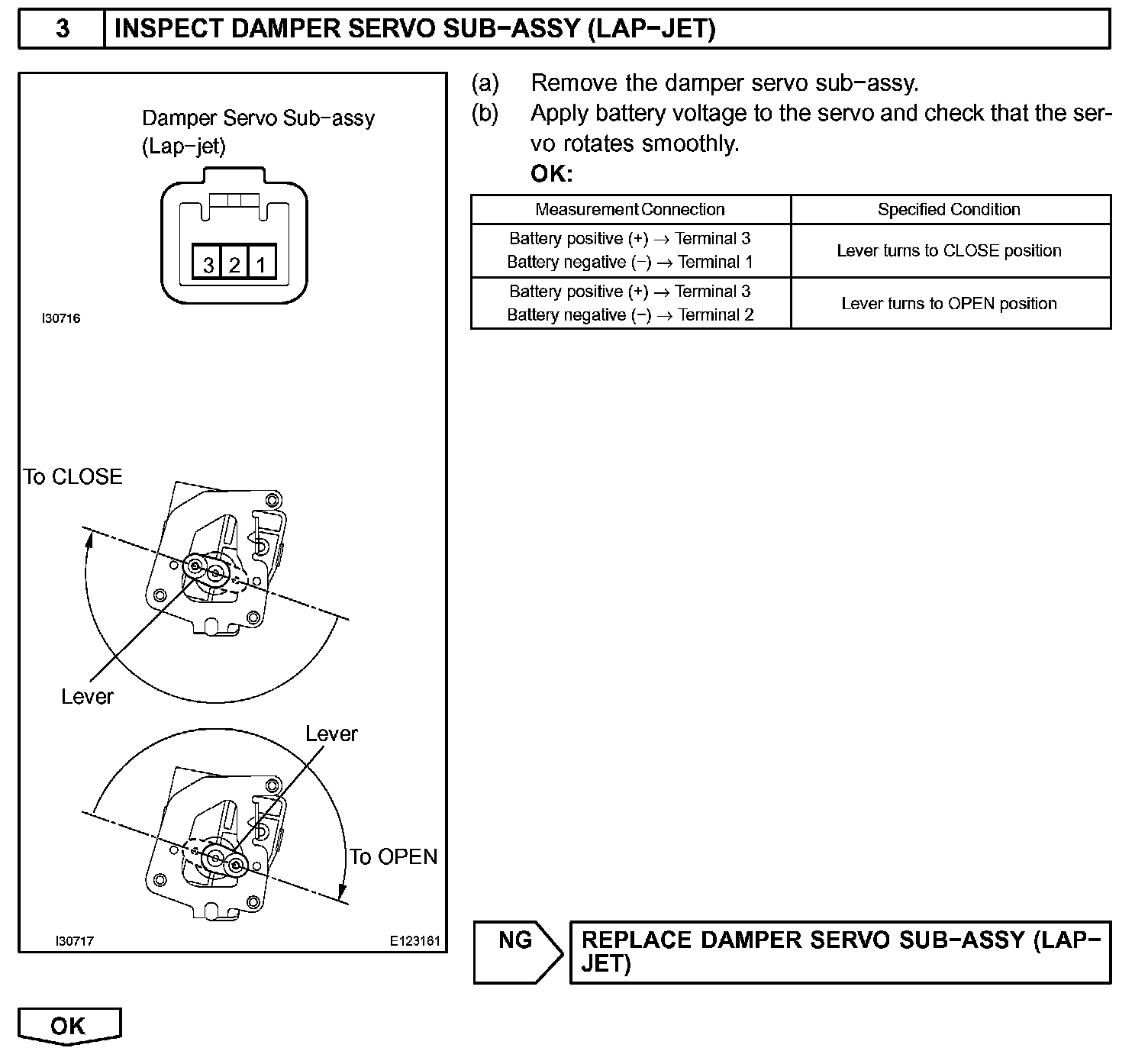

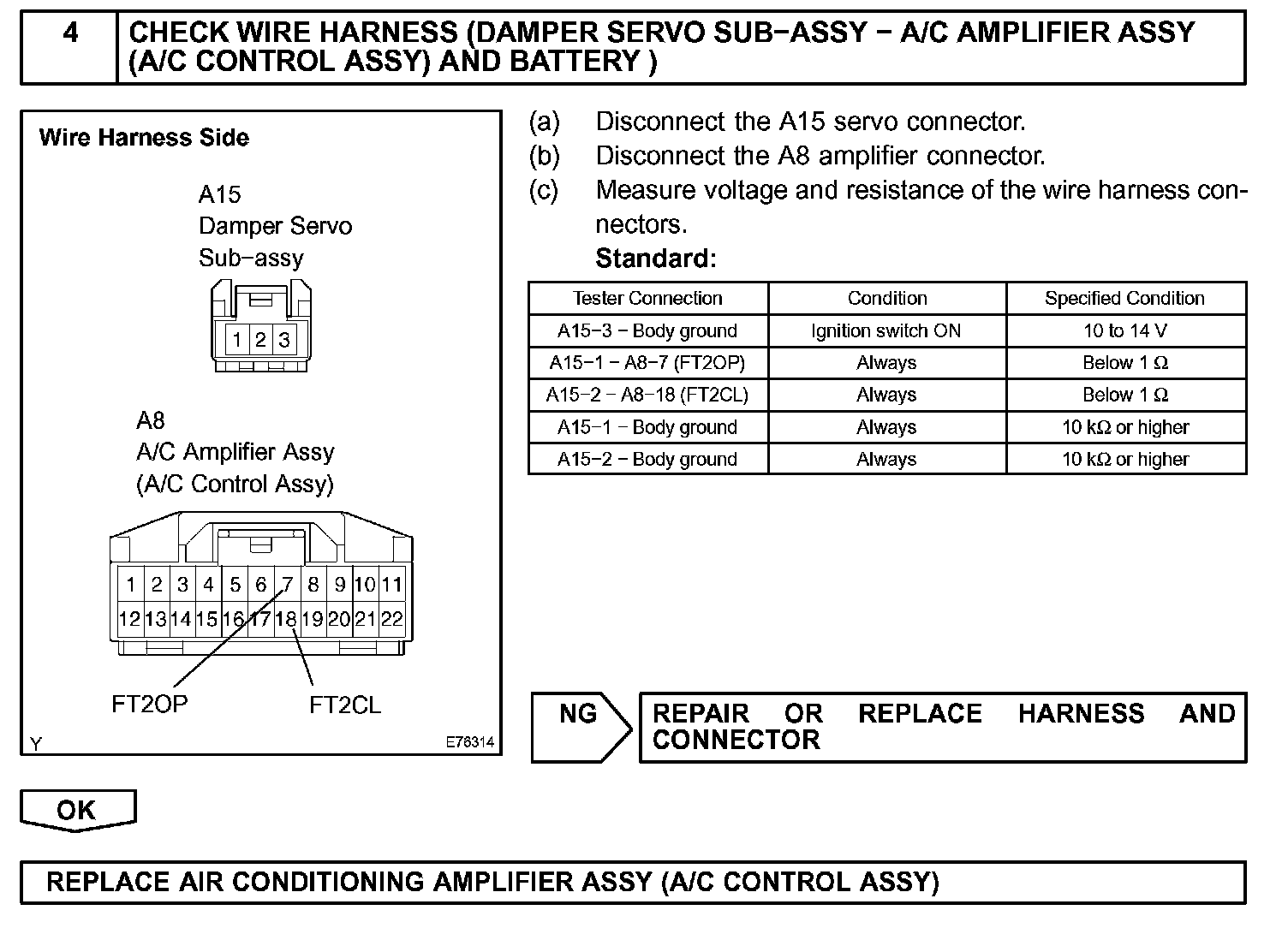

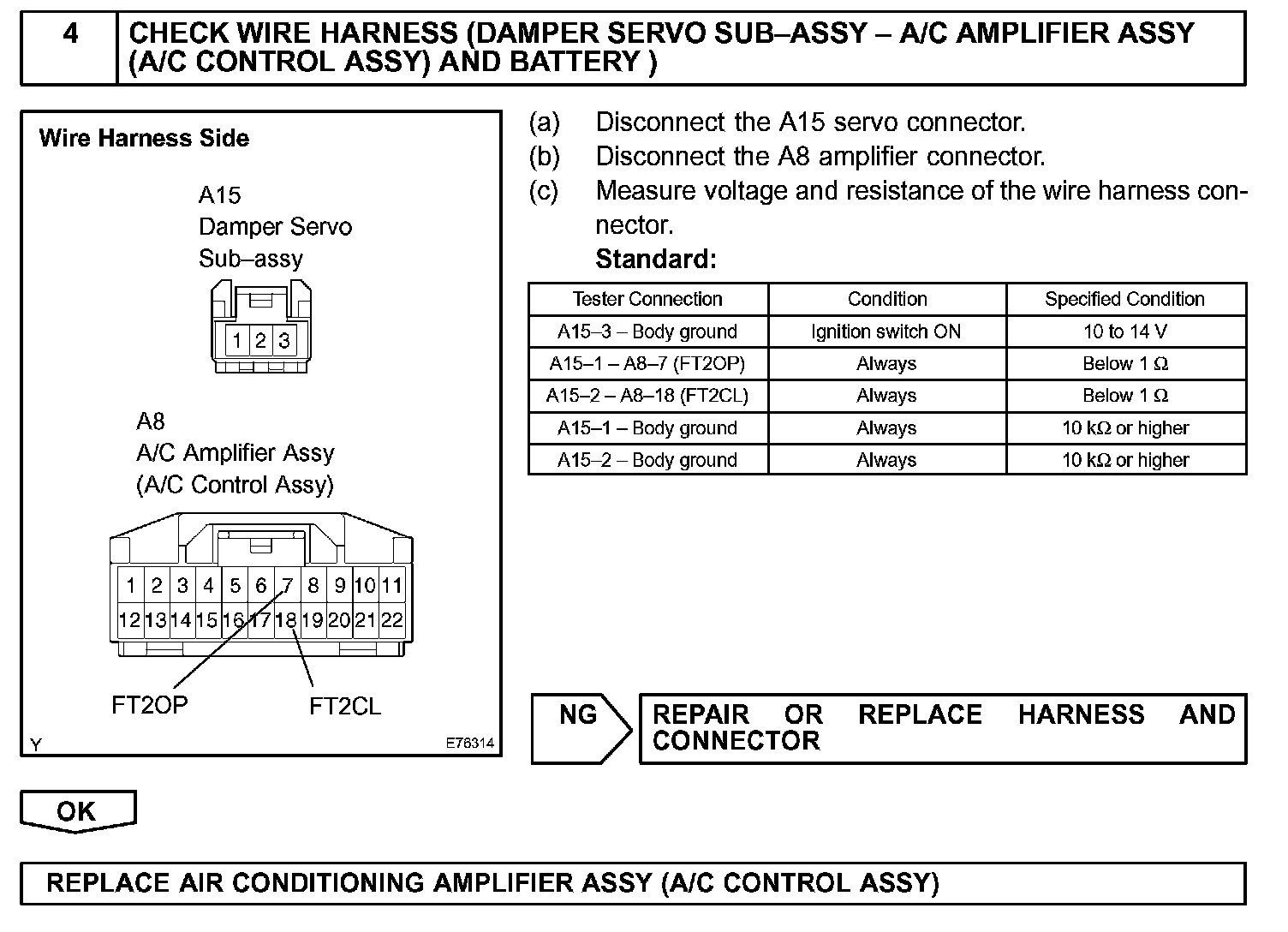

Step 4:

INSPECTION PROCEDURE
