IG Power Source Circuit

IG POWER SOURCE CIRCUIT

CIRCUIT DESCRIPTION

The circuit supplies power source to the A/C amplifier and servomotor, etc.

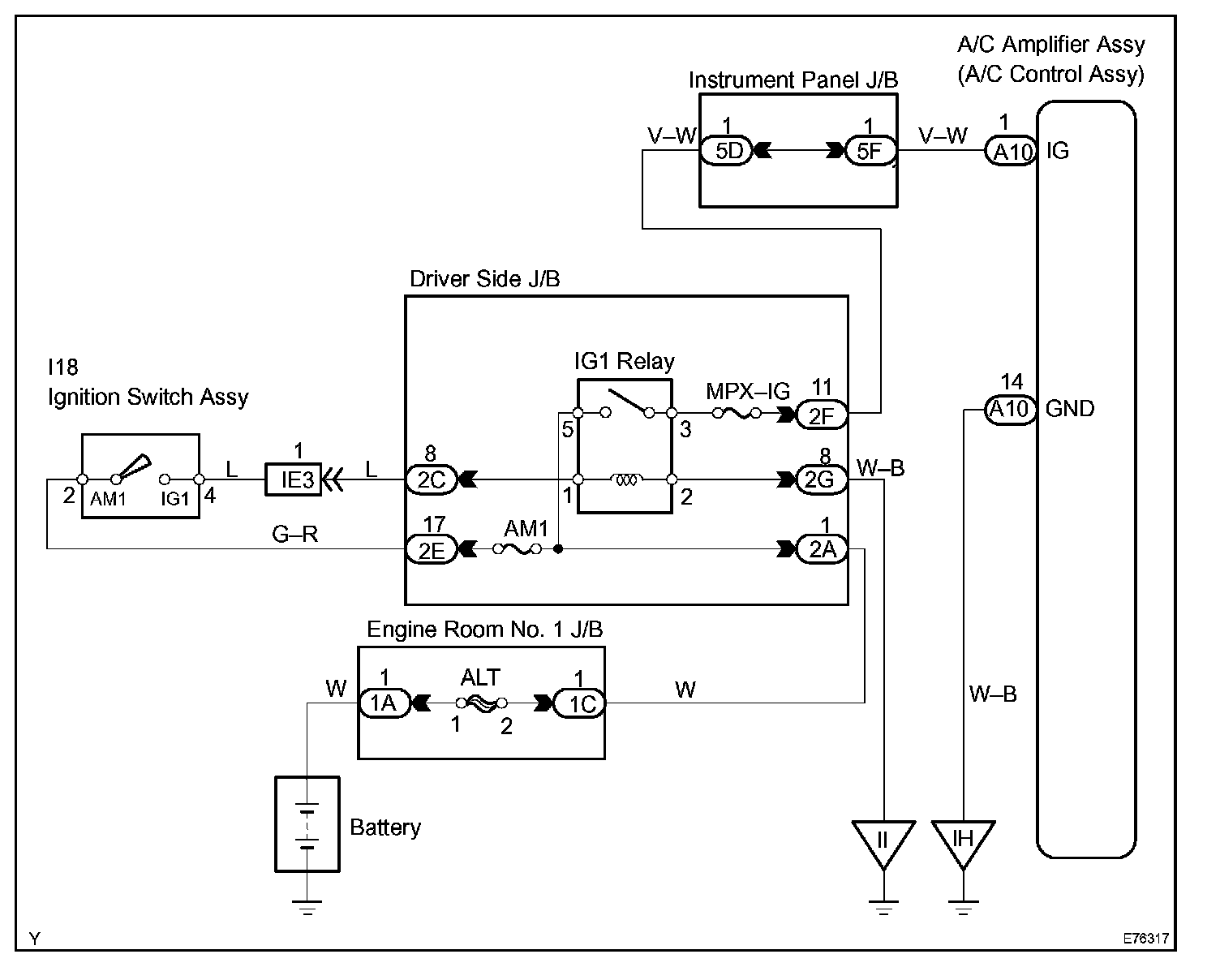

Wiring Diagram:






Step 1 - 3:

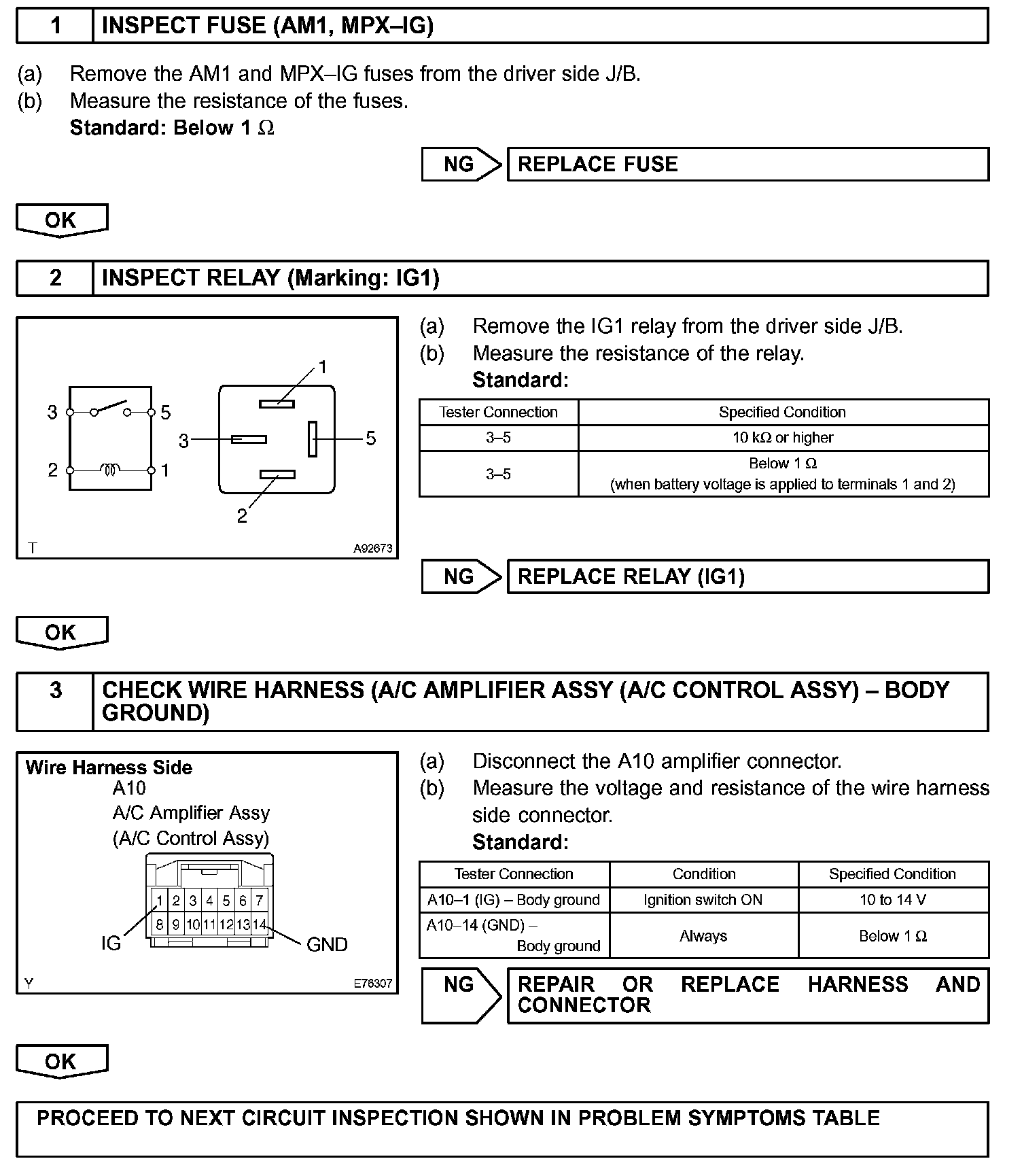

INSPECTION PROCEDURE
