Compressor Magnetic Clutch Circuit

COMPRESSOR CIRCUIT

CIRCUIT DESCRIPTION

The A/C amplifier outputs the magnet clutch ON signal to the ECM by way of MPX line.The ECM receives this signal, and it sends a signal from terminal ACMG to the magnet clutch relay, turning the magnet clutch ON.

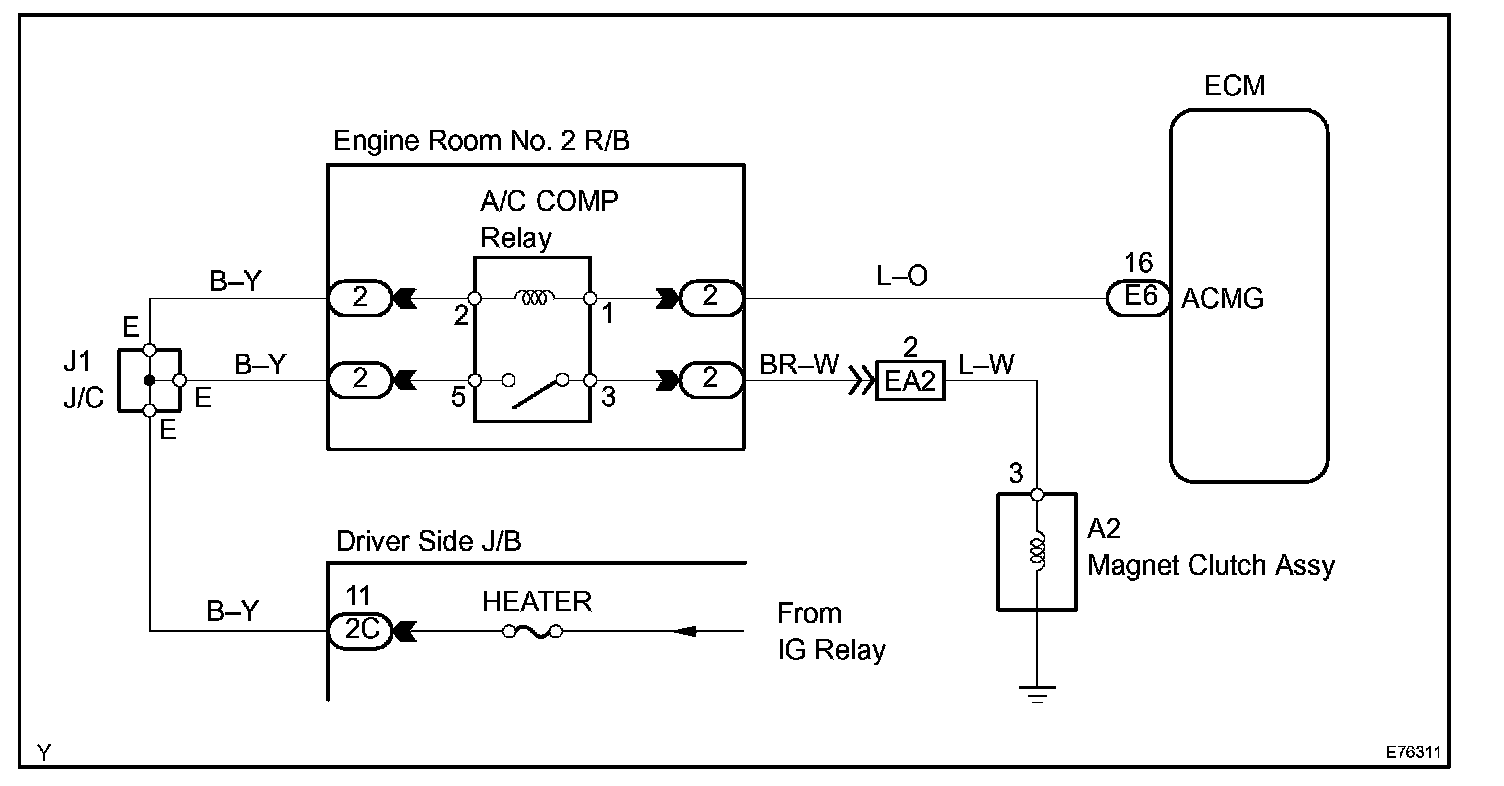

Wiring Diagram:

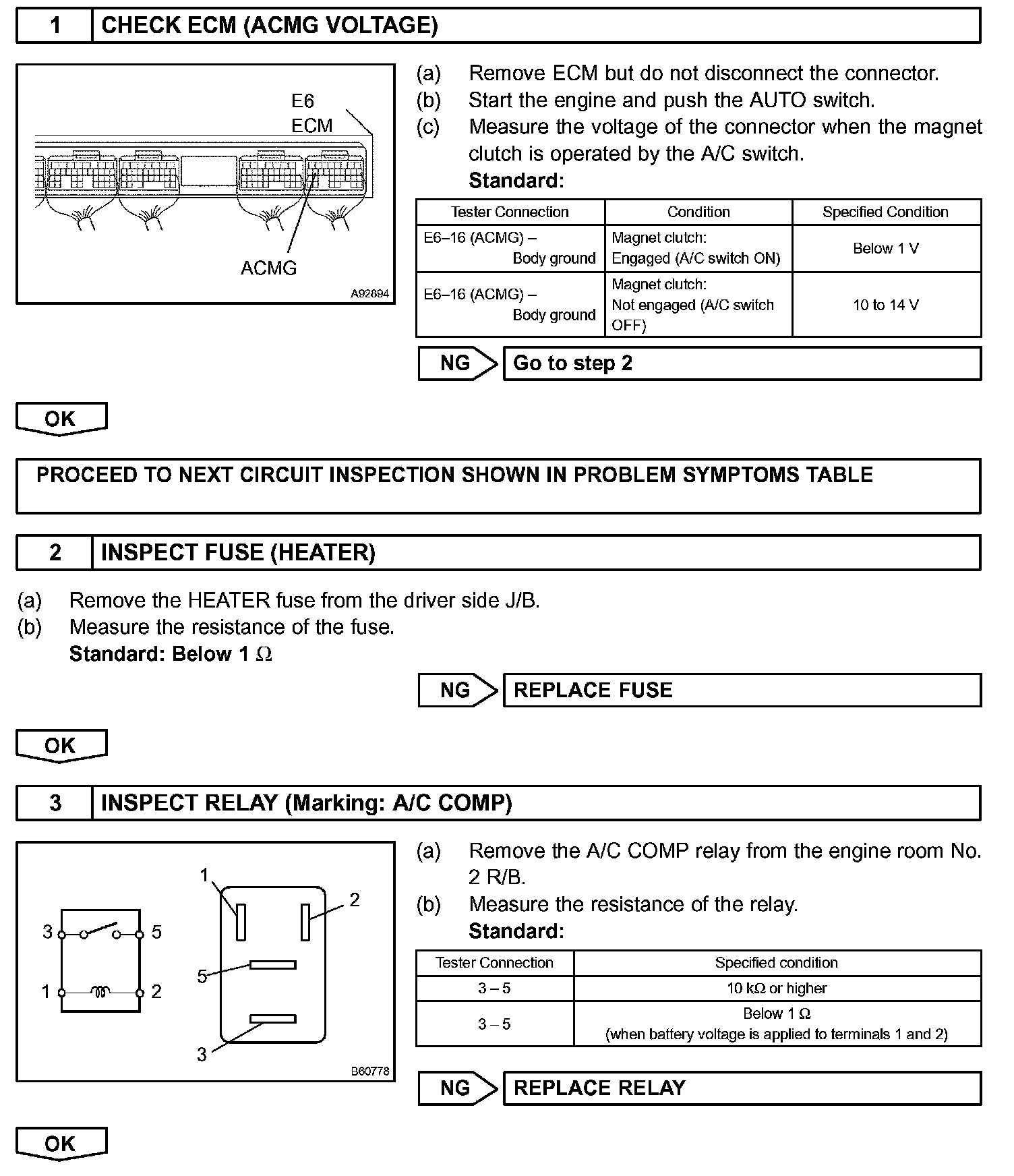

Step 1 - 3:

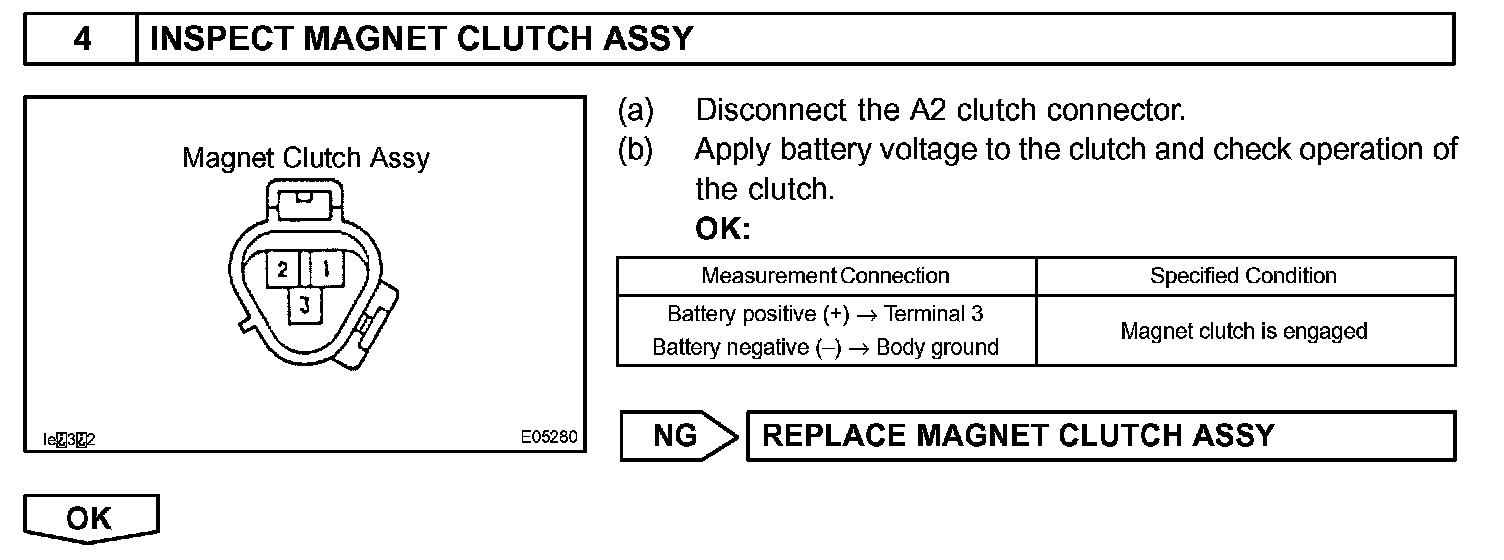

Step 4:

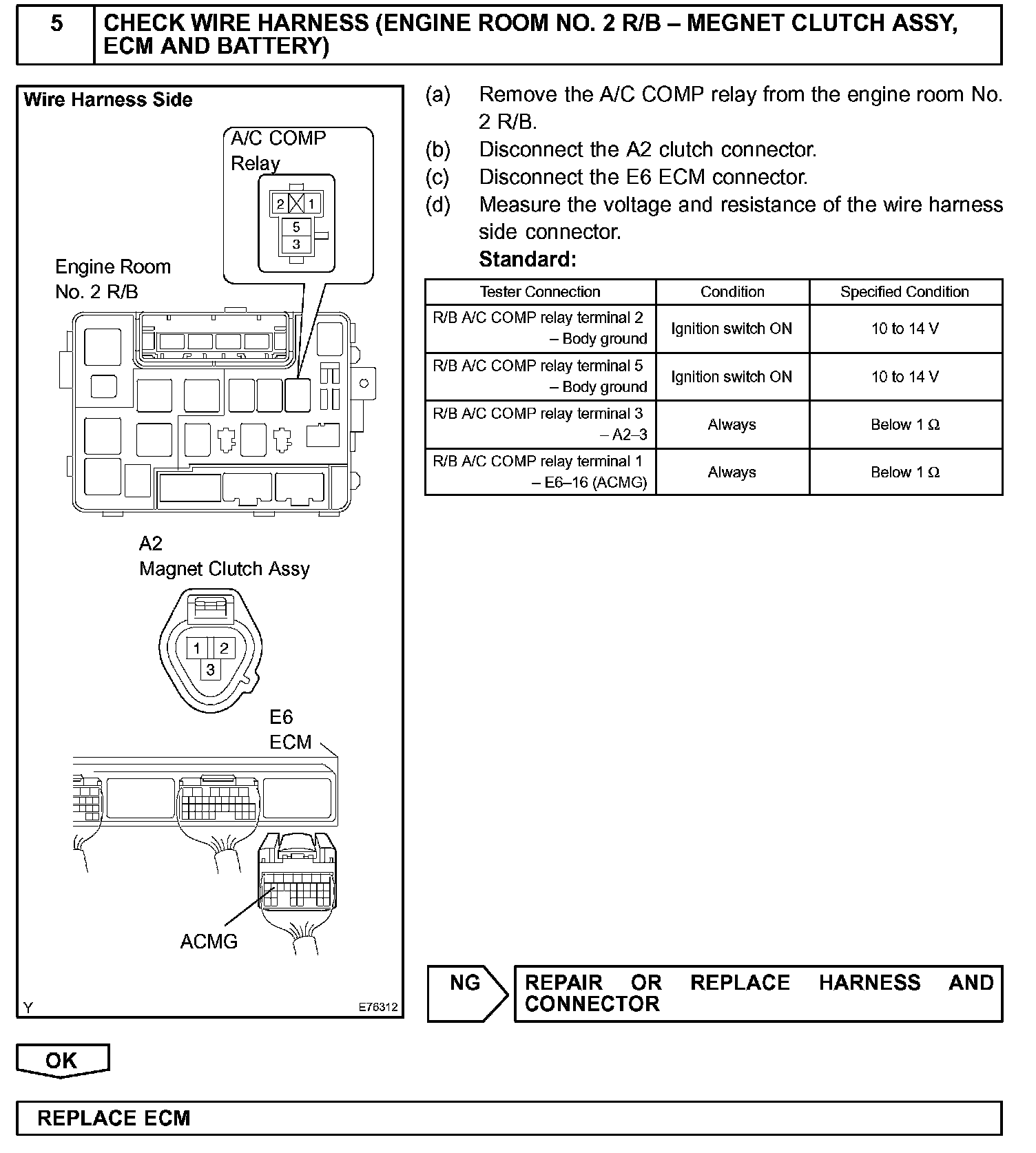

Step 5:

INSPECTION PROCEDURE
