SC 430 V8-4.3L (3UZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Splices
Splices

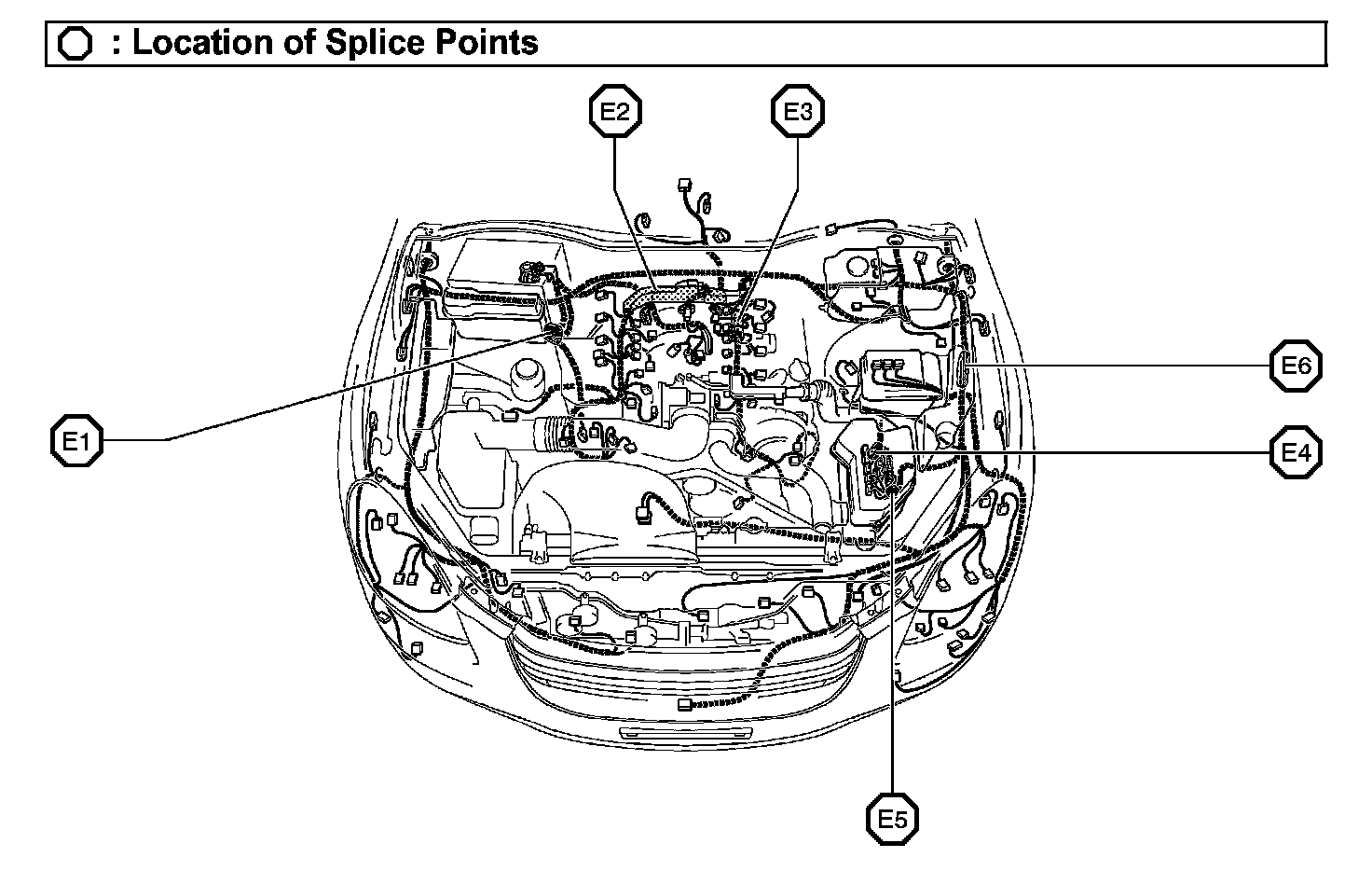

E1 - E6:

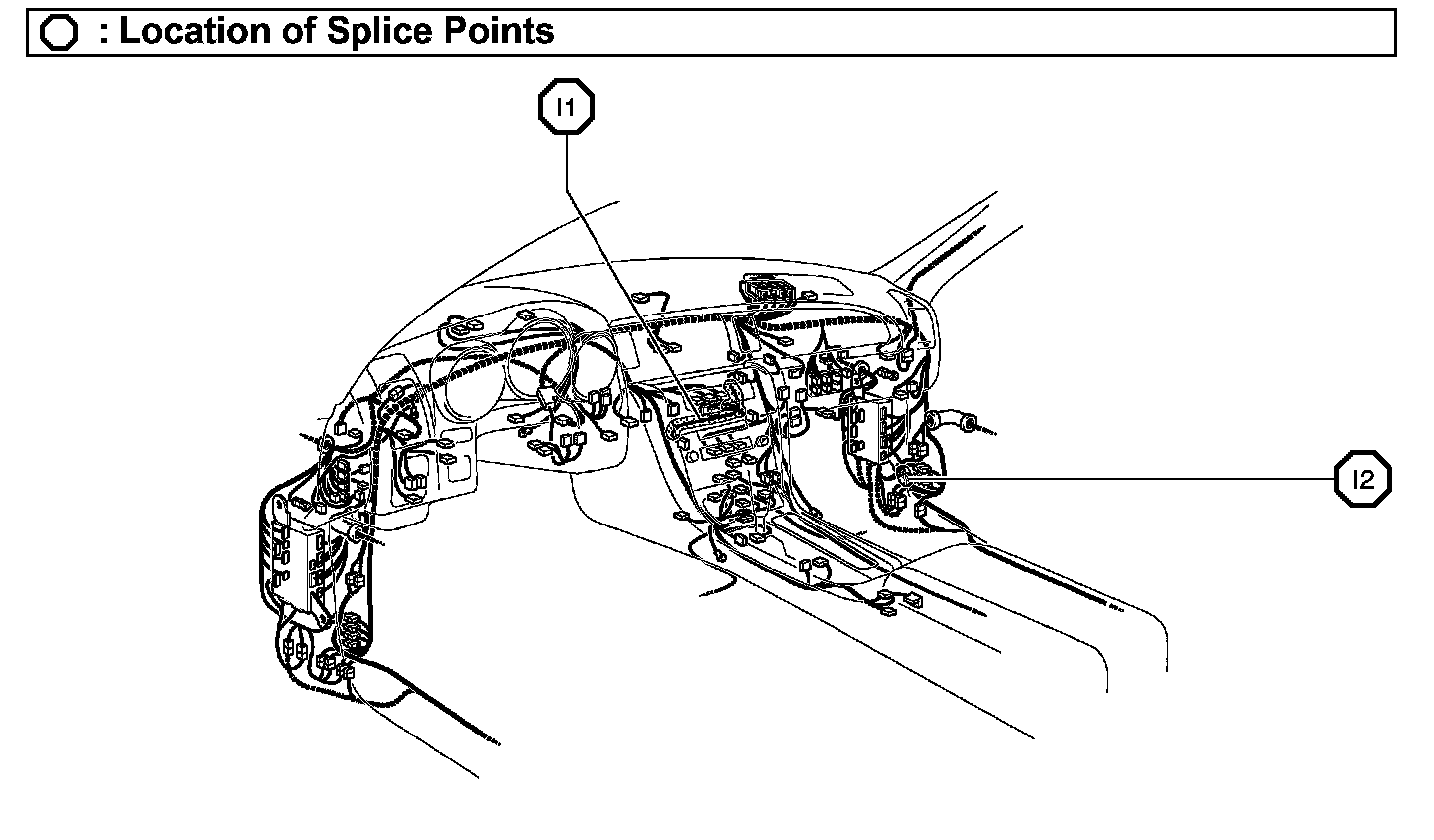

I1 - I2:

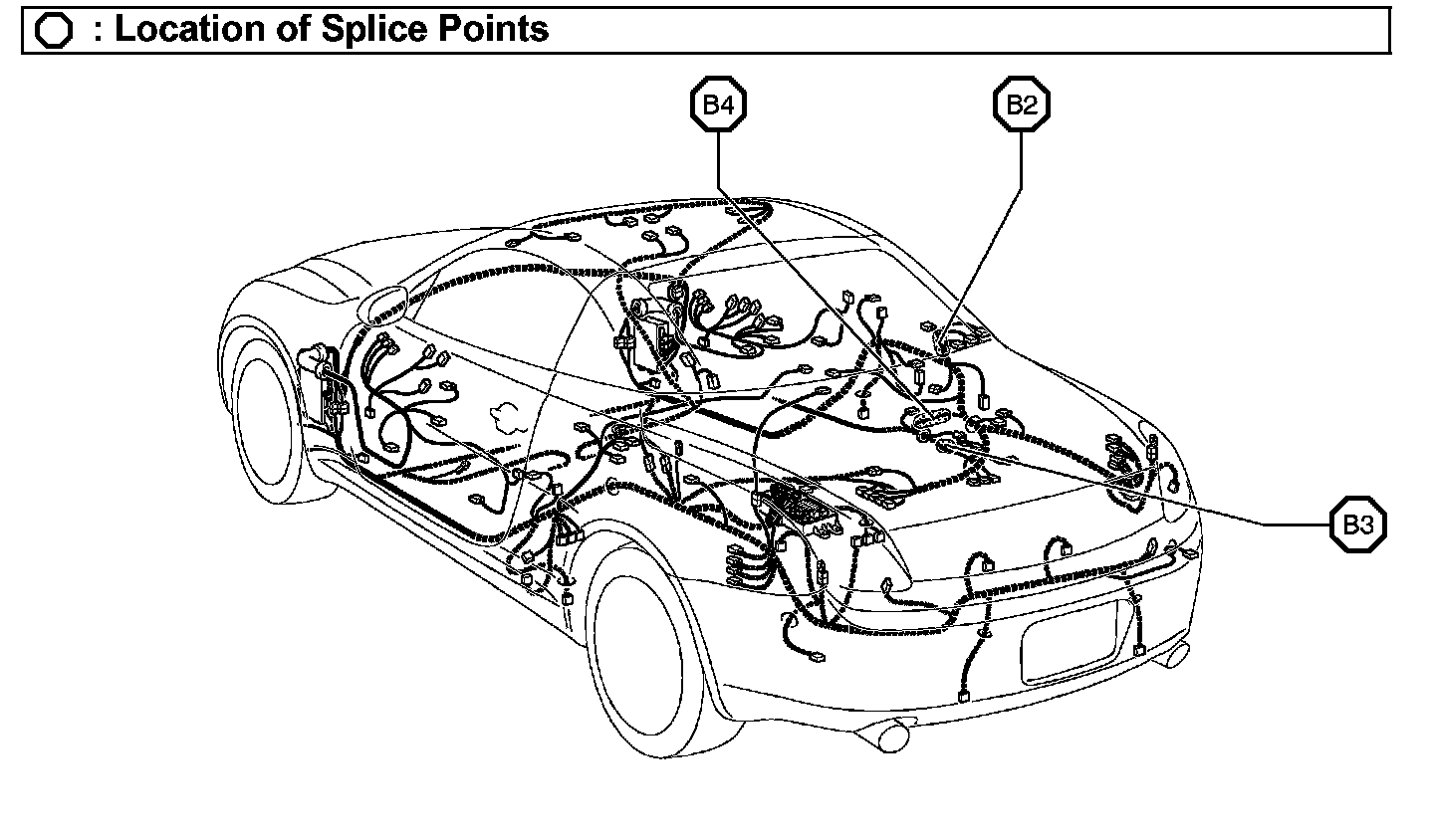

B2 - B4:
