Lexus
>>
2005
>>
SC 430 V8-4.3L (3UZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
Engine Control Module

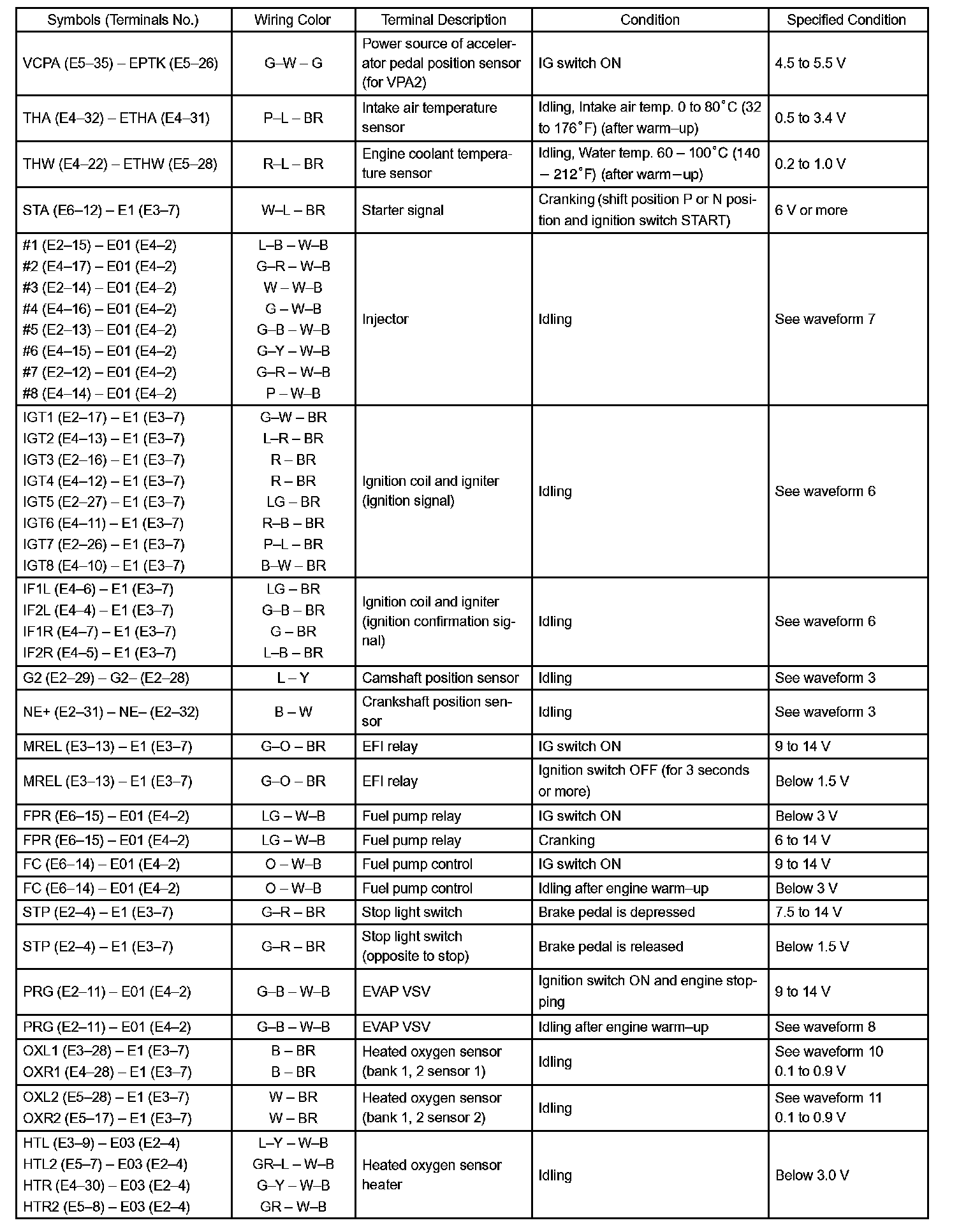

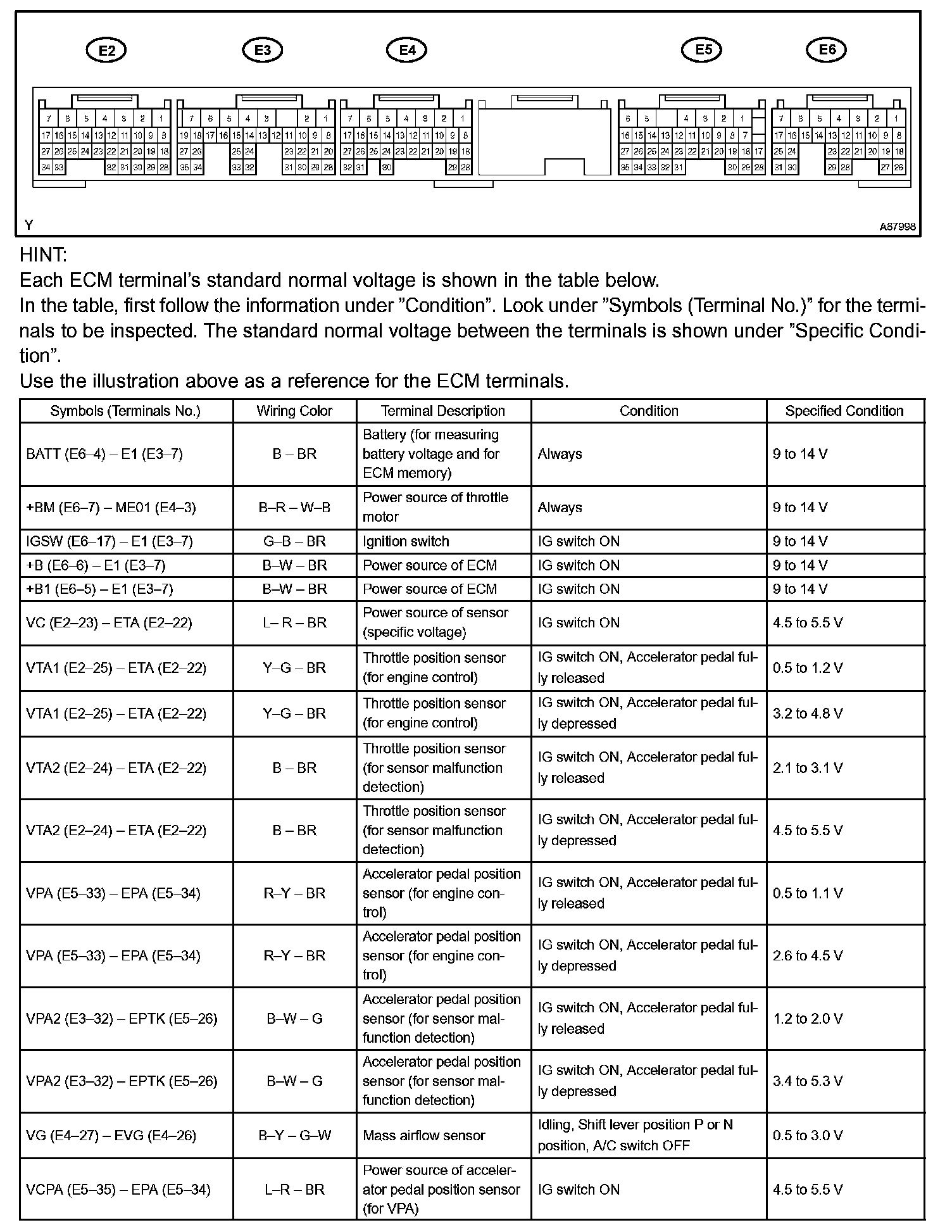

Terminals Of ECM/Pinouts Part 1:

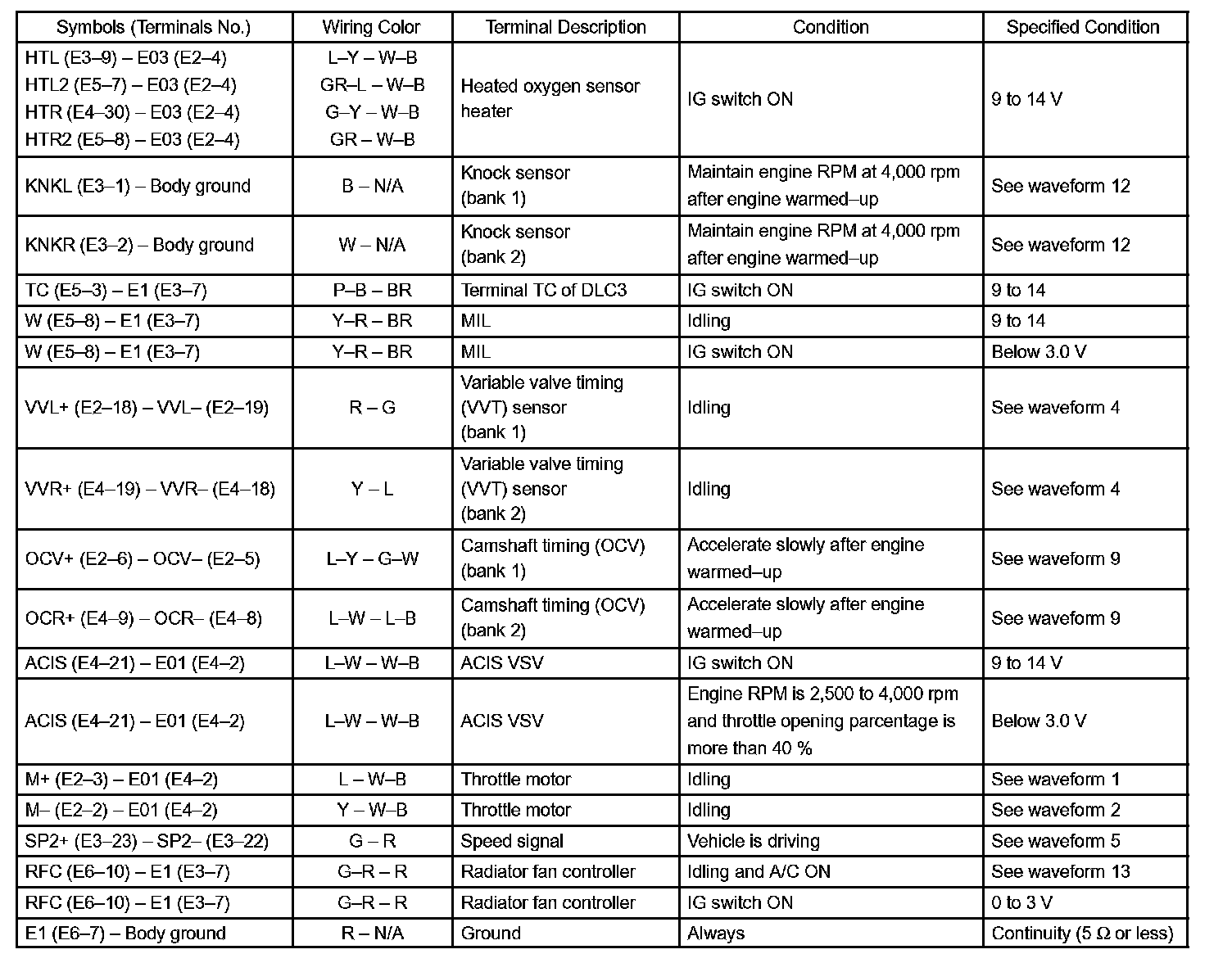

Terminals Of ECM/Pinouts Part 2:
Terminals Of ECM/Pinouts Part 3:

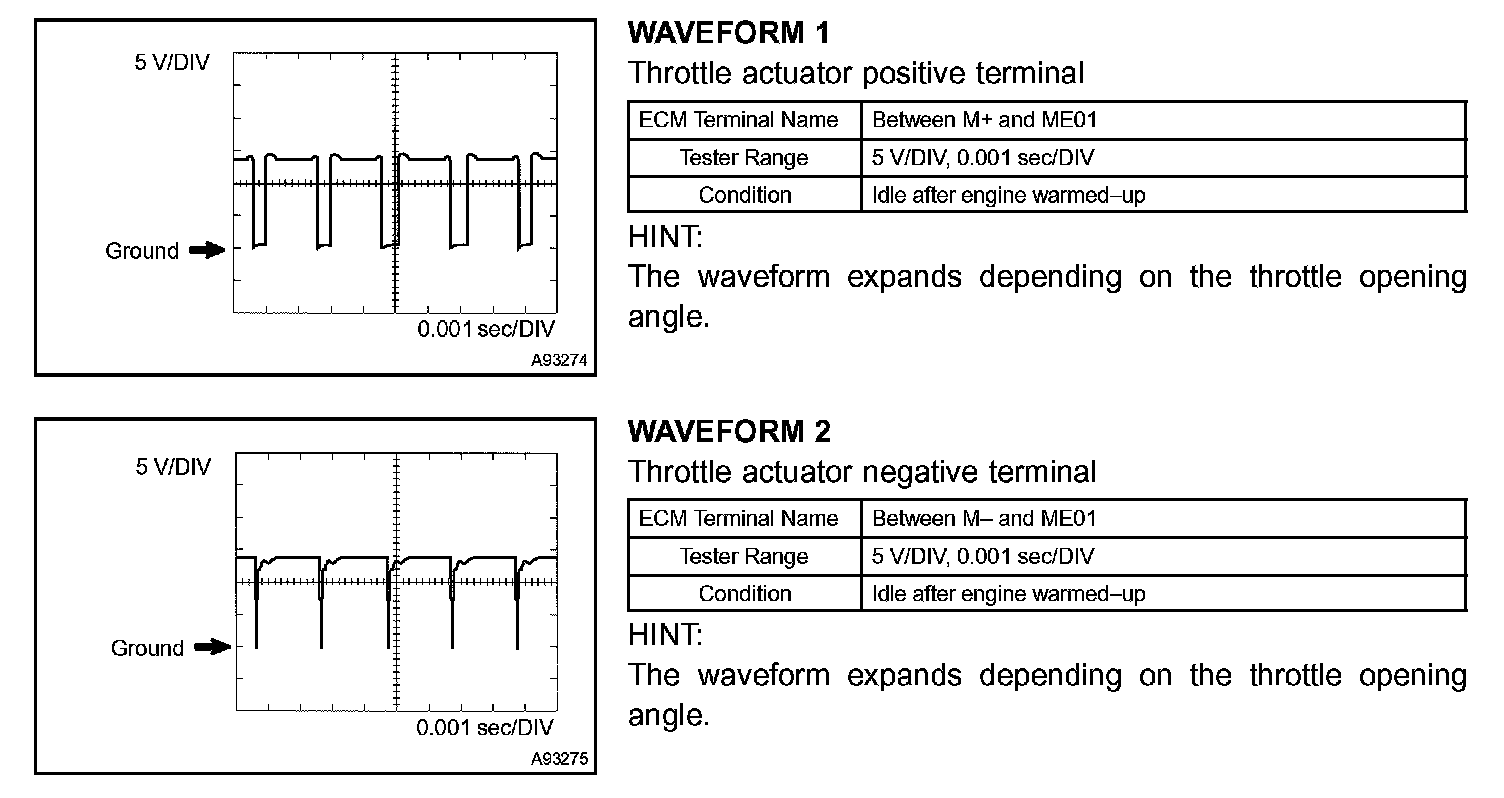

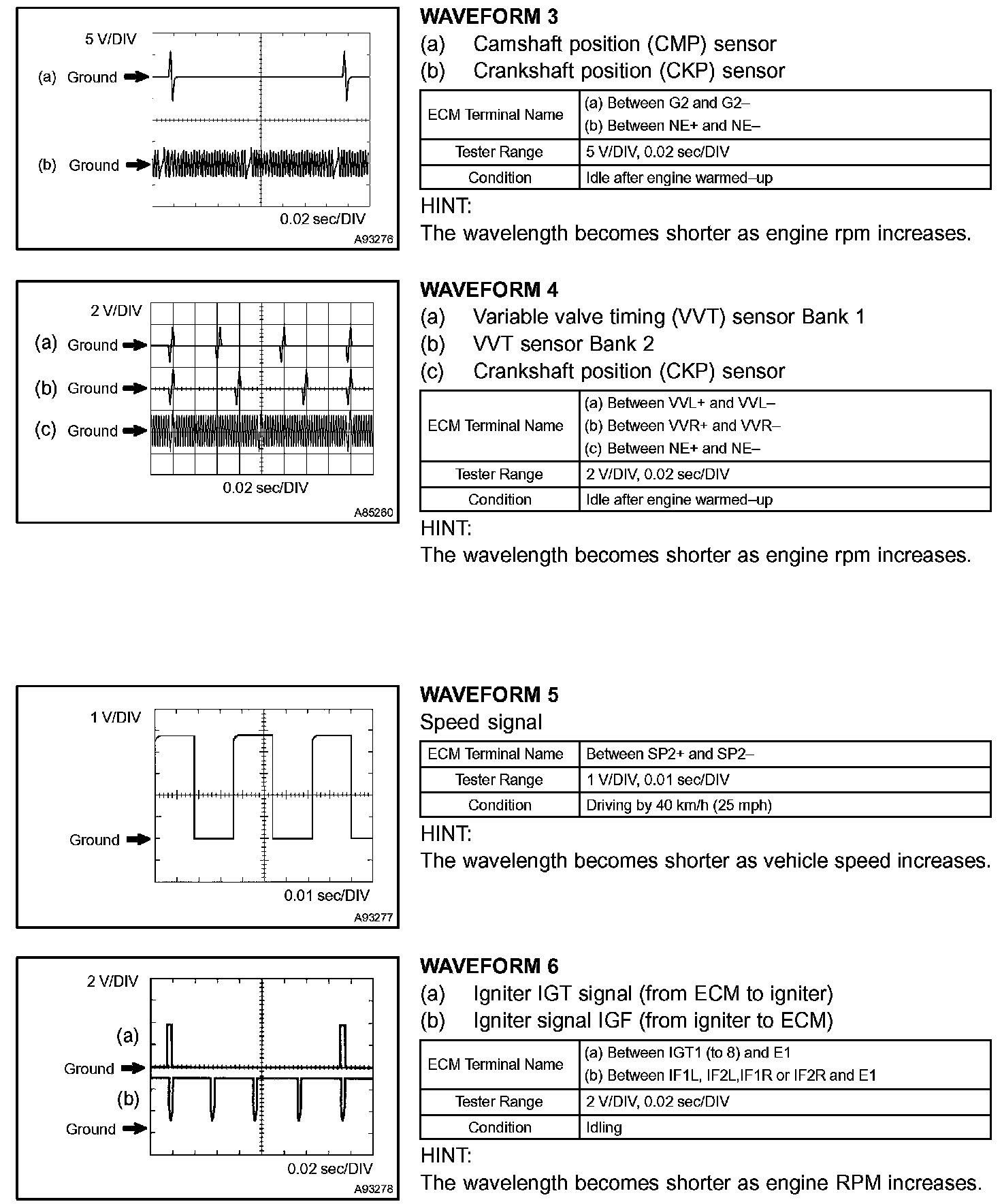

Waveforms Part 1:

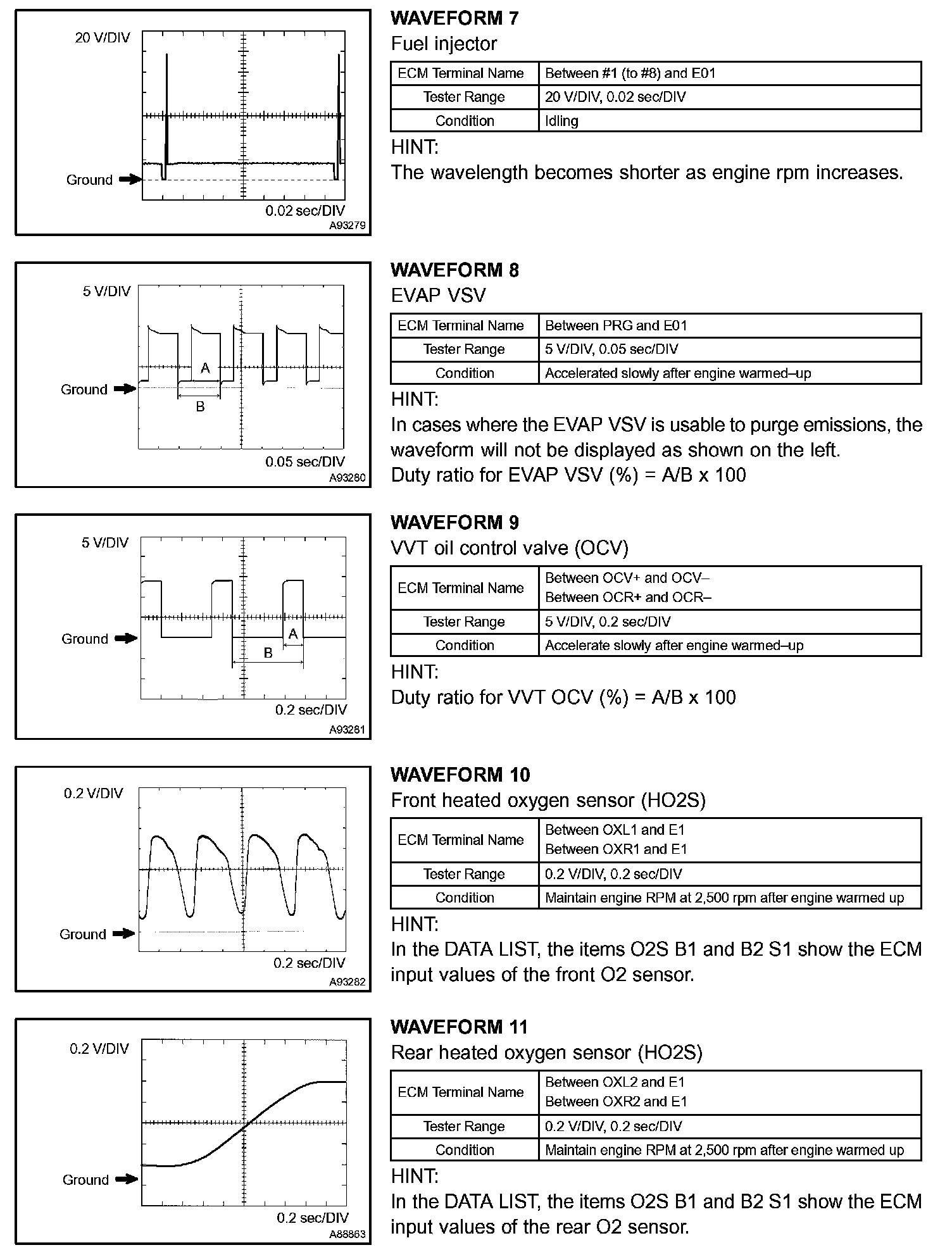

Waveforms Part 2:

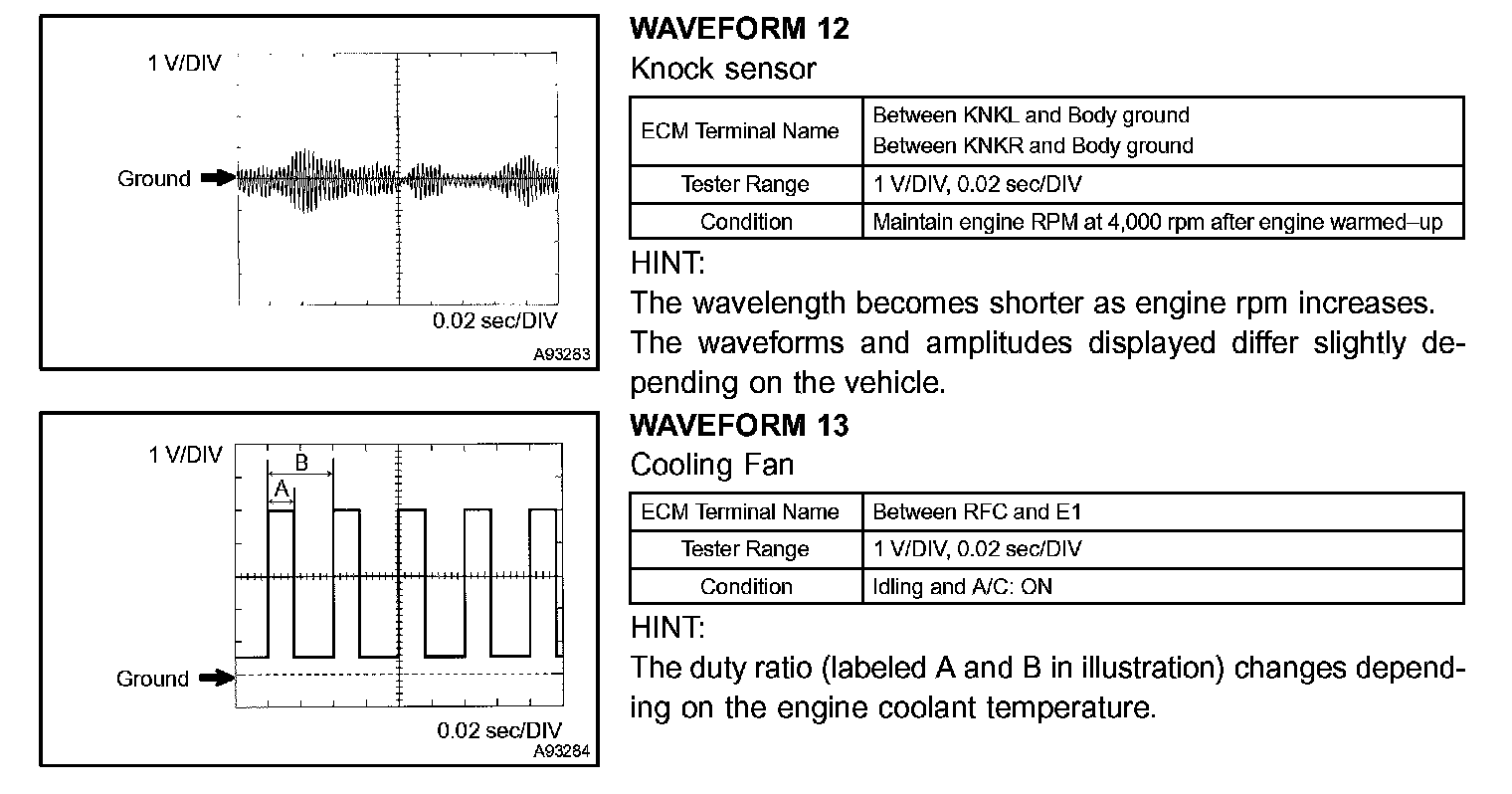

Waveforms Part 3:
Waveforms Part 4:
