Road Test

ROAD TEST

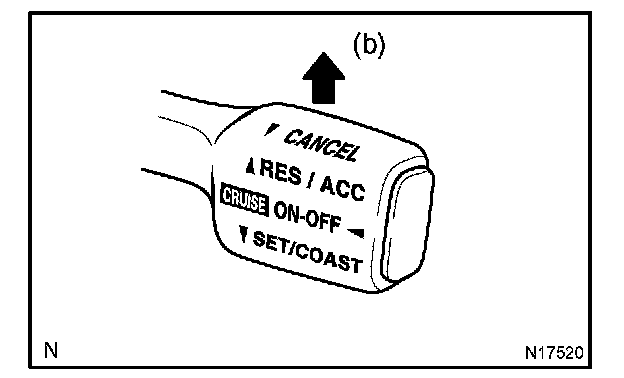

1. INSPECT "SET" FUNCTION

a. Turn the main switch ON.
b. Drive at a required speed of 40 km/h (25 mph) or higher.
c. Set the cruise control main switch to SET/COAST.
d. After releasing the lever, check that the vehicle cruises at the set speed.

2. INSPECT "ACC" (ACCELERATION) FUNCTION

a. Drive at a required speed of 40 km/h (25 mph) or higher.
b. Check that vehicle speed increases while the cruise control main switch is set to RES/ACC.
c. Check that the vehicle cruises at the newly set speed when the cruise control main switch is released.

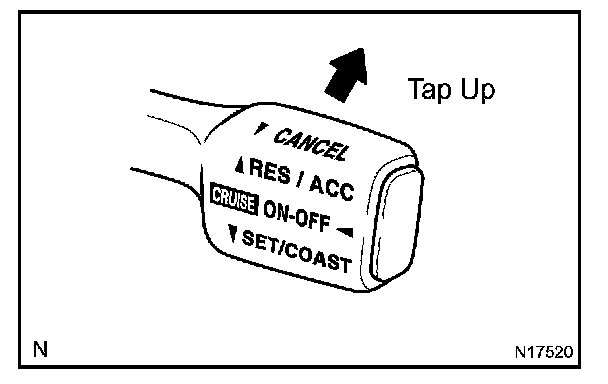

d. Momentarily (approximately 0.6 seconds) tap up the cruise control main switch to RES/ACC and then release it. Check that vehicle speed increases approximately 1.6 km/h (1 mph) with each cruise control main switch operation (tap-up control).

3. INSPECT "COAST" FUNCTION

a. Drive at a required speed of 40 km/h (25 mph) or higher.
b. Check that vehicle speed decreases while the cruise control main switch is set to SET/COAST.
c. Check that the vehicle cruises at the newly set speed when the cruise control main switch is released.
d. Momentarily (approximately 0.6 seconds) tap up the cruise control main switch to SET/COAST and then release it. Check that vehicle speed increases approximately 1.6 km/h (1 mph) with each cruise control main switch operation (tap-down control).

HINT: The cruise control system automatically cancels when the vehicle speed decreases below 40 km/h (25 mph).

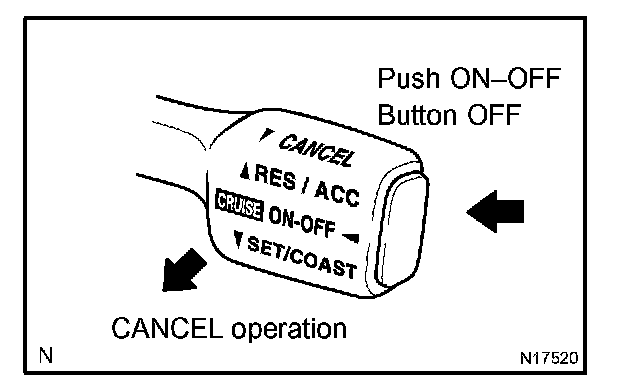

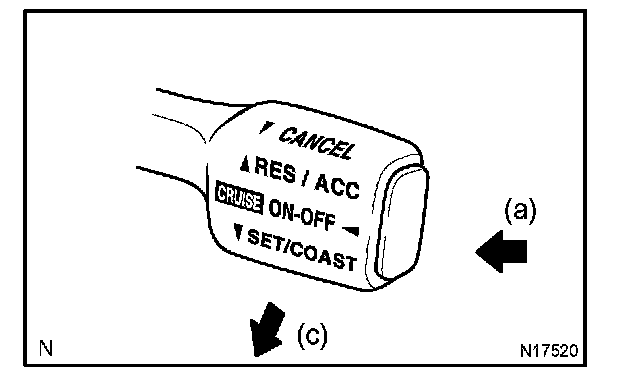

4. INSPECT "CANCEL" FUNCTION

a. Drive at a required speed of 40 km/h (25 mph) or higher.
b. Check that the cruise control system is canceled when performing one of the following:

- Depressing the brake pedal
- Shifting into any position except D and 4 while driving.
- Setting the cruise control main switch to "CANCEL"

c. Set the cruise control main switch to "RES/ACC", and` check that the vehicle resumes the previously set speed.

HINT: RES" function does not resume the set speed when the vehicle speed decreases below 40 km/h (25 mph).
