ABS Warning Light Circuit (Does Not Come on)

ABS WARNING LAMP CIRCUIT (DOES NOT ILLUMINATE)

CIRCUIT DESCRIPTION

If the ECU detects trouble, the ABS warning lamp is illuminated at the same time prohibiting ABS control. At this time, the ECU records a DTC in memory. Connect terminals TC and CG of the DLC3 to make the ABS warning lamp blink and output the DTC.

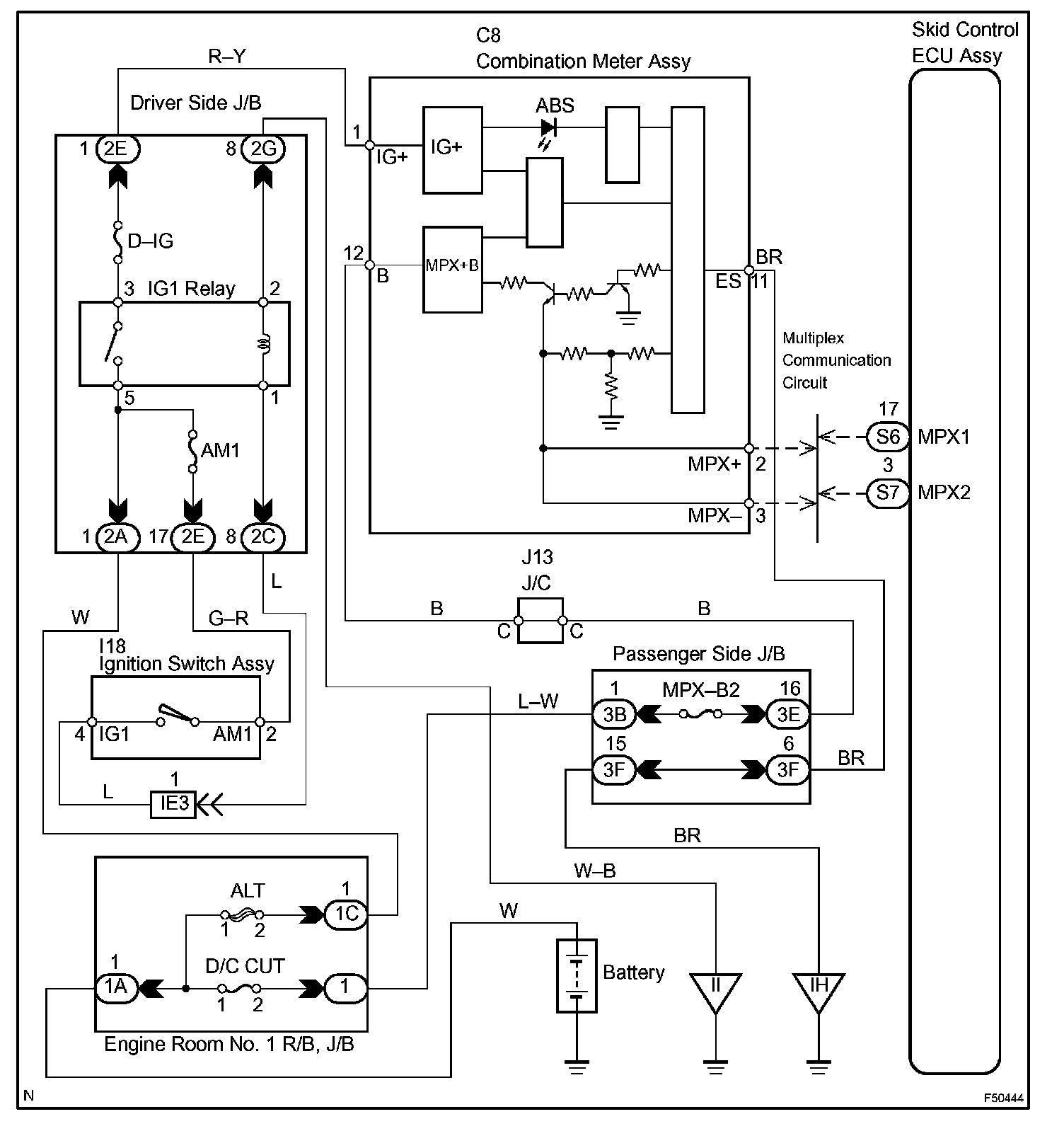

Wiring Diagram:

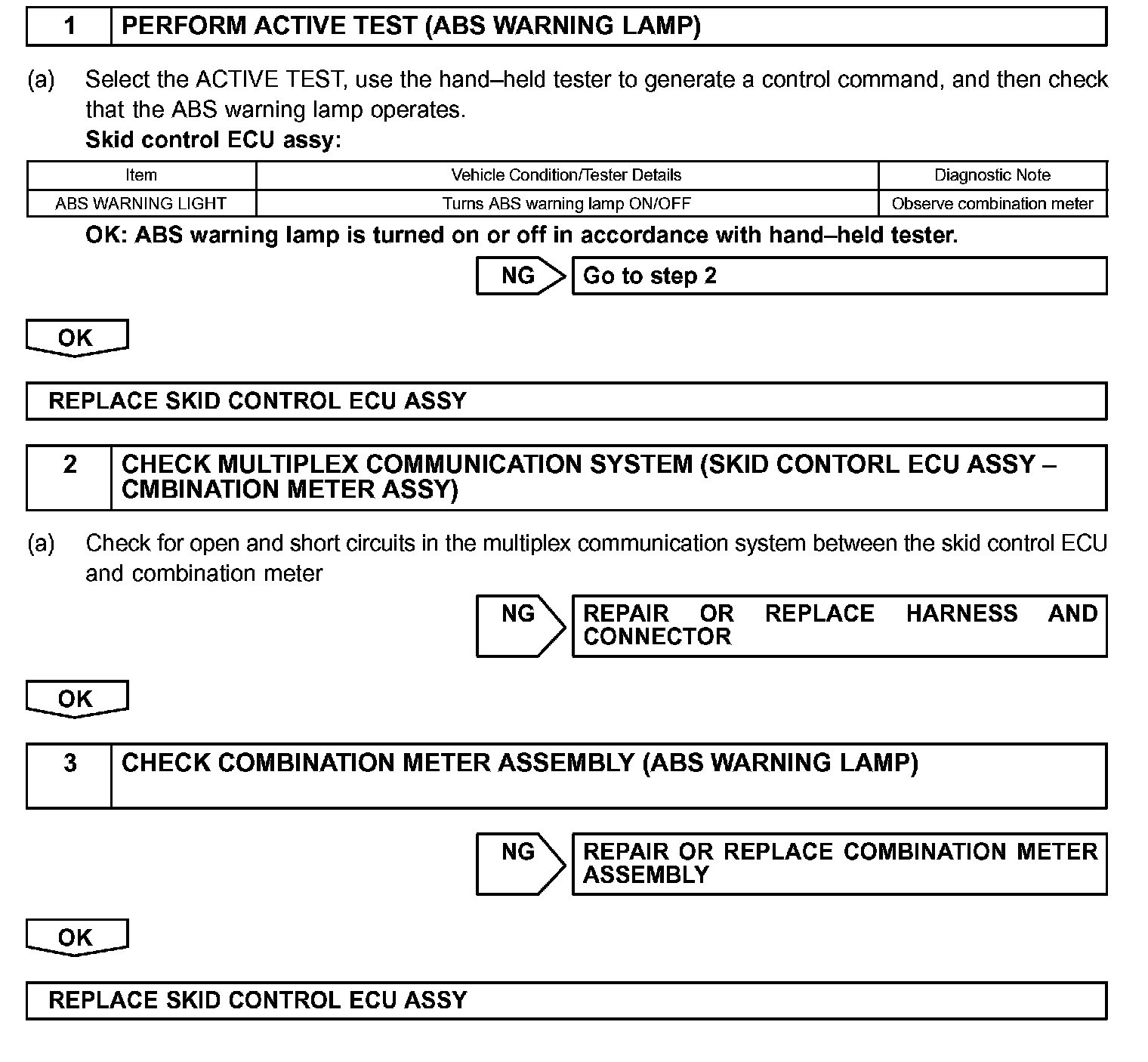

Step 1 - 3:

INSPECTION PROCEDURE

HINT: Start the inspection from step 1 when using the hand-held tester and start from step 2 when not using the hand-held tester.
