Without Scan Tool

When not using hand-held tester: CHECK DTC

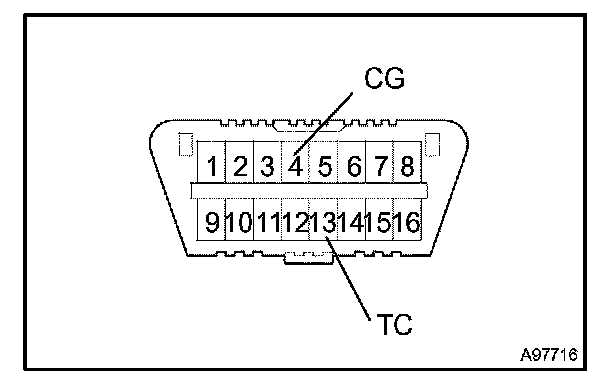

a. Using SST, connect terminals 13 (TC) and the 4 (CG) of the DLC3.

SST 09843-18040

b. Turn the ignition switch ON.
c. Read the DTC from the ABS warning lamp and VSC warning lamp on the combination meter.

HINT:
- If no code appears, check the TC terminal circuit, ABS warning lamp circuit or VSC warning lamp circuit.

Trouble Area
TC terminal circuit
ABS warning lamp circuit
VSC warning lamp circuit

- If more than 1 DTCs are detected at the same time, the DTCs will be displayed.

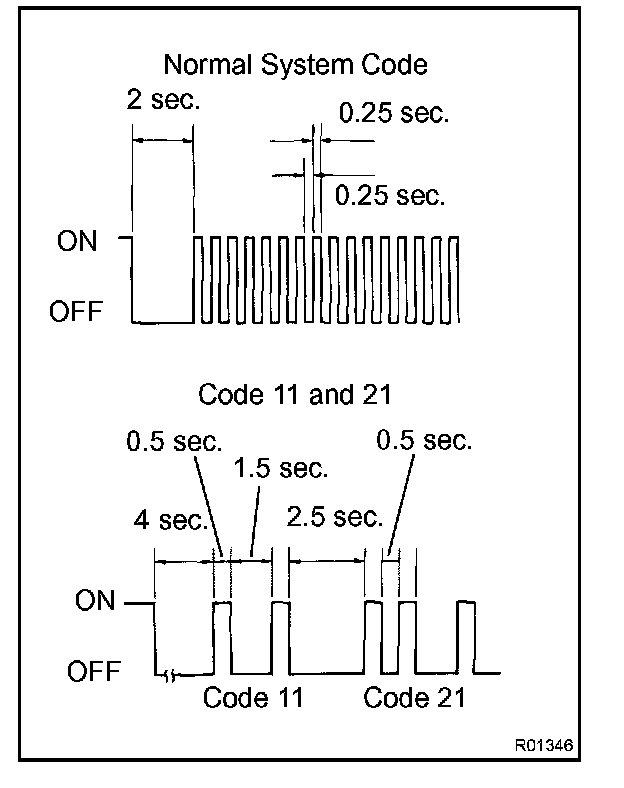

- The blinking patterns for a normal system code and trouble codes 11 and 21 are shown.
- Codes are explained in the Diagnostic Trouble Code




d. After completing the check, disconnect terminals 13 (TC) and (CG) of the DLC3, and turn the ignition switch OFF.
