VSC Off Indicator Lamp, VSC Off Switch Circuit

VSC OFF INDICATOR LAMP, VSC OFF SWITCH CIRCUIT

CIRCUIT DESCRIPTION

This is the TRAC & VSC control main switch.When the VSC OFF switch is pushed on, TRAC & VSC control turns off and the VSC OFF indicator lamp illuminates. Also, the VSC OFF indicator lamp is illuminated when the VSC system is at the fail safe control. Turn the ignition switch OFF, TRAC & VSC control surely illuminates when the ignition switch turns ON next time.

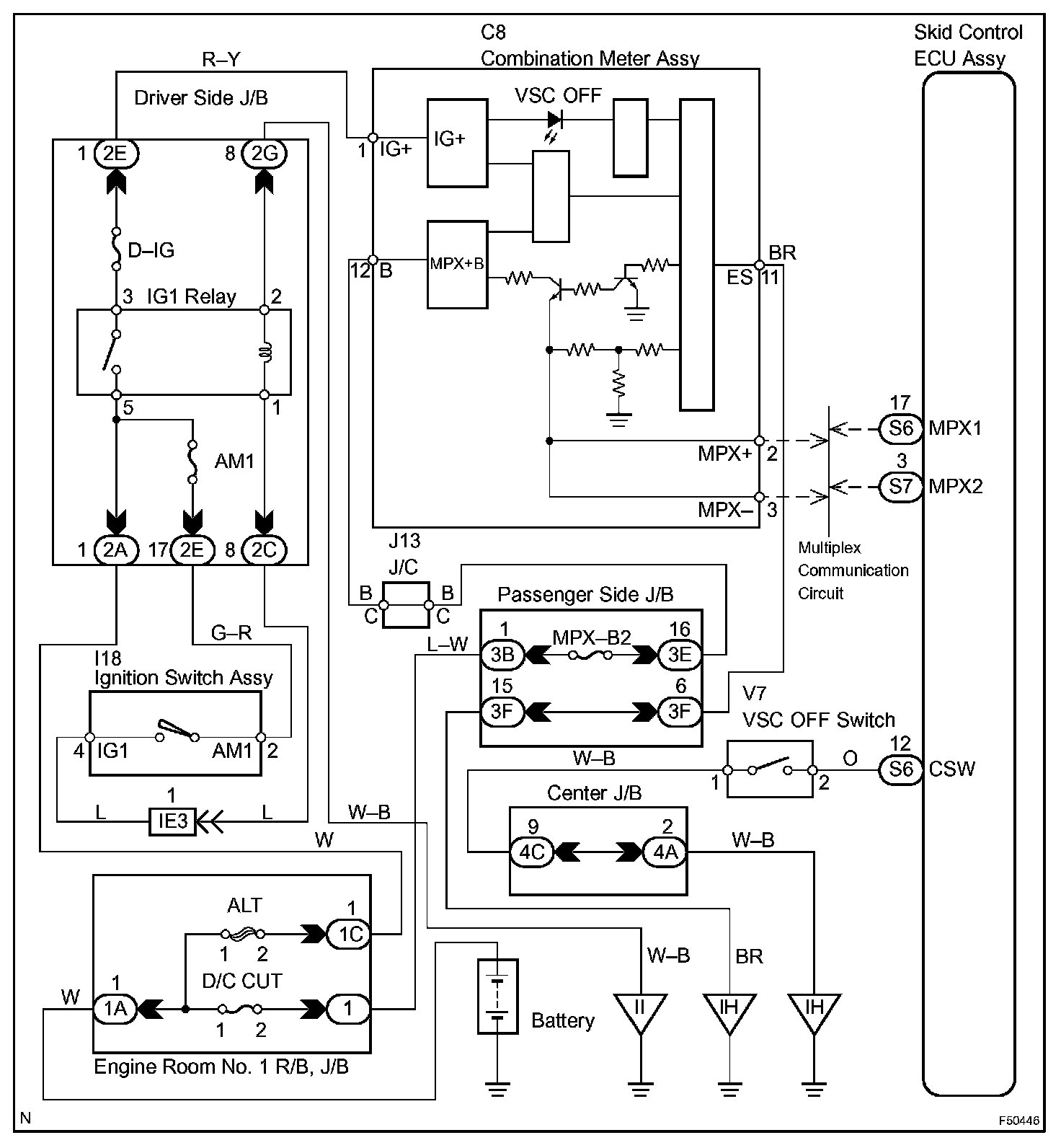

Wiring Diagram:

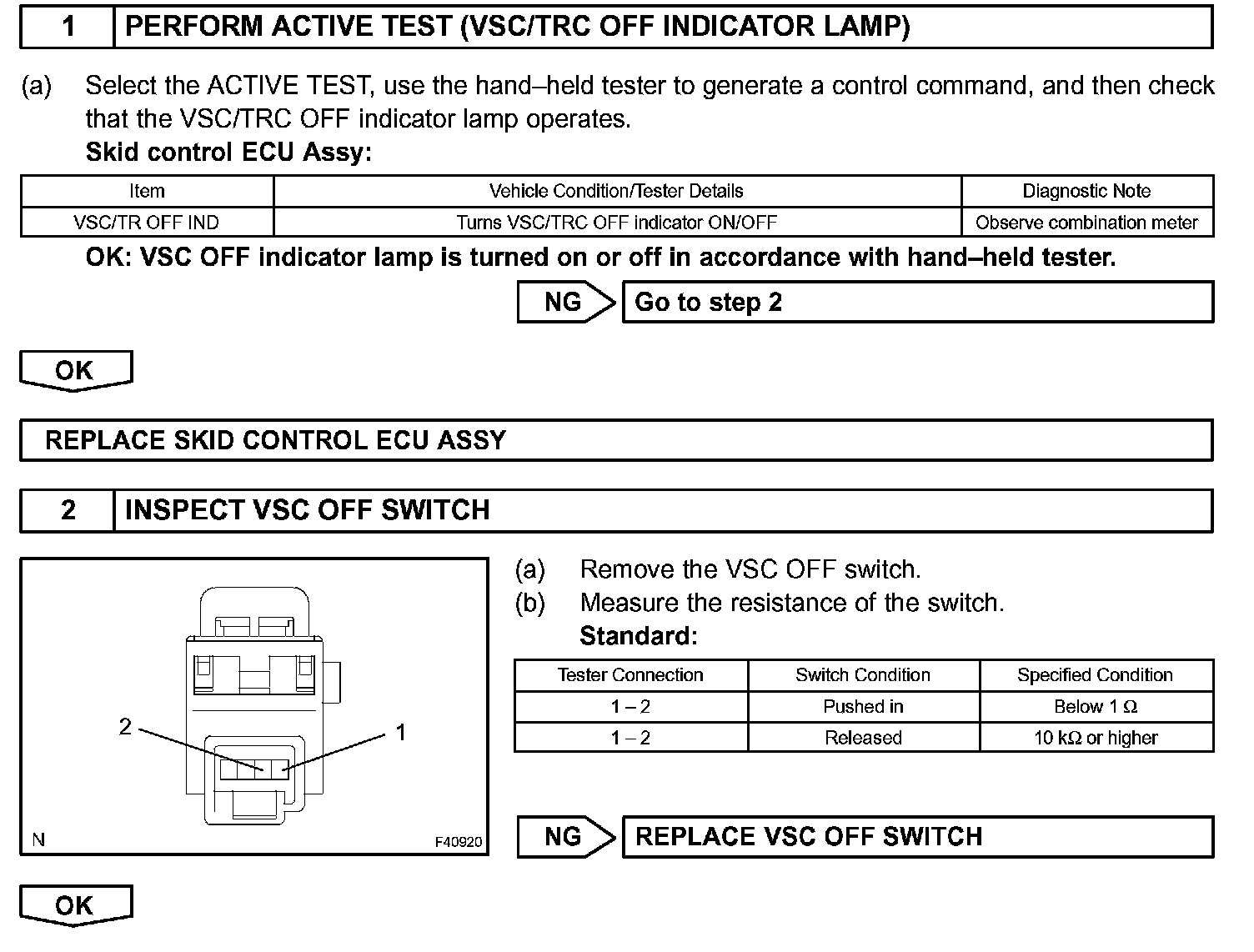

Step 1 - 2:

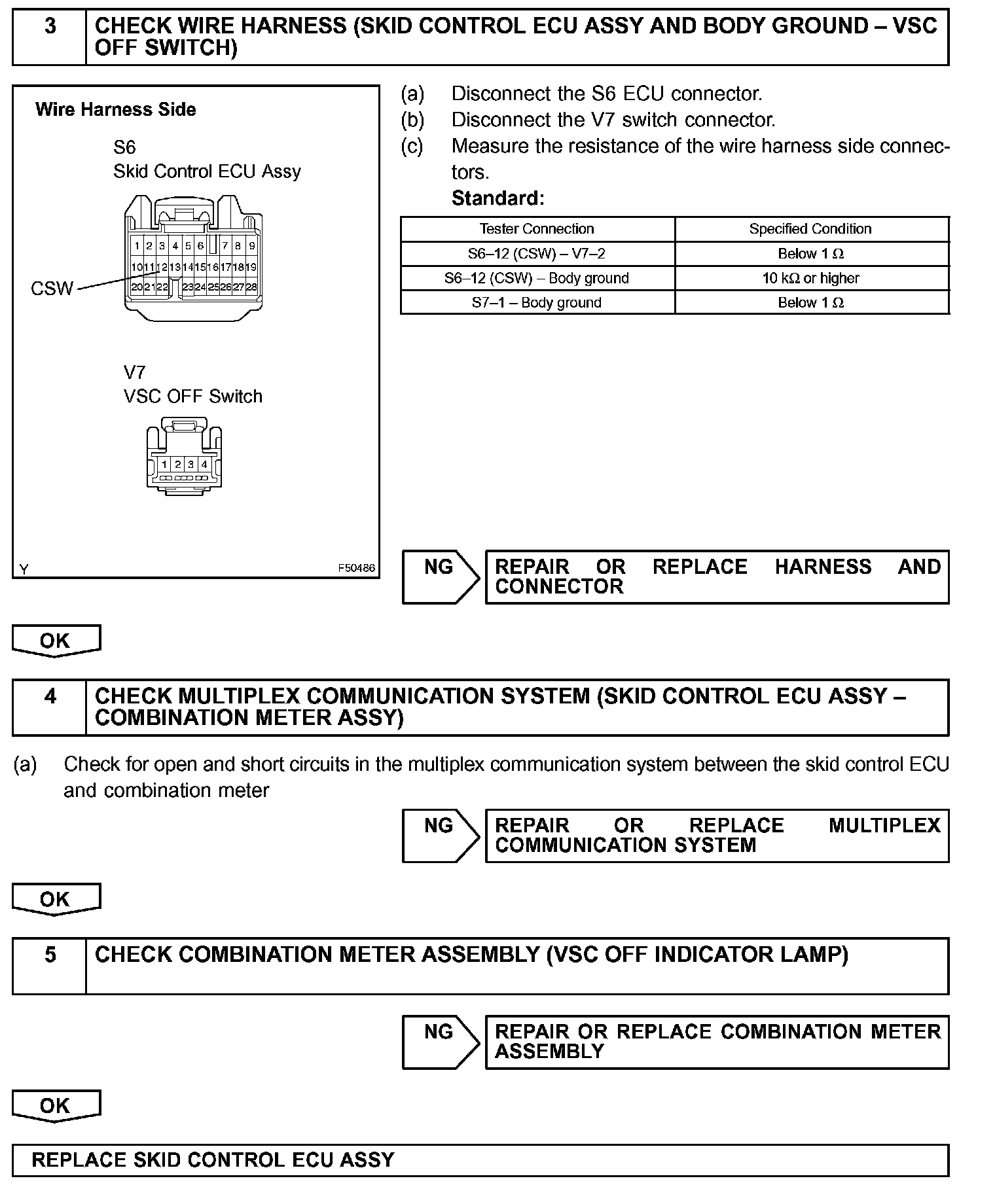

Step 3 - 5:

INSPECTION PROCEDURE

HINT: Start the inspection from step 1 when using the hand-held tester and start from step 2 when not using the hand-held tester.
