ON-VEHICLE INSPECTION




1. CHECK SEAT HEATER CONTROL SUB-ASSEMBLY LH

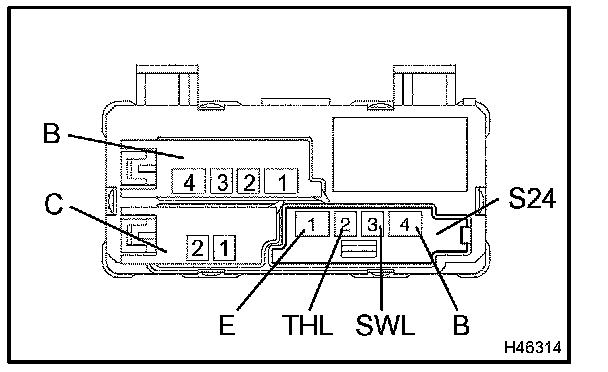

a. Disconnect the 3 (S24, B and C) connectors.

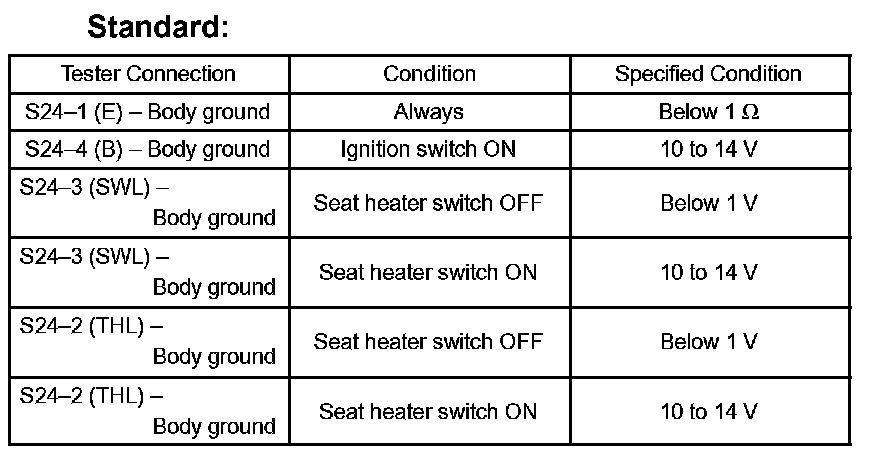

b. Measure the resistance and voltage of the wire harness side connector.

c. Reconnect the 3 connectors.

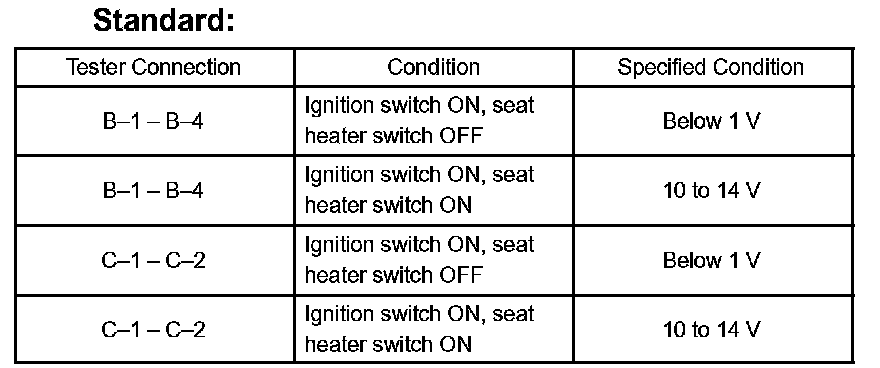

d. Measure the voltage of the connectors.
If the result is not as specified, replace the seat heater control sub-assembly.




2. CHECK SEAT HEATER CONTROL SUB-ASSEMBLY RH

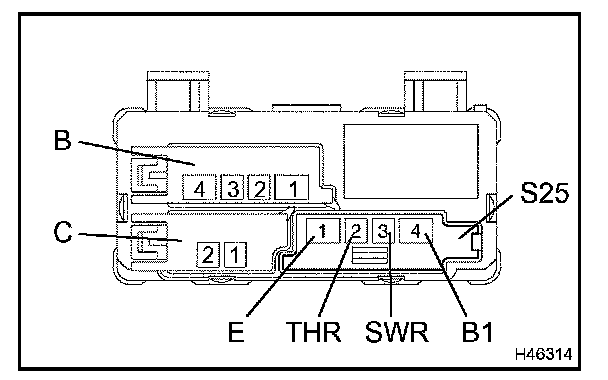

a. Disconnect the 3 (S25, B and C) connectors.

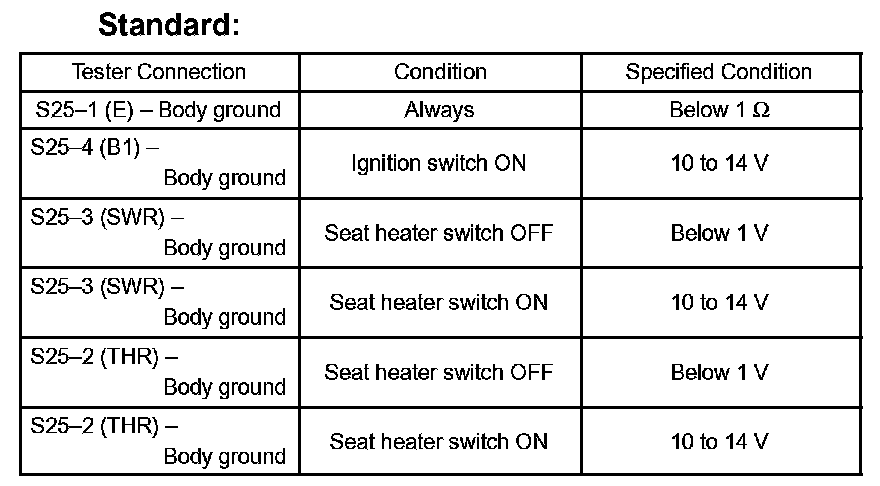

b. Measure the resistance and voltage of the wire harness side connector.
c. Reconnect the 3 connectors.

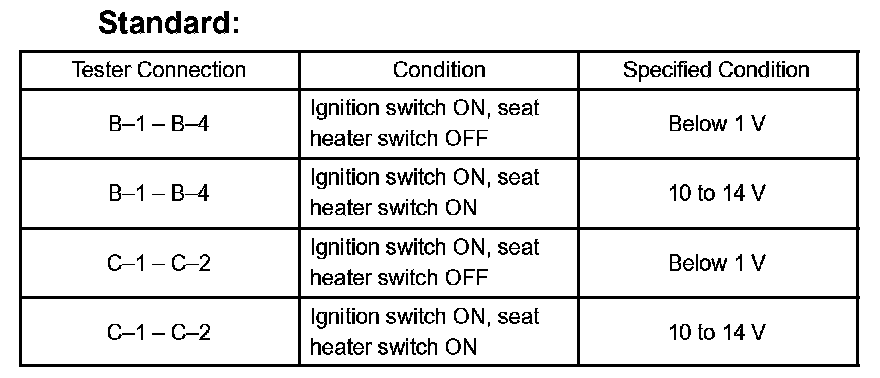

d. Measure the voltage of the connectors.
If the result is not as specified, replace the seat heater control sub-assembly.
