Data List

DATA LIST

HINT: Using the hand-held tester's DATA LIST allows switch, actuator and other item values to be read without removing any parts. Reading the DATA LIST early in troubleshooting is one way to save time.

a. Connect the hand-held tester to the DLC3.
b. Turn the ignition switch ON.
c. Read the DATA LIST according to the display on the tester.

Part 1:

Part 2:

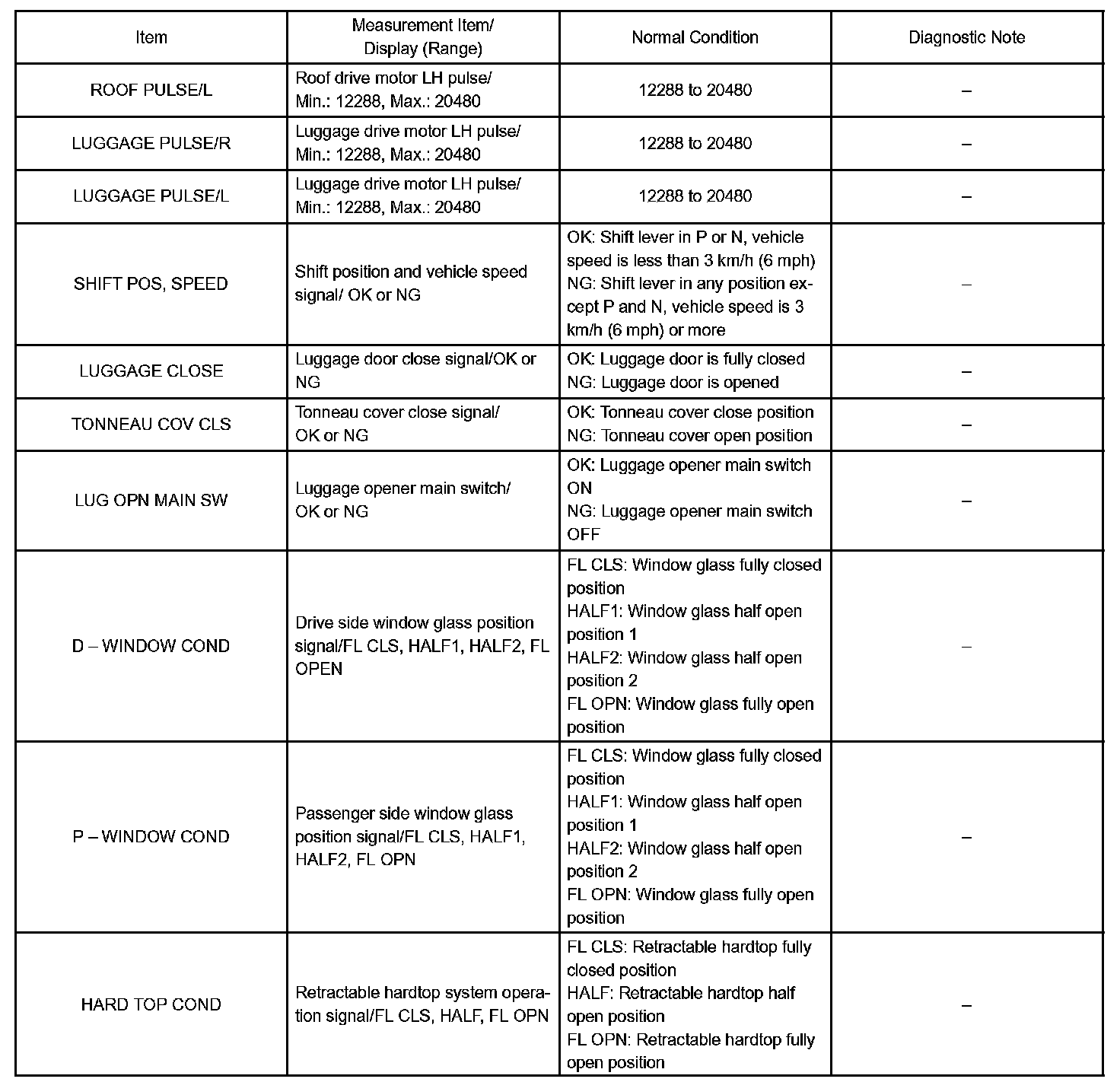

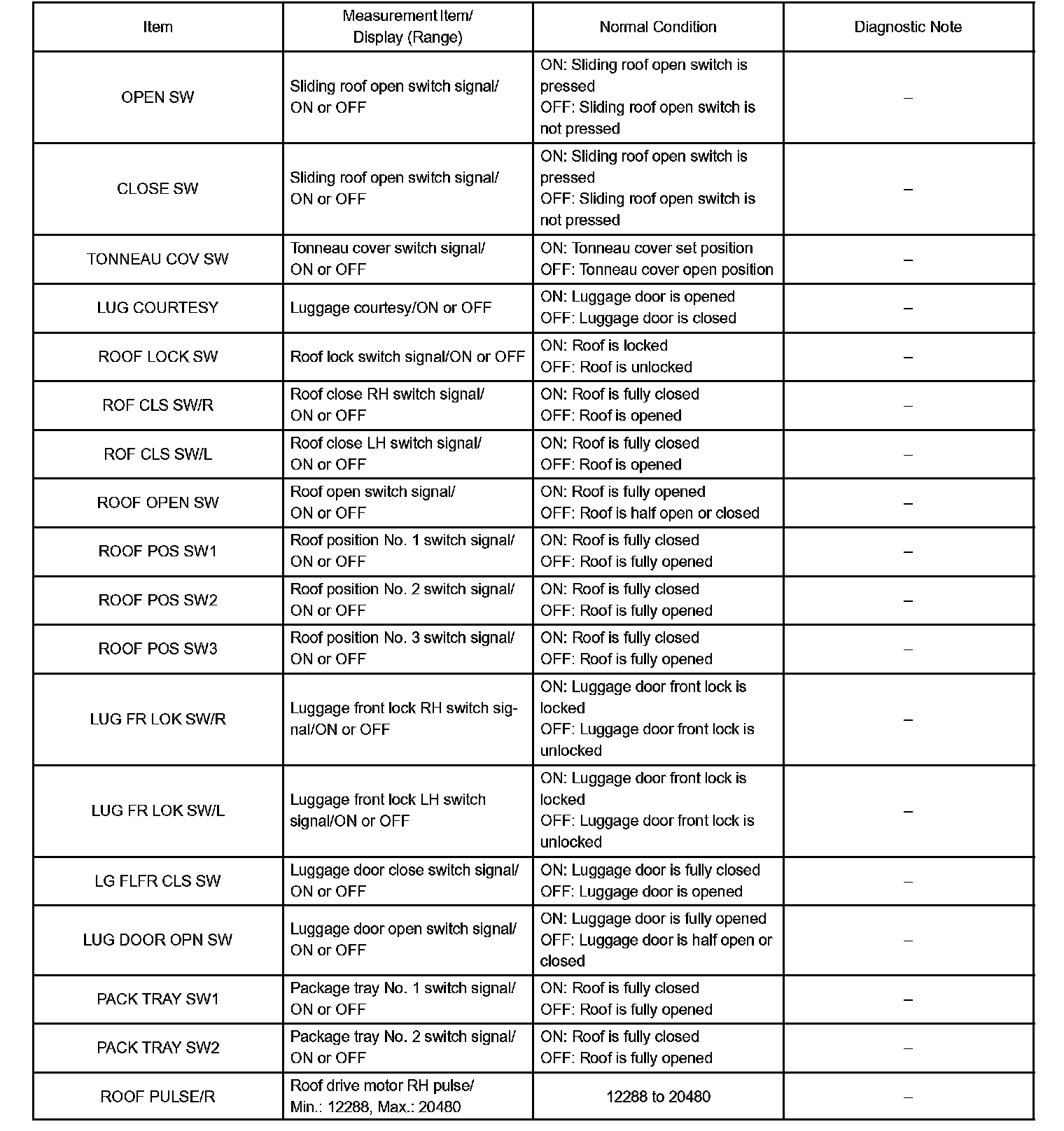

Sliding roof control ECU assembly

Part 1:

Part 2:

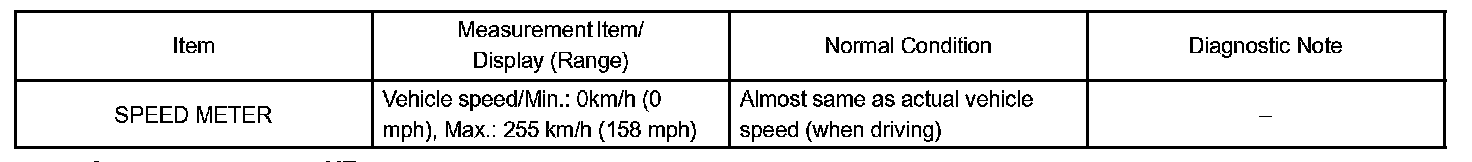

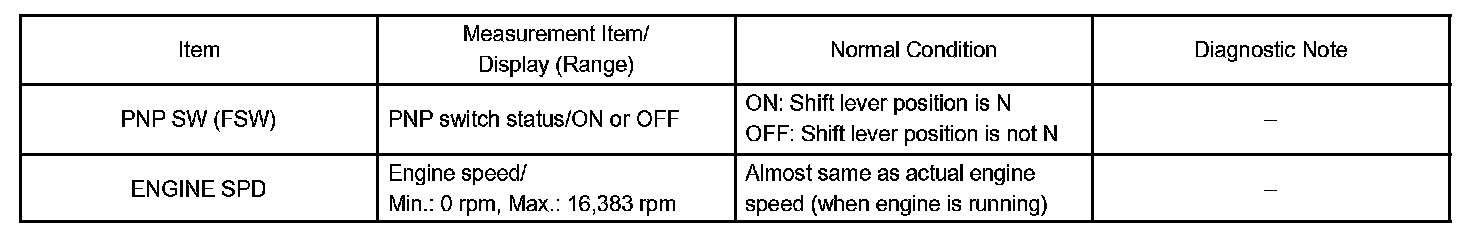

ECM

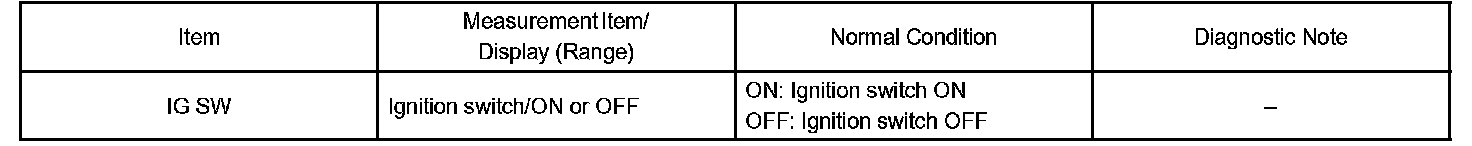

Transponder key ECU assembly

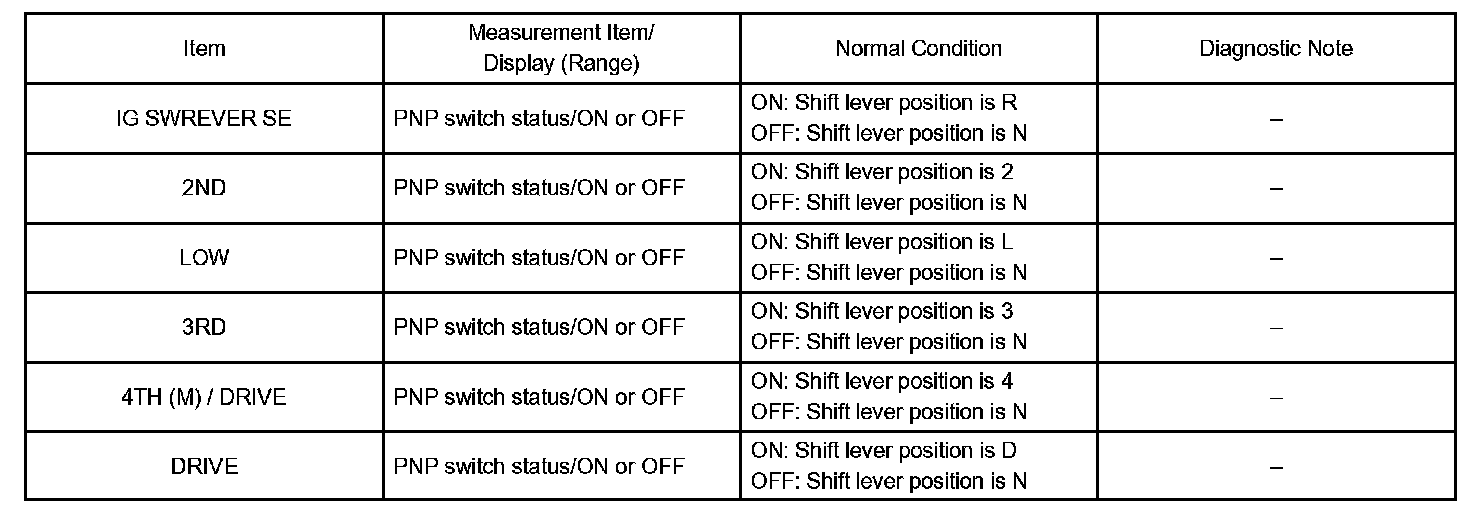

Combination meter assembly




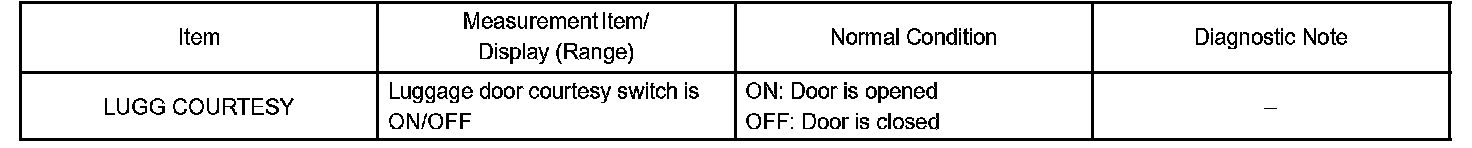

Luggage room J/B assembly

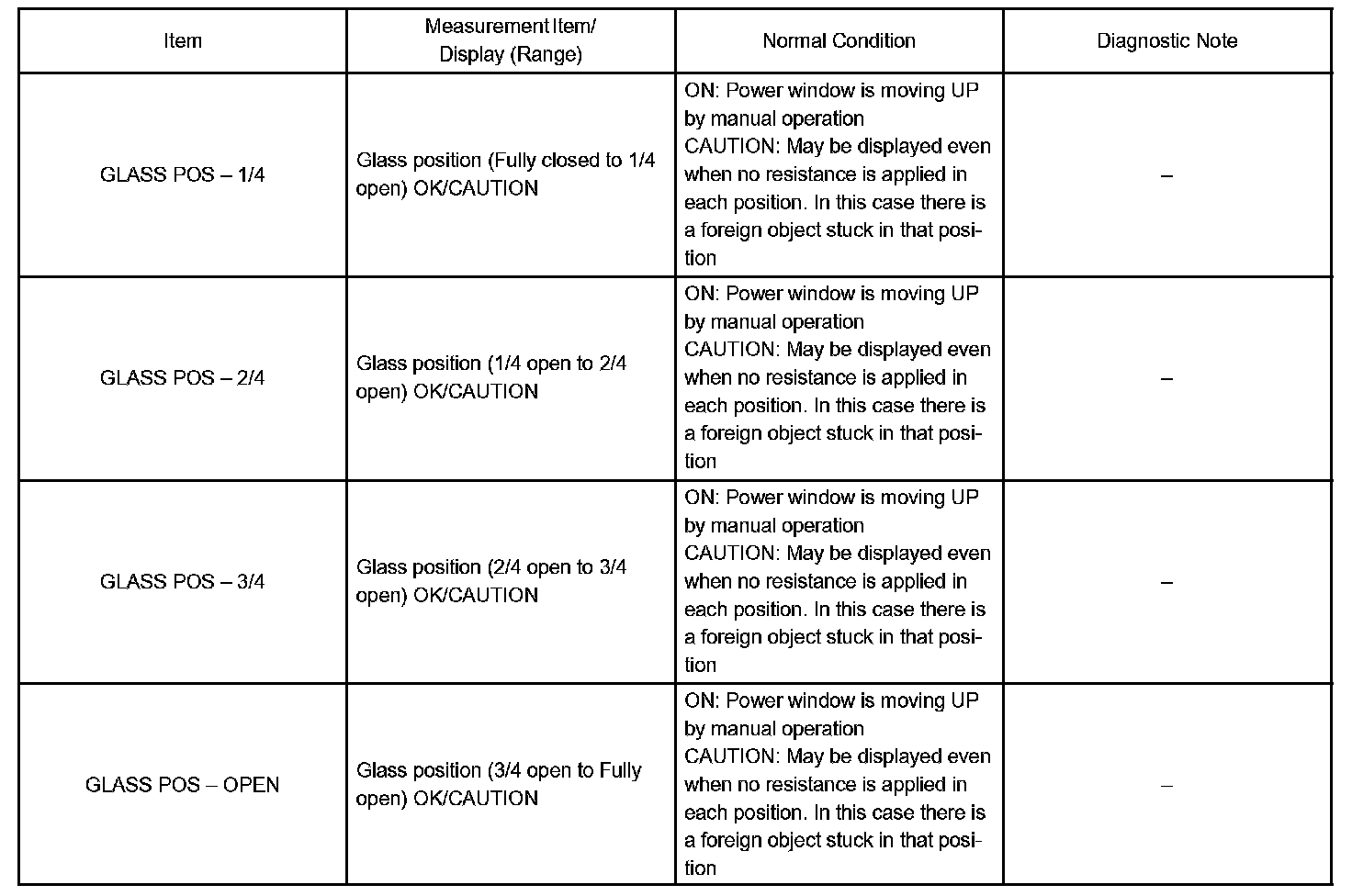

Multiplex network door ECU front LH (Driver door ECU (Glass position))




Multiplex network door ECU front RH (Passenger door ECU (Glass position))

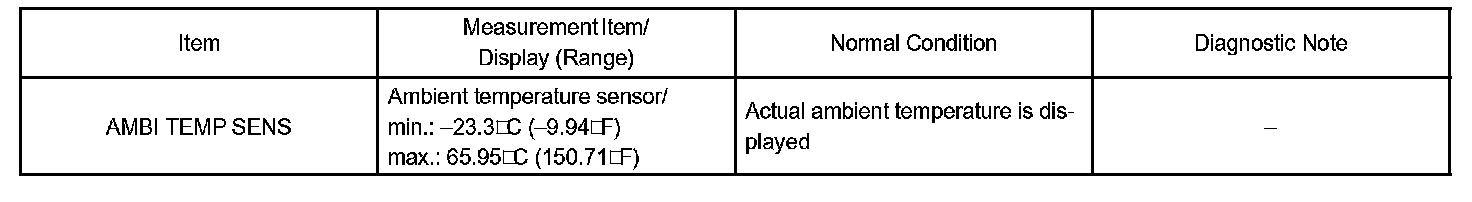

A/C control assembly (A/C amplifier)
