Home >> Lexus >> 2005 >> SC 430 V8-4.3L (3UZ-FE) >> Repair and Diagnosis >> Body and Frame >> Roof and Associated Components >> Convertible Top >> Testing and Inspection >> Pinout Values and Diagnostic Parameters

Pinout Values and Diagnostic Parameters

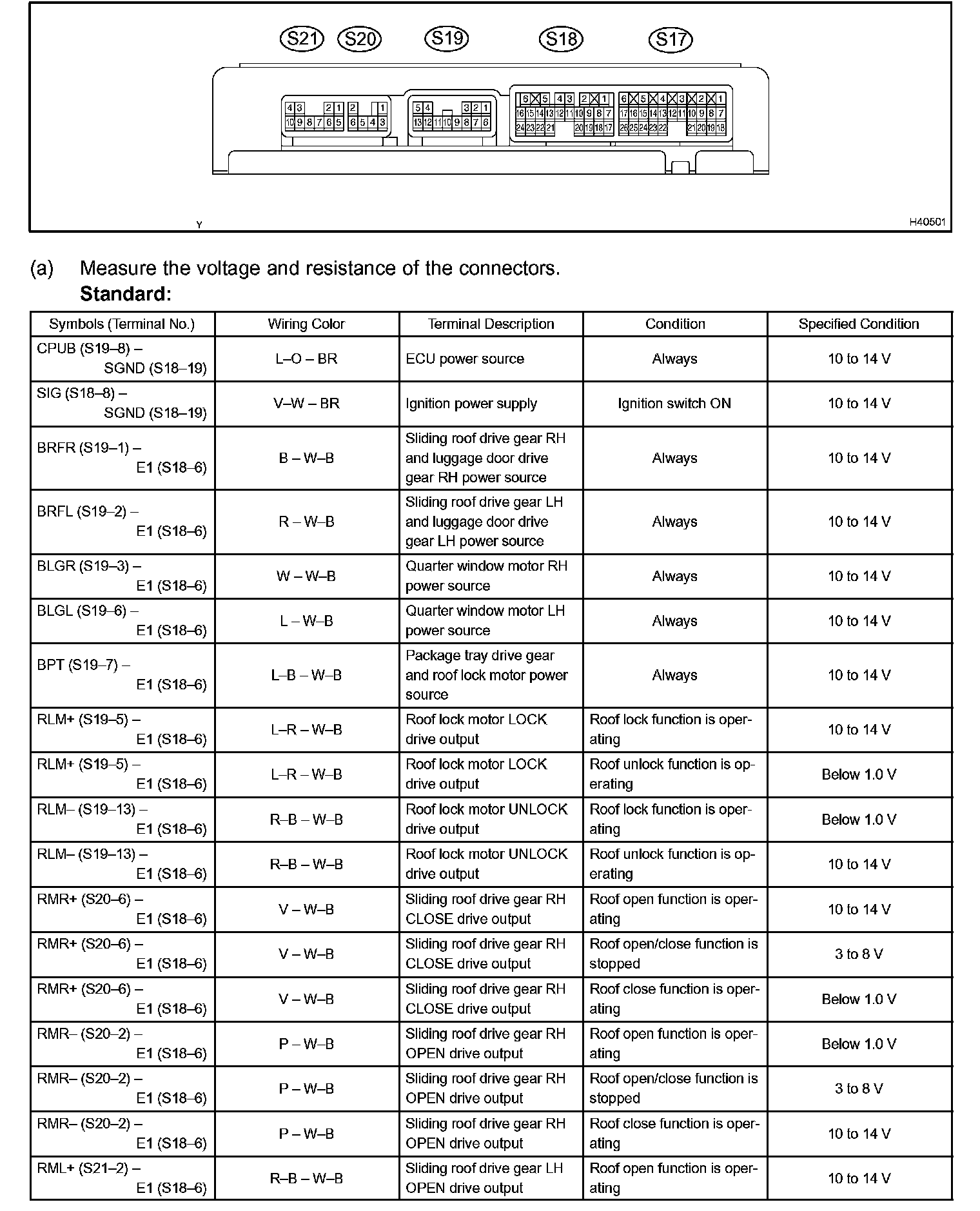

Terminals Of Control Module/Pinouts - Check Sliding Roof Control ECU Assy Part 1:

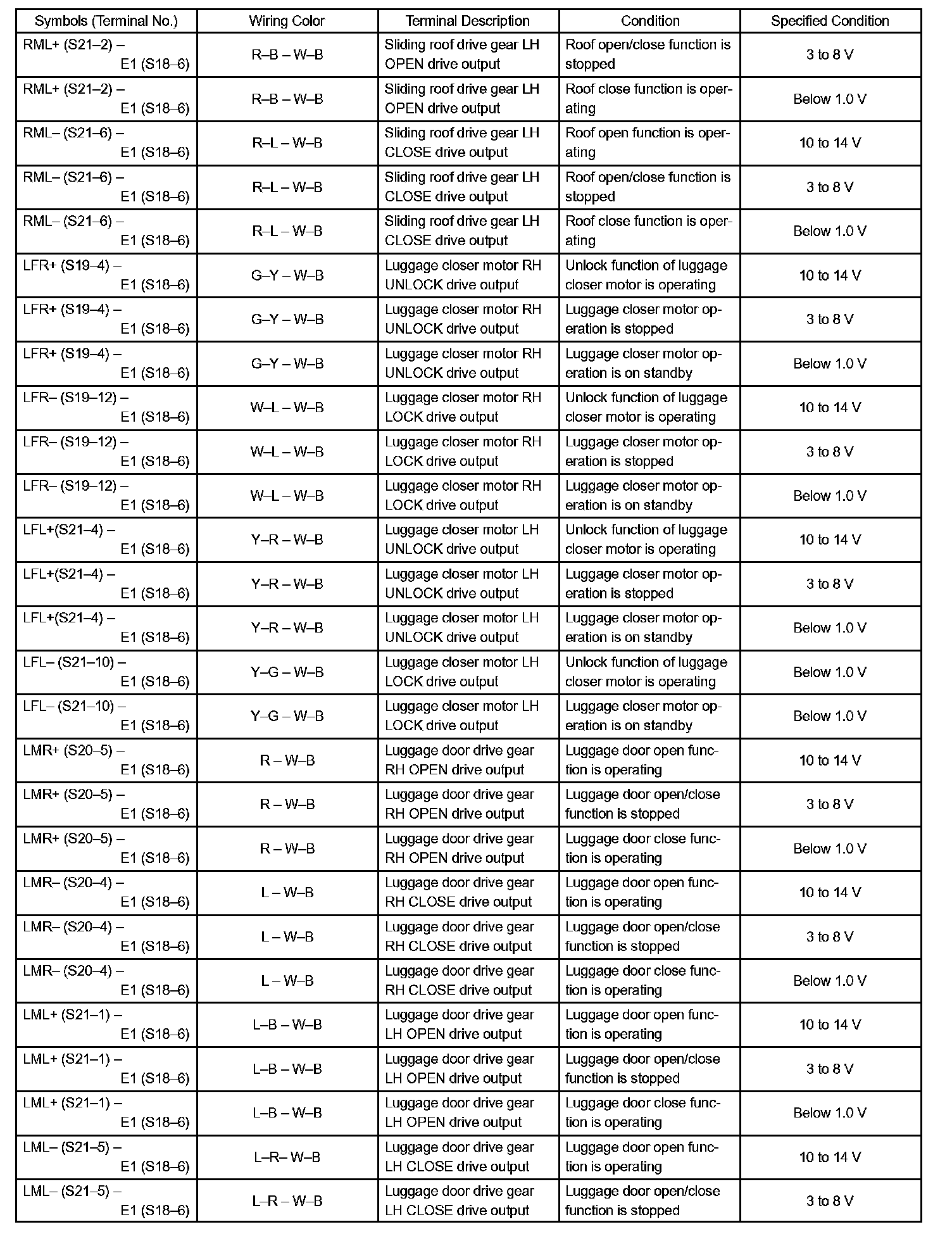

Terminals Of Control Module/Pinouts - Check Sliding Roof Control ECU Assy Part 2:

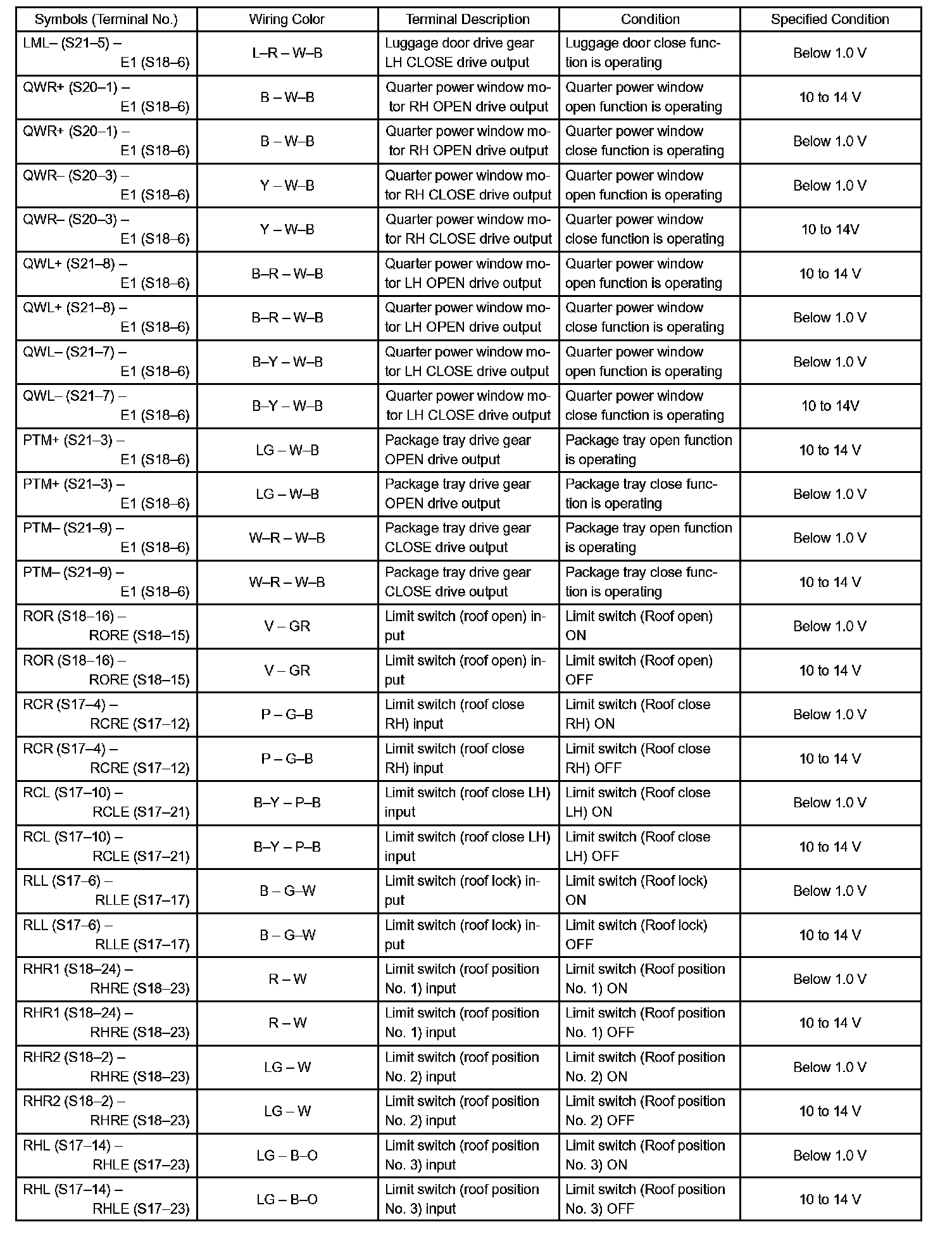

Terminals Of Control Module/Pinouts - Check Sliding Roof Control ECU Assy Part 3:

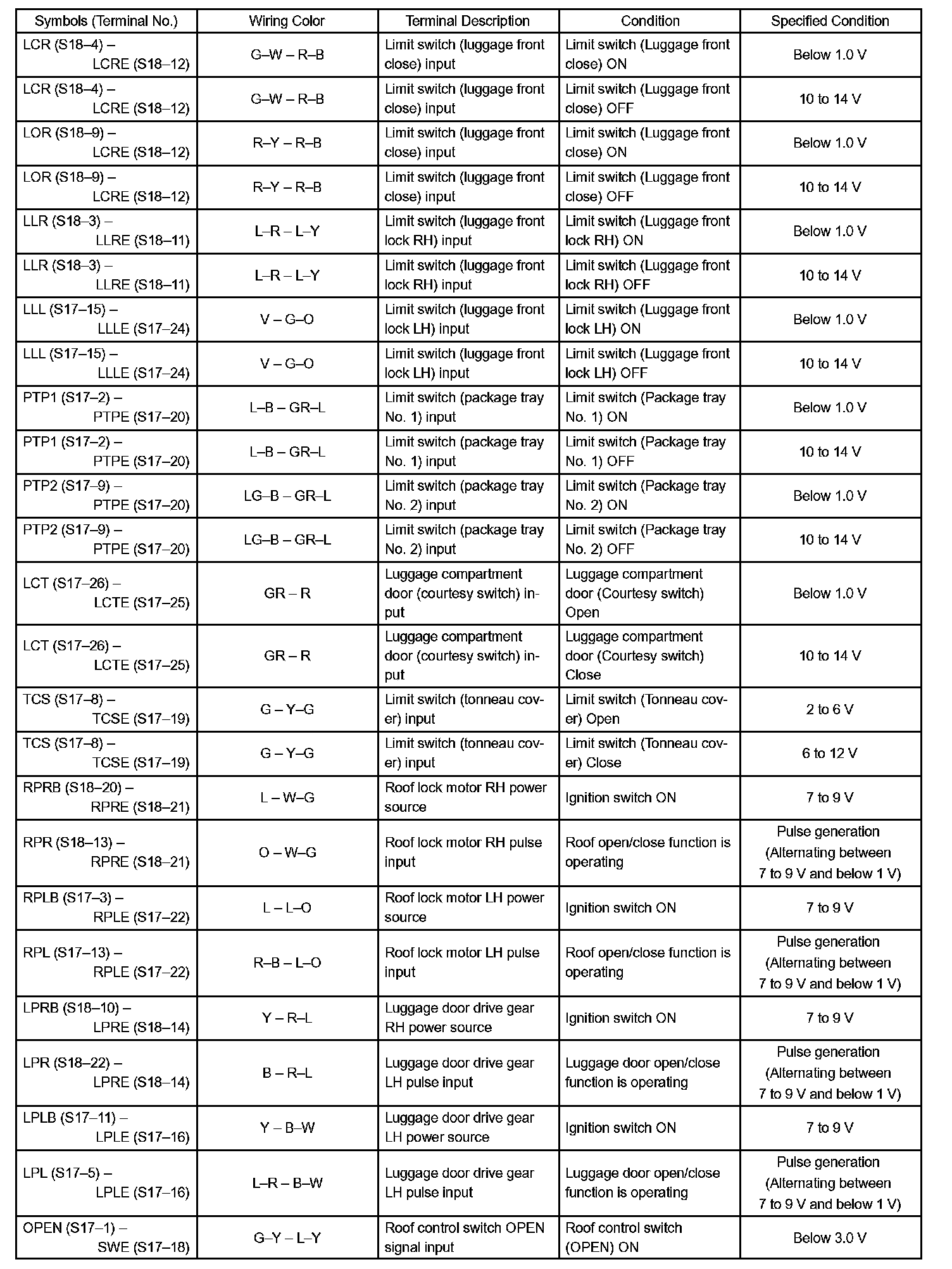

Terminals Of Control Module/Pinouts - Check Sliding Roof Control ECU Assy Part 4:

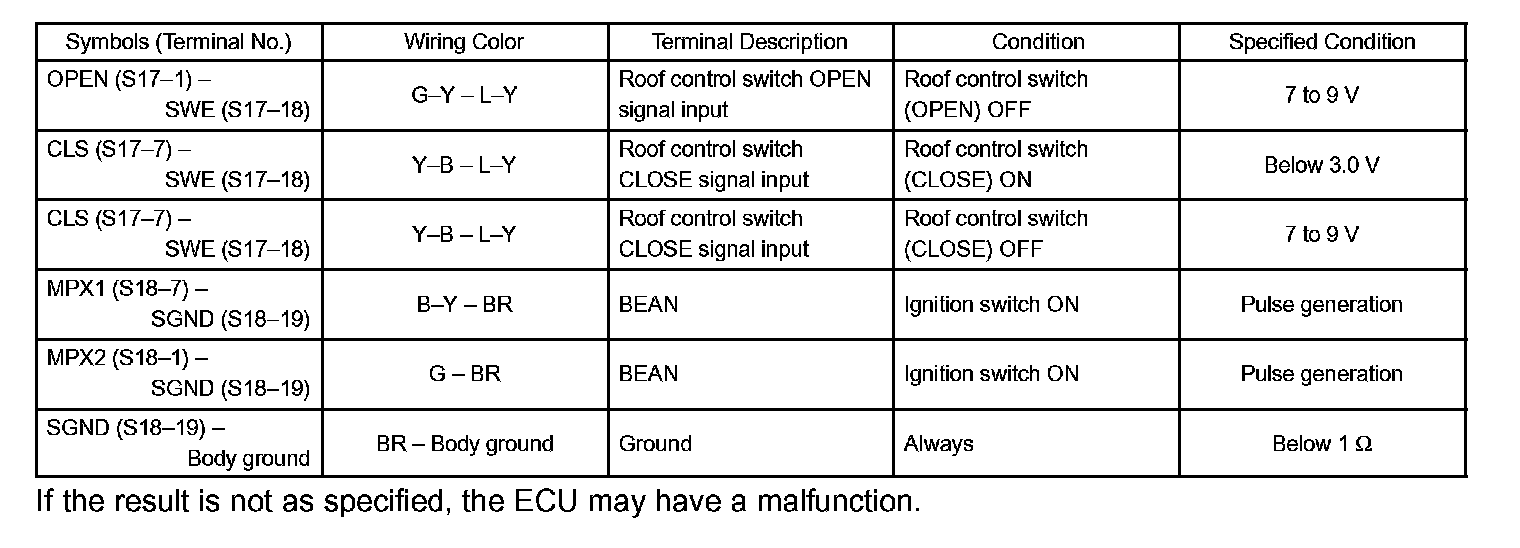

Terminals Of Control Module/Pinouts - Check Sliding Roof Control ECU Assy Part 5:
