ECU Power Source Circuit

ECU POWER SOURCE CIRCUIT

CIRCUIT DESCRIPTION

When the ignition switch is turned ON, battery positive voltage is applied to the coil which closes the contacts of the IG1 relay and supplies power to terminal SIG of the sliding roof control ECU.

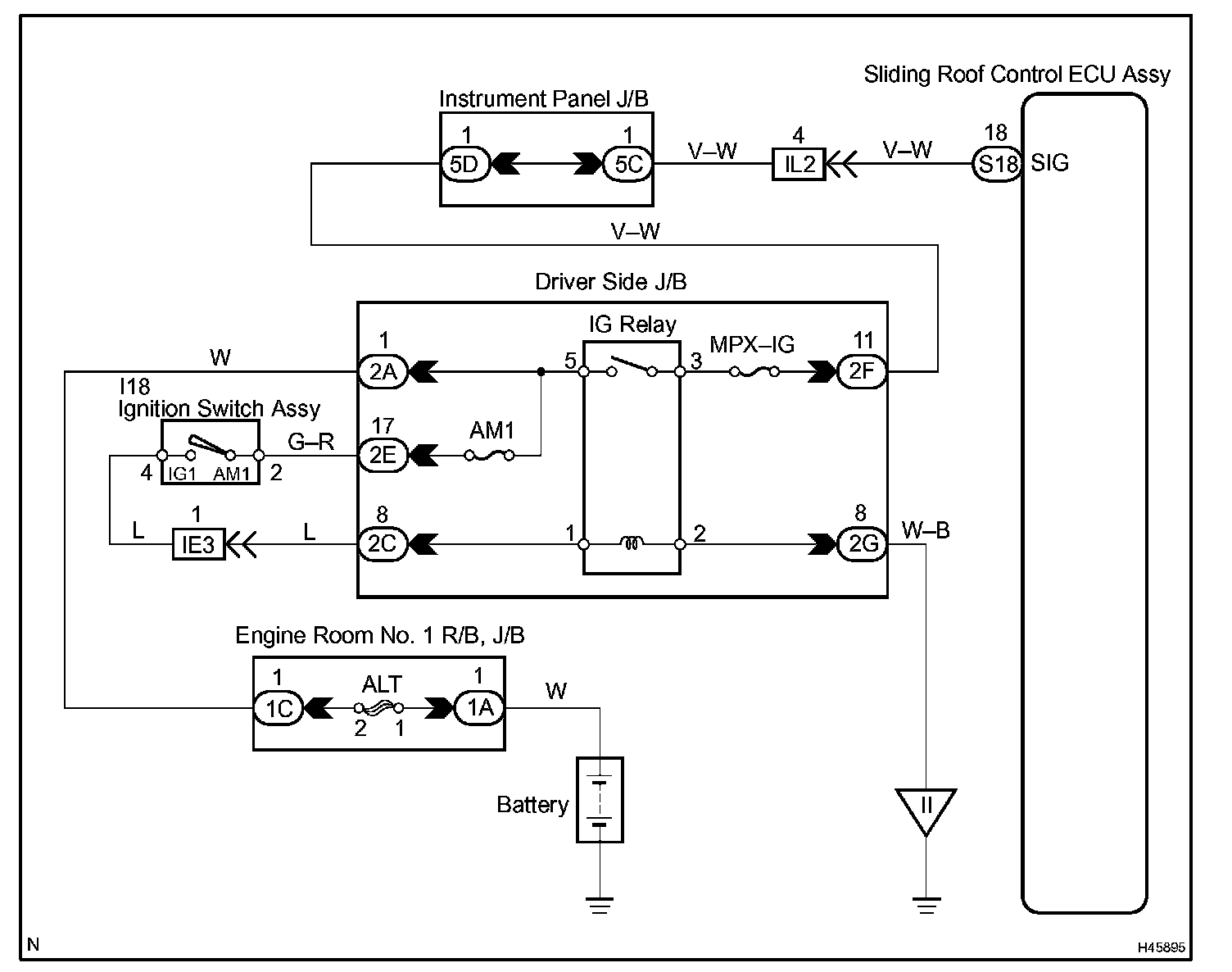

Wiring Diagram:

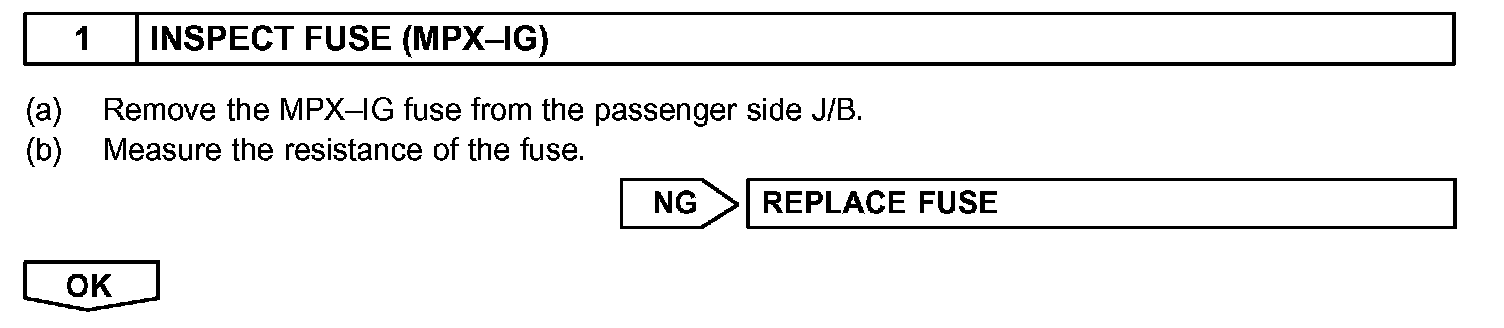

Step 1:

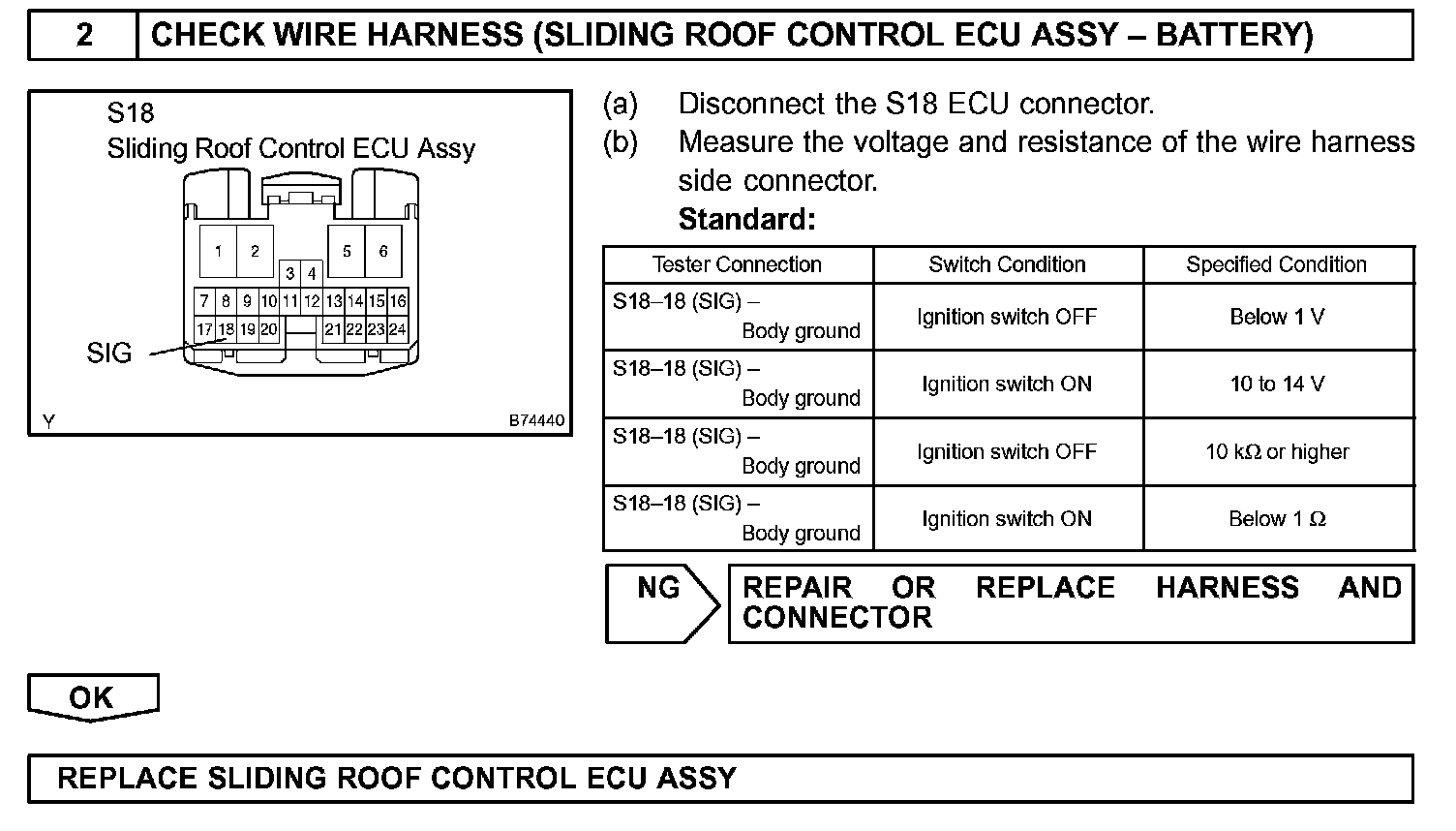

Step 2:

INSPECTION PROCEDURE
