Pinout Values and Diagnostic Parameters

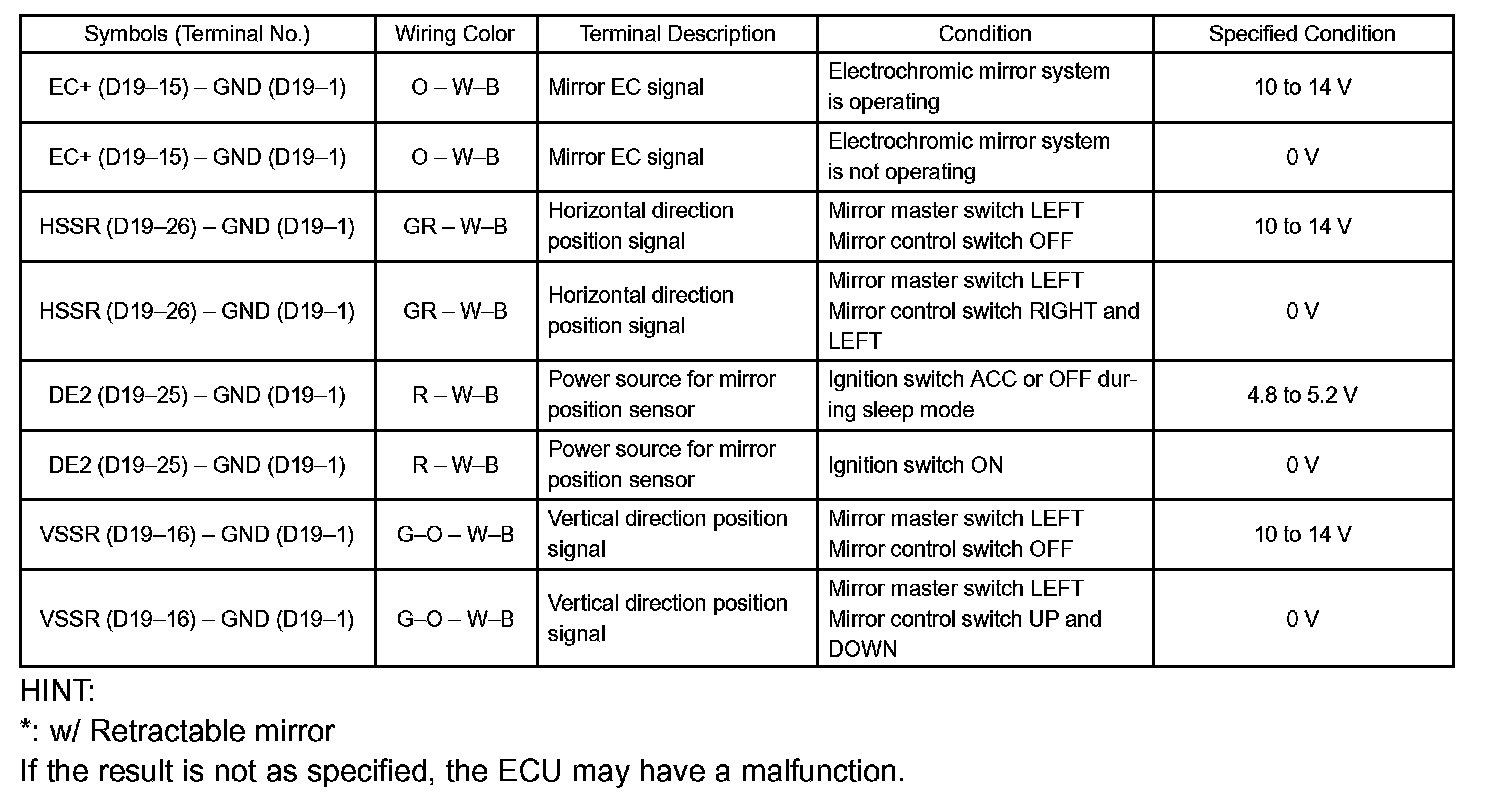

Terminals Of Control Module/Pinouts - Check Multiplex Network Door ECU Front LH (Driver Door ECU) Part 1:

Terminals Of Control Module/Pinouts - Check Multiplex Network Door ECU Front LH(Driver Door ECU) Part 2:

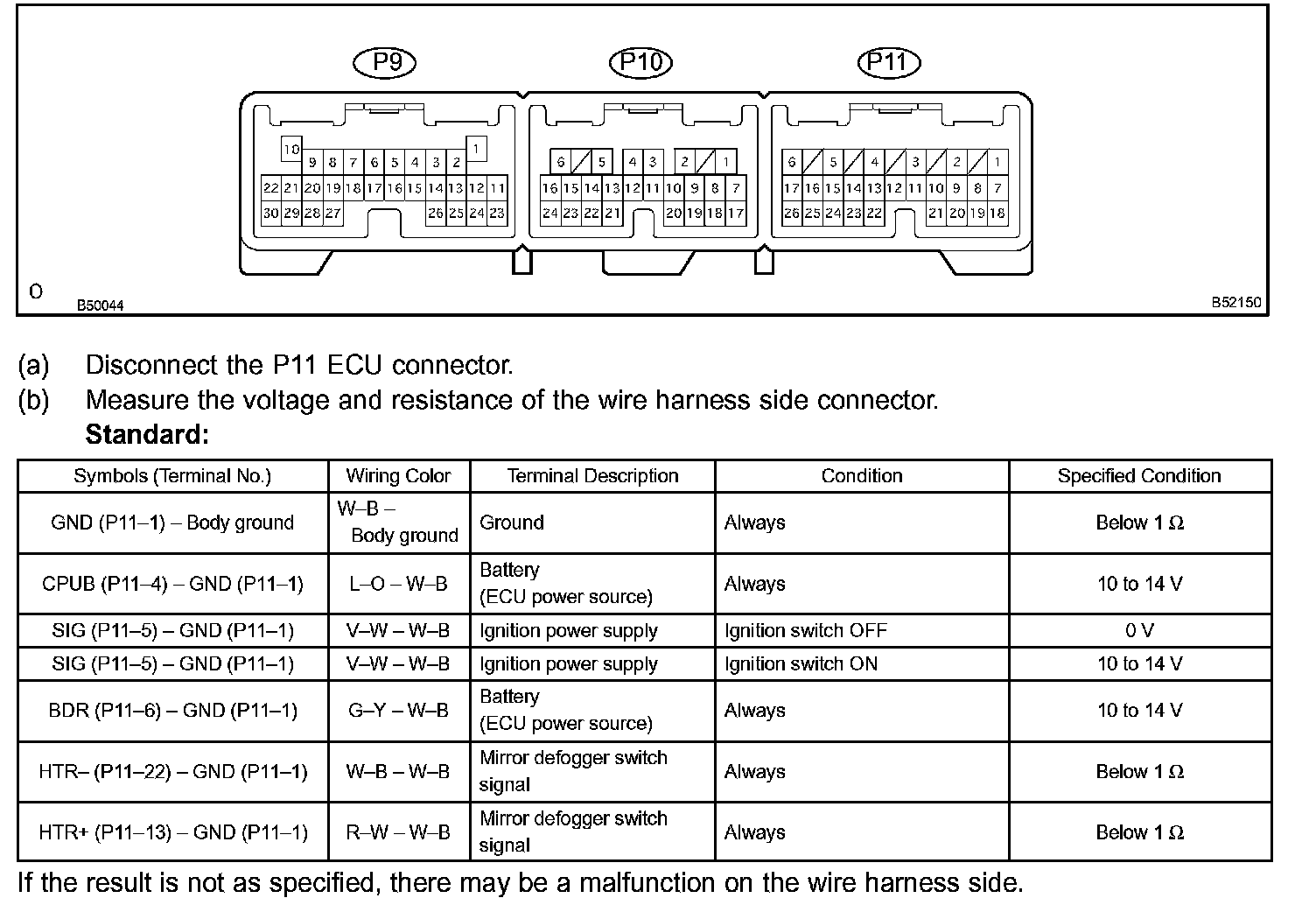

Terminals Of Control Module/Pinouts - Check Multiplex Network Door ECU Front RH(Passemger Door ECU) Part 1:

Terminals Of Control Module/Pinouts - Check Multiplex Network Door ECU Front RH(Passemger Door ECU) Part 2:

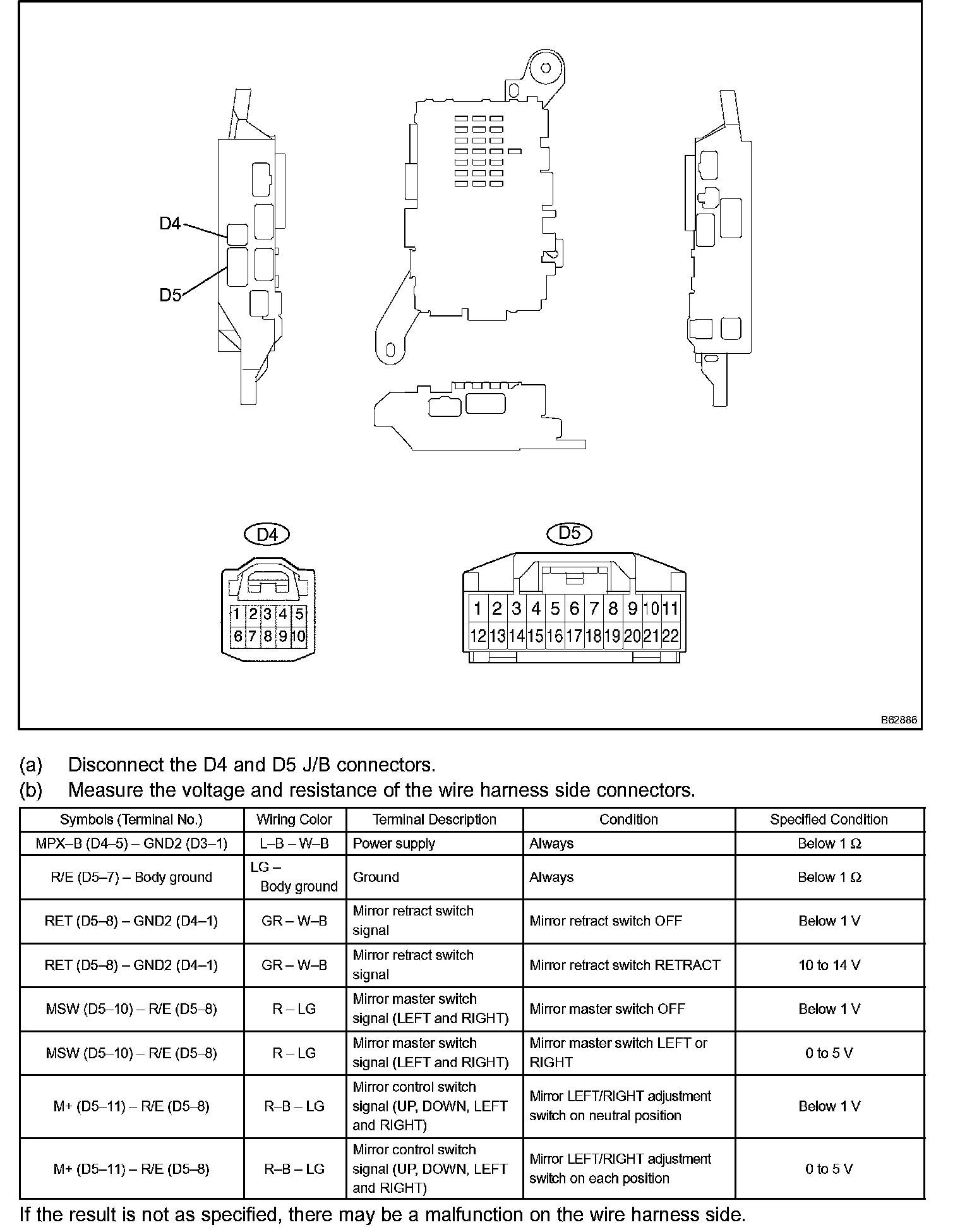

Terminals Of Control Module/Pinouts - Check Driver Side J/B (Driver Side J/B ECU):
