Headliner: Service and Repair

REPLACEMENT

HINT:
- The installation procedures are the removal procedures in reverse order.
- A bolt without a torque specification is shown in the standard bolt chart.

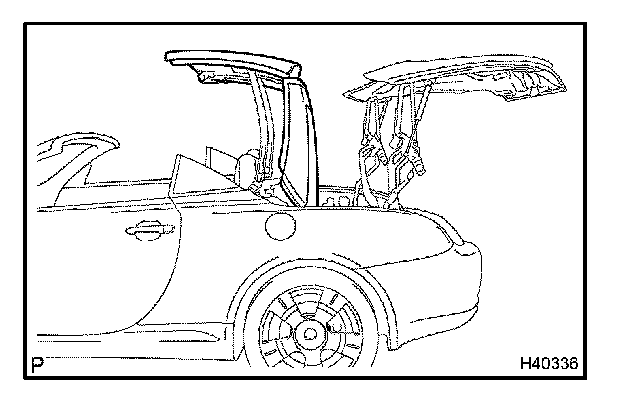

1. OPEN ROOF PANEL HALFWAY

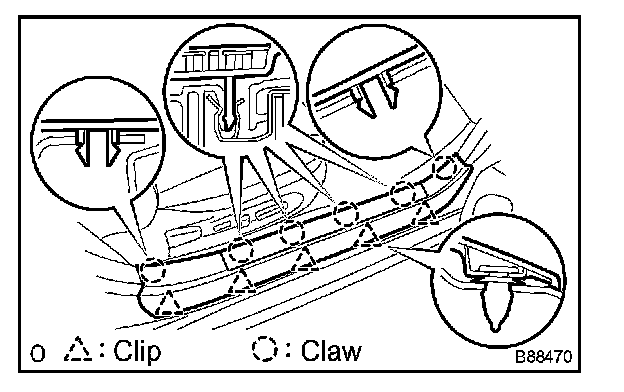

2. REMOVE DOOR SCUFF PLATE ASSEMBLY RH
a. Using a clip remover, detach the 5 clips.
b. Using a screwdriver, detach the 6 claws and remove the scuff plate.

HINT: Tape the screwdriver tip before use.

3. REMOVE DOOR SCUFF PLATE ASSEMBLY LH

HINT: Use the same procedures described for the RH side.

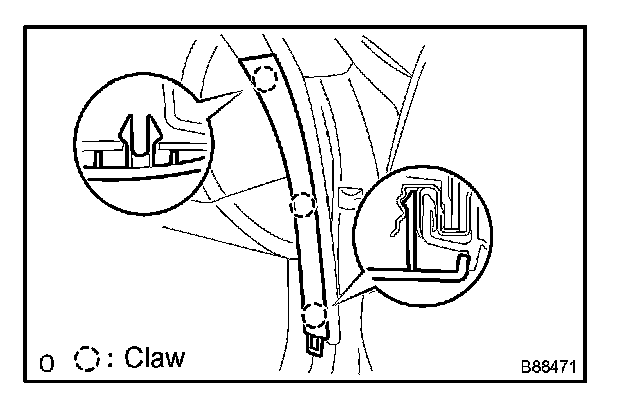

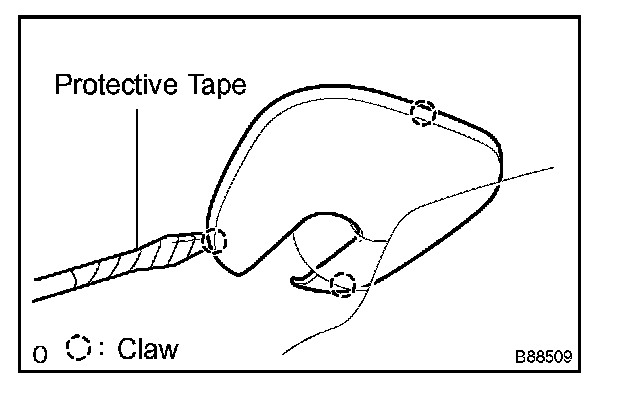

4. REMOVE FRONT DOOR OPENING TRIM COVER RH
a. Using a screwdriver, detach the 3 claws and remove the trim cover.

HINT: Tape the screwdriver tip before use.

5. REMOVE FRONT DOOR OPENING TRIM COVER LH

HINT: Use the same procedures described for the RH side.

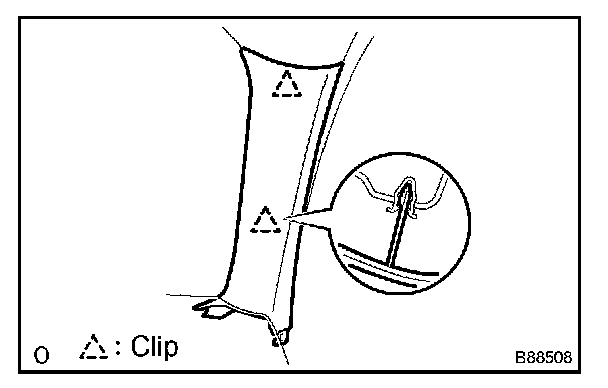

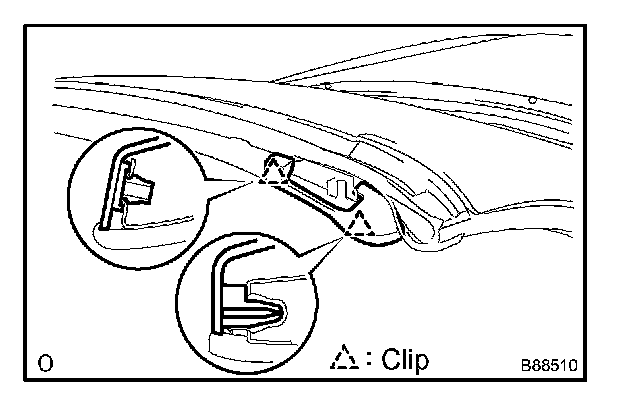

6. REMOVE FRONT PILLAR GARNISH RH
a. Using a screwdriver, detach the 2 clips and remove the garnish.

HINT: Tape the screwdriver tip before use.

7. REMOVE FRONT PILLAR GARNISH LH

HINT: Use the same procedures described for the RH side.




8. REMOVE VISOR BRACKET COVER RH
a. Using a screwdriver, detach the 3 claws and remove the bracket cover.

HINT: Tape the screwdriver tip before use.

9. REMOVE VISOR BRACKET COVER LH

HINT: Use the same procedures described for the RH side.

10. REMOVE RH VISOR ASSEMBLY

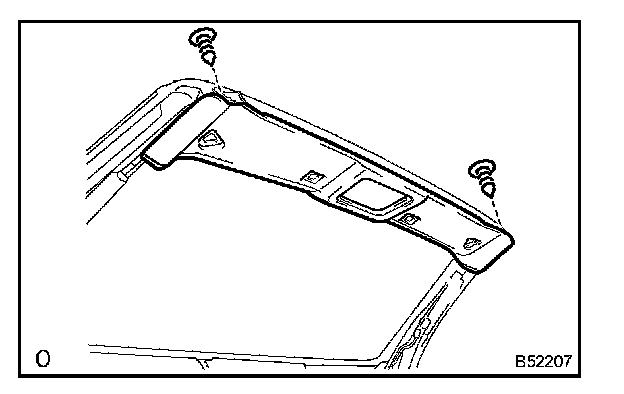

a. Remove the 2 screws and visor.

11. REMOVE LH VISOR ASSEMBLY
a. Remove the 2 screws and visor.

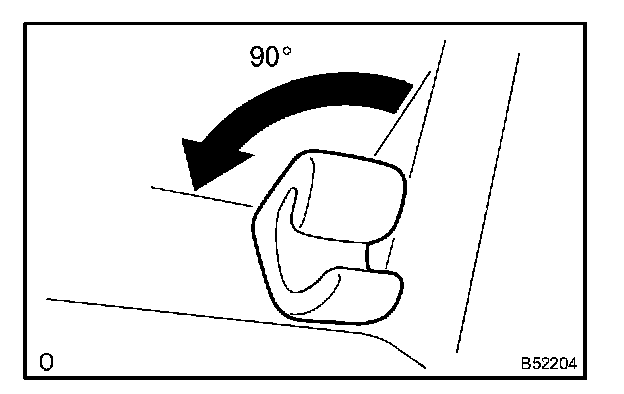

12. REMOVE VISOR HOLDER
a. Remove the 2 holders by turning them counterclockwise.

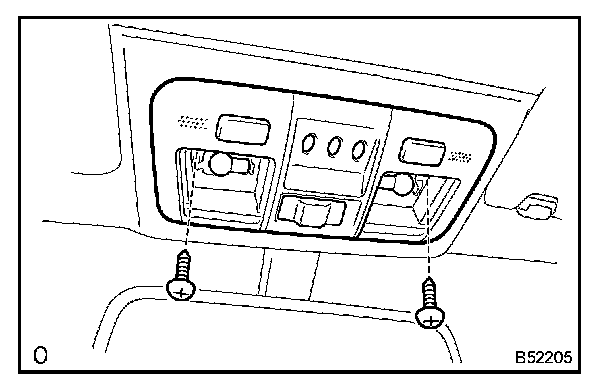

13. REMOVE MAP LAMP ASSEMBLY
a. Using a screwdriver, pry out the 2 lenses.

HINT: Tape the screwdriver tip before use.

b. Remove the 2 screws and map lamp.
c. Disconnect the map lamp connector.




14. REMOVE ROOF FRONT CORNER HEADLINING RH
a. Using a screwdriver, detach the 2 clips and remove the headlining.

HINT: Tape the screwdriver tip before use.

15. REMOVE ROOF FRONT CORNER HEADLINING LH

HINT: Use the same procedures described for the RH side.

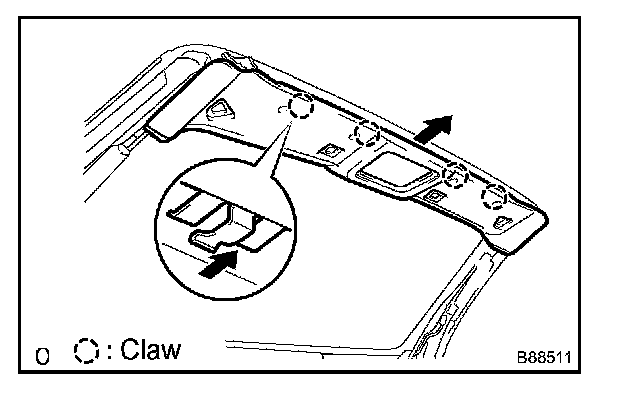

16. REMOVE ROOF HEADLINING ASSEMBLY
a. Using a clip remover, remove the 2 clips.




b. Pull the headlining as indicated by the arrow in the illustration to detach the 4 claws. Then remove the headlining.




17. REMOVE ROOF SIDE RAIL GARNISH ASSEMBLY RH
a. Using a screwdriver, detach the 4 clips and 3 claws. Then remove the garnish.

HINT: Tape the screwdriver tip before use.

18. REMOVE ROOF SIDE RAIL GARNISH ASSEMBLY LH

HINT: Use the same procedures described for the RH side.

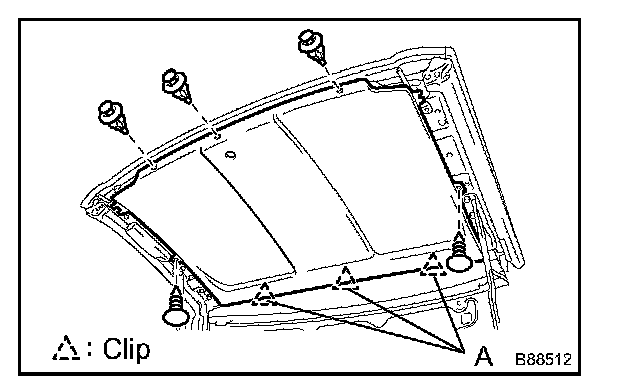

19. REMOVE ROOF HEADLINING ASSEMBLY CENTER
a. Using a clip remover, remove the 5 clips.
b. Using a screwdriver, detach the 3 clips labeled A and remove the headlining.

HINT: Tape the screwdriver tip before use.

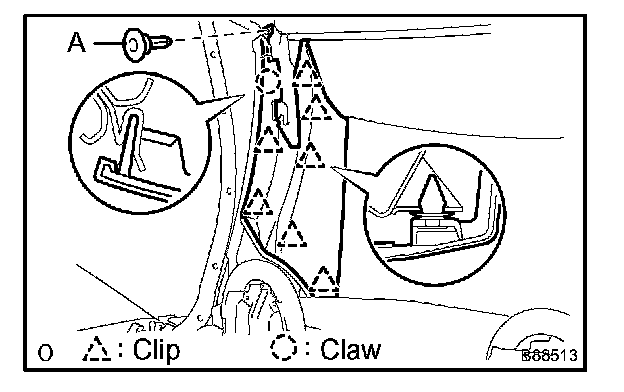

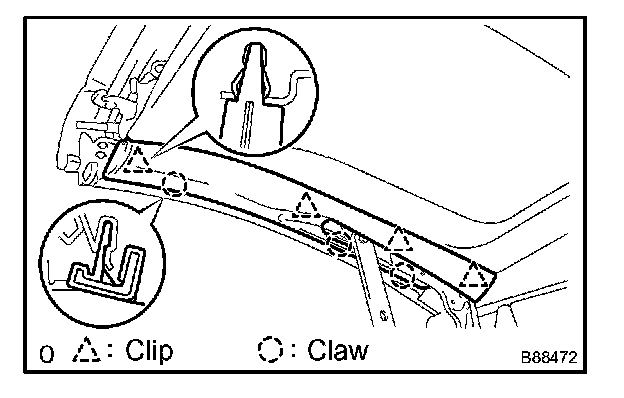

20. REMOVE ROOF SIDE GARNISH INNER RH
a. Using a clip remover, remove the clip labeled A.
b. Using a screwdriver, detach the 7 clips and claw. Then remove the garnish.

HINT: Tape the screwdriver tip before use.

21. REMOVE ROOF SIDE GARNISH INNER LH

HINT: Use the same procedures described for the RH side.

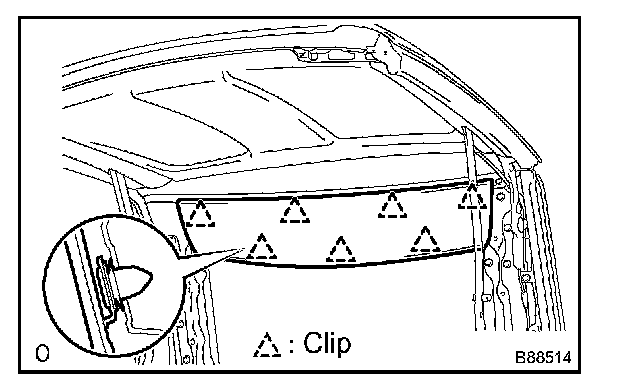

22. REMOVE ROOF HEADLINING ASSEMBLY REAR
a. Using a screwdriver, detach the 7 clips and remove the headlining.

HINT: Tape the screwdriver tip before use.
