Fuel Lid Opening Switch Circuit

FUEL LID OPENING SWITCH CIRCUIT

CIRCUIT DESCRIPTION

The circuit opens the fuel lid when the ECU sends signals to the fuel lid opener switch.

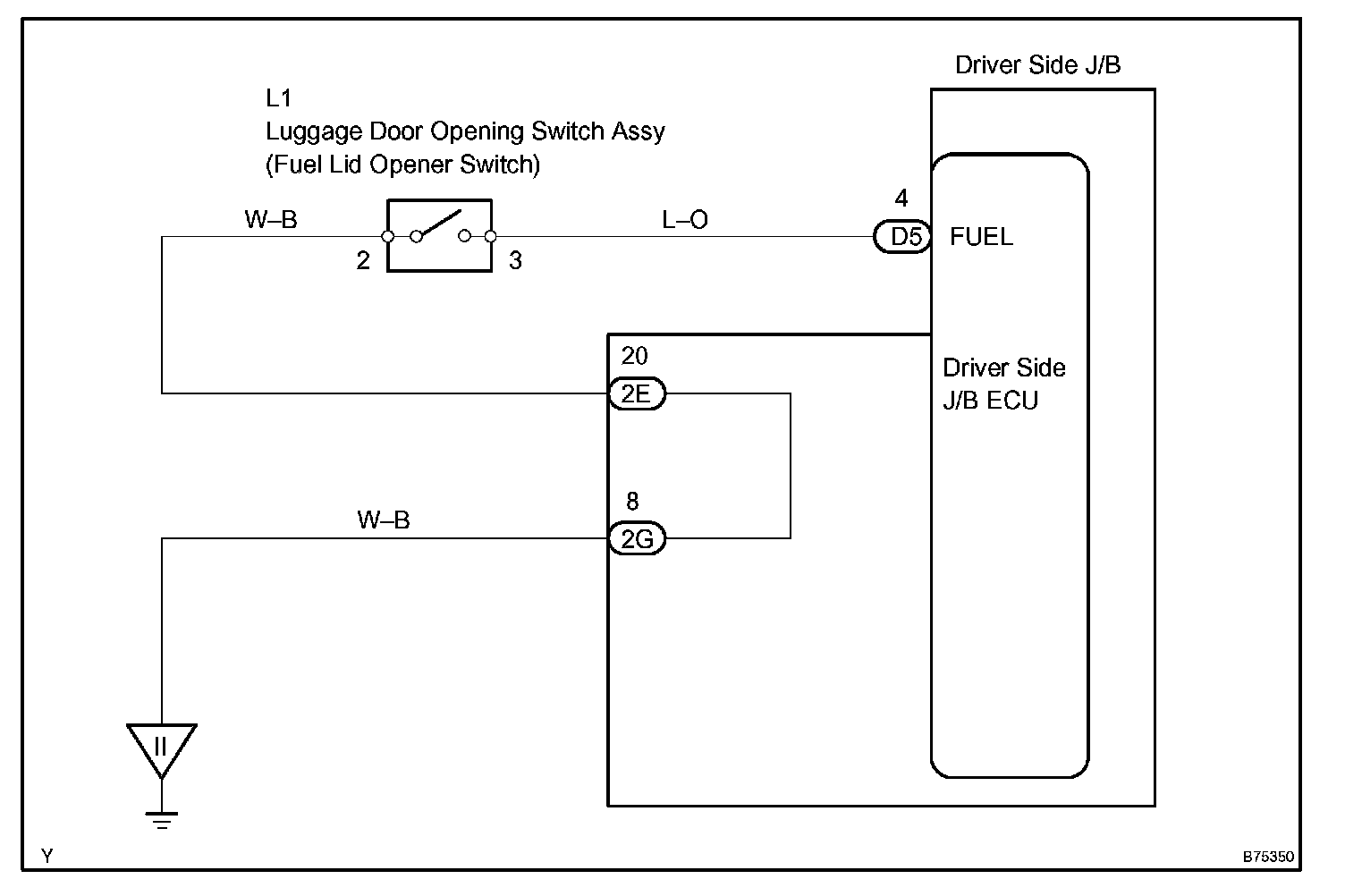

Wiring Diagram:

Step 1 - 2:

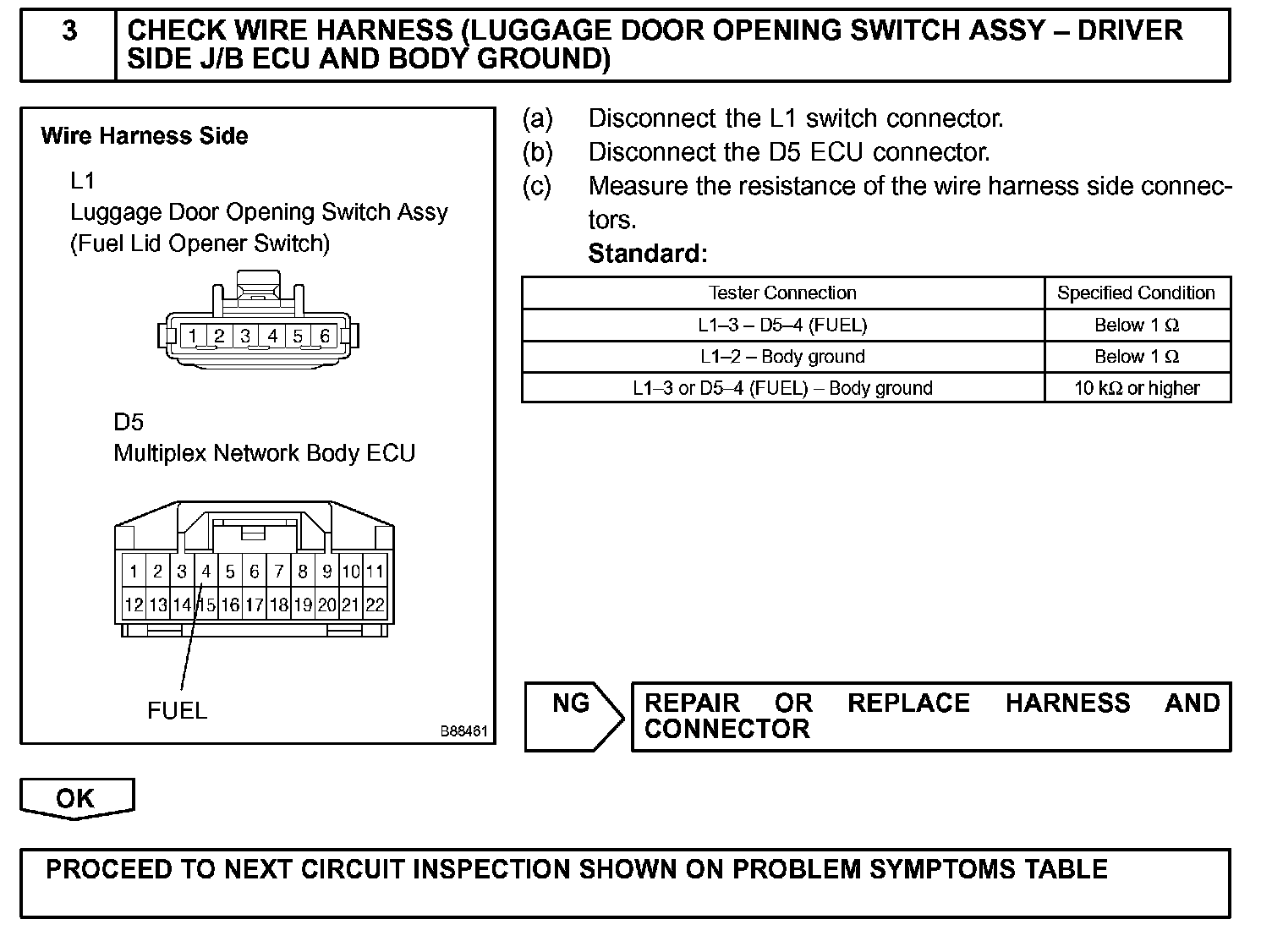

Step 3:

INSPECTION PROCEDURE
