Component Inspection

INSPECTION

1. INSPECT LUGGAGE DOOR OPENING SWITCH ASSEMBLY (FUEL LID OPENER SWITCH)

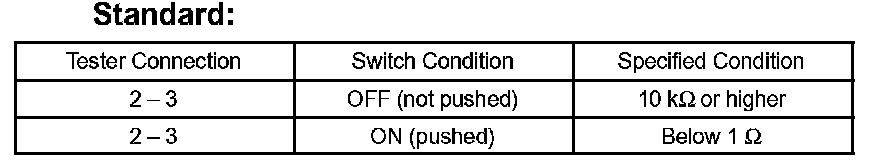

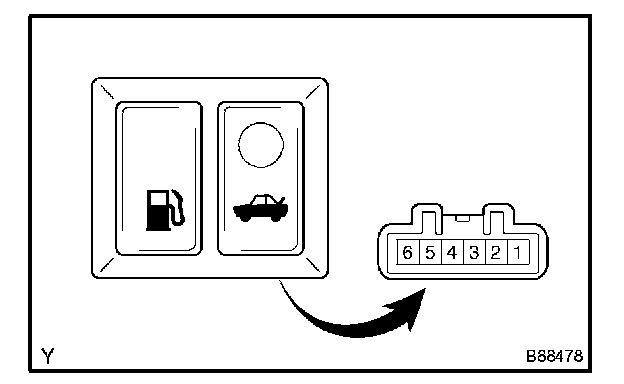

a. Measure the resistance of the switch.




If the result is not as specified, replace the switch assembly.

2. INSPECT FUEL LID LOCK CONTROL CABLE SUB-ASSEMBLY




a. Check operation of the motor.

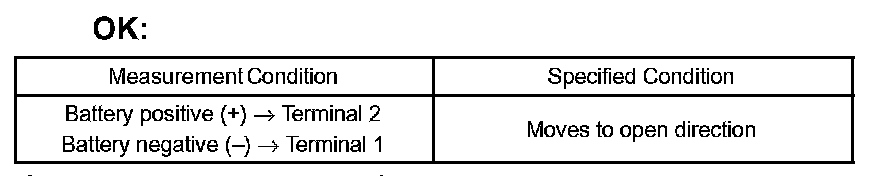

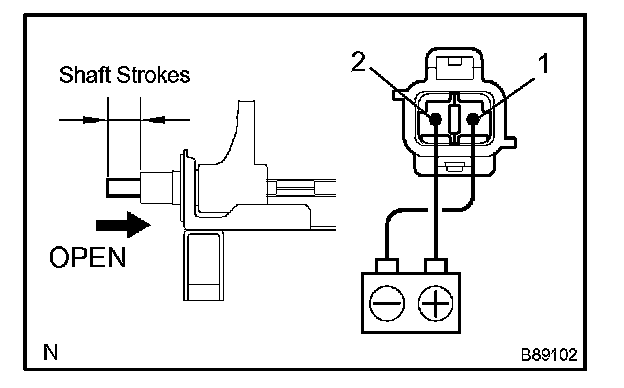

1. Apply battery voltage to the motor and check operation of the motor.




If the result is not as specified, replace the cable sub-assembly.

b. Measure the shaft strokes.

Standard: 10.3 mm (0.406 in.) or more

If the result is not as specified, replace the cable sub-assembly.
