Symptom Related Diagnostic Procedures

PROBLEM SYMPTOMS TABLE

HINT: Use the table to help determine the cause of the problem symptom. The potential causes of the symptoms are listed in order of probability in the "Suspected Area" column of the table.Check each symptom by checking the suspected areas in the order they are listed.Replace parts as necessary.

Problem Symptoms Table Part 1:

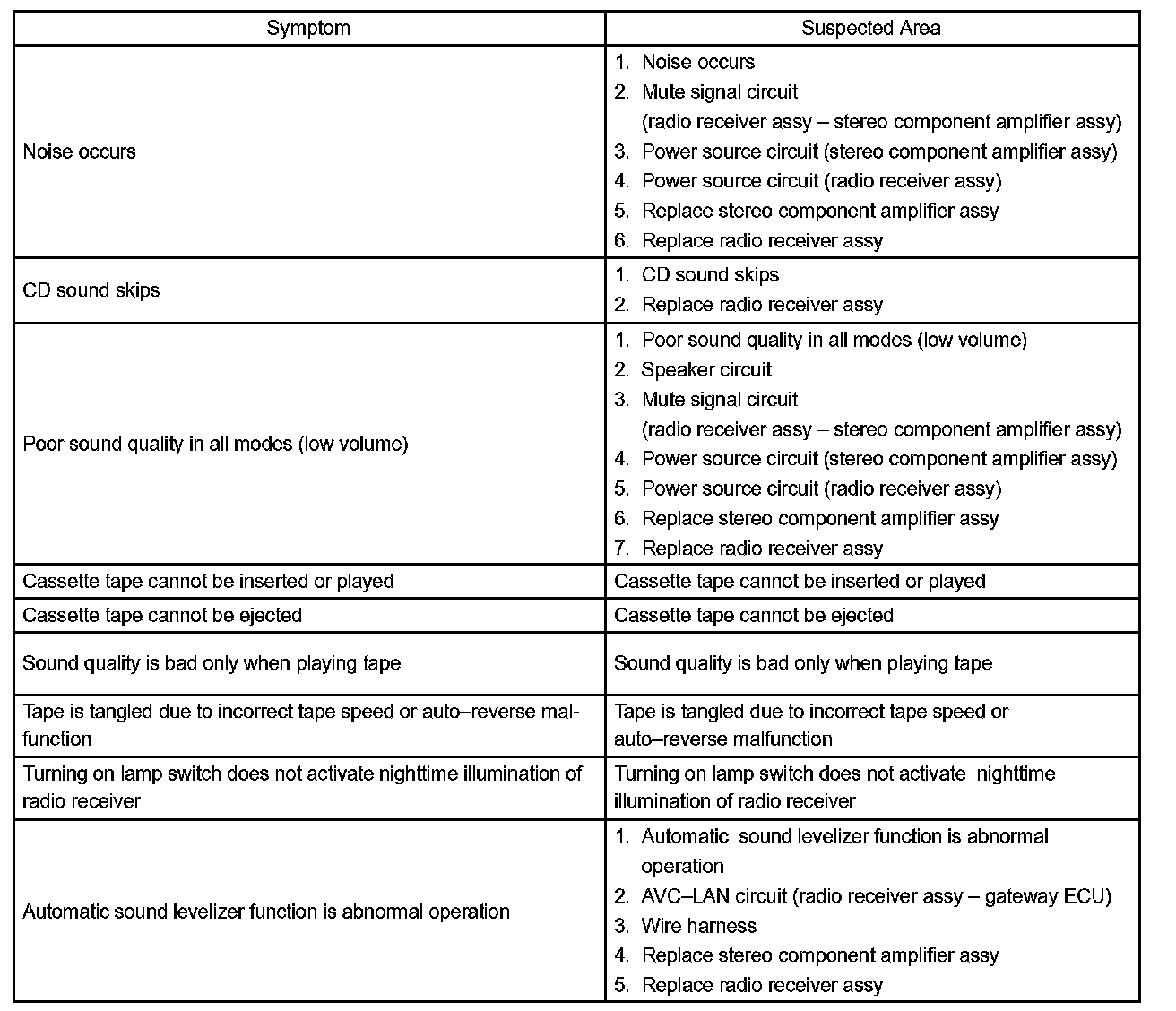

Problem Symptoms Table Part 2:

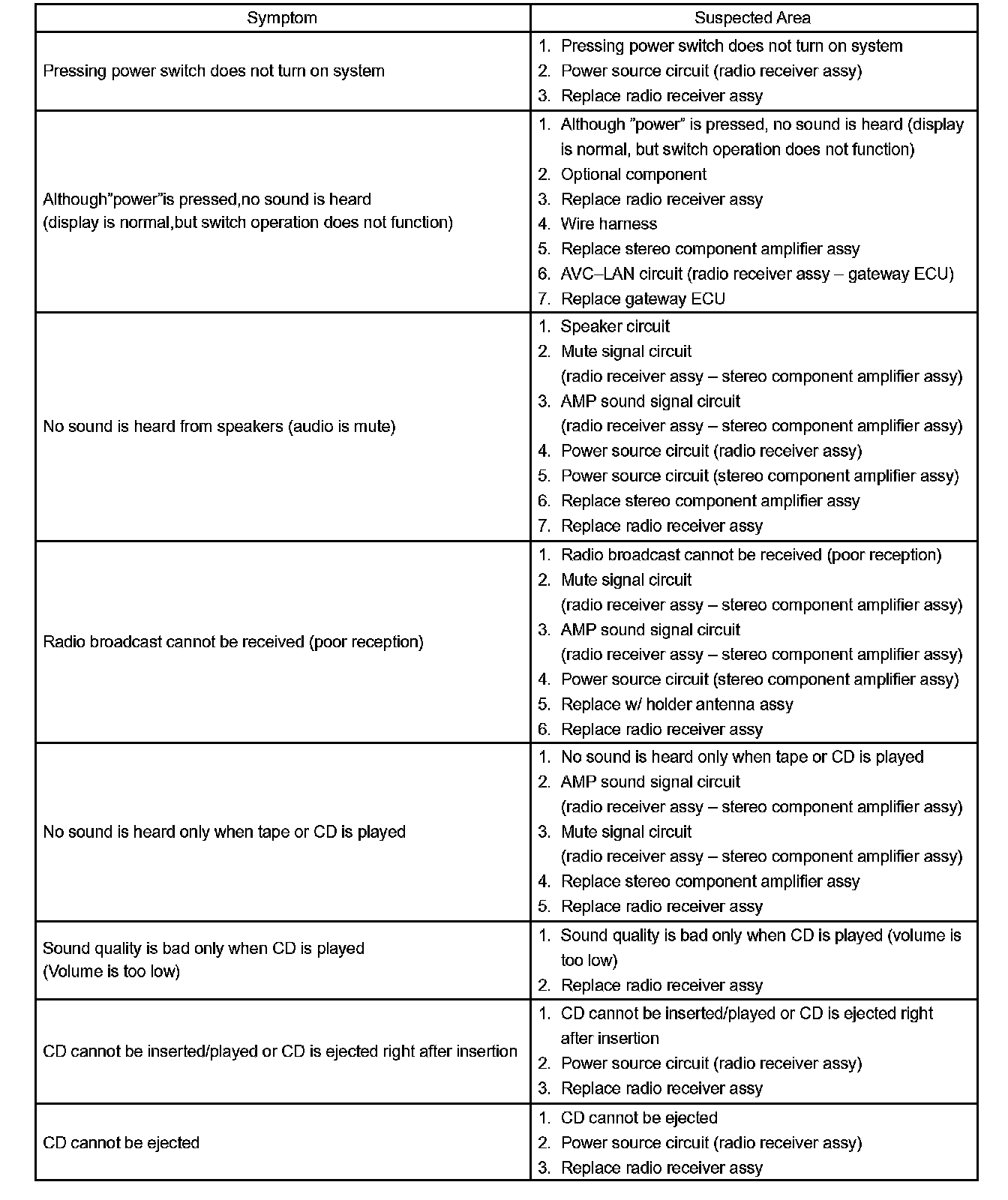

AUDIO FUNCTION

Problem Symptoms Table:

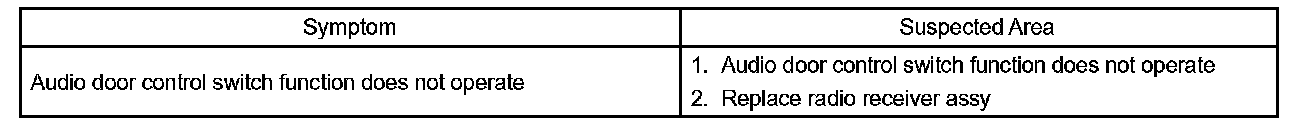

AUDIO DOOR CONTROL SWITCH FUNCTION

Problem Symptoms Table:

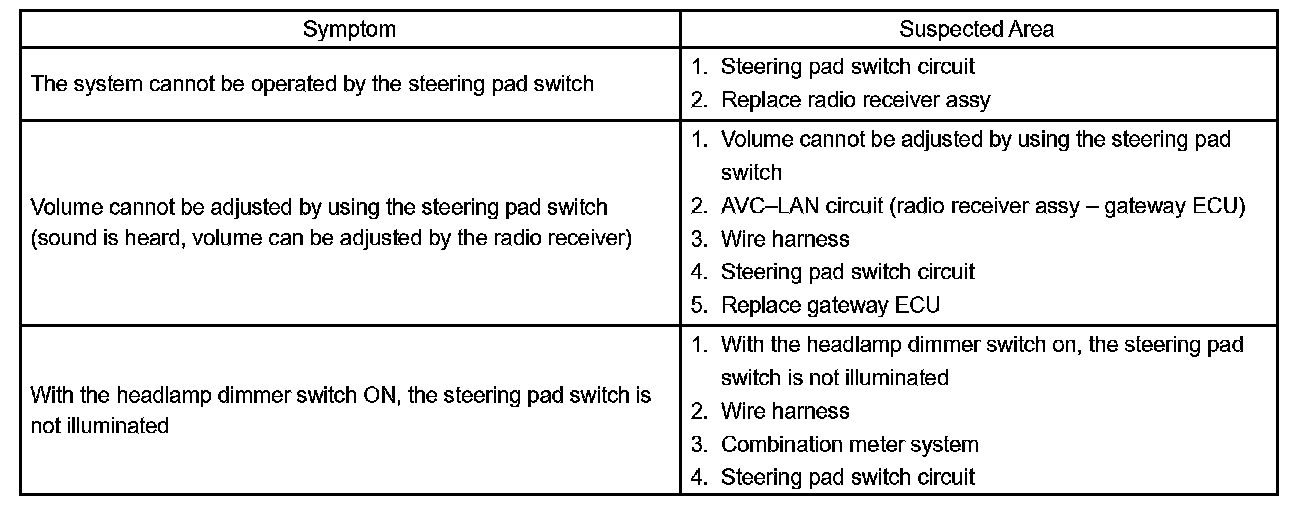

STEERING PAD FUNCTION
